ESBE CRA112 Quick Start Manual

ESBE CRA112 Quick Start Manual

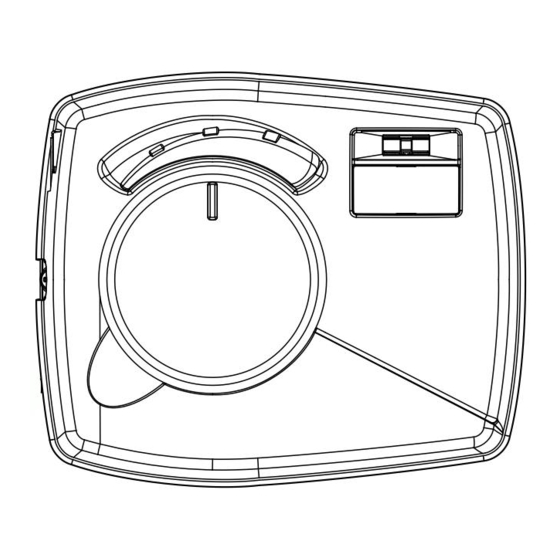

Setpoint temperature controller

Advertisement

Quick Links

Distributed by Danfoss in North America
www.NA.Heating.Danfoss.com
Mtrl.nr. 9814 09 32 Ritn.nr. 8419 utg. A • Rev. 1506

Selection Operation

24V
230V
+
+
SERIES CRA112
Setpoint Temperature Controller
24V
+
A
+
B
C
+
Series CRA112
LVD 2006/95/EC
EMC 2004/108/EC
RoHS 2002/95/EEC
Ambient temp:
23°F to 131°F (-5°C to 55°C)
Flow temp. range:
41°F to 200°F (5°C to 95°C)
Power supply:
24 ± 10%, 60 Hz
Power consumption:
3VA
Max run time at max speed:
30 seconds
Weight:
2 lbs (0,9 kg)
Torque:
53.1 in.lbs (6 Nm)
Enclosure rating:
NEMA 2 (IP41)
Mountable to ESBE 3MG, 4MG, Type G and VRG valves up to 2"
Start up
1. Set the required rotation
of the controller by pushing
the rocker to the right for
clockwise opening or left for
counter clockwise opening (A).
2. Keep the rocker in the
desired direction and connect
power (B).
3. Wait 2 seconds before
releasing the rocker (C), the
desired controller rotation
is now set.
T °C

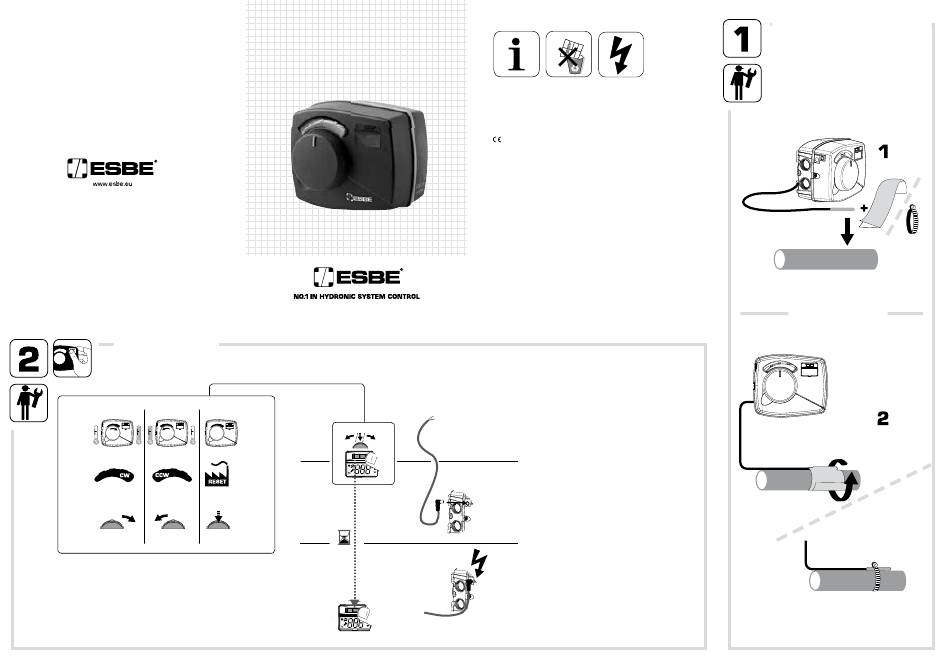

Temperature Sensor Installation

Wrap the sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRA112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ESBE CRA112

  • Page 1 Torque: 53.1 in.lbs (6 Nm) Enclosure rating: NEMA 2 (IP41) Mountable to ESBE 3MG, 4MG, Type G and VRG valves up to 2" Wrap the sensor Mtrl.nr. 9814 09 32 Ritn.nr. 8419 utg. A • Rev. 1506 Selection Operation Start up 1.
  • Page 2 Maximum Temperature Limitation Default: 1200F (490C) °F = M AX ° Maximum temperature Max°F setting: 2000F (950C) Return to Setpoint Display — 4 seconds M AX 20 seconds 4 seconds — — — — — Wait Press and hold Press Adjust Press Press and hold...
  • Page 3 Changing of Setpoint, Primary T °F — — — Adjust Press Wait °F / °C Temperature Unit Display Max 100 T2 °F 10 seconds — — — — — — — Press Press and hold Wait Scroll Press Adjust — —...
  • Page 4 — — Secondary Temperature Setpoint (activated by external signal) Adjust Press Wait Remove power to the actuator! Externally Wired Relay Max 100 T2 °F Changing of Setpoint Secondary Temperature — — — T °F Max 100 Adjust Press Wait Changing of Setpoint Primary Temperature —...
