ESBE CRA122 Series Quick Start Manual

Distributed by Danfoss in North America
www.NA.Heating.Danfoss.com
Mtrl.nr. 98140911• Ritn.nr. 8412 utg. A • Rev. 1505

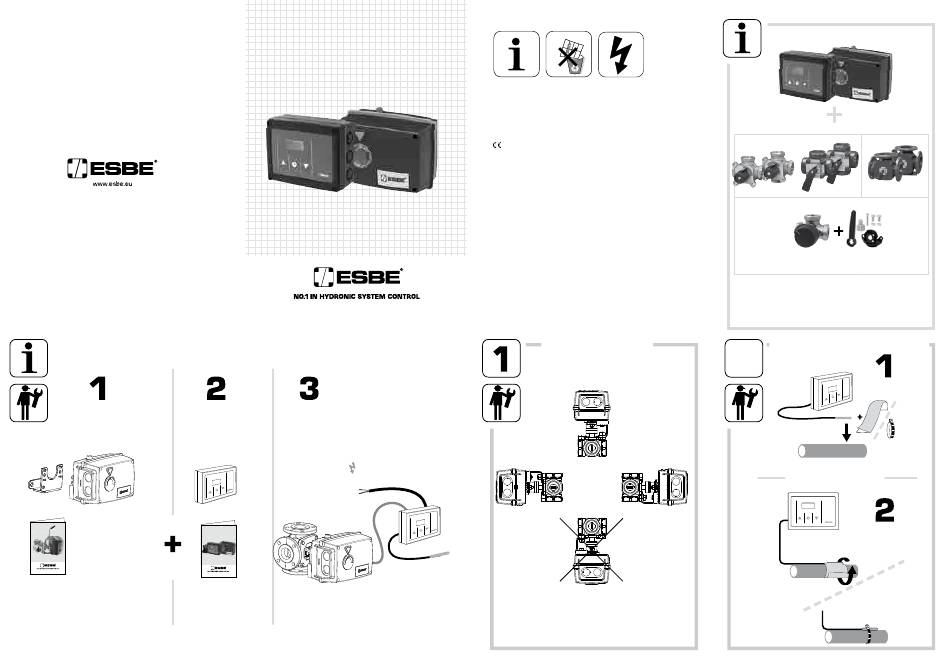

CRA122 Package Contents
ADAPT ER K IT 900
SERIES CRA120
SERIES CRA122
Setpoint Temperature Controller
Power source
24 VAC
Series CRA122
LVD 2006/95/EC
EMC 2004/108/EC
RoHS 2002/95/EEC
Ambient temp: 23°F to 131°F (-5°C to 55°C)
Flow temp. range: 4°F to 200°F (5°C to 95°C)
Power supply: 24 ± 10%, 60 Hz
Power consumption: 3VA
Max run time at max speed: 120 seconds
Weight: 2 lbs (0,9 kg)
Assembly Orientation
CRA100, CRB100
3MG, 4MG 3G, 4G 3F, 4F up to 6"
VRG valves + Mounting Kit
(ordered separately
code NO: 193B1616)
2
Temperature Sensor Installation
Wrap the sensor
