Lector De Tarjeta Sd; Removing Sd Card Reader - Dell Precision 7550 Service Manual

Steps
1. Place the touchpad buttons into its slot in the palmrest.
2. Replace the two (M2x2.5) screws to secure the touchpad buttons to the palmrest
3. Connect the touchpad buttons cable to the connector in the touchpad.
Next steps
1. Install the inner frame.
2. Install the primary M.2 SSD.
3. Install the battery.
4. Install the base cover.
5. Install the SD card.
6. Follow the procedure in

Lector de tarjeta SD

Removing SD card reader

Prerequisites
1. Follow the procedure in
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the primary M.2
6. Remove the WWAN card.
7. Remove the WLAN card.
8. Remove the inner frame.
About this task

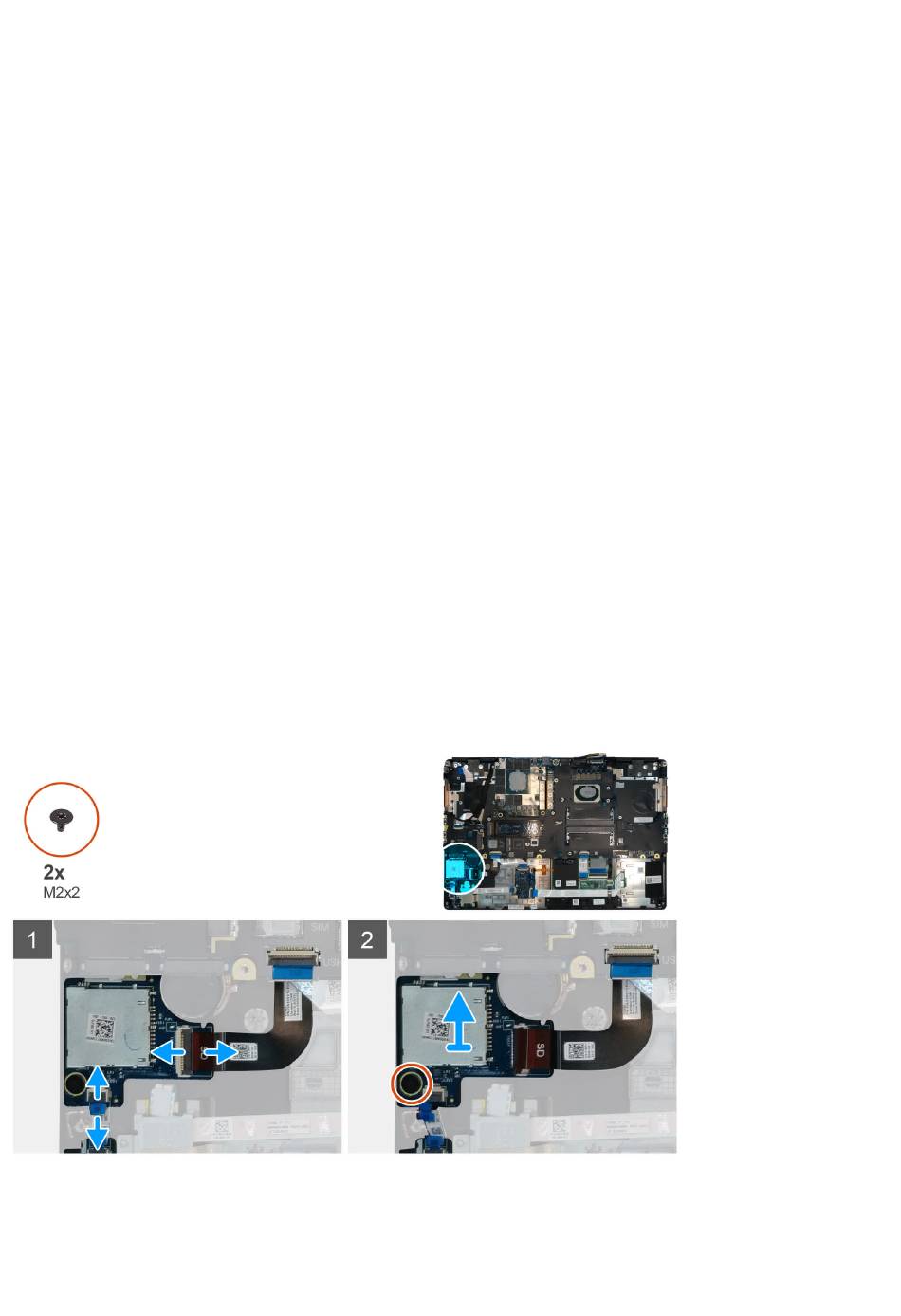

The figure indicates the location of the SD card reader and provides a visual representation of the removal procedure.
Steps
1. Disconnect the SD card reader cable from the connector on the system board.
after working inside your computer.
before working inside your
SSD.
computer.
Desmontaje y reensamblaje 55
