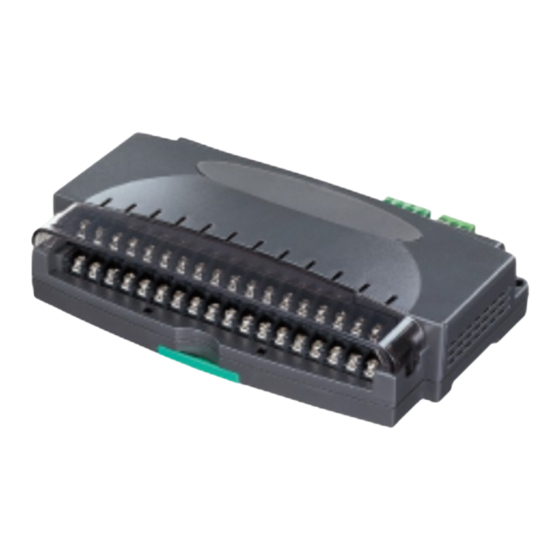

Rtd & potentiometer input module (8 points)

Advertisement

Quick Links

INSTRUCTION MANUAL
RTD & POTENTIOMETER INPUT MODULE
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
This product is for use in general industrial environments,
therefore may not be suitable for applications which require
higher level of safety (e.g. safety or accident prevention sys-
tems) or of reliability (e.g. vehicle control or combustion con-
trol systems).
For safety, installation and maintenance of this product
must be conducted by qualified personnel.
■ PACKAGE INCLUDES:
Remote I/O module .............................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
For detailed information on Modbus supported functions,
refer to Modbus Protocol Reference Guide (EM-5650).
The R1M is programmable using the PC configurator soft-
ware. For detailed information on the PC configuration,
refer to the R1CON instruction manual. The R1CON PC
Configurator Software is downloadable at our web site.
POINTS OF CAUTION
■ CONFORMITY WITH EU DIRECTIVES
• This equipment is suitable for Pollution Degree 2 and
Installation Category II (transient voltage 2500V). Re-
inforced insulation (input or RS-232-C/RS-485 to power:
300V) and basic insulation (input to RS-232-C/RS-485:
300V) are maintained. Prior to installation, check that
the insulation class of this unit satisfies the system re-
quirements.
• Altitude up to 2000 meters.
• The equipment must be mounted inside a panel.
• Insert noise filters.
Okaya Electric Industries Model
SUP-E1H or equivalent for the power source connected to
the unit, and TDK Model ZCAT 3035-1330 or equivalent
for the RS-232-C cable are recommended.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
(8 points)
MODEL
• The equipment must be installed such that appropriate
clearance and creepage distances are maintained to con-
form to CE requirements. Failure to observe these re-
quirements may invalidate the CE conformance.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may af-
fect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure the CE conform-
ity.
• Install lightning surge protectors for those wires connect-
ed to remote locations.
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
100 – 240V AC rating: 85 – 264V, 47 – 66 Hz, approx. 10VA
24V DC rating: 24V ±10%, approx. 7W
■ GENERAL PRECAUTIONS
• Before you remove the module, turn off the power supply
and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the air,
install the module inside proper housing with sufficient
ventilation.
• Do not install the module where it is subjected to continu-
ous vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +60°C
(23 to 140°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
• Be sure that the ventilation slits are not covered with ca-
bles, etc.
■ WIRING
• Wrong connection may damage the module.
• Do not connect cables to moving parts or pull them tightly.
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The module is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required
for satisfying complete performance described in the data
sheet.
R1M-J3
EM-5655 Rev.7 P. 1 / 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1M-J3 and is the answer not in the manual?

Questions and answers

Summary of Contents for MG R1M-J3

  • Page 1 TDK Model ZCAT 3035-1330 or equivalent sheet. for the RS-232-C cable are recommended. EM-5655 Rev.7 P. 1 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 2: Component Identification

    19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 35 163 (6.42) 3 (.12) 40 (1.57) [6 (.24)] FOR WALL MOUNT. 6.2 (.24) 36–M3 INPUT TERMINALS EM-5655 Rev.7 P. 2 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 3 Received Data AB (SG) Signal Common CB (CS) Clear to Send CA (RS) Request to Send Not Used. DO NOT connect. Connecting may cause malfunctions. EM-5655 Rev.7 P. 3 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 4: Wiring Instructions

    *1. Internal terminating resistor is used when the device is at the end of a transmission line. *2. Install shielded cables to all sections and ground them at single point. EM-5655 Rev.7 P. 4 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 5: Modbus Communication

    Slave type / ‘RUN’ status Program 884/M84 Reset Comm. Link Read General Reference Write General Reference Mask Write 4X Register Read/Write 4X Register Read FIFO Queue EM-5655 Rev.7 P. 5 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 6 • 32-bit Integer, No sign (R1M-A1) Address n, High-order Address n+1, Low order High order bytes Low order bytes High order bytes Low order bytes EM-5655 Rev.7 P. 6 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 7 Indicates whether the cold junction compensation is enabled or disabled, for thermocouple input. 0 : Disable 1 : Enable Others Reserved For system’s use EM-5655 Rev.7 P. 7 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 8: Adjustment Procedure

    ADJUSTMENT PROCEDURE This unit is calibrated at the factory to meet the ordered specifications, therefore you usually do not need any cali- bration. EM-5655 Rev.7 P. 8 / 8 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
