4.

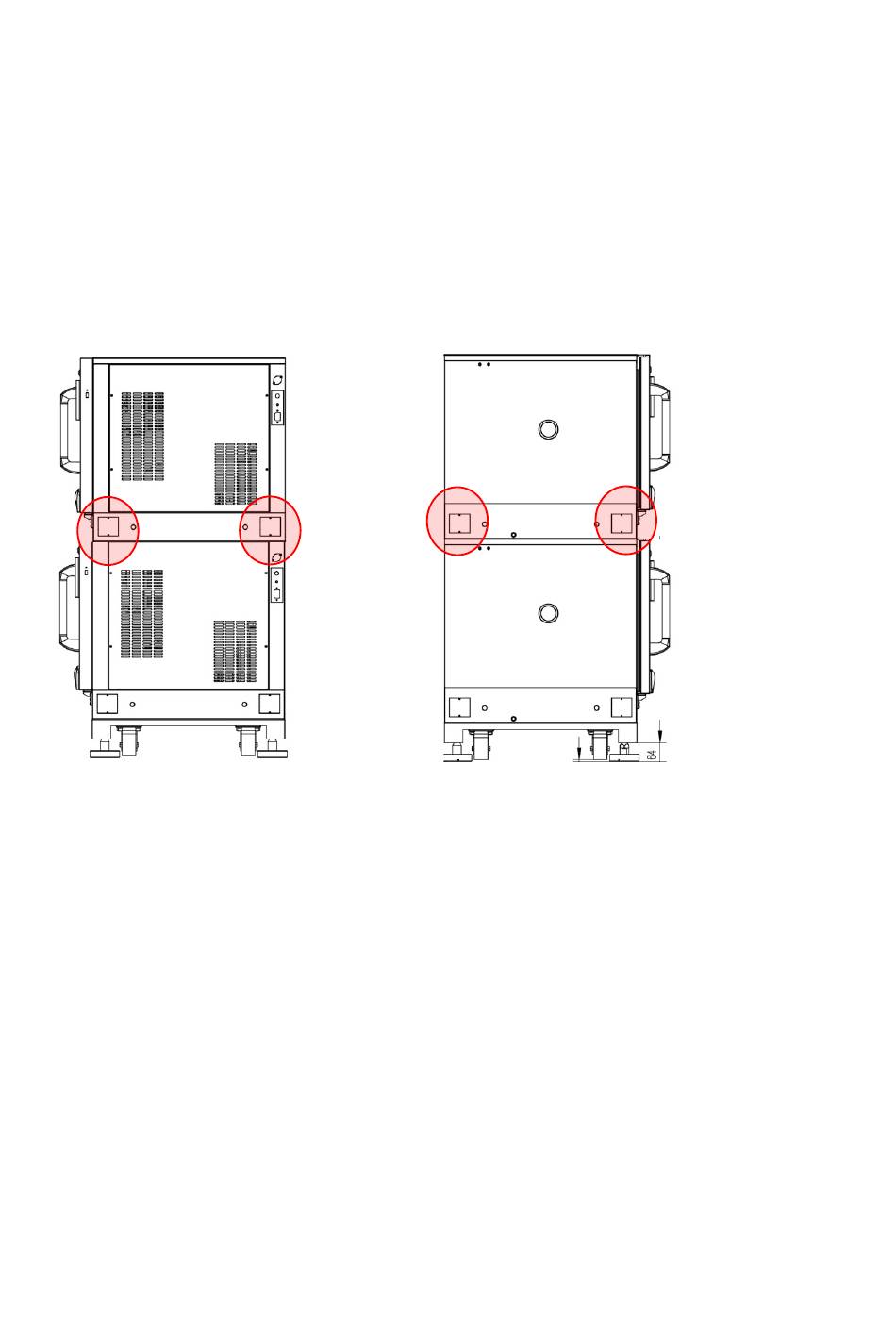

STACKING AND MOUNTING

4.1 Using a forklift or manually lift to raise the bottom
4.2 With two assistants guiding the shaker from opposite sides, lower the unit onto the
bottom unit, rear end first.
4.3 Manually adjust the position of the top unit, and make sure the holes of the top unit aligns
with the mounting holes of top of the bottom unit.
4.4 Install the (4) inner socket head bolts onto the top unit, and fasten the both units together.
4.5 Install cover plates back in place, fasten the Phillip screws and the stacking is finished.
Incu-Shake Compact
5
(without base)
