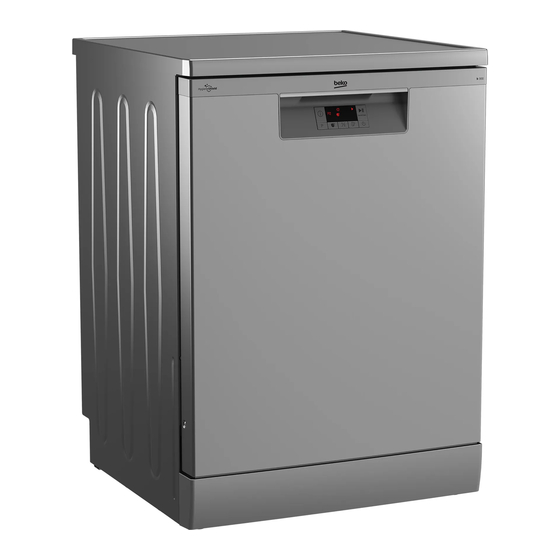

- Page 1 Dishwasher User’s Manual BDIN16N30S BDIN16N30 BDIT16N30S 15 7878 0100_AA_BEKO_E10_EN/ 26-07-23.(18:00)
- Page 2 Dear Customer, Please read this user manual before using the product. Thank you for choosing this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents before using the product.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS 6 OPERATING THE PRODUCT 26 Intended Use ............. 4 On/Off key ............26 Safety for children, vulnerable persons and pets 4 Programme Selection / Programme Cancel key 26 Electrical safety ..........5 Function Keys ..........26 Transportation Safety ........ -
Page 4: Safety Instructions
This product must be used to Safety Instructions do the domestic type dishes • This section contains safety only. instructions that will help get This product is not suitable for protected against risks of commercial or collective use. personal injury or property damage. -
Page 5: Electrical Safety
door should not be left in the excessively, pinched or come open position since this could into contact with any heat present a tripping hazard. sources. Cleaning and user Do not use extension cords, maintenance works should multi-sockets or adapters to not be performed by children operate the product. -
Page 6: Installation Safety
NOTICE Make sure that cause hot steam to escape. the hoses do not get kinked, Otherwise, it might cause squeezed or crushed while serious burns and injuries, placing the product into its and harm your furniture. location after installation or Do not install the product cleaning procedures. -
Page 7: Operational Safety
new hose set provided with the the door of the product will product. Do not reuse the old bear all the weight of the hose set. Do not make extension baskets. Do not sit or put at the hoses. other loads on the door; otherwise, the product may NOTICE Connect the water inlet tilt. -
Page 8: Maintenance And Cleaning Safety
the tap if you are not going to use it for a long time. Maintenance and cleaning safety Do not wash the product by spreading or pouring water onto it. Do not use sharp or abrasive tools when cleaning the product. -
Page 9: Environmental Instructions
Environmental Package information Instructions Packaging materials of the product are Compliance with WEEE manufactured from Directive and Disposing of recyclable materials in the Waste Product accordance with our National Environment Regulations. Do not This product complies with dispose of the packaging EU WEEE Directive (2012/19/ materials together with the EU). -
Page 10: Technical Specifications
Technical specifications Note for test institutions: Data required for performance tests shall be provided upon request. Requests can Maximum washing capacity (check the be e-mailed to the following address: energy label and Programme data and dishwasher@standardloading.com average consumption values table given Do not forget to provide the code, stock on Quick Guide. -
Page 11: Your Dishwasher
Your dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 12: Installation
Installation Appropriate installation location In the area where this product is Read “Safety Instructions” section first! installed, there must not be a lockable, Installation procedures must always be sliding or hinged door that will restrict performed by the manufacturer, authorised full opening of the product’s door. -
Page 13: Aquasafe
Aquasafe+ Permitted water temperature: up to 25°C ( 60°C for products equipped (depends on the model) with Aquasafe+; please refer to The Aquasafe+ system protects against Aquasafe+ section ) water leaks that may occur at the hose The dishwasher may not be connected to inlet.Water contact with the valve box of open warm water devices or flow-through the system must be avoided to prevent... -
Page 14: Connection To The Drain
Connection to the drain Electrical connection Water discharge hose can directly be Connect the product to a grounded connected to the drain hole or sink’s outlet protected by a fuse complying drainage. See the installation manual with the values in the "Technical supplied with your machine for detailed specifications"... -
Page 15: Preparation
Preparation Read “Quick Guide - Adjusting Water Softening System” before this section! The regeneration of the water softening Read “Safety Instructions” section first! system can be done in all programmes Tips for energy saving during drying step. When regeneration occurs, duration, energy and water Following information will help you use the consumption of the programme increase. -
Page 16: Adding Salt
Adding salt Water softening system needs to be regenerated in order for the product to operate with the same performance continuously. Dishwasher salt is used for this purpose. Use only special softening salts produced particularly for the dishwashers in your machine. It is recommended to use granule- or powder-formed softening salts in the You can put about 2 kg of softening... - Page 17 Adding detergent 2. Put suggested amount of powder, Pay attention to the warnings on the liquid/gel or tablet detergent in the detergent packaging to get better reservoir. washing and drying results. Contact Inside the detergent dispenser there the manufacturer of the detergent for are level markings that help you further questions.
-
Page 18: Tablet Detergents
3. Push the lid of the detergent dispenser together with the detergent if the water to close it. A "click" will be heard when hardness level is above the mentioned the lid is closed. level. The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually. -
Page 19: Items Not Suitable For Washing In The Dishwasher
Rinse aid 4. If there are stains on tableware items after washing, level must be increased The rinse aid used in dishwashers and if there is a blue trace after wiping is a special combination that aims to them by hand, it must be decreased. increase drying efficiency and prevent This is set to position 3 as factory water or lime stains on the washed... -
Page 20: Placing The Dishes Into The Dishwasher
Placing the dishes into the dishwasher Depending on the capacity of your dishwasher, you can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. •... - Page 21 Improper Loading Of Dishware Suggestions for loading the dishwasher Lower basket Upper basket Improper Loading Of Dishware 21/EN...
-
Page 22: Cutlery Basket
Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 23: Collapsible Lower Basket Tines
Collapsible lower basket tines Collapsible upper basket wires (depends on model) (depends on model) There are foldable tines (A) located at You can use collapsible wires when you the lower basket of the machine are need a larger space for your dishes in the designed for an easier placement of large upper basket of your machine. -
Page 24: Lower Basket Bottle Wire
Lower basket bottle wire Upper basket multi-function service rack (depends on model) The bottle wire is designed for easier (depends on model) washing of long pieces with wide mouths. Thanks to the upper basket multi-function You may take out the bottle wire from the service rack on the upper basket of your basket when not in use by pulling it out appliance, you may load and wash long... -
Page 25: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper 1. To raise the basket, hold the wires of the basket and pull the basket upwards basket with both hands while the basket is at (depends on model) the lowermost position (B) Upper basket height adjustment 2. -
Page 26: Operating The Product
Operating the product 2. Refer to the table of "Programme data Read “Safety Instructions” section first! and average consumption values" Read “Quick Quide” before this to determine a washing programme section. suitable for your dishes. On/Off key 3. Selected programme will start when you close the door of your machine. - Page 27 To add additional functions to the If you used the Tablet Detergent program: feature in the last washing program 1. Select the desired washing program. you used, the Tablet Detergent function will remain active in the next washing 2. When you select an additional function, program you selected.
-
Page 28: Programming The Washing Time
Changing Warning Sound Volume SelfDry Function (K) 1. After turning on your machine, press (Depends on the Model) and hold the Time Delay and Start / “SelfDry” feature of your machine increases Pause / Cancel keys respectively. drying efficiency of your machine and saves energy. -
Page 29: Starting The Programme
The time delay will start countdown After the rinsing step the machine with the closing of the door after will wait silent in pause mode for selecting the Time Delay function. some time in order to have the water remaining in the machine and on the If the door is opened while the Time dishes drained completely and to have Delay function is active, the countdown... -
Page 30: End Of Programme
Adjusting the amount of rinse Leave your dishes in the machine for about 15 minutes after they are washed in order to have them cooled. 1. After turning on your machine, press Your dishes will dry in a shorter time and hold the Time Delay and Start / if you leave the door of your machine Pause / Cancel keys respectively. -
Page 31: Maintenance And Cleaning
Maintenance and Cleaning the filters cleaning Clean the filters at least once a week in order for the machine operates efficiently. Read “Safety Instructions” section first! Check if food residues are left on the filters. Unplug the product and turn off the If there are food residues on filters, take tap before attempting any cleaning them out and clean well under running... -
Page 32: Cleaning The Hose Filter
Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary. -
Page 33: Cleaning The Impellers
Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. -
Page 34: Troubleshooting
Troubleshooting Error Cause Troubleshooting E01 warning Chassis is filled with 1-Error algorithm is activated. water 2- Programme ends. If you see the error continuously, 1-Cut off the electricity. 2-Close the valve. 3-Get in touch with the authorized service E02 warning Water outage error Check the water supply. - Page 35 Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •...
- Page 36 • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed. Slightly open the door and wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level.
- Page 37 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 38 • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers. • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places.
- Page 39 Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
- Page 40 Find out more about the many ways we can support you: 40/EN...
