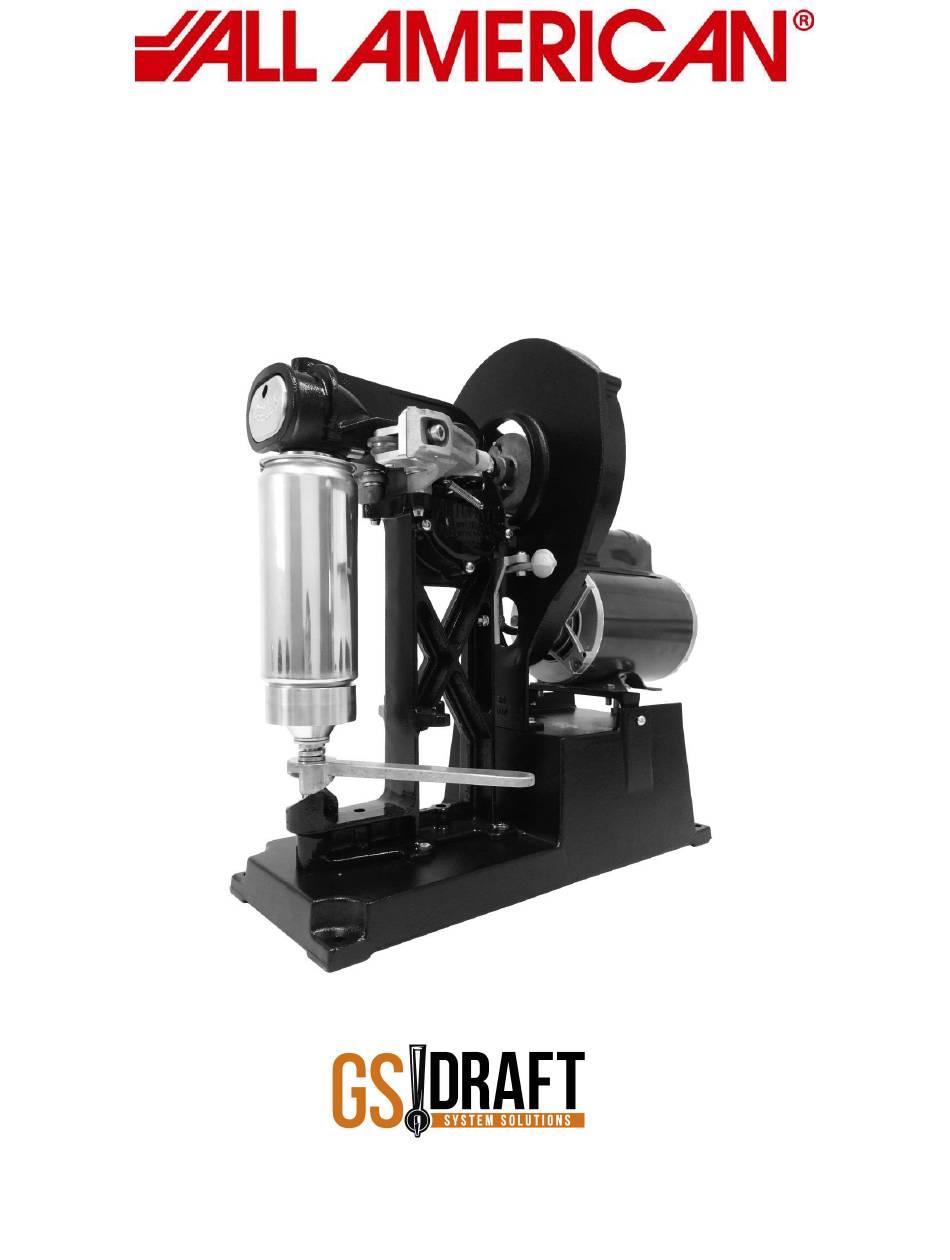

- Page 1 OPERATOR’S MANUAL CROWLER® CAN SEALER MODEL EL-8000B 19 Rancho Circle, Lake Forest, CA., 92630 ~ 949.387.5451 ~ www.gsdraft.com...
-
Page 2: Table Of Contents
Table of Contents Page 3 - Introduction & Getting Started Page 4 - Parts Diagram Page 5 - Maintenance Page 6 - Adjustments & Seam Gauge Page 7 - Trouble Shooting Page 8 - Parts Picture List Page 9 - Parts List Page 10 - Parts Picture List (Continued) Page 11 - Parts List (Continued) Page 12 - Warranty Information... - Page 3 INTRODUCTION This can sealer was thoroughly inspected and tested at the factory before shipment. Immediately upon receipt, carefully check the can sealer for damage before using it. Do not operate the can sealer if it is damaged; call (920)-682-8627 for further instruction. The EL-8000B comes with the No.
-
Page 4: Parts Diagram
PARTS DIAGRAM Chuck Holder Bushing CY-19 Clutch Assembly Pulley Wheel Housing Front Gear Cover CY-65 Cam Worm Wheel Cover CY-2 Beer Can Chuck Reset Lever Electric Motor Electric Sealer Frame S-296 S-201X Base Plate Motor Brace Bracket S-203B Base Plate Shaft CY-32 Sealer Base S-284X... -
Page 5: Maintenance
MAINTENANCE Quarterly Maintenance Schedule 1. Remove Base Plate and oil Ball Bearing on the underside. 2. Remove Can Lifter Handle and oil brass stem; also oil where Handle comes in contact with Frame. 3. Put fibre grease on all of the teeth of the Cam Worm Wheel located behind the Cam Worm Wheel Cover. 4. -
Page 6: Adjustments & Seam Gauge
ADJUSTMENTS & SEAM GAUGE Check the adjustment of the Seaming Rolls occasionally. First check the height adjustment as follows: When Chuck (A in sketch) is held up tightly against the Ball Bearing (S-201BB), the underside of the top flange on the Seaming Roll (B in sketch) must fit closely on top of Chuck (A). -
Page 7: Trouble Shooting
TROUBLE SHOOTING Reasons for Clicking: 1. The No. 92 Clutch Assembly is not riding up on the No. 94 Clutch Knockout far enough. 2. The No. 92 Clutch Assembly is sliding back down the No. 94 Clutch Knockout when the tension on the can is released to remove the can. -
Page 8: Parts Picture List
PARTS PICTURE LIST... -
Page 9: Parts List
PARTS LIST PICTURE NUMBER PART NUMBER DESCRIPTION Bracket for Clutch Lever (Z0088) Clutch Knockout (Z00103) Clutch Knockout Screw Clutch Knockout Nut 95LLP Lever Latch Pin (660525) Reset Lever Screw Reset Lever Nut Reset Lever Lever Latch (660015) CY-5 Bevel Pinion Gear (660890) S-225X Worm Shaft (Z0064) CY-4... -
Page 10: Parts Picture List (Continued)
PARTS PICTURE LIST 51 52 53... -
Page 11: Parts List (Continued)
PARTS LIST PICTURE NUMBER PART NUMBER DESCRIPTION S-284X Senior Electric Base 670040 ¼” x 20 x ¾” Hex Bolt 670035 Washer for Pulley Housing Tension Bolt (670100) Lock Nut (670090) Motor Brace Bracket (Z00186) Bolt for Motor Bracket (670080) CY-24LN Lock Nut for CY-24 (660440) 89LS 10-24 x 7/8”... - Page 12 ALL AMERICAN AUTOMATIC MASTER CAN SEALER LIMITED WARRANTY This quality Automatic Master Can Sealer is designed and manufactured to provide many years of satisfactory performance under normal use. Wisconsin Aluminum Foundry guarantees to the original owner that should there be any defects in material or workmanship during the first ninety (90) days after purchase, we will repair or replace it, at our option.
