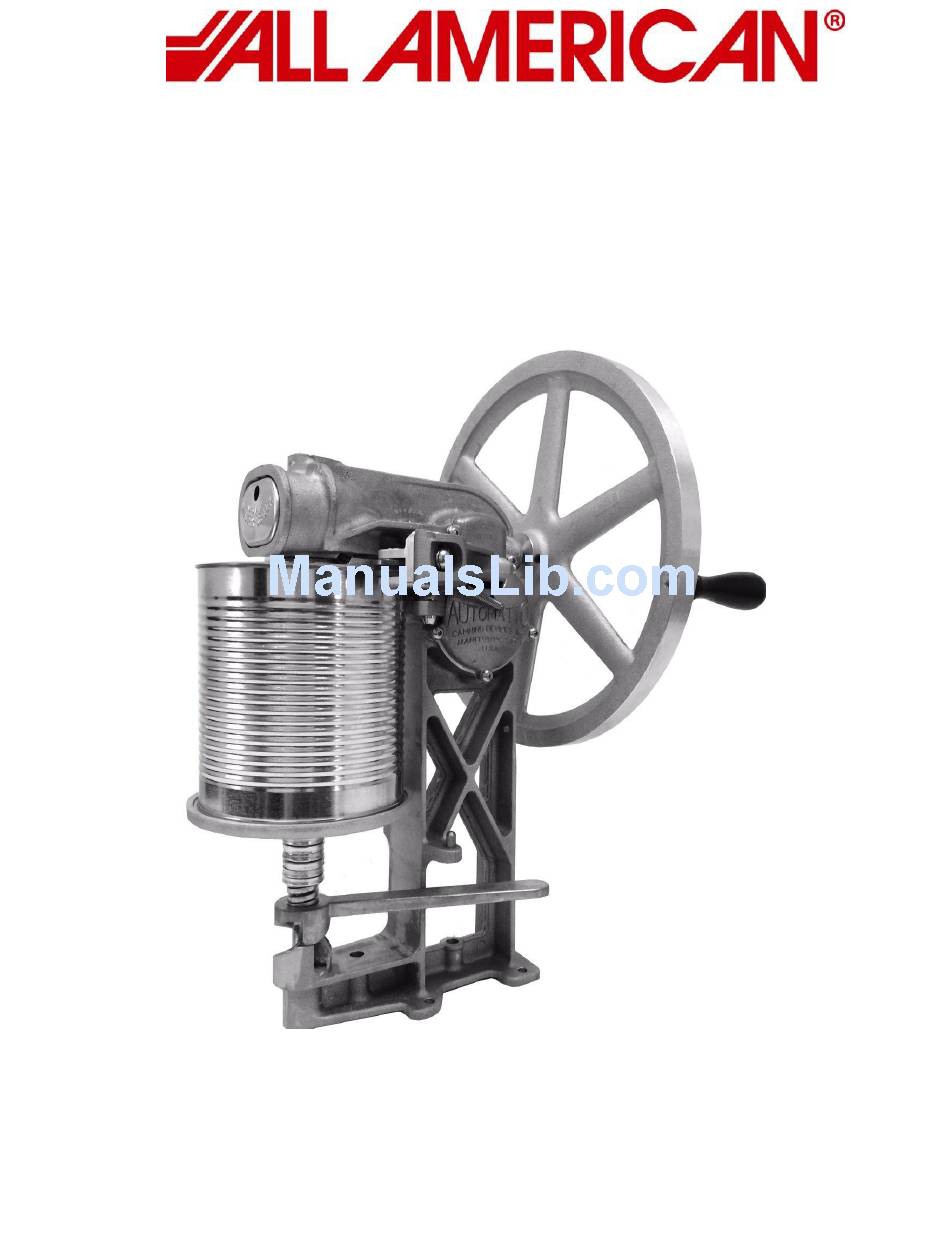

- Page 1 OPERATOR’S MANUAL MODEL 1502 & 7502 CAN SEALER WISCONSIN ALUMINUM FOUNDRY CO. 1931 SOUTH 14 STREET MANITOWOC, WI 54220 USA 920-682-8627 FAX: 920682-4090 email: customerrelations@wafco.com web page: www.allamerican-chefsdesign.com...
- Page 2 Table of Contents Page 3 - Introduction & Getting Started Page 4 - Parts Diagram Page 5 - Maintenance Page 6 - Adjustments & Seam Gauge Page 7 - Adjustments Continued Page 8 - Parts Picture List Page 9 - Parts List Page 10 - Warranty Information...
-
Page 3: Introduction & Getting Started
(920)-682-8627 for further instruction. The 1502 & 7502 typically comes with the CY-10 Chuck and the S-203 Base Plate. These are designed and set up to seal a No. 10 can. A sample can was used to set up the machine and was locked in place during shipping to help protect the machine. -
Page 4: Parts Diagram
CY-19 Front Gear Flywheel Cover Complete CY-65 S-255 No. 10 Chuck Worm Wheel Cover S-202 Base Plate S-203 Frame for 1502 Base Plate Shaft S-201 S-232S S-232L Compression Spring CY-34 Can Lifter Handle CY-10 Seaming Lever Pin CY-17 Chuck Holder Bushing... -
Page 5: Maintenance
MAINTENANCE Quarterly Maintenance Schedule 1. Remove Base Plate and oil Ball Bearing on the underside with food grade lube oil. 2. Remove Can Lifter Handle; oil brass stem and where Handle comes in contact with Frame. (Use food grade oil) 3. -
Page 6: Adjustments & Seam Gauge
ADJUSTMENTS & SEAM GAUGE Check the adjustment of the Seaming Rolls occasionally. First check the height adjustment as follows: When Chuck (A in sketch) is held up tightly against the Ball Bearing (S-201), the underside of the top flange on the Seaming Roll (B in sketch) must fit closely on top of Chuck (A). - Page 7 Instructions for Setting & Adjusting Senior Can Sealers For 202, 208, 300, 301 and 303 Diameter Cans To set up a Senior Can Sealer for “special” size cans, you will have to take the following steps in order to achieve a proper seal: Sealing Cans With a 202 or 208 Diameter: 1.
-
Page 8: Parts Picture List
PARTS PICTURE LIST... - Page 9 CY-19 Chuck Holder Bushing (Top) S-232S Base Plate Short Shaft or (S-232L-Long Shaft) S-202 Worm Wheel Cover S-201 Frame for 1502 CY-1E Escutcheon Pin CY-9LS Lock Screw for Roller Bearing CY-9LW Lock Washer for Lock Screw CY-9F Roller Bearing Lever-First...
-
Page 10: Limited Warranty
ALL AMERICAN AUTOMATIC MASTER CAN SEALER LIMITED WARRANTY This quality Automatic Master Can Sealer is designed and manufactured to provide many years of satisfactory performance under normal use. Wisconsin Aluminum Foundry guarantees to the original owner that should there be any defects in material or workmanship during the first ninety (90) days after purchase, we will repair or replace it, at our option.
