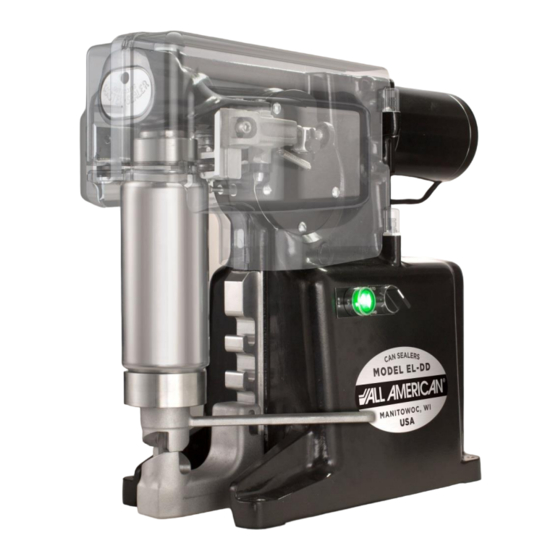

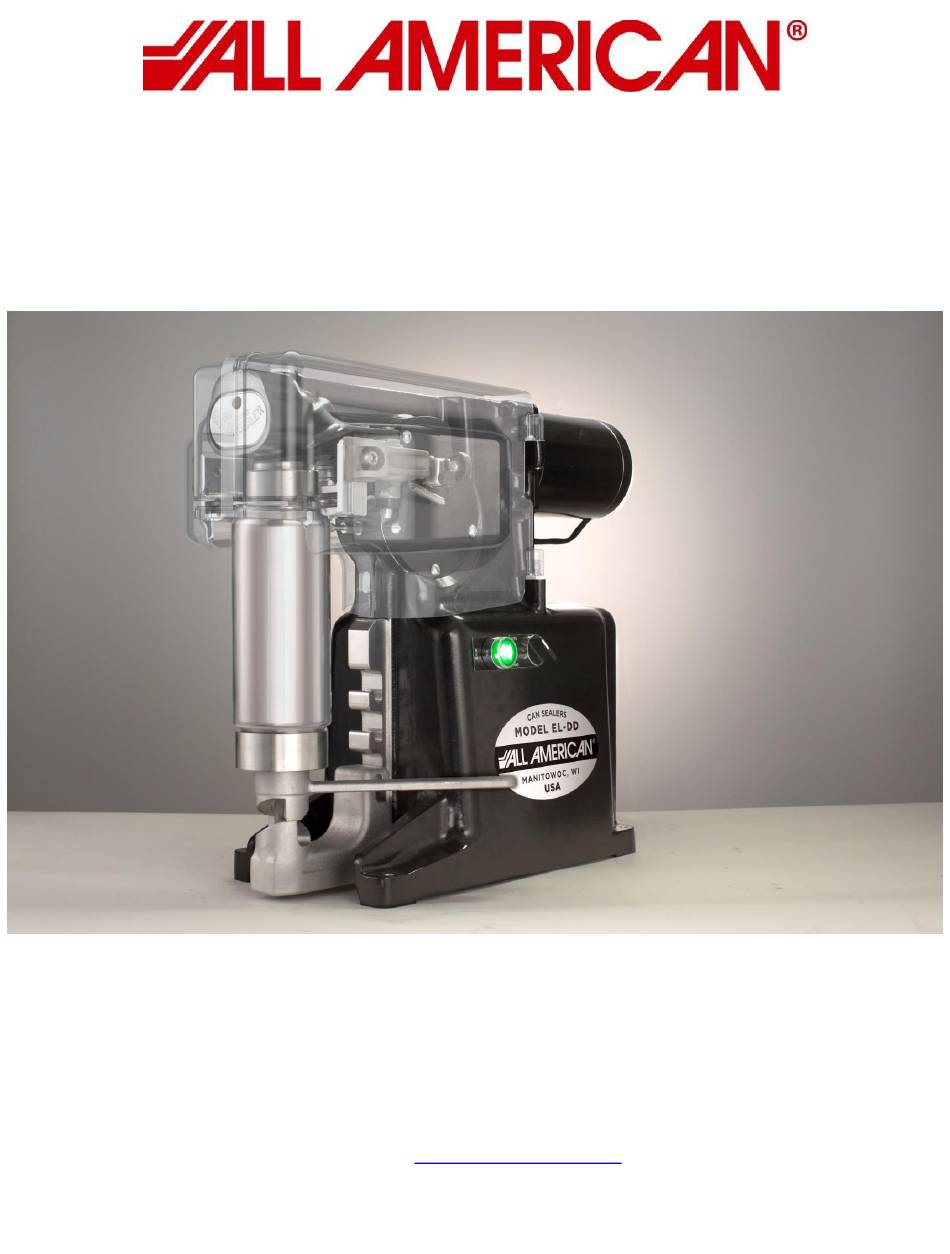

- Page 1 OPERATOR’S MANUAL CROWLER™ CAN SEALER MODEL EL-DD WISCONSIN ALUMINUM FOUNDRY CO. 1931 SOUTH 14 STREET MANITOWOC, WI 54220 USA 920-682-8627 FAX: 920-682-4090 email: customerrelations@wafco.com web page: www.allamerican1930.com...
- Page 2 Table of Contents Page 3 - Introduction & Getting Started Page 4 - Maintenance Page 5 - Adjustments & Seam Gauge Page 6 - Trouble Shooting Page 7 - Warranty Information...
- Page 3 INTRODUCTION This can sealer was thoroughly inspected and tested at the factory before shipment. Immediately upon receipt, carefully check the can sealer for damage before using it. Do not operate the can sealer if it is damaged; call (920)-682-8627 for further instruction. The EL-DD comes with the 300D Chuck and the D203 Base Plate.
- Page 4 MAINTENANCE Quarterly Maintenance Schedule 1. Remove Base Plate and oil Ball Bearing on the underside with food grade lube oil. 2. Remove Can Lifter Handle; oil brass stem and where Handle comes in contact with Frame. (Use food grade oil) 3.
- Page 5 ADJUSTMENTS & SEAM GAUGE Check the adjustment of the Seaming Rolls occasionally. First check the height adjustment as follows: When Chuck (A in sketch) is held up tightly against the Ball Bearing (S-201BB), the underside of the top flange on the Seaming Roll (B in sketch) must fit closely on top of Chuck (A).
-
Page 6: Trouble Shooting
TROUBLE SHOOTING Can isn’t spinning properly: Increase can lifter handle tension by adding a thin washer to the Base Plate Shaft (CY-32). Start with a 1/32” height washer and test a can. Add more if necessary. Operation rollers aren’t spinning properly: If the rollers aren’t kept clean, over time buildup from certain liquids can form and lock the roller into place. -
Page 7: Limited Warranty
ALL AMERICAN AUTOMATIC MASTER CAN SEALER LIMITED WARRANTY This quality Automatic Master Can Sealer is designed and manufactured to provide many years of satisfactory performance under normal use. Wisconsin Aluminum Foundry guarantees to the original owner that should there be any defects in material or workmanship during the first year after purchase, we will repair or replace it, at our option.
