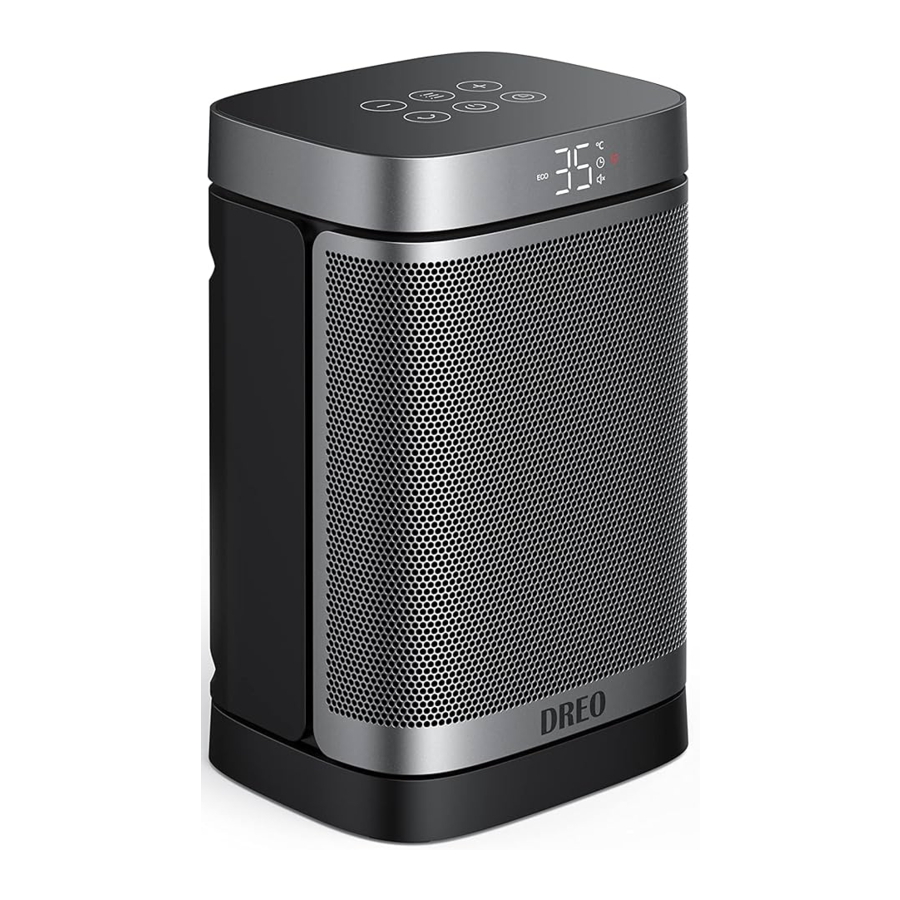

Dreo DR-HSHS004A - Electric Space Heater Manual

Table of Contents

Contents

1 SPECIFICATIONS
2 KNOWING YOUR DEVICE
3 USING YOUR DEVICE
4 CLEANING AND MAINTENANCE
5 TROUBLESHOOTING
6 IMPORTANT SAFETY INSTRUCTIONS
7 DREO CUSTOMER CARE
8 Documents / Resources
- 8.1 References
- 8.2 Download manual

SPECIFICATIONS

Model	DR-HSH004A
Rated Power	1500W
Input	AC 120V-60Hz
Remote Control Battery	CR2025, 3V

KNOWING YOUR DEVICE

Product Parts and Package Contents

USING YOUR DEVICE

	Power On/Off Touch to turn the heater on or off. Note: When the heater is plugged into the electric outlet, the power indicator will light in red. Once turned off, a 30-second countdown will show up on the display as the fan will continue to run for 30 seconds to blow out the remaining heat.
	Mode Settings Touch to cycle through -> ECO -> . Power Heat win three heating levels: H1(200W), H2(1000W), H3(1500W). ECO The heater will automatically select its optimal heating power, depending on the difference between the set temperature (41-95°F) and ambient temperature. Note: When the ambient temperature reaches the set temperature, the heater will turn off automatically in 30 seconds. When the ambient temperature drops below the set temperature, the heater will operate on medium or high power (1000W or 1500W), depending on the difference between the two temperatures. Fan only. Mute/Unmute To turn on/off the button sounds, long press the Mode button on the panel, or short press the Mute button on the remote.
	Auto-Off Timer When the heater is on, touch to set a timer (0-12h). After the timer ends, the heater will turn off automatically. To cancel, set the timer to 0 hour.
	Heat Level / Temperature In Power Heat mode, touch or to adjust the heating level. In ECO mode, touch or to adjust the set temperature. Note: In ECO mode, the heater will turn off automatically when the set temperature has been reached. If your heater turns off frequently, please raise the set temperature, or switch to Power Heat mode.
	Oscillation Touch to turn on or off oscillation.

Safety Tips Before Use

This heater can't handle dense fluid water. Do not splash water on the heater.
Place the heater as far as possible from water source like bathtub, shower, and sink.
Never place the heater in a position where it may fall into water.
Keep the heater on the ground and away from water source.

LED Display

USING YOUR DEVICE - LED Display

More Features

USING YOUR DEVICE - Auto off feature

Memory Function
The heater will remember its last settings (temperatures, working modes, oscillation status) once turned on again.

24-Hour Auto Off
When the heater has been running continuously for 24 hours, it will shut off automatically for safety reasons.
To turn this feature OFF/ONT long press the Timer button for 3 seconds when the heater is off; the display will show " " and " " respectively.

Tip-Over Protection
When the heater is tipped over, it will shut off automatically with the error code "P4" on the display.

Overheat Protection
When the heater overheats, it will shut off automatically with the error code "FF" on the display.

Remote Control

USING YOUR DEVICE - Remote Control

Battery Replacement

USING YOUR DEVICE - Battery Replacement

Press the locking button to pop out the battery holder.
Replace with the same battery type with the (+) side facing up.
Push in the holder until securely locked into place.

Note: If the indicator on the remote control doesn't turn on any more, please consider rep/acing the battery

Chemical Burn Hazard. Keep batteries away from children.
This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the battery, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
The batteries must be disposed of properly, including keeping them away from children. Even used cells may cause injury.

CLEANING AND MAINTENANCE

Always turn oft and unplug before cleaning.

Outer Surface
Use a soft, dry cloth to gently wipe clean the outer surface.

Dust Filter

Pull out the filter from the back.
Rinse the filter under running water.
Wait until dry.

TIP: For best performance, please clean the filter every 2-4 weeks.

Air Inlet
Use a soft, dry cloth or a cotton-tipped swab to remove any dust from the air inlet.

ATTENTION
DO NOT unscrew the unit.	DO NOT use cleaning agents.	DO NOT use abrasive scrubbers.
	Fire or electrical shock hazard. DO NOT Immerse the main unit in water. NEVER allow water to get inside the heater.
	Except far cleaning, any servicing Should be performed by an authorized service representative.
	Store in a cold dry area and keep the cable out of high-traffic areas to avoid tripping hazards.

TROUBLESHOOTING

Problem	Possible Causes	Solution
Malfunction codes on LED display	E2- Temperature sensor short circuit	Unplug it from the power source and contact Customer Support.
	E1 - Temperature sensor open circuit	Unplug it from the power source and contact Customer Support.
	FF - Overheat Protection	Unplug and wait for it to cool down before plugging in again.
	P4 - Tip Over Protection	Place the heater back on a flat, level and stable surface.
The unit does not start	Power cord is not properly plugged in	Connect the plug to a powered electrical outlet.
	Overheat protection has been activated.	Unplug and allow it to cool.
	Overheat protection has been activated.	Remove any objects on or near the heater.
	No power is passing through the unit	Ensure that your circuit breaker or fuse is working properly.
	No power is passing through the unit	Ensure that your heater is placed on a flat and even surface.
	The set temperature is lower than the ambient temperature.	Ensure that the temperature is set to be higher than the ambient temperature.
The unit suddenly stops during heating	The temperature exceeds the threshold of the thermal cutoff.	Turn off and unplug the unit. Allow it to cool and plug into the electrical outlet again.
	The heater is tipped over.	Place it on a flat, level and stable surface.
	In ECO mode, the heater will turn off automatically when the set temperature has been reached.	This is normal. If your heater turns off frequently, please raise the set temperature, or switch to Power Heat mode.

If your problem is not listed or still persists, contact our Customer Support.

IMPORTANT SAFETY INSTRUCTIONS

burn hazard shock hazard
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons and hyperthermia, including the following:

Do not cover the air inlet and outlet while in operation.

Do not use the fan heater near flammables and combustibles.

GENERAL SAFETY

Read all Instructions before using this heater.
This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Use the handle to move this heater.
Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
The output of this heater may vary and its temperature may become hot enough to burn exposed skin. use of this heater is not recommended for persons with a high sensitivity to heat or an inability to react to avoid burns.
Do not attempt to modify or repair the product by yourself. Doing so could void the warranty and cause damage or personal injury. Only a repair technician may disassemble or repair this product.
Make sure that no pieces of polystyrene or other packaging material have been left between elements of the appliance. It may be necessary to pass over the appliance with a vacuum cleaner.
It the machine is not working as it should, has received a sharp blow, has and dropped, damaged. left outdoors, or dropped into water, do not use and contact Customer Support.
There may be a trace of smoke or odor when the unit is first operated. This indicates that a drop of oil fell on the heating coil during the manufacturing process. lt will quickly evaporate and shouId not re-occur.

LOCATION SAFETY

Do not use outdoors.
Ensure the heater is on a stable, secure surface to eliminate the potential of tipping it over.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
A heater has hot and arcing or sparking parts Inside. Do not use it in areas where gasoline, where gasoline, paint, or flammable liquids are used or stored.
To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
Never locate heater where it may fall into a bathtub or other water container.

ELECTRICITY SAFETY

Always unplug heater when not in use.
Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
To disconnect heater, turn controls to off, then remove plug from outlet.
Always plug heaters directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap (outlet/power strip).
If there is a loose fit between the plug and the socket or the plug becomes very hot the socket may need to be replaced. Check with a qualified electrician to replace the socket.
It is normal for the plug and card to feel warm to the touch.
A plug or cord which becomes hot to the touch or becomes distorted in shape may be a result of a worn electrical outlet. Worn outlets or receptacles should be replaced prior to further use of the heater. Plugging the heater into a worn outlet / receptacle may result in overheating of the power cord or tire.
This appliance has a polarized plug (one prong is wider than the other). To reduce the rick of electric shock, this plug is intended to fit in a polarized plug. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to rig this safety feature.
This product employs an ALCI. If the ALCI is de-activated this indicates an arcing fault, unplug and check the supply cord and product. If no damage is visible, reset the device by pressing the reset button. If the ALCI de-activates again, a hazardous condition may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
This appliance is provided with a protective device that may make the appliance inoperable under some abnormal conditions. If the appliance becomes inoperable, discard the appliance or return the appliance to a service center for examination and repair.

ALCI (Appliance Leakage Current Interrupter) SAFETY DEVICE

This device provides protection against electric shock due to ground fault currents by automatically shutting off the power.

To test the operation of the ALCI Safety Device, switch the heater ON. Press the TEST button on the ALCI device attached to the plug end of the line cord. The heater and fan should stop operating and the Power light should be extinguished. Press the RESET button on the ALCI device to resume normal operation of the heater. This device should not be used on ON/OFF operation switch.

burn hazard Risk of fire. Do not replace attachment plug. Contains a safety device (ALCI) that should not be removed. Discard product if the attachment plug is damaged.

ALTHOUGH THIS DEVICE IS PROVIDED WITH PROTECTION WHICH REDUCES THE RISK OF ELECTRIC SHOCK, THIS PRODUCT SHOULD NEVER BE USED NEAR WATER.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

High temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of this heater.

FOR HOUSEHOLD USE ONLY
READ AND SAVE THESE INSTRUCTIONS

Gentle Reminder:
Check the appliance regularly and refer to TROUBLESHOOTING or contact our customer support if it shows any of the following signs:
