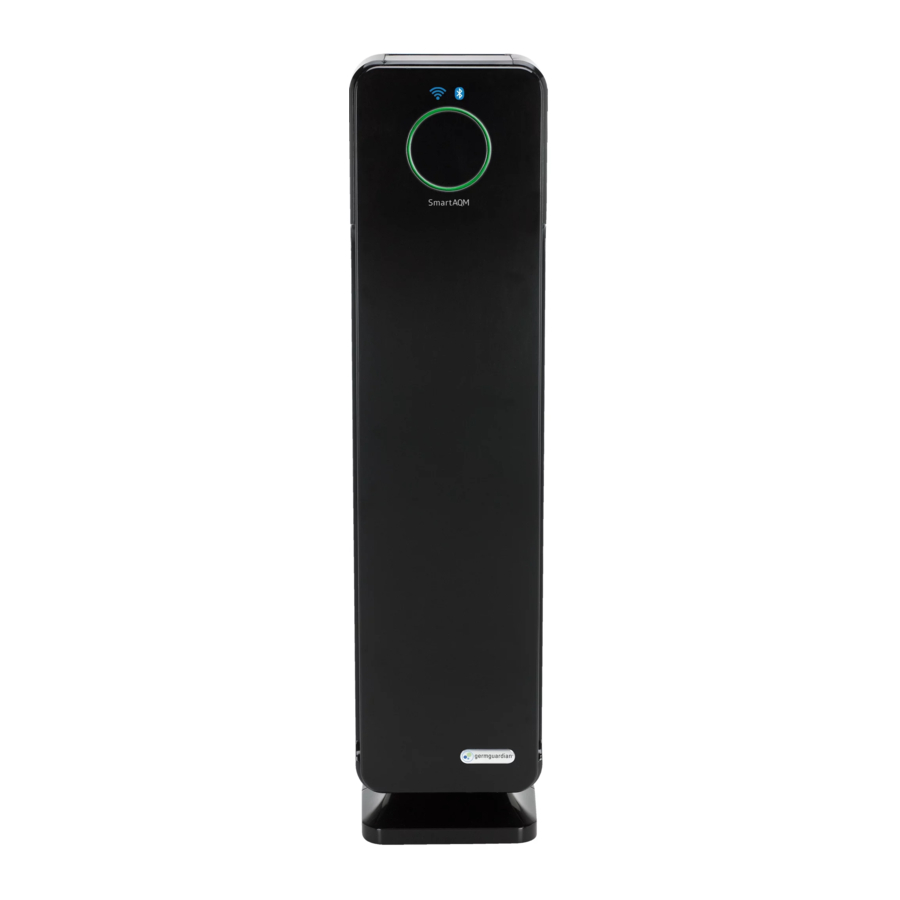

Guardian CDAP5500 - GermGuardian Wi-Fi Smart 4-in-1 Air Purifier with HEPA Filter, UVC Sanitizer and Odor Reduction, 28-Inch Tower Manual

PRODUCT SPECIFICATIONS AND PARTS

CONTROLS

REPLACEMENT PARTS

FILTER: Filter Model No. FLT5000

UV-C BULB (5W): Model No. LB4000

REPLACEMENT CARBON FILTER 4-PACK: Model No. FLT28CB4

WiFiSmart Air Purifier

Improve your indoor air quality with your new GermGuaradian WiFi and Bluetooth Smart Enabled Air Cleaning System. Multiple levels of cleaning provide allergy relief, fight germs and reduce unpleasant odors.

The Smart Air Quality Monitor (AQM) detects the amount of particles in the air and will automatically adjust the speed of the purifier to optimize room air quality when set in auto mode.

Easily download the GuardianTechnologies app and you can control the system wirelessly with a smartphone. This product is enabled with Bluetooth Smart (Low Energy) technology which enables a wireless connection over short distances using a low level of energy. When your smartphone is out of Bluetooth range, it will automatically switch to a WiFi connection that you select during your set up process.

AIR CLEANING LAYERS

BEFORE OPERATING THE AIR PURIFIER

Select a firm, level and flat location for the air purifier.
- For proper air flow, locate the unit at least 1 foot from any wall or furniture.
- Make sure none of the grills are blocked.
Plug the power cord into a 120V AC outlet.

When moving the air purifier, always lift unit by the carrying handle located on back.

Wifi/Bluetooth CONNECTION

We support iOS8 and above and most Android 5 and above

Plug the power cord into a 120V AC outlet.
Make sure your smartphone is connect to WiFi.
Download the Guardian Technologies™ free app to your smartphone from the Apple App Store or Google Play. Both location services and Bluetooth need to be on to be able to connect the device to the Guardian Technologies App.
Once installed, hold the LINK button until the wireless connection light blinks green.

Tip – Make sure smartphone is within arm's length of purifier during set up.
Complete WiFi connection as indicated on app set up instructions.
Tip – when in use, the device will automatically select between Bluetooth^® and WiFi.

For more detailed app instructions, visit www.guardiantechnologies.com

Optional voice-activated control is available using the Amazon Echo™ products and the Guardian Technologies (Gi Gi) skill located in the Alexa™ app. Note: You must own an Echo product and have the Alexa app downloaded to your smartphone for the voice control capability. Follow the instructions in the Guardian Technologies app to set-up the voice control function and link it with the Amazon Alexa app. Before using, ensure your Guardian Wifi smart air purifier is connected to Wifi and your Guardian Technologies account.

OPERATING INSTRUCTIONS

Now you can control your air purifier both wirelessly and manually

Turn unit power ON.
Select fan speed MODE 1 - 5

1 = low, ultra quiet sleep mode
5 = high speed allergen control
AUTO MODE - The last fan speed is AUTO. When AUTO is selected the air purifier will change the fan speeds depending on the air quality level.
Select UV-C ON or OFF using UV-C Mode Button.
TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.
LINK - Links Air Purifier to app set-up.
If green light appears Wifi can connect to Smartphone.
If red light appears Wifi cannot connect to Smartphone.

Smart Air Quality Monitor (AQM): detects the amount of particulate matter (PM) in the air. The circular light on the front panel of the purifier is the AQM Indicator and it will change colors, indicating the air quality level in the room. The particulate matter value will be displayed on the control panel. See values and status ranges in chart below.

Auto Mode: when "Auto" mode is selected the SmartAQM will automatically adjust the speed level of the purifier to optimize the room air quality.

Your app will also display the color of the circle and provide the PM value.

Below are the color/values that can be displayed:

Ring Color	Particulate Matter Value (Range)	Air Quality Status
Green	0-100	Good
Yellow	101-200	Average
Red	201+	Poor

Filter Replacement Indicator: The Replace HEPA light on the display will illuminate and flash indicating that it is time to replace your filter. Replace the filter according to directions then press and hold the TIMER button on your purifier for 5 seconds to reset the system.

Your app will notify you and also display a banner when it is time to replace the filter.

UV Bulb Replacement Indicator: The "UV" light on the display will flash when it is time to replace the UV bulb. Replace the bulb according to direction. To reset the UV-C Replacement Indicator, press and hold the UV button to reset system. Hold for 5 seconds and change reset to restart.

Your app will notify you and also display a banner when it is time to replace the bulb.

*Control Panel Beep/Sound: The sound emitted from pressing the buttons on the control panel can be turned off/on by holding the SPEED button for 5 seconds.

Visit this products page on www.guardiantechnologies.com for more information regarding the use of the Guardian Technologies app.

FILTER REPLACEMENT

The Replace HEPA light will flash continuously indicating that it is time to replace your filter. Replace the filter according to directions then restart the system.

Depending on usage, filter will last approximately 6-8 months.

Turn off and unplug the unit.
Press the lock and release button and remove the rear cover from the unit.
Remove the used Combination Filter (Filter C) and dispose of it in the garbage.
Insert filter system into the unit. Consult the arrow on the filter for correct installation direction.
To reset the filter indicator press and hold the timer button for 5 seconds.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently.
Depending on air quality conditions, you may need to replace it more frequently.

Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your HEPA filter. (Refer to instructions for filter layers view).

To check the status of the HEPA filter, peel back the carbon layer to expose the pleated HEPA Filter. If the HEPA Filter is no longer white and is covered in grey dust/dirt it should be replaced.

Do NOT try to wash and re-use the Combination Filter.

To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The UV light on the display will flash when its time to replace the UV bulb.

Turn off and unplug unit. Press the lock and release button and remove the rear cover from the unit.
Remove the combination filter.
Use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.
The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.

Bulb is NOT visible until the UV-C METAL SHIELD has been removed.
The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.
To reset the UV-C Replacement Indicator, press and hold the UV button for 5 seconds

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.

Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.

NEVER use alcohol or other solvents.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate.	Check that the unit is plugged in. Check that filter is in place. Confirm that filter is Genuine Replacement Filter Call Customer Service.
Unit shuts off unexpectedly.	Check that unit is plugged into a working electrical outlet. Check that HEPA filter is firmly in place. Check that the Rear Cover is latched firmly in place. Call Customer Service.
No air circulating from unit.	Unplug unit. Check Filter. Clean Pre-/Carbon Filter if necessary. Replace HEPA Filter if necessary.
Increase in noise level.	Make sure the filters are clean. Replace if necessary.
App will not download.	Check to make sure you have most recent update on smartphone.
Not "LINKING" / finding Wifi or Bluetooth ®.	Check that the device is plugged in. Make sure smartphone is within arm's length of the purifier. Make sure that light is blinking blue.
The Air Quality Monitor is consistently reading high.	Clean out the sensor on the right side of the unit with canned air or a vacuum hose.
The light in the center of the display screen is flashing red.	On the Guardian Technologies App, hit the menu in the top right button of the window and select "Wifi Setting" button. Set up the connection again.

What is CADR?
CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate
From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.
