PRODUCT SPECIFICATIONS AND PARTS

MODEL NUMBER: CDAP4500
DIMENSIONS: 8.88"L x 6.38"W x 22"H
WEIGHT: 9.45 pounds
INPUT VOLTAGE: 120 V, 60Hz, 55W, 0.5 Amps

REPLACEMENT FILTER:
FILTER B (FLT4825)
REPLACEMENT BULB: LB4000
BULB: 5W

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.
www.epa.gov/cflcleanup
1-866-284-4010

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

PARTS

CONTROLS

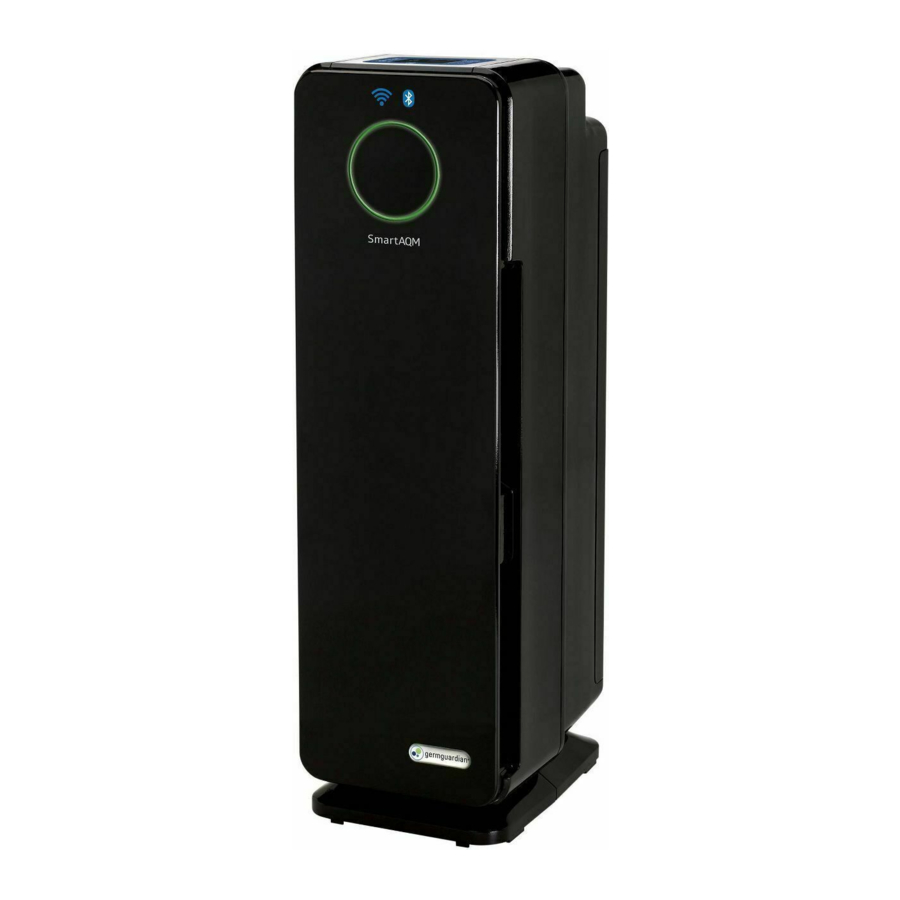

WiFi Smart Air Purifier

Improve your indoor air quality with your new GermGuardian WiFi and Bluetooth Smart Enabled Air Cleaning System. Multiple levels of cleaning provide a lergy relief, fight germs and reduce unpleasant odors.

The Smart Air Quality Monitor (AQM) detects the amount of particles in the air and will automatically adjust the speed of the purifier to optimize room air quality when set in auto mode.

Easily download the GuardianTechnologies app and you can control the system wirelessly with a smartphone. This product is enabled with Bluetooth Smart (Low Energy) technology which enables a wireless connection over short distances using a low level of energy. When your smartphone is out of Bluetooth range, it will automatically switch to a WiFi connection that you select during your set up process.

AIR CLEANING LAYERS

BEFORE OPERATING THE AIR PURIFIER

1. Select a firm, level and flat location for the air purifier.
   * For proper air flow, locate the unit at least 1 foot from any wall or furniture.
   * Make sure none of the griils are blocked.
2. Plug the power cord into a 120V AC outlet.

   When moving the air purifier, always lift unit by the carrying handle located on back.

Wifi / Bluetooth^® CONNECTION

We support iOS7 and above and most Android 4.3 and above

1. Plug the power cord into a 120V AC outlet.
2. Make sure your smartphone is connect to WiFi.
3. Download the GuardianTechnologies™ free app to your smartphone from the Apple App Store or Google Play.

4. Once installed, hold the LINK button until the wireless connection light blinks green.

   Tip – Make sure smartphone is within arm's length of purifier during set up.
5. Complete WiFi connection as indicated on app set up instructions.

Tip – when in use, the device will automatically select between Bluetooth® and WiFi.

For more detailed app instructions, visit www.guardiantechnologies.com

OPERATING INSTRUCTIONS

Now you can control your air purifier both wirelessly and manually

1. Turn unit power ON.

2. Select fan speed MODE 1 - 5

   1 = low, ultra quiet sleep mode
   5 = high speed allergen control
   AUTO MODE -

   The last fan speed is AUTO. When AUTO is selected the air purifier will change the fan speeds depending on the air quality level.
3. Select UV-C ON or OFF using UV-C Mode Button.

4. TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.

5. LINK - Links Air Purifier to app set-up.

   If green light appears Wifi can connect to Smartphone.
   If red light appears Wifi cannot connect to Smartphone.

Smart Air Quality Monitor (AQM): detects the amount of particulate matter (PM) in the air. The circular light on the front panel of the purifier is the AQM Indicator and it will change colors, indicating the air quality level in the room. The particulate matter value will be displayed on the control panel. See values and status ranges in chart below.

Auto Mode: when "Auto" mode is selected the SmartAQM will automatically adjust the speed level of the purifier to optimize the room air quality.

Your app will also display the color of the circle and provide the PM value.

Below are the color/values that can be displayed:

Filter Replacement Indicator:

The Replace Filter light on the display will illuminate and flash indicating that it is time to replace your filter. Replace the filter according to directions (E8) then press and hold the TIMER button on your purifier for 5 seconds to reset the system.

Your app will notify you and also display a banner when it is time to replace the filter.

UV Bulb Replacement Indicator:

The "UV" light on the display will flash when it is time to replace the UV bulb. Replace the bulb according to direction (E9). To reset the UV-C Replacement Indicator, press and hold the UV button to reset system. Hold for 5 seconds and change reset to restart.

Your app will notify you and also display a banner when it is time to replace the bulb.

*Control Panel Beep/Sound: The sound emitted from pressing the buttons on the control panel can be turned off/on by holding the SPEED button for 5 seconds.

Visit www.guardiantechnologies.com for more information regarding the use of the Guardian Technologies app.

FILTER REPLACEMENT

The Replace Filter light will flash continuously indicating that it is time to replace your filter. Replace the filter according to directions then restart the system.
Depending on usage, filter will last approximately 6 months.

1. Turn off and unplug the unit.
2. Press the lock and release button and remove the rear cover from the unit.

3. Remove the used Combination Filter (Filter B) and dispose of it in the garbage.

4. Insert filter system into the unit. Consult the arrow on the filter for correct installation direction.

5. To reset the filter indicator press and hold the timer button for 5 seconds.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently.
Depending on air quality conditions, you may need to replace it more frequently.

Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your filter. (Refer for filter layers view).

To check the status of the filter, peel back the carbon layer to expose the pleated Filter. If the Filter is no longer white and is covered in grey dust/dirt it should be replaced.

Do NOT try to wash and re-use the Combination Filter.

To maintain warranty and the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.

Genuine Filter Replacements can be purchased directly at www.guardiantechnologies.com
FILTER (FLT4825)

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The UV light on the display will flash when its time to replace the UV bulb.

1. Turn off and unplug unit. Press the lock and release button and remove the rear cover from the unit.

2. Remove the combination filter.

3. Use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.

4. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.

   Bulb is NOT visible until the UV-C METAL SHIELD has been removed.
   Replacement bulb: LB4000 available at 866.603.5900 or www.guardiantechnologies.com
5. The UV-C Bulb is reinstaled by sliding it, horizontaly, back into the slots at the top of the unit.
6. To reset the UV-C Replacement Indicator, press and hold the UV button for 5 seconds.

REPLACEMENT PARTS

To maintain warranty and the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.
To Purchase Contact Customer Service at 1.866.603.5900 or visit www.guardiantechnologies.com

FILTER B
Replacement Combo Filter
Model No. FLT4825

Replacement Carbon Filter
4 Pack
Model No. FLT22CB4

Replacement UV-C Bulb
Model No. LB4000

Check out our

Filter Replacement Program_™
www.guardiantechnologies.com

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.

Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.
NEVER use alcohol or other solvents.

Clean Air Delivery Rate
From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

This air cleaner is suggested for use in a single, closed room up to 124 square feet.
Higher CADR rates provide improved performance in all room sizes. Portable air cleaners will be much more effective in rooms when all the doors and windows are closed.

TOBACCO SMOKE: 80+
This value represents performance that can be expected within the first 72 hours of operation. Subsequent use may vary with use.
Tested per ANSI/AHAM AC-1 National Standard

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant polens from the room.

TROUBLESHOOTING GUIDE

SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONSWARNINGS

Failure to comply with the warnings listed below mayresult in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be foreduce the risk of fire, electric shock and injury to persons, including the folowed to lowing:

• Read al instructions before using appliance.
•
  This appliance has a polarized plug (one blade is wider than the other).To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet onlyone way. If the plug does not fit fucontact a qualified electrician. Do not attempt to defeat this safety feature.ly in the outlet, reverse the plug. If it stil does not fit.
• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cordunder rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grior whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
• DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other usenot recommended by the manufacturer may cause fire, electric shock or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

The cords, wires and/or cables supplied with this product contain chemicals, including lead or lead compounds, known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after using.

(California code of regulations Proposition 65)

READ AND SAVE THESE INSTRUCTIONSWARNINGS

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
•
  To reduce the risk of fire or electric shock, do not use this fan with anysolid-state speed control device.
•
  Skin or eye damage may result from directly viewing the light produced by thelamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Model No. LB4000, Manufactured by Guardian Technologies.
• Always unplug the unit before before cleaning or servicing in any way.
•
  Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in theunit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m3 chamber. The product complies with the maximum alowable concentration of ozone of 0.050 parts per milionby volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controled room approximately 30 m3.

Customer Service, at the address below. Additional questions or comments can be made tol free to the number listed below.
Guardian Technologies LLC 26251 Bluestone Blvd.
Euclid, Ohio 44132
1.866.603.5900
www.guardiantechnologies.com
