Summary of Contents for Belifu FM-B2409

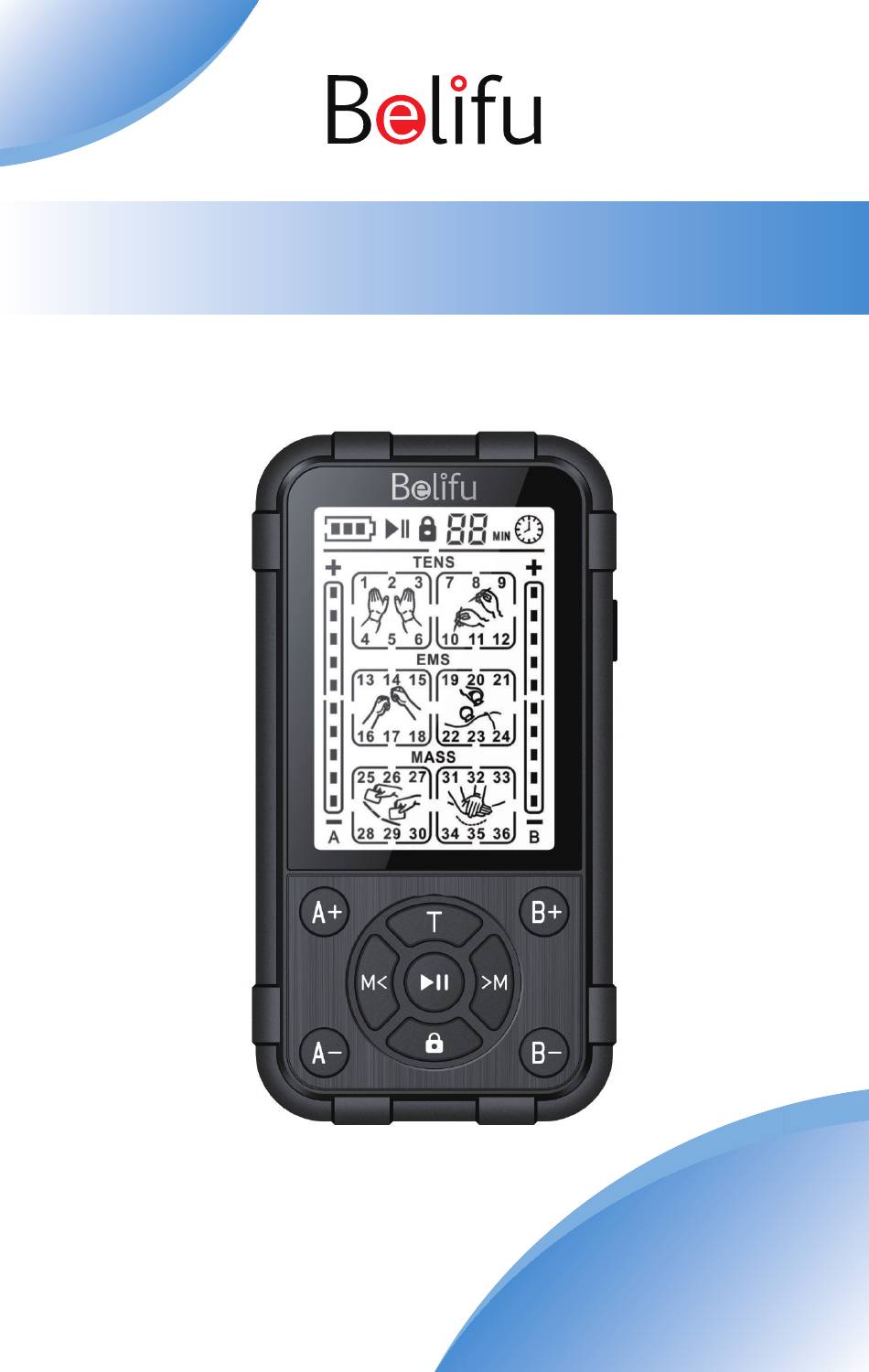

- Page 1 Tens FM-B2409...
- Page 2 Address: #902,903 JIALINGYU INDUSTRIAL BUILDING, DA PU ROAD, HOUTING VILLAGE, SHAJING TOWN, BAOAN DISTRICT,SHENZHEN, GUANGDONG,CHINA 518100 Customer Service: support@belifu.com Please download the PDF manual on the below link: https://belifu.com/downloads/ Precaution ·Please read the instructions manual carefully before using the device.
-
Page 3: Table Of Contents
CONTENT Chapter 1 : Introductions Chapter 2 : Functions Of The Device Chapter 3 : Warnings And Notes Chapter 4 : Operation Chapter 5 : Battery And Memory Function Chapter 6 : Maintenance Chapter 7 : Mode Instruction Chapter 8 : TENS EMS Electrode Placement Guide Chapter 9 : Troubleshooting Chapter 10 : Product Descriptions... -
Page 4: Chapter 1: Introductions
Chapter 1: Introductions Working principle It acts on the human body through the electricity pulse wave, the electric energy is sucked by the human body and the energy form is changed, which causes a series of physical and chemical changes, produces local or systemic physiological reactions, and finally affects the pathological process and plays a corresponding role. - Page 5 or normal household work activities can use this device. However, it should not be used by children, pregnant women, or anyone who has an implanted metallic or electronic device. Ask your physician if you have any questions. Package list ·Device ·1 pair of large self-adhesive electrode pads ·3 pairs of medium self-adhesive electrode pads...
-
Page 6: Chapter 2: Functions Of The Device

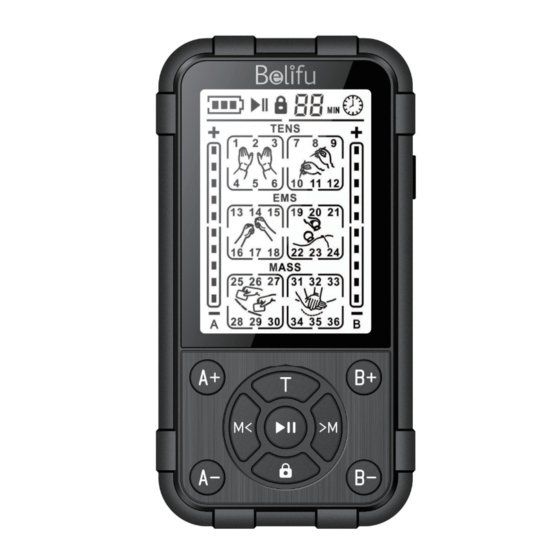

Chapter 2: Functions Of The Device Output A Output B Pause Indicator Lock Indicator Battery Indicator Time Indicator LCD Screen On/Off Switch Mode Indicator A Intensity Indicator B Intensity Indicator Time Adjustment Key B Intensity Adjustment(+) A Intensity Adjustment(+) Mode Key Mode Key A Intensity Adjustment(-) B Intensity Adjustment(-) -
Page 7: Chapter 3: Warnings And Notes
Chapter 3: Warnings And Notes Warnings We recommend not to use this therapeutic apparatus in the following cases: 1) Do not use this device if the patient has any implantable electronic or metal equipment (e. g. pacemaker). 2) Has epilepsy. 3) Severe lower extremity arterial circulation problems. - Page 8 12) Low-frequency therapeutic instruments can not be used when using high-frequency surgical instruments. 13) Near the genitals. 14) Recommendation: do not use low-frequency therapeutic instruments near shortwave or microwave therapeutic equipment (e. g. 1m), where the output of the low frequency therapeutic instrument used is unstable.
- Page 9 Notes 1) Electrode wire is too long may cause suffocation. Keep the product and keep away from children. 2) Make sure you are always aware of all warning items. 3) Stimulators should not be used in the throat and mouth. This may result in severe throat muscle spasms and muscle contraction, which is sufficient to block the airway and cause dyspnea.
- Page 10 10) If the intensity of stimulation makes you feel 8 uncomfortable, reduce the intensity of stimulation to a comfortable level. If the problem remains, please contact your doctor. 11) Do not use this equipment in rooms where aerosol (spray) and pure oxygen are used.
- Page 11 (e. g. metabolic disorders) with reduced pain. • Patients undergoing medication. Adverse reaction • Skin allergies caused by electrode sheetpad gels and electrode irritation burns are potential adverse reactions. If the skin appears sensitive response, should be discontinued and consult your doctor. •...
- Page 12 Explanation of figures. symbols, warning statements and abbreviations on the equipment Meanings of symbols used for marking described in instructions for use Caution! Type BF applied part Direct current Protected against solid foreign objects of 12,5mm Φ and greater; Protection against vertically falling water drops IP22 when ENCLOSURE tilted...
-
Page 13: Chapter 4: Operation
Chapter 4: Operation Before using the device, please check following carefully： 1. Check the pads for any damages or irregularities 2. Check the electrode wires for any damages or irregularities 3. Check the electrode pads any damages or irregularities 4. Check for any physical damage on the unit NOTE: Do not use this product while charging. - Page 14 sure the wires are not loose. A loose connection will decrease the power of the output. Paste the pads on your skin STEP 3: Note: When using 1 wire with 2 connectors please make sure both pads are stuck on your body; when using 2 wires, please make sure at least 2 pairs of pads are stuck on your body.
- Page 15 Choose the channel STEP 5: The default value is Channel A. Please press the “A+” or “B+” key to choose the channel you want to use, then the selected A or B icon on screen will flash. Note: The channel is independent, you can set different mode and intensity on different channel.
- Page 16 Set the time STEP 7: The default time is 20mins. Press the “T” button to adjust the time (10-80 mins), it can be increased by 10mins. When it’s increased up to 80mins, continue to press the “T” button to jump to 10mins. Pause the treatment STEP 8: Press the “...
- Page 17 Remove the pads from your skin STEP 11: and store the products Remove the pads from you skin gently, and paste the plastic dust-proof film on them, take them off the electrode wires and unplug the wires, put them and the device into the storage bag.
-
Page 18: Chapter 5: Battery And Memory Function
Chapter 5: Battery And Memory Function ·Battery information Please use the AC adapter complying the standard : IEC60601-1, DC5V/500mA) Capacity: 180mAh Voltage: 3.7V ·Charging the battery 1.The device is powered by an internal, rechargeable lithium battery that can be charged through a standard wall outlet or through the USB port of a computer or power bank. -
Page 19: Chapter 6: Maintenance
Chapter 6: Maintenance Please clean the main machine frequently. Use a piece of soft dry cloth to wipe the dirt on the main machine. Don't wash with water or clean with the detergent, thinner, volatile oil, etc. that contains chemical substances. The gel surface of the massage pad should be kept clean and avoid dirt like dust, oily substances, sticky substances, etc.,... - Page 20 The batteries for this product are built-in polymer batteries. If it is not used for a long time, please charge it every 6 months. Safekeeping Please do not put the main machine in the place exposed to sunlight, high temperature, humidity, lots of dust, or the place close to fire, easy to vibrate or shock.Please put where children can't reach it.
- Page 21 WARM TIPS FOR SKINCARE To avoid skin irritation, especially if you have sensitive skin, follow these suggestions: 1. Wash the area of skin where you will be placing the electrodes, using mild soap and water before applying electrodes, and after taking them off. Be sure to rinse soap off thoroughly and dry skin well.
-
Page 22: Chapter 7: Mode Instruction
Chapter 7: Mode Instruction Modes & Functions Simulation of Tuina is Main a hands-on body Modes Mode 1: treatment which help Tui na with muscle pain relief and relaxation. Simulation of acupuncture provides Main the same sensation Mode 2: Modes without needles, by Acupun 7~12... - Page 23 Mimic the sensation of suction created on the skin. Cupping is a traditional Chinese Main Modes therapy in which Mode 4: 19~24 heated glass cups are Cupping applied to the skin, creating suction as a way of stimulating the flow of energy. Stimulate pain points Main in the elbow area for...
-
Page 24: Chapter 8: Tens Ems Electrode Placement Guide
Chapter 8: TENS EMS Electrode Placement Guide For TENS Neck Pain Chronic Hip Pain Frozen Shoulder Lower Back Pain Tennis Elbow Carpel Tunner Syndrome Stomach Pain Ere ctor Spinalis Sciatica Knee Pain- Degenerative Lower Leg Pain Post OP Arthritis-Knee Pain General System Nerves Muscle, Foot Pain Ankle Pain... - Page 25 For EMS QUADRICEPS & GRACILIS ABDOMINALS Wire 2 Wire 1 Sddl Wire 4 Wire 3 Wire 2 Wire 1 Wire 1 Wire 2 Wire 3 Wire 4 OBLIQUES HAMSTRINGS FRONT DELTOIDS Wire 1 Wire 2 Wire 1 Wire 2 Wire 3 Wire 4 Wire 1 Wire 2 LATISSIMUS DORSI...
-
Page 26: Chapter 9: Troubleshooting
Adhesive gel pads Replace the pads. do not stick to skin need to be You can contact even after cleaning replaced. support@belifu.com and moistening the to purchase the gel pad. pads. Unit does not turn on Battery is low. Recharge the or the screen is dim. - Page 27 Unit turns on, all of Adhesive gel Apply a few drops of the modes and pads are not water to the adhesive channels flash. Can adhering firmly surface of each pad and not select a mode to the skin.The make sure the pads are and adjust the gel pads are pressed firmly to the...
-
Page 28: Chapter 10: Product Descriptions
Chapter 10: Product Descriptions Product name TENS & EMS Device Model FM-B2409 Charge time About 2 hours Battery run time About 8 hours Lithium battery power supply 3.7V/180mAh Load resistance 500Ω Output frequency 0Hz~199Hz Maximum pulse width 220uS Low voltage protection MAX≤3.3V... -
Page 29: Chapter 11: Medical Disclaimer
Chapter 11: Medical Disclaimer All information is intended for you general knowledge only and is not a substitute for medical advice or treatment for specific medical conditions. We cannot and do not give you medical advice. You should seek prompt medical care for any specific health issues and consult your health care provider before purchasing any product(s). -
Page 30: Chapter 12: Precautions
Disposal Information Please contact the local authorities to determine the proper method of disposal of the used equipment and accessories. Chapter 12: Precautions 1.Safety of this device for use during pregnancy has not been established. 2.Caution should be used for patients with suspected or diagnosed heart problems. -
Page 31: Chapter 13: Contraindications
7.The device should be kept out of the reach of children. 8.The device should be used only with the leads and electrodes recommended for. 9.This device should not be used while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk of injury. - Page 32 *** You should stop using the device and consult with your physician if you experience any adverse reactions from the device. *** Potential Electromagnetic and Other 、 Interference This product is sensitive to the electromagnetic interference, and the following cases may interfere with normal use: ●When talking on the mobile phone;...
-
Page 33: Chapter 15: Notes On Fcc Certification
- Consult the dealer or an experienced for help. - Consult the seller or support@belifu.com for help. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device. -
Page 34: Chapter 16: Warranty
4) Liability for direct or indirect consequential losses caused by the unit is excluded even if the damage to the unit is accepted as a warranty claim. 5) Anything about the device, please feel free to contact support@belifu.com -33-...
