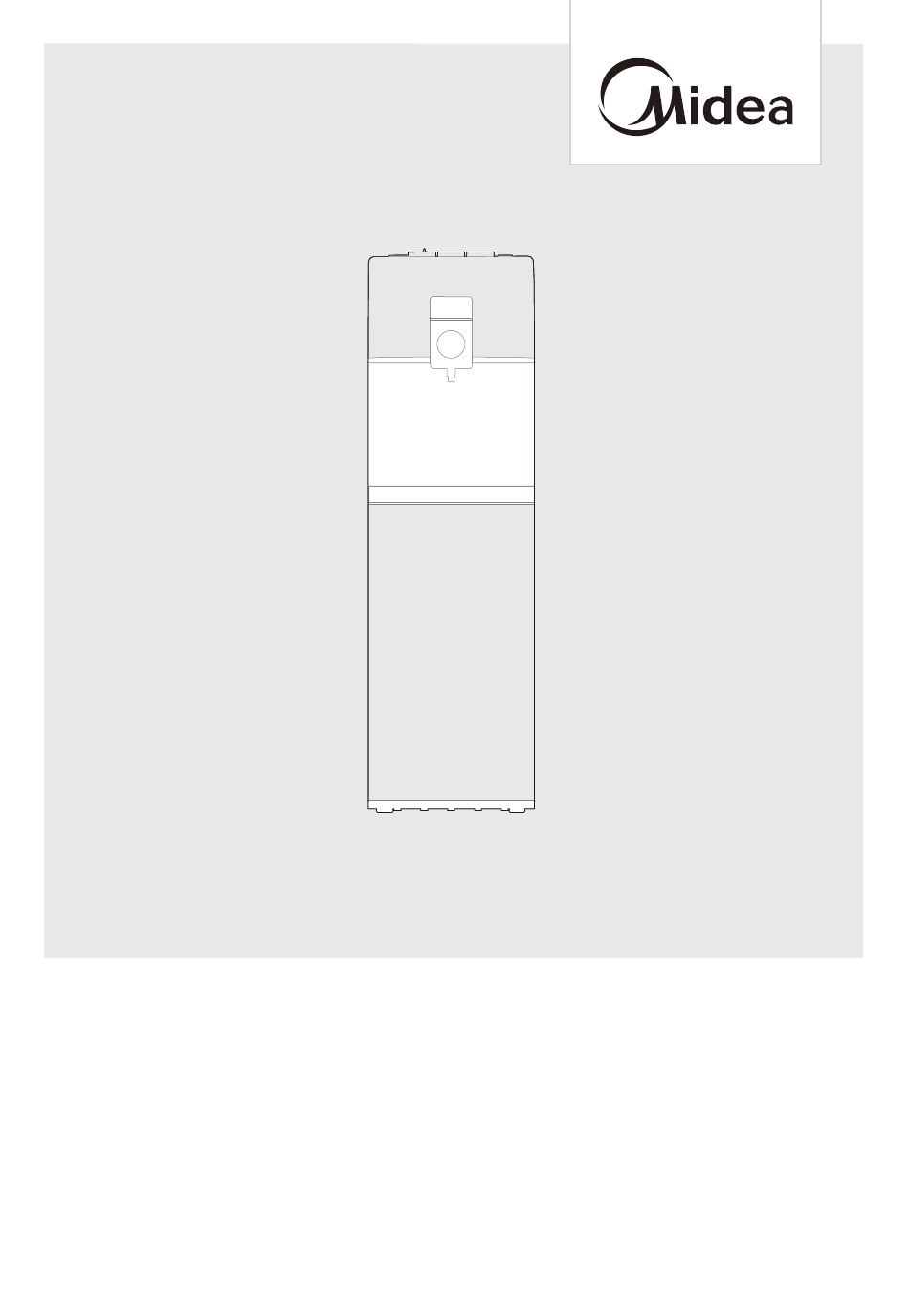

Water Dispenser
USER MANUAL
YL2036S
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Table of Contents
Related Manuals for Midea YL2036S
Summary of Contents for Midea YL2036S
- Page 1 Water Dispenser USER MANUAL YL2036S Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance o ers in a safe way. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. - Page 4 SAFETY INSTRUCTIONS DANGER: Risk of Fire/Flammable materials Do not use an extension cord with your water dispenser. ● Do NOT operate dispenser in the presence of explosive fumes. Use only properly grounded outlets. ● Always grasp plug and pull straight out from outlet. Never unplug by pulling on power cord.
- Page 5 SAFETY INSTRUCTIONS Do not store explosive substances such as aerosol cans with a flammable propellant in ● this appliance. The appliance must not be immersed. ● The appliance must not be cleaned by a water jet. ● The appliance is suitable for indoor use only. ●...
-
Page 6: Specifications
SPECIFICATIONS Product Model YL2036S Rated Voltage 220-240V~ Rated Frequency 50/60Hz Rated power 520W 420W Heating power Cooling current 1.0A Hot water capacity 4L/h(≥85°C) Cold water capacity 4L/h(≤10°C) REFRIGERANT R134a(32g) -
Page 7: Product Overview
PRODUCT OVERVIEW Product Button of hot water Top cover Heating switch Button of normal water Cooling switch Button of cold water Indicator Lights Round Indicator Light Switch Faucet Power supply cord Water collector Outlet of hot water Door Condenser... - Page 8 PRODUCT OVERVIEW Accessories Instruction Manual x1 Warranty Card x1 Anchor bolt x1 Fixed block x1 Screw x2...
-
Page 9: Product Installation
PRODUCT INSTALLATION Getting Started Locate Dispenser 1. Place dispenser upright. 2.Locate dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet. Note: Do not plug in power cord yet. 3.Position dispenser with at least 20cm from wall and at least 20cm on both sides. Assemble 1.Remove drip tray from door and place the grid on top. - Page 10 PRODUCT INSTALLATION Machine Installation To prevent the machine from swaying to fall, please install the bracket accordingly. 1-2. Loosen the screw of the left or right bottom angle just as the picture shown. 3. Use the screw to fix the bracket on the left or right bottom angle of the water dispenser.
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Operation Panel Description Plug the power supply cord into a wall outlet, the ● power pilot lamp will light up and will go o when Round Indicator the unit is unplugged. No.1 Light If the machine is powered on, you don't need the ●... - Page 12 OPERATION INSTRUCTIONS Dispensing Normal Water 1. Position bottle, glass, pitcher or cooking pot below spout. 2. Depress normal water control downward to start normal water flow. 3. Release control once desired fill level is achieved. Dispensing Hot Water After setup, hot water will be available in 15-20 minutes. 1.
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE To avoid accident cut off the power supply before operation according to the follow- ing instruction. 1. The machine had been disinfected before departed from factory. Cleaning the dispens- er prior to installing a full bottle of water for thefirst time. 2. -
Page 14: Troubleshooting
TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center. -
Page 15: Trademarks, Copyrights And Legal Statement
Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. -
Page 16: Disposal And Recycling
DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. -
Page 17: Data Protection Notice
European Economic Area. Further information are provided on request. You can contact our Data Protection O cer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via... - Page 20 Midea 2023 all rights reserved...
