Lectronics DCHT Quick Start Manual page 9

5) Turn the recorder or sound
system gain down before
setting the transmitter to the
normal operating mode and
enabling the audio output.
6) If the audio output level of
the receiver is too high or
low, use only the controls
on the receiver to make
adjustments. Always leave
the transmitter gain adjust-
ment set according to these
instructions, and do not
change it to adjust the audio
output level of the receiver.

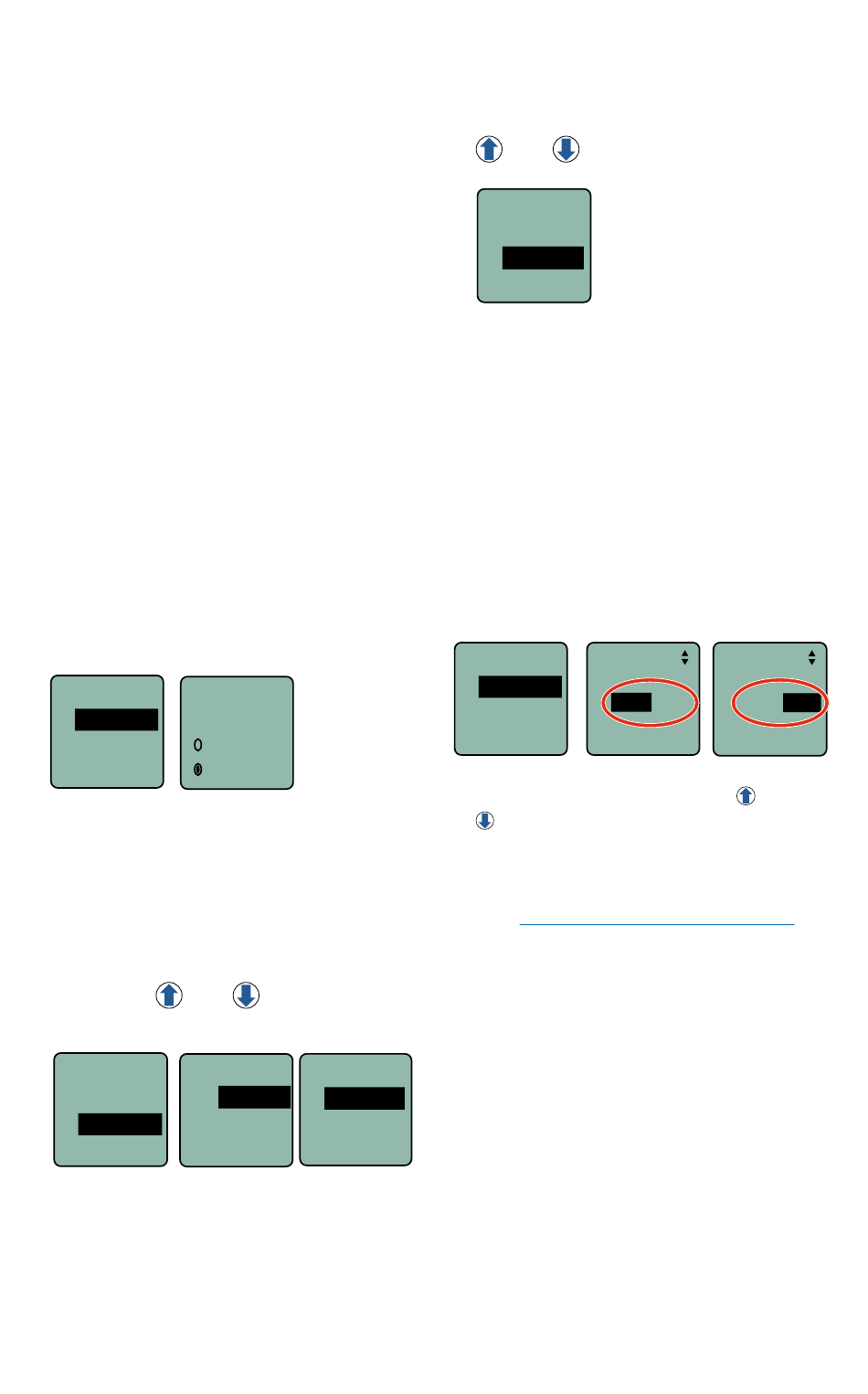

Selecting Input Type
AES digital or analog audio input
is selected with the InType menu
item. With the AES selected, there
are no additional settings needed
for the input. Analog input con-
figuration is set with the InpCfg1
and InpCfg2 menu items.
Input...
InType
InType
InpCfg1 Analog
InpCfg2 AES
Selecting Input
Configuration
When the input type is set to Ana-
log, InpCfg1 and InpCfg2 menus
are used to configure the audio
input for the respective channels.
Use the and
to select the input type.
Input...
InpCfg1
InType
InpCfg1
InpCfg2
www.lectrosonics.com
arrow buttons
InpCfg2
Oth Lav
Line In
The Custom option opens a setup
screen that provides a variety of
settings. Press SEL to select the
custom setup item, then press the
and arrow buttons to adjust
the setting.
Channel select
InpCfg2
Input impedance
Custom
MicLoZ Bias voltage
Audio polarity
0V Neg
Available settings:
Input impedance (Z): LOW, MID,
HIGH
Bias voltage: 0V, 2V, 4V
Audio polarity: + (pos.), – (neg.)
Xmit Menu
Selecting Frequency
The setup screen for frequency
selection offers multiple ways to
browse the available frequencies.
Freq.
Xmit...
Freq
494.500
TxPower
Rf On?
Gr p 4
Press the MENU/SEL button to
select each field. Use the
arrow buttons to adjust the
frequency. Each field will step
through the available frequencies
in a different increment.
NOTE: When the frequency
is highlighted, hold down
the MENU/SEL button
to increase or decrease
frequency in higher
increments.
Freq.
494.500
Gr p 4
and
9
