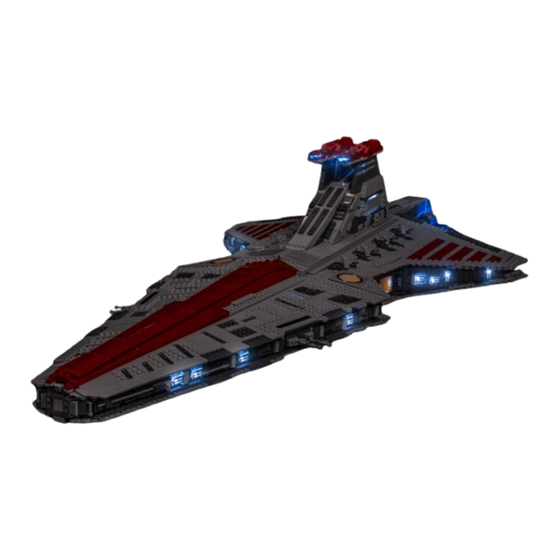

LEGO
STAR WARS VENATOR-CLASS
®
REPUBLIC ATTACK CRUISER #75367
INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIGHT MY BRICKS LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER

Summary of Contents for LIGHT MY BRICKS LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER

  • Page 1 LEGO STAR WARS VENATOR-CLASS ® REPUBLIC ATTACK CRUISER #75367 INSTALLATION GUIDE...
  • Page 2 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Light My Bricks LEGO STAR WARS VENATOR-CLASS ® REPUBLIC ATTACK CRUISER 75367 INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO ®...
  • Page 3 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® PACKAGE CONTENTS: Individual Bags Mixed Components 1 • 24 x Cool White 30cm Bit Light * 1 x 6-Port Expansion Board • 8 x Yellow 30cm Bit Light 1 x 8-Port Expansion Board 4 x 12-Port Expansion Board •...

  • Page 4: Table Of Contents

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Contents Before You Begin Blueprint Instructions Final Product Troubleshooting Contact CONTENTS...

  • Page 5: Before You Begin

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO bricks, plates, and tiles providing ®...
  • Page 6 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
  • Page 7 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO ® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO studs or in between.
  • Page 8 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Before You Begin The Symbols Used In This Guide Connect Turn/ Flip When going through the following guide you will Used when you need to Will be found in the top left come across symbols and formats that will assist connect a LEGO piece or LMB corner when the set needs to...
  • Page 9 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Before You Begin General Note Repeat Step NOTE This is a sample note that is Repeat the previous step eg. used anywhere in this guide. It Make a spotlight, then make a Take the 5cm Connecting Cable will explain a difficult section...

  • Page 10: Blueprint

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® BLUEPRINT BLUEPRINT...

  • Page 11: Instructions

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide.
  • Page 12 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 13 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 14 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Use the following LEGO piece to assist in disconnecting all the Technic Pins. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 15 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Headlight Dish 2x2 Inverted (Radar) - Trans Dark Blue INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 16 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE If you are having trouble threading the cable through, seperate the parts and thread through. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 17 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 18 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Use the following LEGO piece to assist in disconnecting all the Technic Pins. Cool White 30cm Headlight INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 19 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Dish 2x2 Inverted (Radar) - Trans Dark Blue INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 20 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® 12-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 21 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Light Blue 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 22 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 23 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Light Blue 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 24 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® USB Power Cable NOTE Run the USB Power Cable from beneath the ship through the indicated gap INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 25 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify...
  • Page 26 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Connect the Cool White 30cm Bit Light to the 12-Port Expansion Board. Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 27 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable 6-Port Expansion Board NOTE Connect the other end of the 30cm Connecting Cable to the 6-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 28 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Use the following LEGO piece to assist in disconnecting all the Technic Pins. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 29 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Headlight Dish 2x2 Inverted (Radar) - Trans Dark Blue INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 30 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 31 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Use the following LEGO piece to assist in disconnecting all the Technic Pins. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 32 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Headlight Dish 2x2 Inverted (Radar) - Trans Dark Blue INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 33 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 34 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Light Blue 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 35 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 36 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Light Blue 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 37 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify...
  • Page 38 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® 8-Port Expansion Board 30cm Connecting Cable NOTE Pull the 8-Port Expansion Board up NOTE Connect the other end of the 30cm Connecting Cable to the 6-Port Expansion Board. INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 39 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Large Bit Light Plate 1x2 - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 40 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Large Bit Light Plate 1x2 - Black NOTE Repeat the same process for the other side INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID...
  • Page 41 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Technic, Brick 1x2 with Hole - Light Bluish Gray Cool White 30cm Bit Light NOTE Ensure the LED is face down INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 42 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Technic, Brick 1x2 with Hole - Light Bluish Gray Cool White 30cm Bit Light NOTE Ensure the LED is face down INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 43 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 44 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 45 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 46 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 47 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 48 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Slightly lift the two ends If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 49 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Dimmer Control Board 30cm Connecting Cable NOTE Connect the 30cm Connecting Cable to the ‘+5v’ port of the Dimmer Control Board NOTE 12-Port Expansion Board 15cm Connecting Cable Connect the other end of the 30cm Connecting Cable to the 12-Port Expansion Board...
  • Page 50 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 51 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light Cool White 30cm Bit Light Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 52 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Place the LED facing towards the Grey Tile Yellow 30cm Bit Light NOTE Thread the cable from the connector head side first INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 53 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Yellow 30cm Bit Light Yellow 30cm Bit Light Yellow 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 54 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Twist the cables from both 12-Port Expansion Boards but ensure the Dimmer Board stays in the same position NOTE Take all four Yellow 30cm Bit Lights from the hanger bay INSTRUCTIONS DISCONNECT...
  • Page 55 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable 12-Port Expansion Board Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 56 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light Cool White 30cm Bit Light Cool White 30cm Bit Light NOTE Connect all four loose Cool White 30cm Bit Lights to the 12- Port Expansion Board INSTRUCTIONS DISCONNECT...
  • Page 57 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Yellow 30cm Bit Light Yellow 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 58 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Yellow 30cm Bit Light Yellow 30cm Bit Light NOTE Connect all four loose Yellow 30cm Bit Lights from the hanger bay to the 12-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 59 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® 50cm Connecting Cable NOTE Twist all the loose Bit Light cables to neaten up 12-Port Expansion Board NOTE Connect the other end of the 50cm Connecting Cable to the ‘OUT’...
  • Page 60 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 61 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 62 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 63 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 64 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 65 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 66 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Cool White 30cm Bit Light Cool White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 67 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 68 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 69 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify...
  • Page 70 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® NOTE You should have these parts left over that were removed from the LEGO set INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...

  • Page 71: Final Product

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Star Wars Venator-Class Republic Attack Cruiser 75367 Light Kit. ® FINAL PRODUCT...

  • Page 72: Troubleshooting

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very...
  • Page 73 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Troubleshooting Firstly, ensure that the Check for AA batteries batteries have power using a using the AA battery pack battery charge gauge. Inside the battery pack are symbols indicating which direction the AA battery If the batteries have no power, should be inserted.
  • Page 74 STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO bricks, the light will not operate.
  • Page 75 LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even...

  • Page 76: Contact

    LEGO STAR WARS VENATOR-CLASS REPUBLIC ATTACK CRUISER - 75367 LIGHT KIT INSTALL GUIDE ® CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here.
  • Page 77 © 2023 Light My Bricks Pty Ltd - Head Office: 4/26 Rushdale Street, Knoxfield VIC 3180, Australia. Phone: +61 420 643 543 | All Rights Reserved | Light My Bricks™ sell LED lighting kits only. All LEGO sets featured in images are sold ®...
