Mi-Light fullwat TRIAC CONTROL Owner's Manual

Smart led control system
Hide thumbs

Advertisement

Quick Links

Download this manual
by
TRIAC CONTROL
Smart LED control system
Dimming Controller for LED systems and conventional lighting systems
by means of an end-of-phase triac system (ELV) with push button.
Compatible with Alexa and Google Home through LENNY-WIFOX1 gateway.
Owners manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the fullwat TRIAC CONTROL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mi-Light fullwat TRIAC CONTROL

Summary of Contents for Mi-Light fullwat TRIAC CONTROL

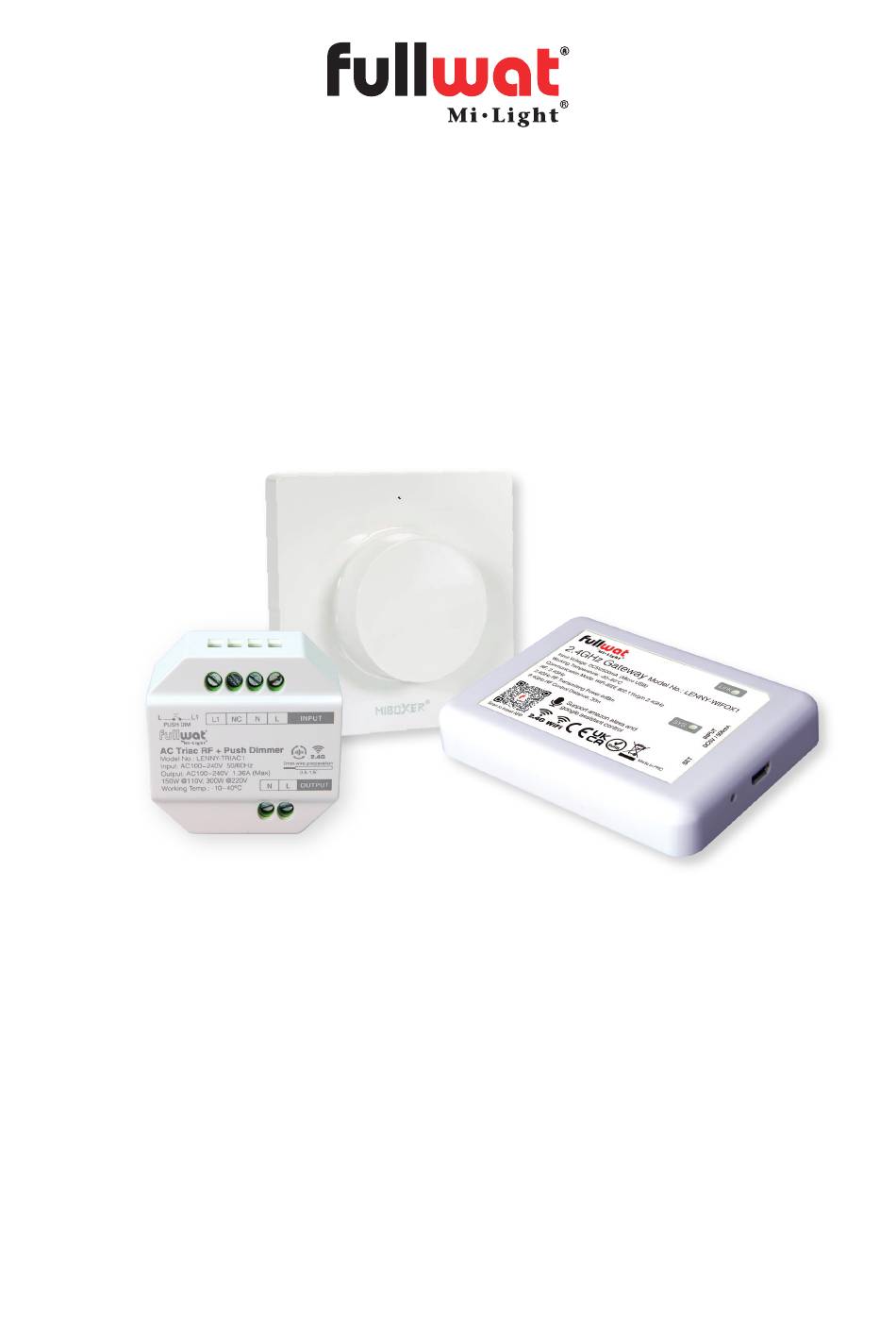

  • Page 1 TRIAC CONTROL Smart LED control system Dimming Controller for LED systems and conventional lighting systems by means of an end-of-phase triac system (ELV) with push button. Compatible with Alexa and Google Home through LENNY-WIFOX1 gateway. Owners manual...

  • Page 2: Technical Specifications

    TRIAC CONTROL Smart LED control system Technical specifications TRIAC controller Modelo LENNY-TRIAC1 Input voltage AC 100-240V 50/60Hz Output voltage AC 100-240V Output current MAX 1.36A Output power 150W@100VAC; 300W@240VAC Regulation method Wireless RF, push button, APP RF range Working temperature -10-40ºC •...

  • Page 3: Installation Diagram

    TRIAC CONTROL Smart LED control system Installation diagram Installation Push button Push button controlr Connection drawing Input: AC100~240V Input: AC100~240V Input: AC100~240V Input: AC100~240V Push button INPUT INPUT INPUT INPUT OUTPUT OUTPUT OUTPUT OUTPUT Triac dimmable LED lighting. Triac dimmable LED lighting. Triac dimmable LED lighting.
  • Page 4 TRIAC CONTROL Smart LED control system Remote and panel controls Compatible Remote and panel controls LENNY-MD-006 LENNY-MD-007 LENNY-MD-087 LENNY-PAN-B1 LENNY-PAN-B2 LENNY-PAN-K1 K1: Linking, unlinking and working. Linking Learning model enter. Push “SET BUTTON” on panel device LENNY-PAN-K1 3 times during the first 3 seconds since previous Procedure 1: Soft push on “SET”...
  • Page 5 TRIAC CONTROL Smart LED control system FUT006, FUT007, B1/T1, B2/T2, FIT087: Linking, unlinking and working. Linking Enter learning mode Push ON button from selected zone on panel or remote control, during first 3 Procedure 1: Short Push on “SET” button. Indicator seconds since previous step implemented led will flash quickly.

  • Page 6: Important Facts

    TRIAC CONTROL Smart LED control system Device auto-sync This device can transmit the signal to another device within 30m range. The control distance is unlimited if a device is placed every 30m. Auto-transmitting Triac dimmer Triac dimmer Caution: all dimmers must be linked to a remote control device. Important facts 1.- Main source must be switched off while installing or handling.
  • Page 7 TRIAC CONTROL Smart LED control system Mobile phone pairing (LENNY-WIFOX1) If you wish to link your LENNY system Download and install the application on your mobile phone: with our smartphone app, LENNY- a. Via QRl code WIFOX1 gateway is necessary. b.
  • Page 8 TRIAC CONTROL Smart LED control system A countdown will appear and once paired, it will indicate that pairing has been successful. Our device will appear in the list of paired devices. Linking your smartphone. Once you get LENNY-WIFOX1 linking, we must get driver linking with our smartphone app.
  • Page 9 TRIAC CONTROL Smart LED control system Now we must link our receiver with smartphone application. In the application we can control up to 4 zones (minimum one LENNY-TRIAC1 per zone). To do this, we must select the zone to which we are going to link our LENNY-TRIAC1. Once the zone has been selected, we can link / unlink the device: Click on “Link/Unlink”.
  • Page 10 • One LENNY-WIFOX1 gateway for each zone. • One LENNY-TRIAC1 for each zone. Install Alexa app and log in using your account. We need to install Mi-Light Smart skill. To do so: Click on “more” In the search engine We allow...
  • Page 11 TRIAC CONTROL Smart LED control system Now you can work with standard ALEXA managing. We can rename device to be able to control that device only instead the whole group, command Alexa to turn off/on the device, etc.
  • Page 12 To pair the LENNY-WIFOX1 device, follow the steps below: Click en “más” Select Look for the “Mi-Light Smart” application “Configure device”. in the list of applications. You may get a link Log in with your MiBoxer data.
  • Page 13 TRIAC CONTROL Smart LED control system GOOGLE ASSISTANT linking Multizone with Google Assistant: If we want to control several zones with Google Assistant: • One LENNY-WIFOX1 gateway for each zone. • One LENNY-TRIAC1 for each zone. And Install Google Assistant application via PlayStore on your phone: We must configure it to recognize your voice.
