User Instruction

Dual White Panel Light Control System

Model No.: LS3

Table of Contents

Need help?

Do you have a question about the LS3 and is the answer not in the manual?

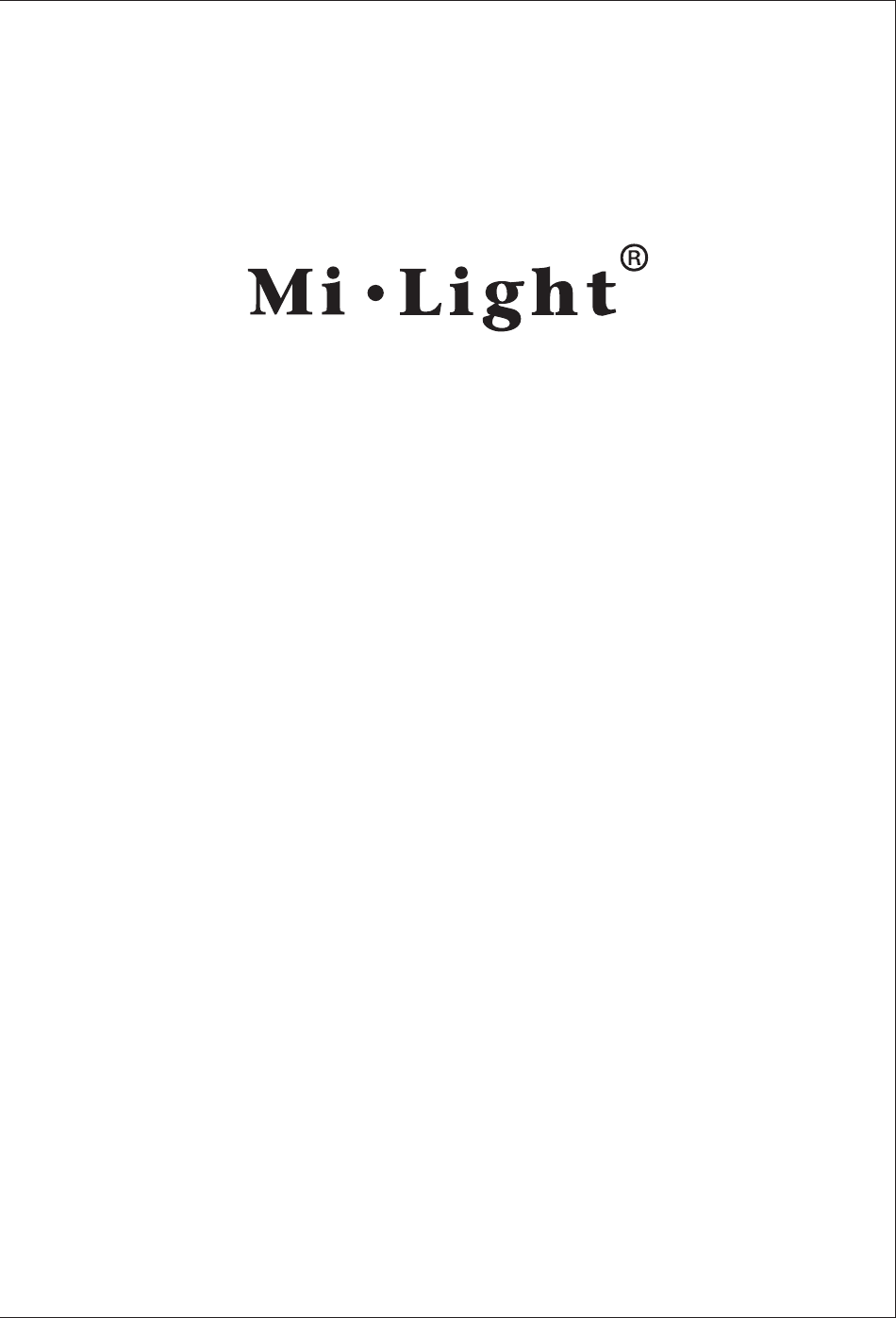

Page 1 User Instruction Dual White Panel Light Control System Model No.: LS3...
Page 2 Introduction Product Parameters Dual White Panel Light Controller is a newly Model No.: LS3 Input Voltage: DC42V~45V Working Temperature: -20~60℃ Output Voltage: DC30V~40V developed high-end controller, controlled by wireless Connection: Common anode Output Current: 900mA remote controller, also with smart phone control and...
Page 3 Instructions Step 1: Connect controller to the light and power, Suggest to buy “MEAN WELL”42V AC TO DC power supply (See right picture). Step 2: Voltage Calibration After turn on the power, press “Auto adjust” button once to correct LED VF, the indicating lamp will blink 6 times after 10 seconds;It can work normally after correcting successfully.
Page 4 Step 3: Link / Unlink FUT091 / B2 / T2 Remote Link / Unlink Link: Switch off the power, then switch on again after 5 Compatible with FUT007 / FUT091 / B2 / T2 remote controls seconds, press " " 3 times within 3 seconds;the light will (Purchased separately) blink 3 times slowly when it is done.
Page 5 Color Temperature Line Brightness Dimming Master ON Master OFF “ ” Zone ON (Link/Unlink) “ ” Zone OFF B2 / T2 1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
