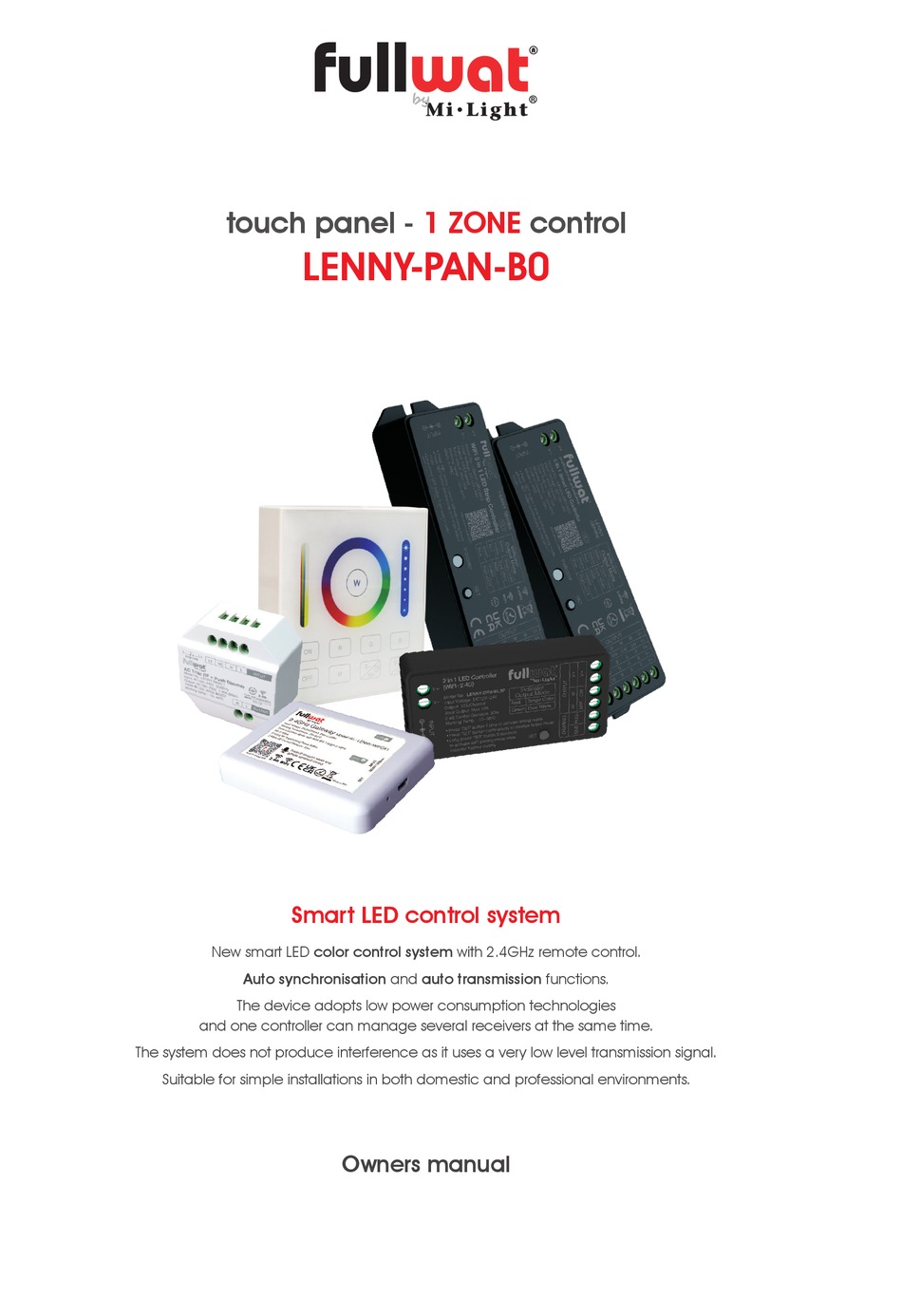

by
touch panel -
1 ZONE
control
LENNY-PAN-B0
Smart LED control system
New smart LED color control system with 2.4GHz remote control.
Auto synchronisation and auto transmission functions.
The device adopts low power consumption technologies
and one controller can manage several receivers at the same time.
The system does not produce interference as it uses a very low level transmission signal.
Suitable for simple installations in both domestic and professional environments.
Owners manual
Advertisement
Table of Contents
Related Manuals for Mi-Light fullwat LENNY-PAN-B0
Summary of Contents for Mi-Light fullwat LENNY-PAN-B0
- Page 1 touch panel - 1 ZONE control LENNY-PAN-B0 Smart LED control system New smart LED color control system with 2.4GHz remote control. Auto synchronisation and auto transmission functions. The device adopts low power consumption technologies and one controller can manage several receivers at the same time. The system does not produce interference as it uses a very low level transmission signal.
-
Page 2: Table Of Contents
LENNY-PAN-B0 1 ZONE control Smart LED control system Technical specifications ..................Single color ......................Touch panel functions Mobile control Tunable white ..................... Touch panel functions Mobile control RGB ........................Touch panel functions Mobile control RGBW ......................... Touch panel functions Mobile control RGBWW ...................... -
Page 3: Technical Specifications
LENNY-PAN-B0 1 ZONE control Smart LED control system Technical specifications Touch panel Model LENNY-PAN-B0 Voltage 3V (2 AAA batteries)* Emitting power 6dBm Standby current 20uA -10~40°C Working temperature Working frequency 2.4GHz Aprox. operational distance * Not included. DIRECT CURRENT DRIVERS LENNY-DRV-LS2 LENNY-DRV-WL5 LENNY-DRV-WL2P... - Page 4 LENNY-PAN-B0 1 ZONE control Smart LED control system Technical specifications ALTERNATE CURRENT DRIVER TRIAC controller Model LENNY-TRIAC1 Input voltage AC 100-240V 50/60Hz Output voltage AC 100-240V Ouput current MAX 1.36A 150W@100VAC; Output power 300W@240VAC Regulation method Wireless RF, push button, APP RF range Working temperature -10-40ºC...
-
Page 5: Single Color
LENNY-PAN-B0 1 ZONE control Smart LED control system SINGLE COLOR Touch panel functions: LENNY-PAN-B0 Brightness bar: white brightness regulation. On Program mode activitation: Short press for slow down. On Static mode activation: press for 2 seconds and system will dim for 60 seconds up to lights reach turn off. With programmed mode active: Short press and increase speed. -
Page 6: Touch Panel Functions
LENNY-PAN-B0 1 ZONE control Smart LED control system TUNABLE WHITE Touch panel functions : LENNY-PAN-B0 Brightness bar: white brightness regulation. Dynamic white bar: Dynamic white mixing from the warmest to the coolest tone. On program mode active: Short press for dimming. On static mode active: Press for 2 seconds to dim for 60seconds up to lights go out. -
Page 7: Touch Panel Functions
LENNY-PAN-B0 1 ZONE control Smart LED control system Touch panel functions : LENNY-PAN-B0 White Color ring Color saturationr Brightness level regulation Red static Green static Link / Unlink Blue static Speed+ Speed– Mode Slide your finger over the coloured ring to change Dynamic modes. -
Page 8: Mobile Control
LENNY-PAN-B0 1 ZONE control Smart LED control system Mobile control For control via mobile phone, Alexa, Google Home or Google Assistant, a WIFI gateway is required, either built into the receiver or using the LENNY-WIFOX1 gateway. Define LED type: Single color Tunable white RGB+white RGB+tunable white... -
Page 9: Rgbw
LENNY-PAN-B0 1 ZONE control Smart LED control system RGBW Touch panel functions: LENNY-PAN-B0 White Color ring Temperature color Brightness regulation from white channel Red static Green static Link / Unlink Blue static Speed+ Speed– Modes Slide your finger over the colored ring to change Red direct switch. -
Page 10: Mobile Control
LENNY-PAN-B0 1 ZONE control Smart LED control system RGBW Mobile control For control via mobile phone, Alexa, Google Home or Google Assistant, a WIFI gateway is required, either built into the receiver or using the LENNY-WIFOX1 gateway. Define LED type: Single color Tunable white RGB+white... -
Page 11: Rgbww
LENNY-PAN-B0 1 ZONE control Smart LED control system RGBWW Touch panel functions: LENNY-PAN-B0 White Color ring Tunable white Brightness regulation Red static Green static Link / Unlink Blue static Speed+ Speed– Modes Slide your finger over the colored ring to change Red direct switch. -
Page 12: Mobile Control
LENNY-PAN-B0 1 ZONE control Smart LED control system RGBWW Mobile control For control via mobile phone, Alexa, Google Home or Google Assistant, a WIFI gateway is required, either built into the receiver or using the LENNY-WIFOX1 gateway. Define LED type: Single color Tunable white RGB+white... -
Page 13: Led Strip-Controller Connection
LENNY-PAN-B0 1 ZONE control Smart LED control system Led Strip-controller connection Connection drawing 5 in 1 driver LENNY-DRV-LS2 / LENNY-DRV-WL5 SINGLE COLOR DC12V/24V Indicating lamp show output mode White Single Color Mode 5 IN 1 Smart LED Controller Model No.: LENNY-DRV-LS2 Yellow Dual White Mode Working Temperature: -20~60°C... - Page 14 LENNY-PAN-B0 1 ZONE control Smart LED control system Led Strip-controller connection Connection drawing 2 in 1 driver LENNY-DRV-WL2P SINGLE COLOR Valid for models: DOMOX-2835-XX FU-BLF-XX CCTX-2835-XX XX: 2100 / 2300 / 2700 / 3000 /40000 / 6000K DC12V/24V AC TO D Push button TOUCH Short press: ON/OFF.
-
Page 15: List Of Lenny-Drv-Ls2 Modes And Functions For Rgb / Rgbw / Rgbww
LENNY-PAN-B0 1 ZONE control Smart LED control system List of LENNY-DRV-LS2 modes and functions for RGB / RGBW / RGBWW Number Dynamic mode Brightness / Saturation / Speed Mardi Gras Automatic colors changing Gemma Twlight Adjustable American Super super Tuesday Party Splash colors List of LENNY-DRV-WL5 modes and functions for RGB / RGBW / RGBWW... -
Page 16: System Linking And Unlinking
LENNY-PAN-B0 1 ZONE control Smart LED control system System linking and unlinking Note: The light only works after the controller is paired with one or more receivers. Linking. Place Remote controller close to the desired driver to be paired. Before starting linking process, configure receiver according to the type of LED strip. Refer to “wiring diagram” section (previous point) from the manual. -
Page 17: Device Auto-Sync
LENNY-PAN-B0 1 ZONE control Smart LED control system Device auto-sync Different receiver drivers can be connected to operate with the same remote controller and operate in the same modes. Receiver Receiver Receiver Receiver Receiver Notes: : Self emitting indication. 2. Remote driver controllers can be paired with the same remote controller within a maximum range of 30 meters. -
Page 18: Installation Diagram
LENNY-PAN-B0 1 ZONE control Smart LED control system Installation diagram - LENNY-PAN-B0 Remove rear adhesive foil tape Place bracket on the wall with your desired position. Install 2 pcs AAA alkaline batteries. Place main panel on the front of the bracket. - Page 19 LENNY-PAN-B0 1 ZONE control Smart LED control system Installation diagram - LENNY-TRIAC1 Push button...
-
Page 20: Mobile Phone Pairing
LENNY-PAN-B0 1 ZONE control Smart LED control system Mobile phone pairing Note: Download and install the application on your mobile phone: Also compatible with the a. Via QRl code application: SMART LIFE b. Searching the Play Store for “MiBoxer”. To link our installation with our mobile phone, we will need one of these drivers: –... - Page 21 LENNY-PAN-B0 1 ZONE control Smart LED control system Mobile phone pairing Select device model: For model LENNY-DRV-WL5: Click on “Smart Strip Controller (WL5)”. For model LENNY-DRV-WL2P: Click on “LED controller (FUT035W-FUT039W)”. For model LENNY-DRV-LS2 or model LENNY-TRIAC1: Click on “2.4GHz Gateway (WL-Box1)”. For model LENNY-DRV-WL5: Disconnect power supply from LENNY-DRV-WL5 for 10 sec.
- Page 22 LENNY-PAN-B0 1 ZONE control Smart LED control system Mobile phone pairing Wether we have to use the WIFI gateway (LENNY-WIFOX1): We must link the driver to be controlled via the APP . To do this, click on 2.4GHz gateway. First we must choose whether we are going to configure one or more zones.
- Page 23 LENNY-PAN-B0 1 ZONE control Smart LED control system Mobile phone pairing The application allows us to create groups with different receivers. This will allow us to control several receivers at the same time: turn ON / OFF / change the color, etc. Save Group name...
-
Page 24: Alexa Linking
To control system with Alexa, a wifi gateway is required, either built into receiver or using LENNY-WIFOX1 gateway. Install Alexa app and log in using your account. We need to install Mi-Light Smart skill. To do so: Click on “more”... -
Page 25: Google Home Linking
Install Google Home app and log in with your Google account. If you have not yet configured your home, you can do this now or later. We need to install Mi-Light Smart skill. To do this: Click on “more”. Select Look for the “Mi-Light Smart”... -
Page 26: Google Assistant Linking
LENNY-PAN-B0 1 ZONE control Smart LED control system GOOGLE ASSISTANT linking To control system with Google Assistant, a wifi gateway is required, either built into the receiver or using LENNY-WIFOX1 gateway. And Install Google Assistant application via PlayStore on your phone: We must configure it to recognize your voice. -
Page 27: Compatibility Table
LENNY-PAN-B0 1 ZONE control Smart LED control system Compatibility table “Mobile app Single color RGBW RGBWW Alexa Zones Google Home” LENNY-DRV-LS2 LENNY-MD-085 LENNY-MD-085 LENNY-WIFOX1 LENNY-DRV-LS2S gateway is required LENNY-MD-086 LENNY-MD-086 LENNY-MD-086 LENNY-MD-086 LENNY-MD-086 5-in-1 standard LENNY-MD-087 receiver LENNY-MD-088 LENNY-MD-088 LENNY-MD-088 LENNY-MD-088 LENNY-MD-088 LENNY-PAN-B0... -
Page 28: Table Of Controls By Zones
LENNY-PAN-B0 1 ZONE control Smart LED control system Table of controls by zones LENNY-MD-085 LENNY-MD-086 LENNY-MD-087 1 ZONE LENNY-MD-088 LENNY-MD-B0 LENNY-PAN-K1 4 ZONES LENNY-MD-007 LENNY-PAN-B4 LENNY-MD-092 8 ZONES LENNY-PAN-B8 LENNY-MD-089...
