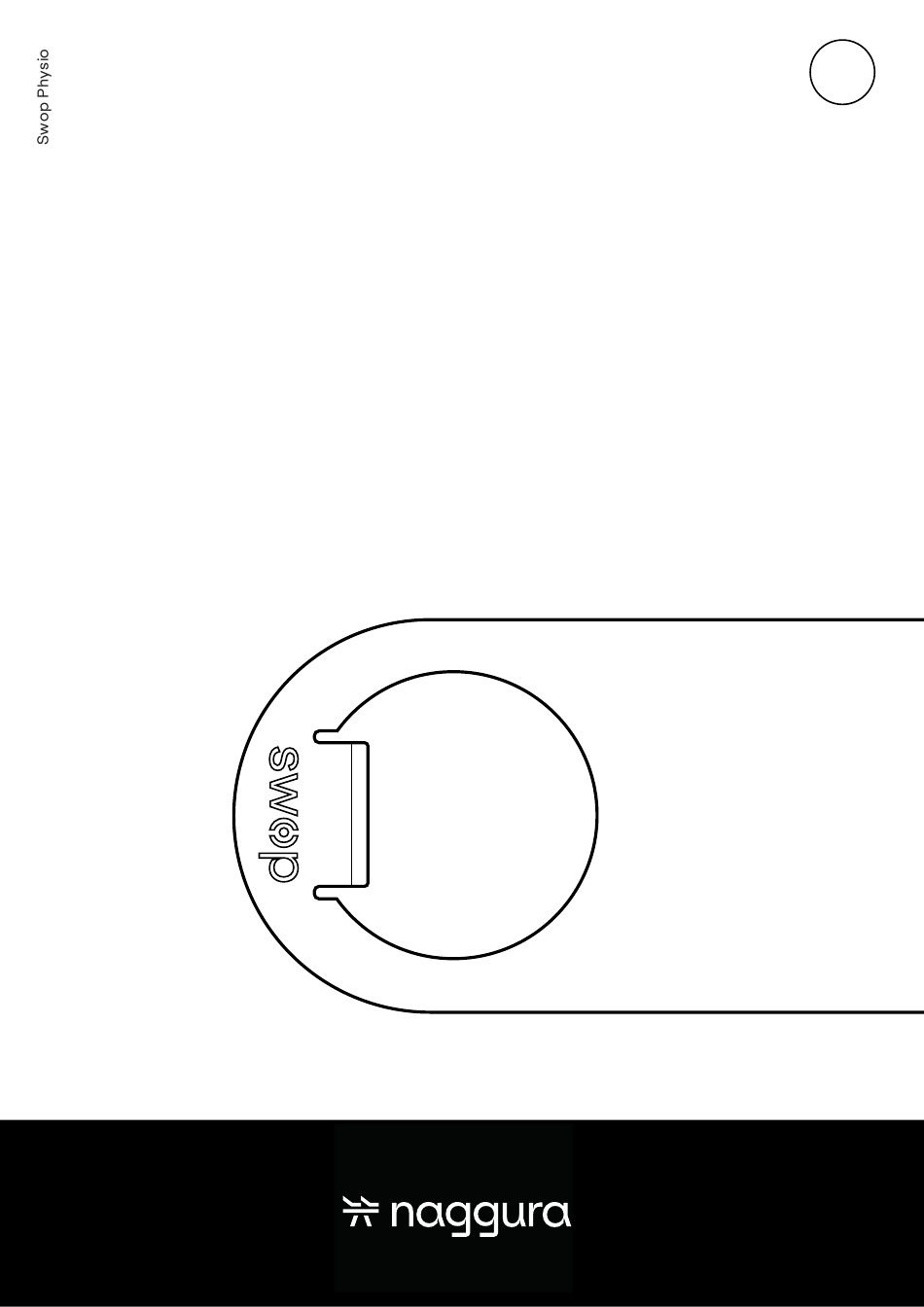

- Page 1 Swop Physio Instruction Manual Treatment Tables for Physiotherapy SWOP2 - SWOP2L - SWOP2W - SWOP3 - SWOP5 VERSION 1.2...
-
Page 2: Table Of Contents
Instruction Manual Instruction Manual Treatment Table for Physiotherapy Table of contents 1. Introduction 2. Use of the manual 3. Warranty 4. Product Liability 5. EC Declaration of conformity 6. Safety instructions 7. Dimensions 8. Features & Operation Wheel Block/Unblock system Lever to adjust the headrest Breather hole and plug Handlebar support... -
Page 3: Introduction
We are sure that this medical examination table will turn into the pillar of your work and will more than fulfil your most demanding work requirements. NAGGURA’s experts are in the lead of a project created with great devotion. Every single detail has been cared to join technology, performance and design altogether in a single table. Our aim is designing and manufacturing INTUITIVE, DYNAMIC and HIGH-TECH tables of a DARING and UNIQUE design. -
Page 4: Use Of The Manual
By carefully following these instructions you will be able to avoid any problems in using the treatment table. Some texts and/or illustrations may not belong to your Naggura table since they are general and it depends on your product choice at the purchase time. -
Page 5: Ec Declaration Of Conformity
6. Safety instructions Responsibility of the owner Naggura treatment tables are only meant to be used by professional personnel in physiotherapy, rehabilitation, examination, mas- sage and aesthetics fields. It is the responsibility of the owner to ensure that training is given to all operators and third parties (like for example cleaning per- sonnel) on safe use of the treatment table, and that they have read and understood all the operating and safety instructions. - Page 6 Instruction Manual Safety instructions Safety during treatments - Don’t let anybody, except the operator and the patient, in the treatment room. - The table is not intended to transport patients. Therefore it cannot be used for this purpose. - Do not sit on the head section or end of the leg section of the table. The head section and armrests are not suitable to sit on. - Patients are not to be left unattended, - Never leave the table on its wheels during the treatment.
-
Page 7: Dimensions
Instruction Manual 7. Product dimensions Swop 2 Swop 2L Swop 3 Swop 5 Swop 2W... - Page 8 Instruction Manual Handling and transport...
- Page 9 Instruction Manual Product dimensions Package dimensions (cm) Lateral displacement (cm) Power cord length(cm) 27 cm 250 cm 8. Operation Power input Voltage and frequency input shall be 220-240V, 50/60Hz. Plug the table cable into the socket as shown below:...
-
Page 10: Wheel Block/Unblock System
Instruction Manual Operation of Swop Physio 1. Wheel block/unblock system 2. Lever to adjust the headrest 3. Breather hole and plug 4. Handlebar support 5. Twinlift© 6. Space Ball perimeter foot switch 7. Switches for lumbar flexion 8. Lever to adjust the backrest 9. -
Page 11: Space Ball Perimeter Foot Switch
Space Ball perimeter foot switch The height of the SWOP physio tables is adjusted from 6 different points located around the base of the table, at floor level. Two semicircles are placed on each long side of the table; one is placed at the front side (head section) and the other at the end side (foot section). -
Page 12: Switches For Lumbar Flexion
Instruction Manual Operation Specifications Product size 202 (+/- 27 cm with movement) x 68 x 48 / 90 cm Package size 197 x 74 x 52,5 cm Highest position 90 cm Lowest position 48 cm Net weight 96-102 Kg Gross weight 110-122 Kg Power AC 220 - 240V, 50/60Hz... -
Page 13: Safety Lock
Integrated safety system All SWOP physio models are fitted with a motor with an automatic clutch system. In case somebody or something gets stuck between the upper and lower frame of the bed (when the bed moves downwards), the motor clutch will make sure that the motor stops pulling downwards. -
Page 14: Interchangeable Front Panels
Instruction Manual Operation Interchangeable Front Panels The Swop treatment tables highlights by a very special feature: the front exchangeable panels. There are lot of different pos- sibilities to dress your table up. Get a new table in a matter of seconds and according to your taste, the interior design of your centre, your mood or however you feel today! The exchangeable panels are 2 units: one for one side of the table base and the other for its opposite. -
Page 15: Led Lighting & Cromo Mood
Instruction Manual Operation LED lighting / Cromo Mood As standard feature placed at both sides of the base, the Swop table has a white LED lighting. A line that underlines the table and shows the Swop display name. To turn the light on, press the button on top of the base frame. As an option the Cromo Mood System with multicolour led lighting can be chosen. -
Page 16: Maintenance And Cleaning
Always remove residu with clean water after cleaning with soap. - Cleaning each month or in case of stains: Use the original Naggura Cuirnet high-performance cleaner in a dilution of 1:9 Cuirnet and water. If the stain cannot be removed, the cuirnet cleaner maybe be used undiluted. -
Page 17: Troubleshooting And Service
Only a technician authorized by Naggura is allowed to perform any kind of repairs on the bed. None of the parts inside the device may be replaced by the user. If your technical staff is allowed by Naggura to repair the bed, naggura can provide the necessary instructions and spare parts lists. - Page 18 Instruction Manual 10. Troubeshooting and service The backrest moves down alone The supporting gas lifts are loose. • In such a case, remove the gas lift from the lower part and loosen it (unscrew it) 2 turns and fix it again. Proceed the same way with the second gas lift.
-
Page 19: Emc Guidance
Instruction Manual 11. EMC Guidance Warning: It is not safe to operate the device in Guidance and Manufacturer’s Declaration the presence of HF surgical equipment or places - Electromagnetic Emissions where the intensity of EM disturbances is high. Emissions test Compliance Warning: Use of this equipment adjacent to or stacked with other equipment should be avoided... - Page 20 Instruction Manual Test Specifications for enclosure port immunity to RF wireless communications equipment IEC60601 test level Compliance Immunity Test level Maximum Immunity Test frequency Modulation power level **Pulse Modulation: 385 MHz 1.8W 27 V/m 27 V/m 18Hz *FM+ 5Hz derivation: 450 MHz 28 V/m 28 V/m...
- Page 21 Instruction Manual Our products are subject to continuous technical improvements. Naggura reserves the right to change or modify the product and contents without prior notice.
- Page 22 Pol. Ind. La Valldan Camí de Garreta, 92 08600 Berga Barcelona - Spain T. +34 93 824 90 20 E. info@naggura.com www.naggura.com...
