SCHEDA TECNICA
TECHNICAL CHART
Kit di accessori in acciaio zincato per la realizzazione di cancelli scorrevoli telescopici a 3 ante.
Quando necessario utilizzare un motoriduttore per gestire velocità di esercizio e il carico sul motore. Il kit è predisposto per essere
montato in versione destra (per la versione sinistra vedere apposita sezione)
Galvanized accessories Kit for the installation of a 3 leaves telescopic gate. A gear motor may be required to control the operating
speed and the load on the motor. The kit is designed to be mounted on the right side (for the left side version consult the specific ma-
nual section).
VERSIONE DESTRA (PER LA VERSIONE SINISTRA VEDERE PAG. 9)
RIGHT VERSION (FOR THE LEFT VERSION SEE PAGE 9)
LATO ESTERNO
EXTERNAL SIDE
S3
APERTURA FINO A 6m - OPENING UP TO 6m
KA5102. 1 06
Con ruota D.90 gola V / D.90 V groove wheels
KA5102.406
Con ruota D.100 gola tonda 20mm/ D.100 half-round groove wheels 20mm
APERTURA FINO A 12m - OPENING UP TO 12m
KA5102. 1 12
Con ruota D.90 gola V / D.90 V groove wheels
KA5102.412
Con ruota D.100 gola tonda 20mm/ D.100 half-round groove wheels 20mm
FAC-ST_KA5102 ED. 05/ IT_EN (2023)

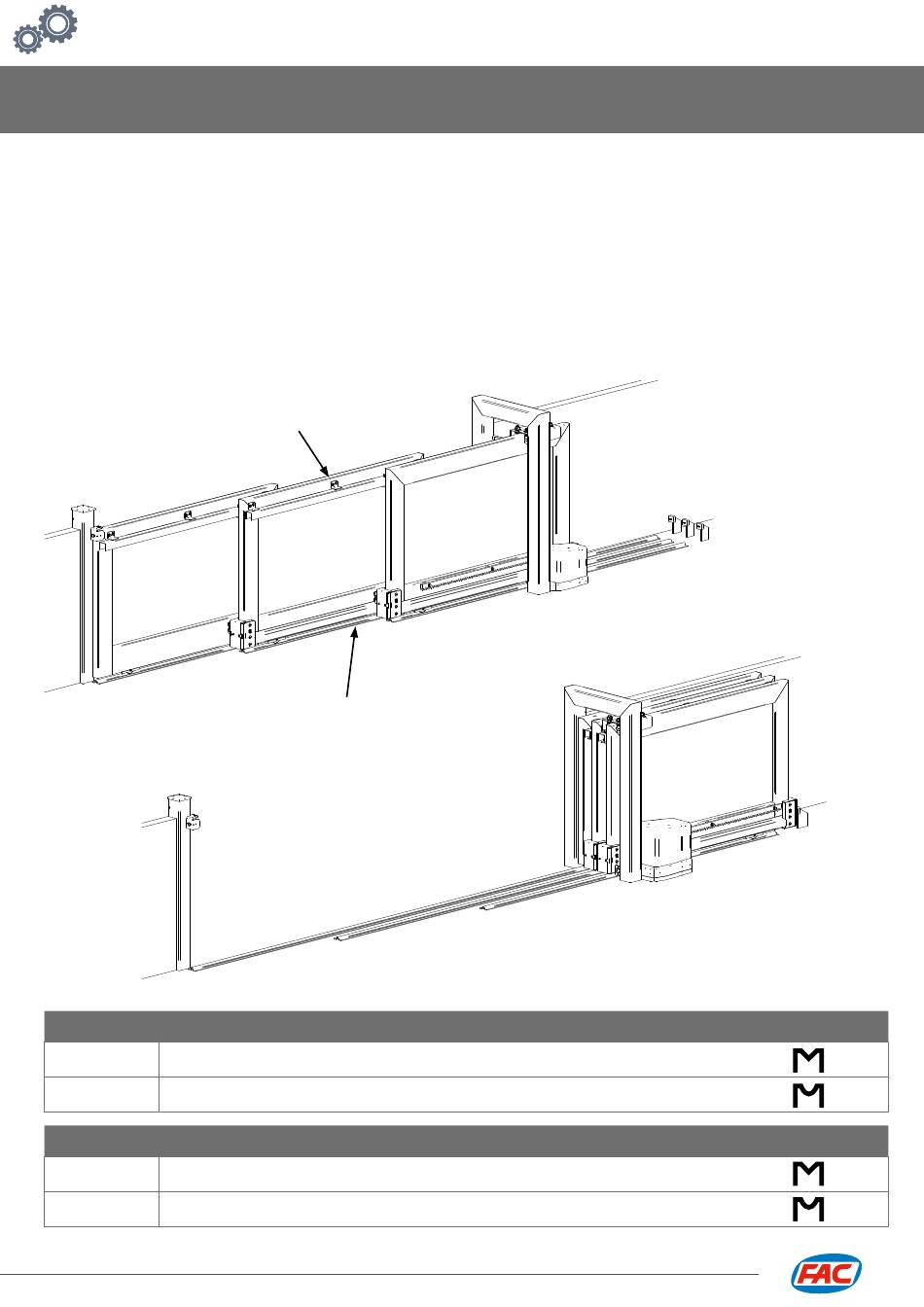

KIT TELESCOPICO MULTI-ANTA
MULTI-LEAF TELESCOPIC KIT
A
S2
B
LATO INTERNO
INTERNAL SIDE
www.facsrl.com - info@facsrl.com - Ph. +39 0444976241
S1
01
