FAC-ST_KC4601-Eng_01.doc

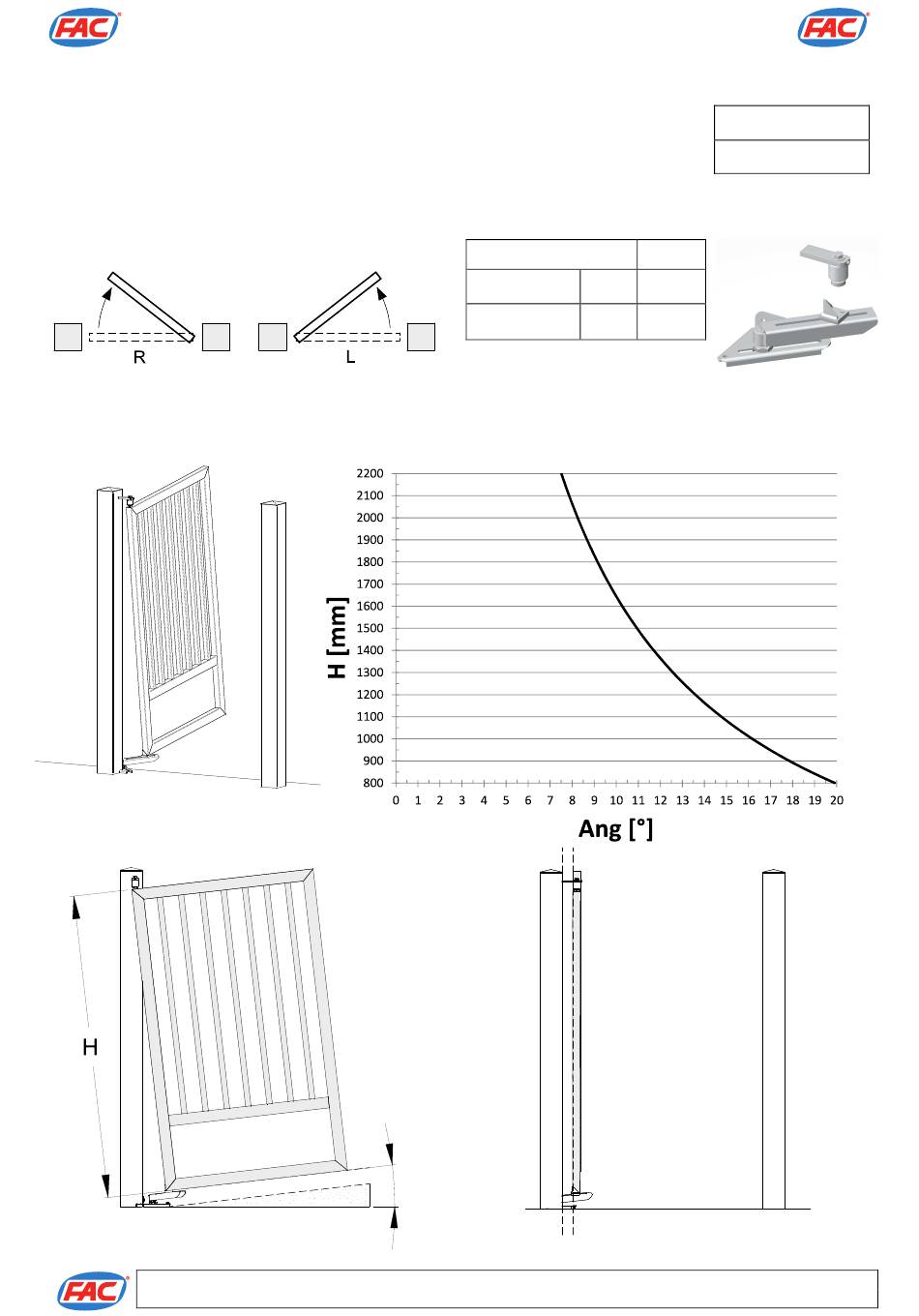

Description
Galvanized spherical hinge for sloped swing gate. Available for both left or right openings.
Maximum angle of inclination is directly related to the gate height (see below table). For safety
reasons it is recommended that the gate be motorized. The automation must be able to handle, in
addition to the weight and size of the door, the particular lifting movement.
Attention:
installations that do not comply with the illustred procedure or or failure to carry out correct maintenance
operations can cause the gate to derail and endanger the safety of persons and propriet
info@facsrl.com
RISING HINGES
Part Number
KC4601.R.40
KC4601.L40
Max. inclination in relation to H (height of the leaf)
Ang [ ° ]
Tel.+39 0444 976241
Family of Articles
G
R
80
L
80
Open
Open
Position
Position
KC4601
Advertisement
Related Manuals for Fac KC4601 Series
Summary of Contents for Fac KC4601 Series
- Page 1 FAC-ST_KC4601-Eng_01.doc info@facsrl.com Tel.+39 0444 976241 RISING HINGES Description Family of Articles Galvanized spherical hinge for sloped swing gate. Available for both left or right openings. Maximum angle of inclination is directly related to the gate height (see below table). For safety KC4601 reasons it is recommended that the gate be motorized.
- Page 2 Attention: installations that do not comply with the illustred procedure or or failure to carry out correct maintenance operations can cause the gate to derail and endanger the safety of persons and propriety...
- Page 3 Attention: installations that do not comply with the illustred procedure or or failure to carry out correct maintenance operations can cause the gate to derail and endanger the safety of persons and propriety...
- Page 4 Hinge Calculation and Selection Calculate the A / H ratio of the gate in question (see below graph), find the point in the graph corresponding to the weight of the gate. Select items that are found at the given point below the curve. If the gate does not have a uniformly distributed weight, then the A value must be calculated double the distance between the center of gravity and the axis of rotation of the gate.
