Description
All items contained in the kit are made of galvanized steel and is specially designed for use on bi-folding applications. The
gates on which the kit is used can be motorized. The system allows for the gate folding parts to move simultaneously. In the
open position the gate will occupy a space little more than half of the overall clearance.
Family of parts

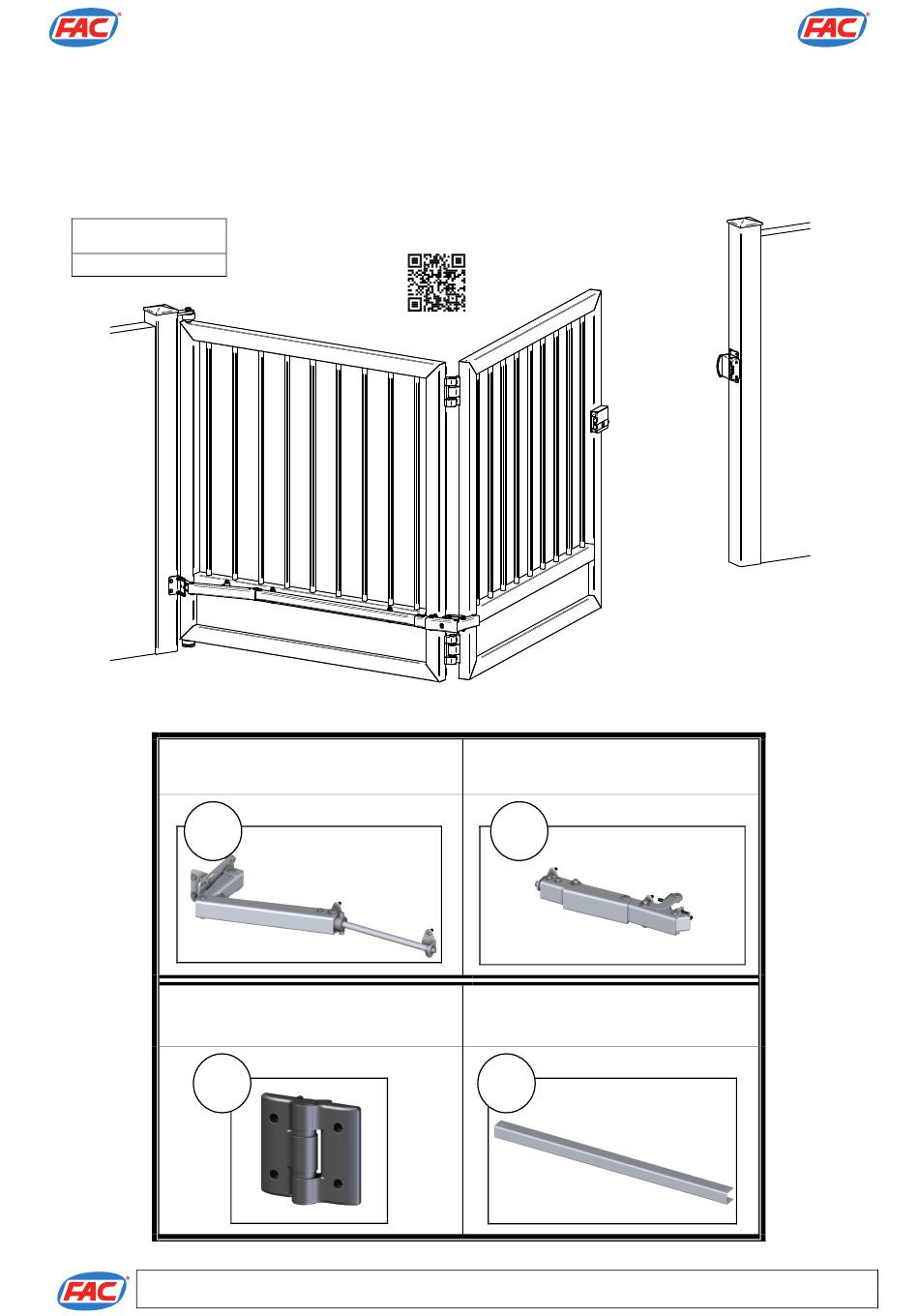

KC7101
Elenco parti Component list
1
3
Attention:
installations that do not comply with the illustred procedure or or failure to carry out correct maintenance
operations can cause the gate to derail and endanger the safety of persons and propriety
