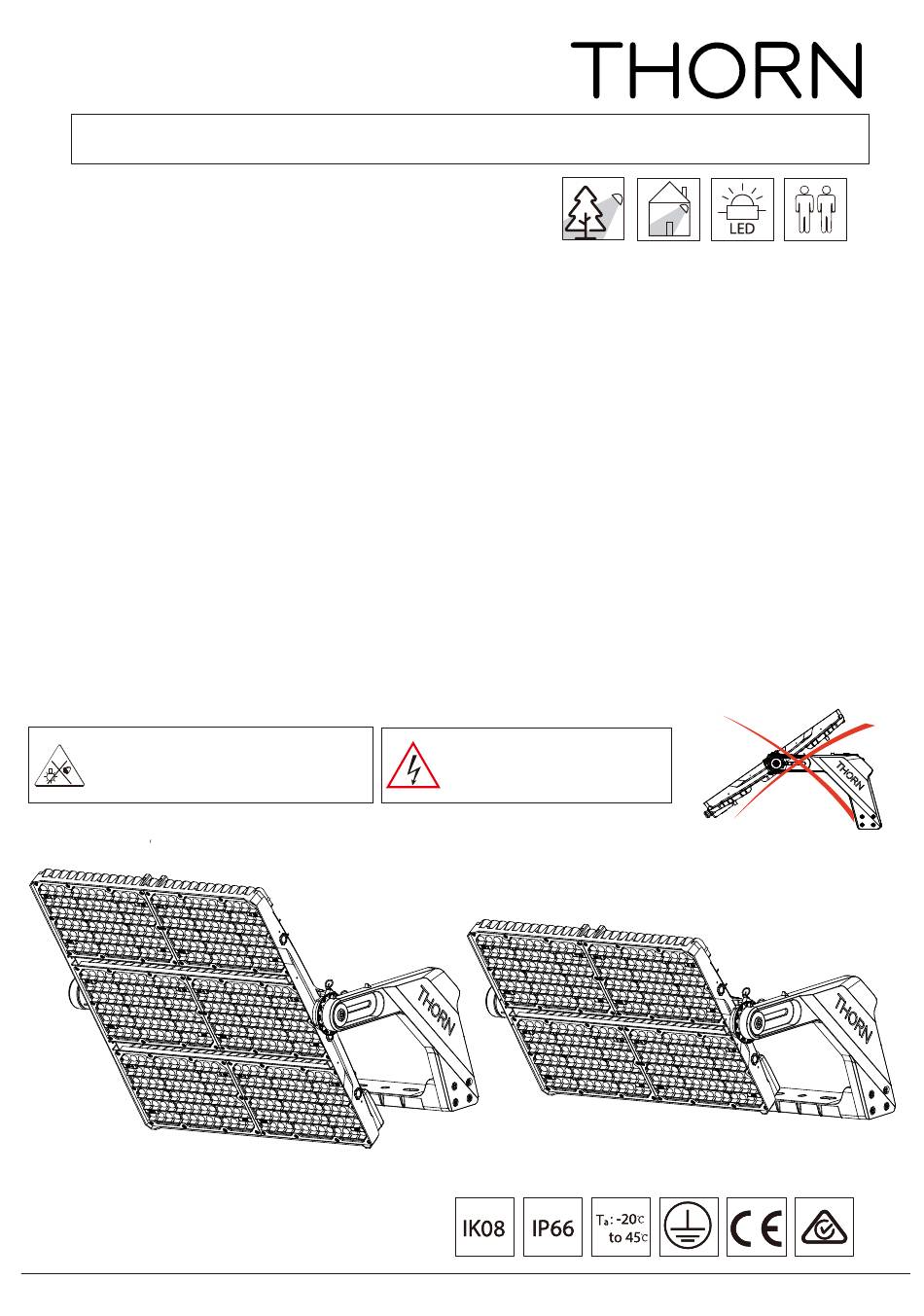

TROPHY
Installation Instruction
EN
The installation and commissioning of the luminarie as well as any modification to the
luminarire may only be performed by authorised personnel (qualified electrician).
National installation regulations must be observed. Caution! Make Sure that the luminaires
and power supply units are always disconnected from the mains supply during wiring and
installation work. Otherwise, the LED modules may be destroyed.
Hot plug-in is not permitted. Hot plug-in may result in damage to the luminaire and entail
loss of warranty claims!
The manufacturer is not liable for damages resulting from improper or faulty installation,
or operation or unauthorised modifications to the luminaire or control gear.
Any modification to this luminaire is forbidden.
The light source contained in this luminaire shall only be replaced by the manufacturer
or their service agent or a similarly qualified person.
Specifications are subject to change without notice! If you have questions, please
contact the manfacturer.
The luminaire with clear optic should be
positioned so that prolonged staring into
the luminaire at a distance <2m is not
expected.
ZG Lighting Australia Pty Ltd.
www.thornlighting.com.au
ZG Lighting (NZ) Limited
www.thornlighting.com.nz
Caution, risk of electric shock.
1/13

Advertisement

loading
Need help?

Need help?

Do you have a question about the TROPHY and is the answer not in the manual?

Questions and answers

Related Manuals for Thorn TROPHY

Summary of Contents for Thorn TROPHY

  • Page 1 TROPHY Installation Instruction The installation and commissioning of the luminarie as well as any modification to the luminarire may only be performed by authorised personnel (qualified electrician). National installation regulations must be observed. Caution! Make Sure that the luminaires and power supply units are always disconnected from the mains supply during wiring and installation work.
  • Page 2 L799xW724xH326 22.4kg 96652490 GEAR BOX SAP CODE DESCRIPTION SIZE (mm) NET WEIGHT 96652491 TROPHY GB IP66 312L105 240-415V CL1 DA L500xW152xH77 5.1kg 96652492 TROPHY GB IP66 468L105 240-415V CL1 DA L500xW152xH77 5.6kg ZG Lighting (NZ) Limited ZG Lighting Australia Pty Ltd.

  • Page 3: Surface Mounting

    SURFACE MOUNTING 1 x M20 with extra large washer (not provided) 2 x M14 with extra large washer (not provided) Support surface 250mm minimum MINIMUM CLEARANCES TILT ADJUSTMENT After adjusting the angle, please fix the screw ZG Lighting (NZ) Limited ZG Lighting Australia Pty Ltd.
  • Page 4 WINDAGE VALUES & TILT ANGLES TROPHY 312L757 TROPHY 468L757 MODEL Scx0 Scx5 Scx10 Scx15 Scx20 Scx25 Scx30 Scx35 WEIGHT TROPHY 312L757 0.091m² 0.105m² 0.126m² 0.147m² 0.169m² 0.190m² 0.209m² 0.228m² 17.6kg TROPHY 468L757 0.091m² 0.117m² 0.150m² 0.184m² 0.219m² 0.252m² 0.283m² 0.313m²...
  • Page 5 LIGHT DISTRIBUTION DIRECTION Asymmetric light distribution. Beam direction indicated by arrow. 60 asymmetric 35 asymmetric ZG Lighting (NZ) Limited ZG Lighting Australia Pty Ltd. www.thornlighting.com.au www.thornlighting.com.nz 5/13...
  • Page 6 Adjust the tilt angle of the main arm in accordance with the requirements in the lighting design. Tighten all bolts so that the floodlight tilt angle is fixed. **Not provided by THORN ZG Lighting (NZ) Limited ZG Lighting Australia Pty Ltd.

  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS Always ensure the cable diameters are followed in accordance with the wiring diagrams. Alternate cable types will compromise ingress protection ratings and void warranty. Open the junction box by unscrewing the 4 x S3 captive screws. ZG Lighting (NZ) Limited ZG Lighting Australia Pty Ltd.
  • Page 8 CONNECTION TO FLOODLIGHT TROPHY 312L Recommeded: H07 RN-F 5G1.5mm Length max.=200m V2+ V2- V1+ V1- 10- 16mm Cable 5x1.5mm 60245 IEC57 2 Modules TROPHY 468L Recommeded: H07 RN-F 7G1.5mm Length max.=200m V3+ V3- V2+ V2- V1+ V1- 10- 16mm Cable 7x1.5mm 60245 IEC57...
  • Page 9 TROPHY GB IP66 312L / ELECTRICAL CONNECTION DALI 8-9 mm INPUT OUTPUT Floodlight Ø min = 1,0 mm² Ø typ = 1,5 mm² Ø max = 2,5 mm² Ventilation Valve SIGNALLING LED INDICATIONS ON THE GEAR BOX PERIOD PULSES FAULT DESCRIPTION...
  • Page 10 TROPHY GB IP66 468L / ELECTRICAL CONNECTION DALI 8-9 mm INPUT OUTPUT Floodlight Ø min = 1,0 mm² Ø typ = 1,5 mm² Ø max = 2,5 mm² Ventilation Valve SIGNALLING LED INDICATIONS ON THE GEAR BOX PERIOD PULSES FAULT DESCRIPTION...
  • Page 11 TROPHY GEAR BOX MOUNTING 3 Nm 3 Nm 3 Nm 1.6 Nm Drilling recommendation: 10,5mm 134mm 4xØ8,5mm VERTICAL HORIZONTAL LATERAL / SIDE ZG Lighting (NZ) Limited ZG Lighting Australia Pty Ltd. www.thornlighting.com.au www.thornlighting.com.nz 11/13...
  • Page 12 GUIDELINE FOR INTEGRATION OF GEAR BOX Tc reference hotspot To measure ambient temperature inside the cabinet it has to be done between 2 gear boxes It is highly recommended to select a painted cabinet enclosure with high reflectance ratio to protect from solar radiant energy If you cannot follow instructions included in previous section regarding gear box integration, you have to measure Tc reference point taking into consideration that measures must be down to Tc_max...
  • Page 13 ** Suitable SPD should be considered for the whole installation to ensure lighting equipment is adequately protected (not provided by THORN). TROPHY GB IP66 312L105 240-415V CL1 DA 1000W Drivers for each circuit breaker Referring to the circuit breakers available on the market, the maximum number on the driver connectable for each circuit breaker is as the following table.
