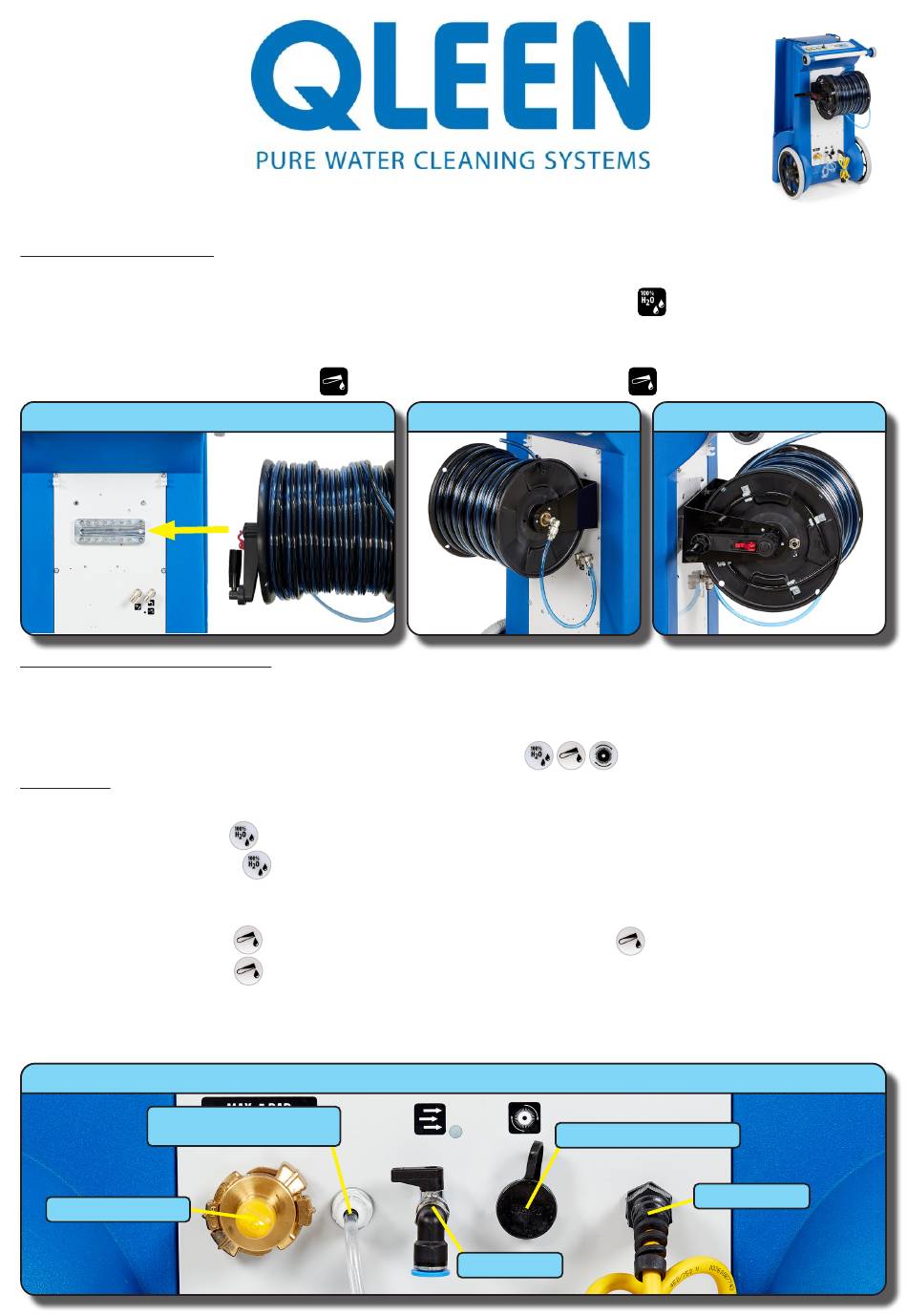

Qleen DISY Electro Quick Manual

1. Assembly of hose reel

1.1 Push the hose reel in from right to left and lock it in place (Fig. 1)
1.2 Connect the blue hose on the side of the hose reel to the pure water output
1.3 Roll out the hose to the required length
1.4 Disconnect the black connecting hose on the other side of the reel (Fig. 3)
1.5 Connect to the input of the drum
Hose drum attachment
1

2. Connection water and power

2.1 Connect the water input (Fig. 4) to the house water connection using a Gardena hose,
2.2 alternatively connect the suction hose to the machine and sink the other side into the water tank
2.3 Open the water input of the house water connection
2.4 Plug in the mains plug (Fig. 4) → the control buttons (Fig. 5)

3. Bleeding

3.1 Open the bleeding tap (Fig. 4)
3.2 Switch on with the key
3.3 Switch off with the key
3.4 Place the suction hose for the cleaning solution (Fig. 4) into the cleaning solution tank
3.5 Set the dosing pump regulator (Fig. 5) to 100%
3.6 Switch on with the key
3.7 Switch off with the key
3.8 Attach the hose to the rod and brush bow or ROTAQLEEN, connect the cable for the ROTAQLEEN to the
ROTAQLEEN socket (Fig. 4) and the ROTAQLEEN
3.9 The machine is ready for operation
Suction hose for
cleaning solution
Water input
4
Quick Guide QLEEN DISY Electro
and the output for cleaning solution
(blue blue ⇒ green green) and wait until water comes evenly out of the bleed (Fig. 4)
(green green ⇒ blue) blue
(blue blue ⇒ green/turquoise green turquoise) and wait until the key
(green green ⇒ blue blue)
Hose connection blue
2
Connections
ROTAQLEEN socket
Bleeding
(Fig. 2)
(Fig. 3)
Hose connection black
light up blue blue
lights up green green continuously
Mains plug
3
