CyberPower CyberShield DTC36U12V User Manual

User's Manual for

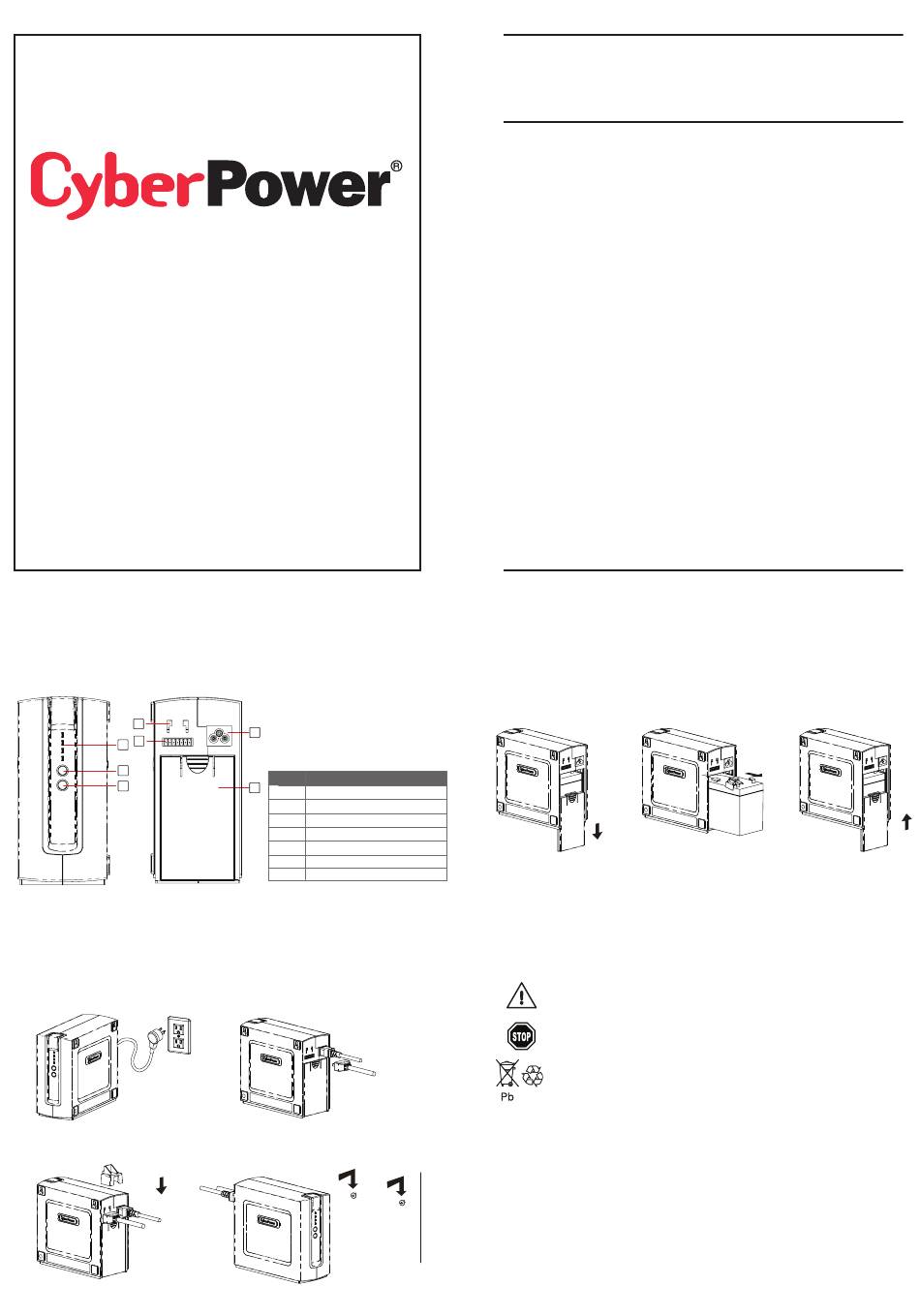

OVERVIEW
4
5
1
2
3
INSTA LLATION
DESKTOP USE:
1.) Open the battery door at the back of the DTC36U12V and connect the battery wires.
2.) Plug AC power cable into wall outlet.
3.) Connect the communication cable and simply place the DTC36U12V unit on or
underneath desk to begin backing up the optical home network.
WALL MOUNT USE:
Step 1:
Connect the AC cable to the wall outlet.
Step 3:
Install the cable retainer to secure the
commnication cable.
CyberShield
DTC36U12V
6
Number Description
7
1 LED Indicator
2 Alarm Silence Button
3 Cold Start Button
4 Cable Retainer Installation Point
5 Communication Cable Connector
6 AC Power Cable Connector
7 Battery Cover
Step 2:
Connect the communication cable between the DTC36U12V
and the ONT device.
Step 4:
Use the enclosed wall mount template to locate screws on the
wall. Hang the DTC36U12V on the screws which are located on
the wall.
CyberShield UPSs are designed to provide a local power solution for
cable telephony, wireless local loop (WLL), and fiber to the home
(FTTH) broadband equipment.
IMPORTANT SAFETY WARNINGS
(SAVE THESE INSTRUCTIONS)
This manual contains important instructions regarding the installation and operation of this device.
Read this manual thoroughly before attempting to unpack, install or operate this device.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is
disconnected.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity
controlled indoor area, free of conductive contaminants. (Please see specifications for
acceptable temperature and humidity range.)
CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the
battery. No user serviceable parts inside, except for the battery.
CAUTION! When replacing batteries, the replacement should have the same rating as follows,
Listed/Certified Valve Regulated Lead Acid Battery, 12V, max. 9Ah.
CAUTION! Risk of Energy Hazard, 12V, max.9 Ampere-hour battery. Before replacing batteries,
remove conductive jewelry such as chains, wrist watches, and rings and use tools
with insulated handles. High energy through conductive materials could cause
severe burns.
CAUTION! Do not dispose of batteries in a fire. The battery may explode if improperly disposed.
Recycle batteries in accordance with local regulations.
CAUTION! Do not open or mutilate batteries. Released material is harmful to the skin and eyes. It
may be toxic.
BATTERY REPLACEMENT
This battery is hot-swappable. As long as utility power is on, you may leave the UPS and connected
equipment on while replacing a new battery.
Step 1: Step 2:
a. Slide off the battery a. Remove the battery from
cover at the back of the the enclosure.
DTC36U12V unit. b. Disconnect both battery
cable connectors.
OPERATION
Connect equipment and power:
Step1. Plug the UPS power cord into the utility power cord inlet.
Step2. Plug the UPS power cord into the wall outlet.
The UPS battery charges when it is connected to utility power. The battery
charges fully during the first 24 hours of normal operation. Do not expect full
battery run capability during this initial charge period.
Once the battery is disconnected, the connected equipment is not protected
from power outages.
Deliver spent batteries to a recycling facility or ship to the manufacturer in the
replacement battery packing material.
ALARM SILENCE
The audible alarm will be enabled when the unit is operating from battery or battery power is low.
Press the Alarm Silence button for 0.5 seconds, the unit will beep once confirming that audible
alarms have been temporary disabled for 24 hours. Press this button one more time for 0.5 seconds
to enable audible alarms again. The unit will beep twice confirming that audible alarms have been
enable. Or press and hold the Alarm Silence button for 15 seconds the units will beep once confirm-
ing that audible alarms have been disabled permanently. To restore the audible alarm, press and
hold the Alarm Silence button for 15 seconds and the unit will beep twice confirming that audible
alarms have been enabled.
COLD START
The cold start feature is to supply power to the UPS and connected equipment when the UPS
shuts down and no utility power is available. Before using the cold start feature, please make sure
that the battery is properly charged. To turn on the cold start feature, please press and hold the
cold start button until 4 LED indicators light up.
Step 3:
a. Install the new battery by connecting
the red lead to the positive terminal
and the black lead to the negative
terminal.
b. Slide the battery back into the
compartment.
c. Replace battery cover to resume
normal operation.
