MENARDS ITEM #641-5288
MODEL #1899FM-28-201
ATTACH YOUR RECEIPT HERE

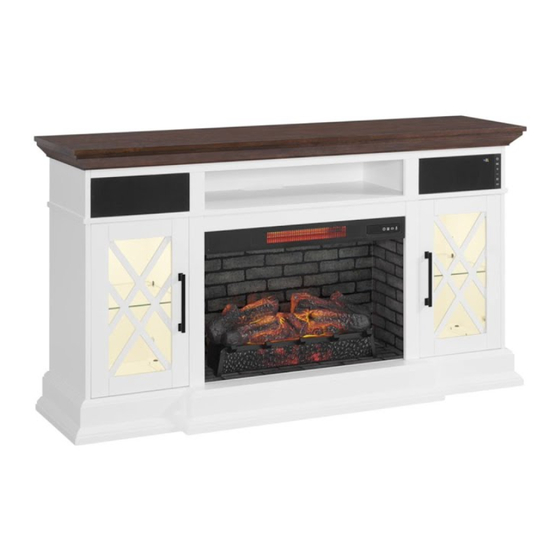

62" ELECTRIC FIREPLACE
ENTERTAINMENT CENTER WITH
BUILT-IN SOUND
ASSEMBLY, CARE & USE INSTRUCTIONS
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday - Friday. www.greentouchhome.com.
1
Advertisement
Table of Contents
Related Manuals for Greentouch 1899FM-28-201
Summary of Contents for Greentouch 1899FM-28-201
- Page 1 MENARDS ITEM #641-5288 MODEL #1899FM-28-201 ATTACH YOUR RECEIPT HERE 62” ELECTRIC FIREPLACE ENTERTAINMENT CENTER WITH BUILT-IN SOUND ASSEMBLY, CARE & USE INSTRUCTIONS Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ................................3 Hardware Contents .................................4 Safety Information ................................4 Sound System Safety Information ...........................8 Preparation ..................................9 Assembly Instructions ..............................9 Change Door Panels (Optional) ............................18 Maximum Recommended Weight Loads........................18 Operating Instructions ..............................19 Sound System Operating Instructions..........................21 Care And Maintenance ..............................22 Troubleshooting ................................24 One-Year Limited Warranty ............................25 Replacement Parts List ..............................26... -
Page 3: Package Contents
PACKAGE CONTENTS PAIR ON/OFF LIGHT PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Fire Log Outer Wall Fireplace Grate Left Middle Wall Remote Control Sound System Remote Right Middle Wall Control Door DC Adaptor Wood Door Panel Power Cable Shelf Optical Cable Back Panel Fireplace Glass Front Fireplace Brick Wall... -
Page 4: Hardware Contents
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Wooden Dowel Long Bolt Washer L-Bracket Screw Back Panel Shelf Pin x 16 x 16 x 16 Screw x 28 Hinge Hinge Screw Door Pull Touch-up Pen SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. - Page 5 SAFETY INFORMATION (CONTINUED) Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: DANGER •...
- Page 6 SAFETY INFORMATION (CONTINUED) • Each surface intended to support a load shall have a corresponding statement in the use instructions specifying the maximum intended load for that surface in pounds (kilograms). • Risk of electric shock-connect this furnishing to a properly grounded outlet only. See Grounding Instructions. •...
- Page 7 SAFETY INFORMATION (CONTINUED) Electrical Connection • A 15-Amp, 120-volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation.
-
Page 8: Sound System Safety Information
SOUND SYSTEM SAFETY INFORMATION WARNING • Read and keep all instructions. • To reduce the risk of electric shock do not remove cover or back panel. No user-serviceable parts inside. Refer servicing to qualified service personnel. • For Indoor use only. DO NOT expose this product to rain, moisture, dripping or splashing. •... -
Page 9: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 50 minutes Tools Required for Assembly (not included): Phillips screwdriver ASSEMBLY INSTRUCTIONS 1. - Page 10 ASSEMBLY INSTRUCTIONS (CONTINUED) 2. Insert two wooden dowels (AA) into outer holes on right side of base (K). Attach outer wall (B), securing with two washers (CC) and two long bolts (BB). Repeat for the remaining outer wall (B). Wooden Dowel Long Bolt Washer 3.
- Page 11 ASSEMBLY INSTRUCTIONS (CONTINUED) 4. Insert two wooden dowels (AA) into the top outer holes on outer walls (B), left middle wall (C) and right middle wall (D). Attach top (A), securing from underneath with eight washers (CC) and eight long bolts (BB). Wooden Dowel Long Bolt Washer...
- Page 12 ASSEMBLY INSTRUCTIONS (CONTINUED) 6. Remove the film from the adhesive on the top of the fireplace grate (M) and place the fire log (L) on the center of the fireplace grate (M). 7. Screw two L-bracket (DD) onto the fireplace brick wall (J) using four screws (EE). Screw L-Bracket...
- Page 13 ASSEMBLY INSTRUCTIONS (CONTINUED) 8. Align the USB cable from behind through the cable hole on the fireplace brick wall (J). Attach the USB cable from the heater into the USB port behind the fireplace grate (M). Insert the fireplace brick wall (J) into the mantel, slotting it into the grooves on base (K).
- Page 14 ASSEMBLY INSTRUCTIONS (CONTINUED) 10. Insert shelf pins (GG) at desired height, ensuring they are level. Place shelf (G) on top of shelf pins (GG). Repeat for remaining shelf (G). Shelf Pin 11. Note: The door comes with two different glass door panel/wood door panel options. To select the desired door panel before installing the hinges on doors (E).
- Page 15 ASSEMBLY INSTRUCTIONS (CONTINUED) 12. Place door pull (JJ) into predrilled hole on door (E), securing with two door pull screws. Repeat for remaining door pull (JJ). Door Pull 13. Install the doors I. Loosen the screws on the hinge arms and plates pre-attached on the outer walls (B). II.
- Page 16 ASSEMBLY INSTRUCTIONS (CONTINUED) 14. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 17 ASSEMBLY INSTRUCTIONS (CONTINUED) 15. Multiple sources can be connected to the sound system using the inputs located at the back of the unit. An optical cable is provided and we recommend using this option to wire your television to the system for best digital sound. To supply power to the system: 1.
-
Page 18: Change Door Panels (Optional)
MAXIMUM LOAD 6.8 kg / 15 lb MAXIMUM LOAD 6.8 kg / 15 lb MAXIMUM LOAD 6.8 kg / 15 lb SKU#641-5288/Model#1899FM-28-201 DISTRIBUTION: Greentouch USA Inc ADDRESS: 207 Byers Creek Rd Ste D Mooresville, NC 28117-6988 COUNTRY OF ORIGIN: VIETNAM MANUFACTURE DATE: MAY, 2021... -
Page 19: Operating Instructions
OPERATING INSTRUCTIONS Control Panel Remote Control To use the remote control, first remove the plastic tab by gently pulling it out of remote control. Controls and Display The control panel will display the heater setting when the unit power is turned ON. Whichever control icon you press will display the current setting of the corresponding function. - Page 20 OPERATING INSTRUCTIONS (CONTINUED) Heater Function • Press the HEATER ICON to display the current heater setting. • Press the HEATER ICON again to scroll down through the heater settings. Note: Long-hold the icon to quickly scroll through settings. • Set the heater to “HI” (High) to have the heater run continually. •...
-
Page 21: Sound System Operating Instructions
SOUND SYSTEM OPERATING INSTRUCTIONS Sound system Control Panel Remote Control CONTROL PANEL AND REMOTE CONTROL: The sound system settings can ON/OFF be adjusted with the control panel PAIR and/or the sound system remote PLAY/PAUSE control: VOLUME UP VOLUME DOWN SCROLL SOURCE OPTIONS SCROLL EQ SETTINGS ACCESSORIES DC Adaptor... -
Page 22: Care And Maintenance
CARE AND MAINTENANCE • Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater or fireplace. • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. - Page 23 CARE AND MAINTENANCE Disposal of Used Battery A battery may contain hazardous substances that could be endangering the environment and human health. • This symbol marked on the battery and/or packaging indicates that used battery shall not be treated as municipal waste. Instead it shall be left at the appropriate collection point for recycling.
-
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Error E1 displayed on The overheat sensor has Unplug unit, wait 15-20 minutes, then the sensor will reset control panel. been engaged. itself. Plug the unit back in and turn on the heater. If the problem persists, call customer service (1-855-571-1044). -
Page 25: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this electric fireplace in accordance with the installation and operating instructions furnished with the product at all times. -
Page 26: Replacement Parts List
PU17-1899FM-28-201-DOOR Wood Door Panel PU17-1899FM-28-201-DOOR CENTER PANELS Glass Door Panel Shelf PU17-1899FM-28-201-SHELF Fireplace Glass Front 1899FM-28-GLASS FRONT Fireplace Brick Wall 1899FM-28-201-INSERT WALL BRICK Base 1899FM-28-201-BASE Fire Log FIRE LOG 2 Fireplace Grate GRATE B Remote Control RC-HE85EL01 LED Lighting LED-01 SET...
