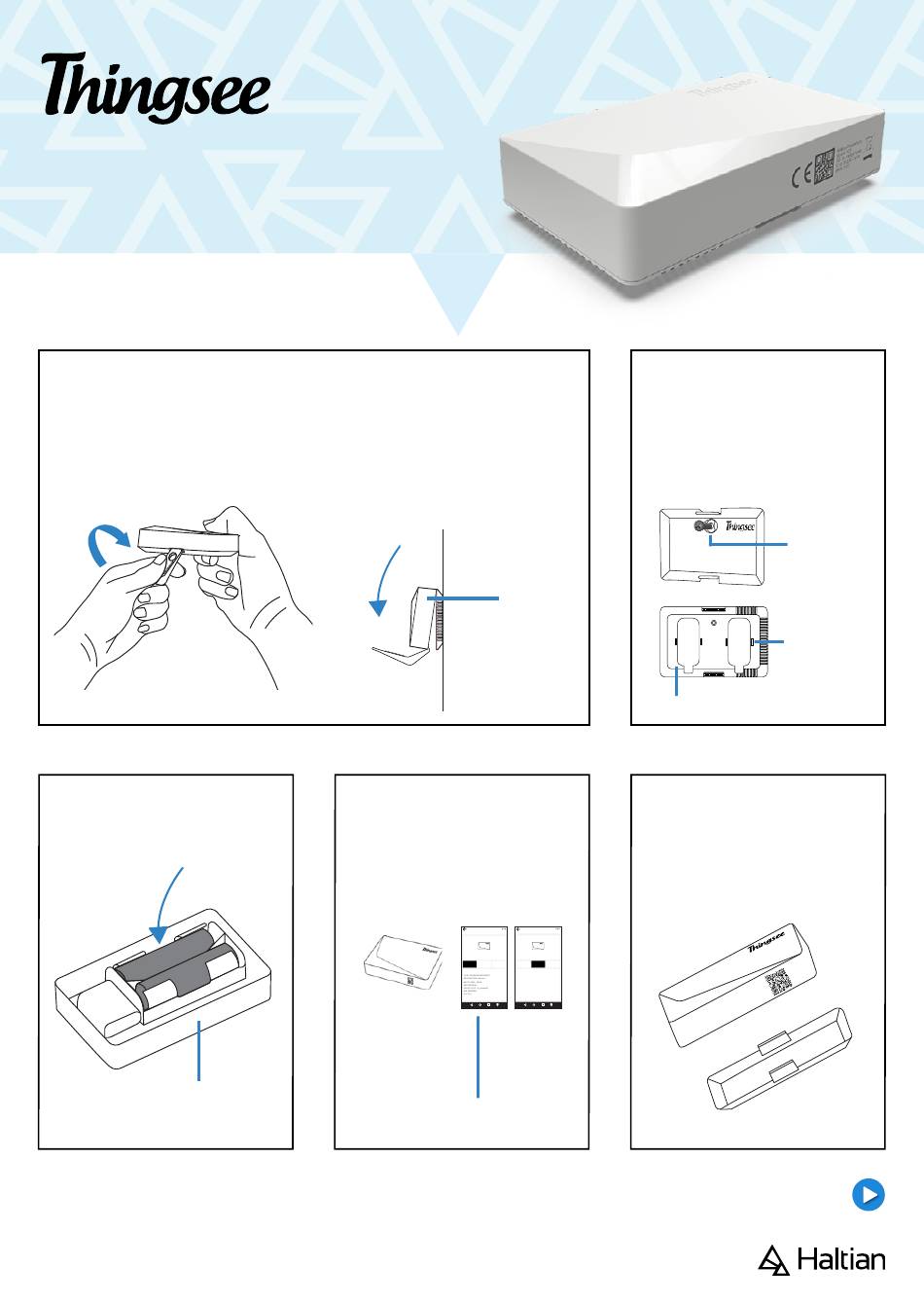

Quick Guide
1.
Opening the device
a) When holding the sensor in hand:
Place the opening key in the hole
on the side of the sensor and twist
to open.
3.
Place the batteries
inside the A-cover.
Batteries
A-cover
Continue to read the detailed installation instructions.
AIR
b) When the sensor is
on the wall: Bend the
key to the direction
shown.
Wall
4.
Identify the sensor by
reading the QR code on
the side of the A-cover.
D E V I C E
I N F O
QR code
A-cover
D E V I C E
D E V I C E
AIR
AIR
E V E N T S
T O P O L O G Y
D E V I C E
E V E N T S
T O P O L O G Y
16/11/2018 09:15:57
16/11/2018 09:14:57
16/11/2018 09:13:57
16/11/2018 09:12:57
16/11/2018 09:11:57
Watch installation video here
2.
Take the B-cover and
install it to the wall
with a screw or tapes.
The recommended
height is between
1,4 m – 1,8 m.
Screw
Tape
placement
guidelines
Tapes with paper cover
5.
Attach the A-cover to
the B-cover attached
to the wall. (Make sure
the Thingsee logo is
the right way).
A-cover
B-cover
Advertisement
Table of Contents
Related Manuals for Haltian Tringsee AIR
Summary of Contents for Haltian Tringsee AIR
- Page 1 Quick Guide Take the B-cover and Opening the device install it to the wall a) When holding the sensor in hand: b) When the sensor is with a screw or tapes. Place the opening key in the hole on the wall: Bend the The recommended on the side of the sensor and twist key to the direction...
- Page 2 User and Installation Guide v.23.06...
- Page 3 Welcome to using Thingsee Congratulations on choosing Haltian as your IoT solution. We at Haltian want to make IoT simple, so we have created a solution that is easy to use, scalable and secure. I hope it will help you achieve your business goals! Pasi Leipälä...
-
Page 4: Sales Package Content

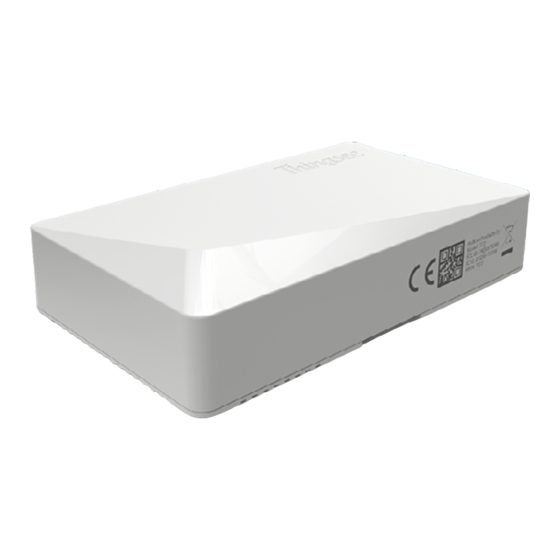

Sales package content • Thingsee AIR sensor • 2 x AA batteries (not installed, replaceable) • 1 x tape attachment • 1 x Opening Key Using Thingsee AIR sensor Thingsee AIR detects carbon dioxide (CO₂), total volatility of organic compounds (TVOC), temperature, humidity and barometric pressure. The product is installed on the wall in the space where air quality is measured. -
Page 5: General Installation Instructions
General installation instructions The sensor is for indoor use only. The environment humidity should be <85 % RH at all times. The usage temperature range is +5 ºC to +50 ºC, non-condensing environments only. Please note that the correct TVOC and CO₂ data are available only after the sensor device has conducted baseline calibration for the environment. - Page 6 Things to avoid in installation • The following can effect the wireless radio communication: ◦ Thick concrete structures or thick fire doors ◦ Electrical transformers or thick electrical wires ◦ Escalators ◦ Nearby radio equipment like WiFi routers or any other similar high power RF transmitters •...
- Page 7 • TVOC sources/chemical substances storage or equivalent (hand disinfectants/sanitizer etc.) TVOC • Direct sunlight or nearby halogen lamps, fluorescent lamps or similar lamps with hot surface...
-
Page 8: Choosing The Installation Spot
Choosing the installation spot Here are some example cases on where to install Thingsee AIR. The green lines are the recommended installation spots and the red ones is where to avoid the installation of the sensor. If there is an air conditioner (cooling) in the room Avoid corners ~ 0,5 m ~ 0,5 m... - Page 9 Heating radiator Large, open space offices ~ 0,5 m Air ventilation, generally Fresh air ventilation Avoid placing near fresh vents Air exit vents...
-
Page 10: Installation
QR code reader or Thingsee Toolbox application on your mobile device. Identifying the device is not necessary, but it will help you keep track of your IoT installation and help Haltian support to solve possible issues. Open the box and follow the instructions of this user and installation guide. - Page 11 When holding the sensor in hand: Place the opening key in the hole on the side of the sensor and twist to open. When the sensor is on the installed surface: Place the opening key to the hole on the side of the sensor Wall...
- Page 12 Place the batteries inside the A-cover. If you change the batteries, Haltian recommends using Varta Industrial Pro 1.5 V AA LR06 alkaline batteries. Attach the A-cover to the B-cover attached to the wall. (Make sure the Thingsee logo is the right way).
-
Page 13: Installation Method
Installation method 1 Installing Thingsee AIR with tapes When installing Thingsee AIR using tapes, use a smooth surface for better adherence. Clean the surface you will attach the sensor to with IPA -solvent (isopropyl alcohol). Make sure that the surface of the device is clean. The marks in the back of the sensor work as guidelines for where to place the tapes. - Page 14 Installation method 2 Installing Thingsee AIR with a screw Take the B-cover and place it on the wall on the decided location. Screw the B-cover to the wall (use anchor with concrete wall or gypsum board).
-
Page 15: Detection Capability
Detection capability • CO₂ measurement range 400 – 5 000 ppm. Accuracy ± 30 ppm, 3% of reading. • TVOC measurement range 0 – 18000 ppb. • Operation temperature +5 °C to +50 °C. Accuracy ±0,2 °C. • Relative humidity can be measured between 0 -100 % RH but not recommended to use over 85% humidity. - Page 16 Examples of reference values CO₂ values reference Level Possible e ects 410-420 ppm Normal background concentration in outdoor ambient air Concentrations typical of occupied indoor spaces with 420-1000 ppm good air exchange 1000-2000 ppm Complaints of drowsiness and poor air Headaches, sleepiness and stagnant, stale, stu y air.
-
Page 17: Other Default Settings
Default measurement and reporting Event based reporting Reports new values every 5 minutes if there are changes • CO₂ default threshold value 10 ppm • TVOC default threshold value 30 ppb • Temperature when absolute change is 0,5 °C • Humidity when absolute change is 2 % RH •... -
Page 18: Device Info
Battery type: 2 x AA, replaceable Expected battery life: • Up to 4 years with 5 minute interval Radio sensitivity: -95 dBm (BTLE) More device info can be found at support.haltian.com Device dimensions Weight: 100 g (including batteries) 26 mm... - Page 19 CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Oy declares that the radio equipment Thingsee AIR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: support.haltian.com Haltian Oy vakuuttaa, etta radiolaitetyyppi Thingsee AIR on direktiivin 2014/53/EU mukainen. EU- vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa:...
- Page 20 - Do not paint the device. Paint can prevent proper operation. Damage If the device is damaged contact support@haltian.com. Only qualified personnel may repair this device. Small children Your device is not a toy. It may contain small parts. Keep them out of the reach of small children.
- Page 21 Get to know all our Thingsee devices Thingsee PRESENCE Thingsee ENVIRONMENT Thingsee AIR Thingsee BEAM Thingsee LEAKAGE Thingsee ENVIRONMENT RUGGED RUGGED Thingsee Thingsee GATEWAY Haltian COUNT GLOBAL RADAR For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
