ENVIRONMENT RUGGED

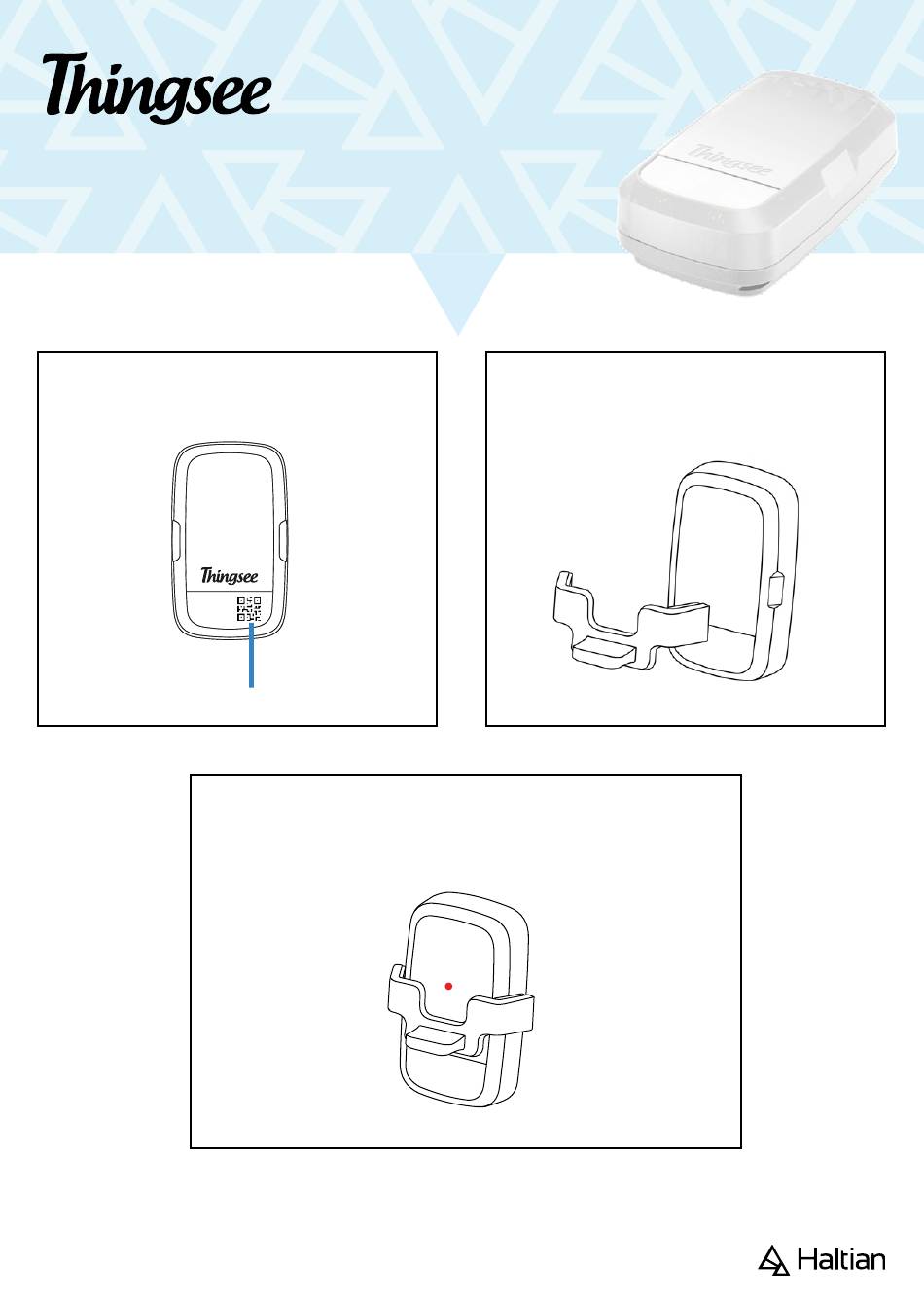

Quick Guide
1.
Identify the sensor by reading the QR
code on the front of the device.
3.
Continue to read the detailed installation instructions.
QR code
Hold the magnet switch tool against the sensor until the LED
indicator starts to blink brightly for one minute. When the
LED goes off, the sensor is switched on.
2.
Switch the sensor on with the magnetic
tool by holding it against the sensor's
magnetic switch.
Advertisement
Table of Contents
Related Manuals for Haltian Thingsee ENVIRONMENT RUGGED
Summary of Contents for Haltian Thingsee ENVIRONMENT RUGGED
- Page 1 ENVIRONMENT RUGGED Quick Guide Identify the sensor by reading the QR Switch the sensor on with the magnetic code on the front of the device. tool by holding it against the sensor’s magnetic switch. QR code Hold the magnet switch tool against the sensor until the LED indicator starts to blink brightly for one minute.
- Page 2 ENVIRONMENT RUGGED User and Installation Guide v.23.05...
- Page 3 Welcome to using Thingsee Congratulations on choosing Haltian as your IoT solution. We at Haltian want to make IoT simple, so we have created a solution that is easy to use, scalable and secure. I hope it will help you achieve your business goals! Pasi Leipälä...
-
Page 4: Sales Package Content

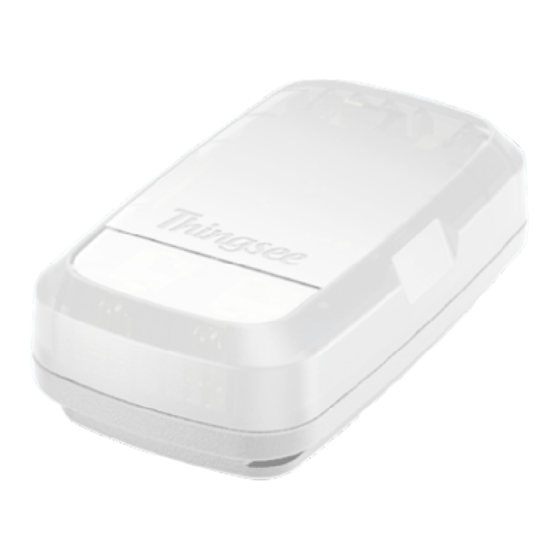

Thingsee ENVIRONMENT RUGGED sensor measures temperature, and it has an accelerometer and a magnetic switch. Thingsee ENVIRONMENT RUGGED’s magnetic switch recognition can be used to monitor the open/closed position of doors and windows. - Page 5 Things to avoid in installation Avoid installing the Thingsee products near the following: Thick concrete structures or thick fire doors Electrical transformers or thick electrical wires Escalators Nearby heating or cooling devices and/or vents Direct sun light Nearby halogen lamps, fluorescent lamps or similar lamps with hot surface Nearby radio equipment like WiFi routers or any other similar high power RF transmitters...
- Page 6 Inside metal box or covered with a metal plate Inside or underneath a metal cabinet or box Near elevator motors or similar targets causing a strong magnetic field...
-
Page 7: Installation
QR code reader or Thingsee Toolbox application on your mobile device. Identifying the device is not necessary, but it will help you keep track of your IoT installation and help Haltian support to solve possible issues. D E V I C E D E V I C E... -
Page 8: Detection Capability
Hold the magnet switch tool against the sensor until the LED indicator starts to blink brightly for one minute. When the LED goes off, the sensor is switched on. Detection capability • Operational temperature range -20 ºC to + 50 ºC. Storage temperature range 0º... -
Page 9: Other Default Settings
Default measurement and reporting Event based reporting • Measures every 5 minutes: • Temperature when absolute change 0,5 • x, y, z-axis gravity • Count of changes in magnetic switch Time based reporting • Reports all measurement values every 1 hour Machine usage mode •... -
Page 10: Device Info
• Up to 4 years with 1 minute interval • Up to 5 years with 15 minute interval • Up to 4 years with Machine Usage Mode Radio sensitivity: -95 dBm (BTLE) More device info can be found at support.haltian.com Device dimensions Weight: 35 g (including batteries) - Page 11 CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Oy declares that the radio equipment Thingsee AIR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: support.haltian.com Haltian Oy vakuuttaa, etta radiolaitetyyppi Thingsee AIR on direktiivin 2014/53/EU mukainen. EU- vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa:...
- Page 12 - Do not paint the device. Paint can prevent proper operation. Damage If the device is damaged contact support@haltian.com. Only qualified personnel may repair this device. Small children Your device is not a toy. It may contain small parts. Keep them out of the reach of small children.
- Page 13 Get to know all our Thingsee devices Thingsee PRESENCE Thingsee ENVIRONMENT Thingsee AIR Thingsee BEAM Thingsee LEAKAGE Thingsee ENVIRONMENT RUGGED RUGGED Thingsee Thingsee GATEWAY Haltian COUNT GLOBAL RADAR For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
