Summary of Contents for Haltian Thingsee GATEWAY GLOBAL
Page 1
GATEWAY GLOBAL User and Installation Guide v.20.01...
Page 2

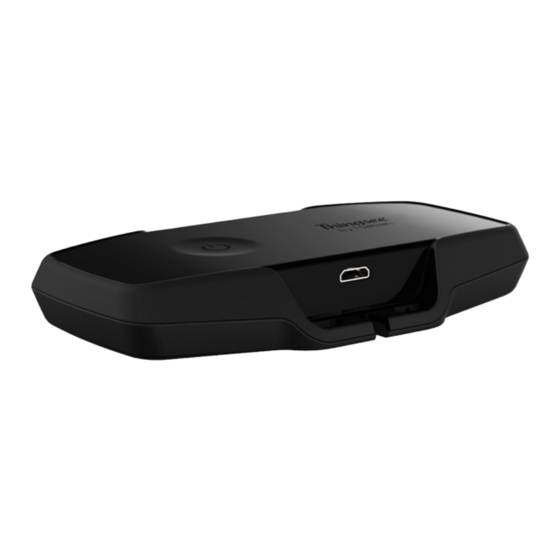

CEO, Haltian Oy Thingsee GATEWAY GLOBAL Thingsee GATEWAY GLOBAL is a plug & play IoT gateway device for large scale IoT solutions. It can be connected anywhere in the world with its LTE Cat M1/NB-IoT and 2G cellular support. The main role of Thingsee GATEWAY GLOBAL is to ensure that data flows continuously, reliably and safely from the sensors to the cloud.
Sales package content Thingsee GATEWAY GLOBAL • Includes SIM card and managed SIM subscription Power supply unit SYS1561-1105 (micro-USB) AC-plug User and installation guide Note before installation Install the gateway to a secure location. In public places, install the gateway behind locked doors.
Page 4
Thingsee installation network structure Thingsee devices build a network automatically. Devices communicate all the time to adjust the network structure for effective data delivery. Sensors create subnetworks for data delivery by choosing the best possible route based on signal strength. The subnetwork chooses the strongest possible gateway connection for data delivery to the cloud.
(e.g. Azure IoT Hub before you install the sensors.) Installation Please make sure the Thingsee GATEWAY GLOBAL is installed before you install the sensors. To identify the gateway, read the QR code on the backside of the device with a QR code reader or Thingsee installation application on your mobile device.
Page 6
Note: The socket-outlet for the power source shall be installed near the equipment and shall be easily accessible. Thingsee GATEWAY GLOBAL is always cellular connected: LED indication is used to provide gateway status information. The LED on top of the device starts to blink: •...
Device info Recommended operating temperature: 0 °C … +40 °C Operating humidity: 8 % … 90 % RH non-condensing Storage temperature: 0°C … +25 °C Storage humidity: 5 % … 95 % RH non-condensing IP rating grade: IP40 Indoor office use only Certifications: CE, FCC, ISED and RoHS compliant BT with Wirepas mesh network support Radio sensitivity: -95 dBm BTLE...
Page 8
CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Products Oy declares that the radio equipment type Thingsee GATEWAY GLOBAL is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: www.haltian.com Haltian Products Oy vakuuttaa, että...
Page 9
FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES FCC Information for the User This product does not contain any user serviceable components and is to be used with approved, internal antennas only. Any product changes of modifications will invalidate all applicable regulatory certifications and approvals.
Page 10
FCC compliance statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA (ISED) REGULATORY INFORMATION This device complies with RSS-247 of the Innovation, Science and...
Page 11
Read these simple guidelines. Not following them may be dangerous or against local laws and regulations. For further information, read the user guide and visit https://www.haltian.com Usage Do not cover the device as it may prevent the device from operating properly.
Page 12
Damage If the device is damaged contact support@haltian.com. Only qualified personnel may repair this device. Small children Your device is not a toy. It may contain small parts. Keep them out of the reach of small children. Interference with medical devices...
Page 13
RECYCLING Check the local regulations for proper disposal of electronic products. The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.
Page 14
Get to know other Thingsee devices Thingsee PRESENCE Thingsee ENVIRONMENT Thingsee DISTANCE Thingsee AIR Thingsee BEAM Thingsee LEAKAGE Thingsee ENVIRONMENT Thingsee ANGLE RUGGED RUGGED RUGGED Thingsee GATEWAY Thingsee GATEWAY Thingsee GATEWAY GLOBAL For all devices and more information, visit our website www.haltian.com or contact sales@haltian.com...
