Portable Wheelchair
Operator's Manual
WARNING:
Carefully review and understand all INSTRUCTIONS prior to operating this device. Failure to follow
the safety rules and other basic safety precautions may result in serious personal injury. Keep these
instructions in a safe place and accessible so that they can be reviewed as required. Keep these
instructions to assist in future servicing needs.
REV 1.1
Advertisement
Table of Contents
Related Manuals for Super Handy GUT155
Summary of Contents for Super Handy GUT155
- Page 1 Portable Wheelchair Operator's Manual WARNING: Carefully review and understand all INSTRUCTIONS prior to operating this device. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Keep these instructions in a safe place and accessible so that they can be reviewed as required. Keep these instructions to assist in future servicing needs.
-
Page 2: Table Of Contents
INDEX 1. WARNING -------------------------------------------------------------------------------- 1 2. TECHNICAL SPECIFICATIONS --------------------------------------------------- 1 3. MAIN COMPONENTS ---------------------------------------------------------------- 2 4. SAFETY GUIDELINES --------------------------------------------------------------- 3 5. SAFETY OF USE ------------------------------------------------------------------- 3~4 6. ASSEMBLY --------------------------------------------------------------------------- 5~8 7. BATTERY AND CHARGER ------------------------------------------------------ 8~9 8. OPERATION ----------------------------------------------------------------------- 9~10 9. -
Page 3: Warning
7. For your safety and that of others, do not use electric wheelchairs with minors, people with intellectual disabilities, pregnant women or others who are not suitable for use in electric wheelchairs. 2. TECHNICAL SPECIFICATIONS SKU# GUT155 Materials Aluminum Maximum Weight Capacity 220Lbs (100kg) Front Wheel 7"... -
Page 4: Main Components

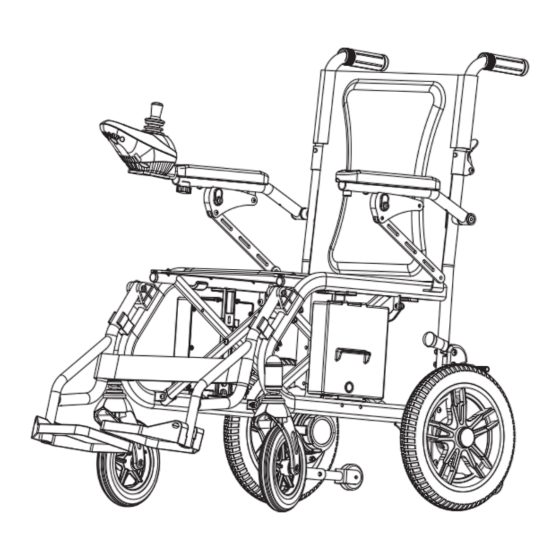

3. MAIN COMPONENTS Handle Back Rest Controller Arm Rest Seat Battery Motor Foot Rest Anti-tilt Wheel Front Wheel Rear Wheel... -
Page 5: Safety Guidelines
4. SAFETY GUIDELINES Please read this manual carefully before operation. Improper use may lead to self-injury, others' injury or traffic accident. 1.This manual covers the operation and assembly of the wheelchair and how to deal with any possible accidents. 2. Be sure to read this manual carefully if any of the following symbols appear. Inappropriate use will result in death or serious injury. - Page 6 2. Avoid driving in the following circumstances or places. Please go with the escort. ● Drive in bad weather (rainy days, fog, strong winds, snow, etc). ● In case you get wet, wipe the water dry immediately. ● Bad road driving (muddy, snowy, sandy, broken stone, etc). ●...
-
Page 7: Assembly
6. ASSEMBLY The electric wheelchairs can be easily opened and folded without tools. Do not sit in a seat or drive a wheelchair until the power wheelchair is fully switched on. Read the instructions carefully before turning on the electric wheelchair. 1. - Page 8 3. Installing the controller a. Insert one end of the telescopic pipe of the controller into the controller fixing pipe at the lower of the right armrest pipe of the wheelchair (Fig.04). b. Adjust the controller to position and lock the knob. Connect the power supply cable. c.
- Page 9 5. Installation of anti-tilt pipe a. Align anti-tilt wheel with the anti-tilt pipe of the frame, insert to the frame (Fig.07). b. Ensure that the elastic pin go into the hole of the anti-tilt pipe, try to pull out the anti-tilt pipe to ensure the anti-tilt wheel installed securely.
-
Page 10: Battery And Charger
6. Manually push wheelchair a. Wheelchair has two mode that drive mode and neutral mode. It can be switched by control the level at both motors. b. Push both levels upward, the wheelchair is in drive mode, you can control it by controller. c. -
Page 11: Operation
Do not over charge over 24 hours. Once the battery is fully charged, disconnected the charger from power supply. When the wheelchair is in idle, please switch off wheelchair or unplug the wires connected to the controller to avoid losing power. When the wheelchair is not in use, please charge it once a month to prevent the battery life from decreasing. - Page 12 4. Adjustment of Driving Speed a. According to different user habits and environments, users can adjust the maximum speed of the electric wheelchair. b. Press speed increase/decrease button to adjust the speed. c. The selected speed will be displayed on the speed indicator light. d.
-
Page 13: Maintenance And Storage
9. MAINTENANCE AND STORAGE Wheelchair maintenance Users' wheelchair maintenance includes cleaning, checking tires, battery and charger. We recommend that the wheelchair will be inspected every six months. Cleaning wheelchairs and tires, battery maintenance a. Cleaning wheelchair: Wipe the surface of the wheelchair with a spray of wax polish or a clean soft cloth. -
Page 14: Trouble Shooting
10. TROUBLE SHOOTING Diagnostic Sound Possible Cause Solution Low Voltage. Charging battery. Battery is broken and replace the battery. 2, 3 Left motor faulty. Check the left motor, connector and wire for any loosening. 4, 5 Right motor faulty. Check the right motor, connector and wire for any loosening. - Page 16 Great Circle USA Support Line: 1-866-493-0524 Email: help@greatcircleus.com www.superhandyus.com Size: 145x210mm 157克双铜 REV 09/07/23...
