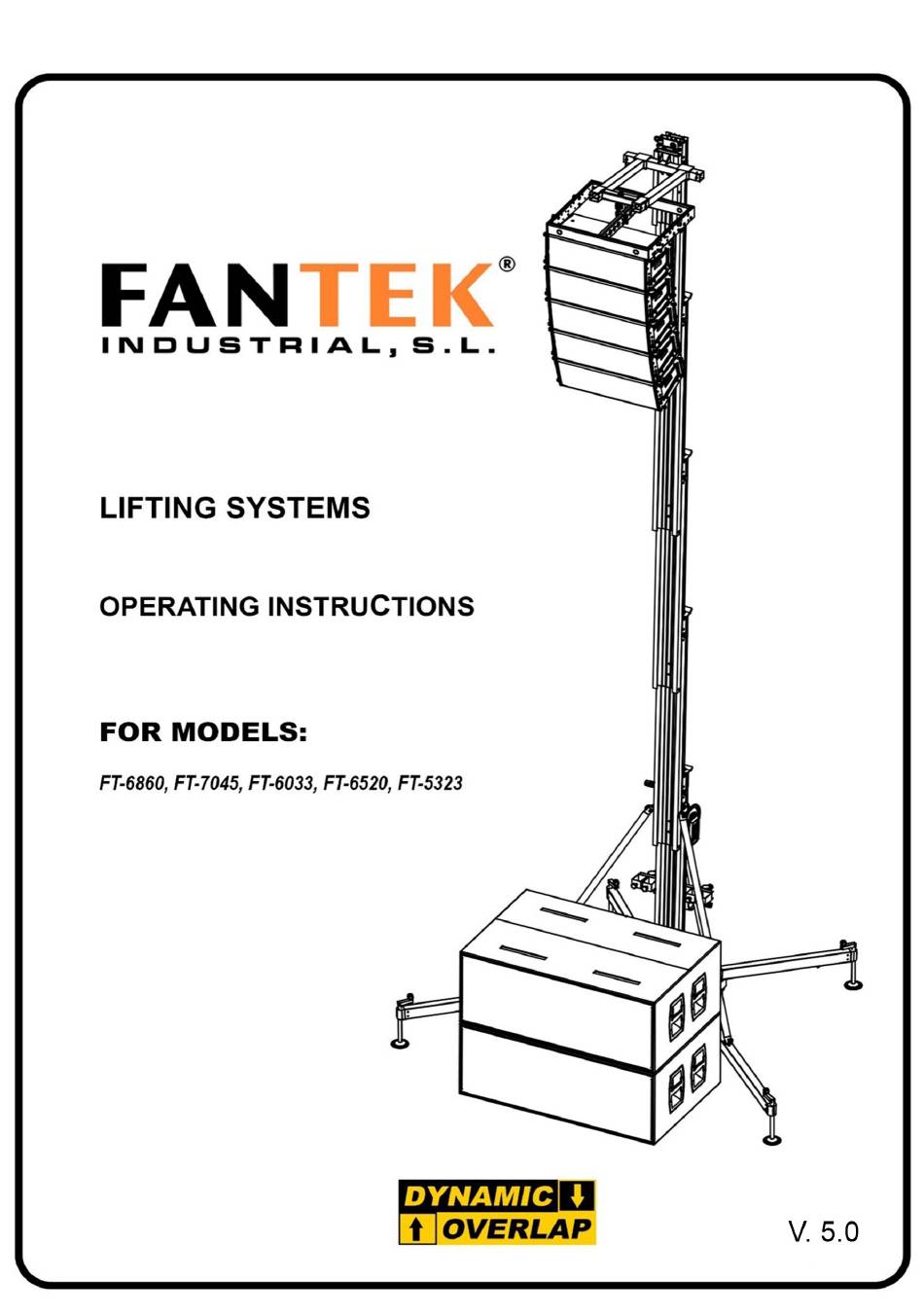

  • Page 1 USER MANUAL FOR FT TOWERS...

  • Page 2: Table Of Contents

    DGUV MARK ............ 38 It is recommended to attach this manual with the tower system used. CONTACT In case of doubt, consult the technical Internet: http://www.fantek.net/ department of FANTEK Industrial. e-mail: support@fantek.net CONTENT ILLUSTRATION INDEX IMPORTANT ............2 CONTACT ............2 Figure 1 ...................
  • Page 3 Figure 46 ..................17 Figure 47 ..................18 Figure 48 ..................18 Figure 49 ..................18 Figure 50 ..................18 Figure 51 ..................19 Figure 52 ..................19 Figure 53 ..................19 Figure 54 ..................19 Figure 55 ..................20 Figure 56 ..................

  • Page 4: Warning Icons

    WARNING ICONS RULES AND SAFETY USE USER MANUAL FOR FT TOWERS...
  • Page 5 Figure 1 Figure 3 Keep hands and fingers away from moving parts Do not lift the tower without proper leveling. To of the tower. lift a load, the tower must always be stabilized. The wheels must not touch the ground. Figure 2 Not charge the tower without the stabilizer legs.
  • Page 6 Figure 5 Figure 7 Do not use the tower on inclined surfaces that Lift the mast in the correct order. require pieces to level the tower. Lift the mast of the tower starting always with the carriage. The last mast lifted must be the next to the section where the winch is placed.
  • Page 7 Figure 11 Figure 9 Not grease or lubricate the mechanism of the Never move a load without leveling the tower winch and the pulleys of the masts. before. Figure 12 Figure 10 Not allowed to lift people or animals. Do not use ladders on the tower or leaning against it.
  • Page 8 On the following table is recommended the average length between the highest part of the structure and the power lines. Voltage Min. distance Between phases Meters Feet 0 to 230v 4.92 230v to 400v 9.19 400v to 50Kv 11.15 50Kv to 200Kv 16.08 200Kv to 350Kv 21.33...
  • Page 9 Figure 17 Figure 19 The tower can be used outdoor only in structural Prevent that the load do not touch the tower mode and with the loads marked as mechanism mode (for security purpose), if the wind speed is low and If it doesn’t put the installation at risk. The installation is always under the responsibility of the owner.
  • Page 10 Figure 21 Figure 23 The structure must be levelled correctly. If not, Never use structural loads in mechanism mode. the structure can fall. It can result in a dangerous use and can break internal parts of the tower. Always h1 = h2 IMPORTANT ¡!! FOR STRUCTURAL OPERATION, USE ONLY MANUAL HOISTS Figure 22...

  • Page 11: Parts Identification

    PARTS IDENTIFICATION Figure 24. Support stabilizer legs 11 Steel carrier carrier Steel cable 12 Base wheel Top boost reinforcement 13 Pin horn Red knob mast security system 14 Frontal leg Strut reinforcement mast support 15 Steel carrier Winch 16 Leveler screw Tower mast 17 Leveler brace Steel reinforcement strut...

  • Page 12: Operating Modes

    Red knob base security system 19 Forks 10 Tower base 20 Leg carrier knob OPERATING MODES OPERATING MODE AS MECHANISM (MECHANISM MODE) This mode involves lifting the load with the help of the winch. That is, the winch is driven and the pulleys and cables are in charge of engaging and finally raising the load.

  • Page 13: How To Use Step By Step

    Figure 26 HOW TO USE STEP BY STEP LINE ARRAY ELEVATION IN MECHANISM MODE Figure 28 Turn the forks and adjust to the desired width. Ensure it with the pins. Figure 27 Fix and secure the stabilizer legs to the base. USER MANUAL FOR FT TOWERS...
  • Page 14 line array accessory Bumper Loudspeakers Cables 172,5 Figure 31 In this example we have obtained a weight of 172,5 kg. With that load, see what position the load should have on the forks of the tower. Take into account that the inclination of the loudspeakers and the bumper should not support any part of the tower.
  • Page 15 Figure 35 Figure 33 Join the line array equipment to the tower. Unlock the security brake of the aluminium carrier Figure 36 Figure 34 Unlock the mast safety system. Operate the Place the accessory in the calculated position. winch handle to raise the load. Block it making sure that the screws are inserted into the hole of the fork position.
  • Page 16 Figure 39 Figure 37 Figure 40 Figure 38 To descend the load. Tense the cable and unlock When the section reaches its limit, lock with the the first security system. Turn the winch while security system and unlock the following security keeping the safety system unlocked with your system to lift the next mast.

  • Page 17: Line Array Elevation In Structure Mode

    LINE ARRAY ELEVATION IN STRUCTURE MODE Figure 41 Fix and secure the stabilizer legs to the base. Figure 42 Turn the forks and adjust to the desired width. Ensure it with the pins. USER MANUAL FOR FT TOWERS...
  • Page 18 Calculate the load to be lifted with the tower. An example of basic load calculation is attached. WEIGHT TOTAL ITEM QUANTITY (kg) (kg) Line array accessory Bumper Loudspeakers Cables 238,5 Figure 45 In this example we have obtained a weight of 238,5 kg.
  • Page 19 Figure 47 Figure 49 Unlock the security brake of the aluminium Hung the manual hoist of the tower support. The carrier hoist must have a path equal to or greater than the maximum height of the tower. Figure 48 Figure 50 Place the accessory in the calculated position.
  • Page 20 Figure 51 Figure 53 All security systems must be in locked position. Slacken the cable of the winch so that the system can stabilize correctly. Figure 52 When the section reaches its end of path, lock Figure 54 with the safety system and unlock the next safety system to raise the next mast.
  • Page 21 Figure 55 Figure 57 Take into account the space of the manual hoist. To descend the load. Tense the cable and unlock This dimension causes that the maximum height the first security system. Turn the winch while of the tower to be reduced. keeping the safety system unlocked with your other hand.

  • Page 22: Truss System Elevation In Mechanism Mode

    TRUSS SYSTEM ELEVATION IN MECHANISM MODE Figure 58 Fix and secure the stabilizer legs to the base. Figure 59 Turn the forks and adjust to the desired width. Ensure it with the pins. USER MANUAL FOR FT TOWERS...
  • Page 23 WEIGHT TOTAL ITEM QUANTITY (kg) (kg) Truss 0,75 accessory Complete 53,3 26,65 truss system Loads Cables 231,15 Figure 62 In this example we have a weight of 231,15 kg. With that load, check what position the load should have on the tower fork. Take into account that the truss is supported by two points of the fork.
  • Page 24 Figure 64 Figure 66 Unlock the security brake of the aluminium Join the truss system to the tower. carrier Figure 67 Figure 65 Unlock the mast safety system. Operate the Place the accessory in the calculated position. winch handle to raise the load. USER MANUAL FOR FT TOWERS...
  • Page 25 Figure 68 Figure 70 Figure 69 Figure 71 When the section reaches its end of path, lock To descend the load. Tense the cable and with the safety system and unlock the next safety unlock the first security system. Turn the winch system to raise the next mast.

  • Page 26: Truss System Elevation In Structure Mode

    TRUSS SYSTEM ELEVATION IN STRUCTURE MODE Figure 72 Fix and secure the stabilizer legs to the base. Figure 73 Turn the forks and adjust to the desired width. Ensure it with the pins. USER MANUAL FOR FT TOWERS...
  • Page 27 Calculate the load to be lifted with the tower. An example of basic load calculation is attached. WEIGHT TOTAL ITEM QUANTITY (kg) (kg) Truss 0,75 accessory Complete 68,50 truss system Loads Cables 25,50 279,50 Figure 76 In this example we have a weight of 279,50 kg. With that load, see what position the load should have on the tower fork.
  • Page 28 Figure 78 Figure 80 Unlock the security brake of the aluminium Join the truss system to the tower. carrier Figure 81 Unlock the mast safety system. Operate the Figure 79 winch handle to raise the load. Place the accessory in the calculated position. IMPORTANT ¡!! FOR THIS PURPOSE, ONLY MANUAL HOISTS USER MANUAL FOR FT TOWERS...
  • Page 29 Figure 82 Figure 84 Figure 85 All safety systems must be in their locked Figure 83 position. Slack the cable from the winch so that the system is seated. When the section reaches its end of path, lock with the safety system and unlock the next safety WARNING! The rate of rise and descend should system to raise the next mast.
  • Page 30 Figure 86 Figure 88 To descend the load. Tense the cable and unlock WARNING! If the tower is attempted to go down the first security system. Turn the winch while without tension in the cable and any of the safety keeping the safety system unlocked with your systems are activated, a dangerous situation will other hand.

  • Page 31: Using The Tower In Structure Mode (Wind Condition)

    USING THE TOWER IN STRUCTURE MODE (WIND CONDITION) As an operating guide, the towers involved in this The towers used in the structure mode form a manual can be used outdoors as long as they are column type system that can withstand higher in structural mode and the maximum loads are loads than the mechanism mode.

  • Page 32: Placing The Load

    Figure 89 ATF2DS ATF17PAM ATFT200 ATF17PA ATF1DS ATF08PAM ATFT600 ATF08PA Figure 90 PART. FT6860 FT7045 FT6033 FT6520 FT5323 ATF1DS ATF2DS ATF17PA ATF08PA ATFT200 ATFT600 ATF17PAM ATF08PAM Figure 91 PLACING THE LOAD 1. Determine the position where the load will be placed and consult the tower capacity. Never exceed.

  • Page 33: Load Chart

    3. When possible, place the load as close to the carriage as possible. This prolongs the life of the tower. X in P1 X in P2 X in P3 X in P4 X in P5 TOWER (mm / inch) (mm / inch) (mm / inch) (mm / inch) (mm / inch)
  • Page 34 USING THE TOWER AS A MECHANISM. The tower behaves like a machine when lifting a load making use of the winch as a lifting element. In this case all the parts of the tower behave like a mechanism that uses pulleys, cables and guides to be able to execute the elevation of a load at a certain height.

  • Page 35: Dynamic Overlap

    DYNAMIC OVERLAP Thanks to the continuous development of new solutions for the lifting towers, FANTEK Industrial, has developed and patented an ingenious solution that increases the resistance of the towers and reduces the deflection of these. Dynamic Overlap makes each tower section overlap with the previous one at different distances.

  • Page 36: Dguv V17/18 Norm Regulation

    On the one hand, lifting towers adopt designs and materials to achieve a high degree of safety in quantities such as supported load, equilibrium, resistance to friction, etc. Thus FANTEK Industrial lifter towers DGUV V17/18 certified assure the user that they have passed strict controls during design, choice of materials or load checks and effort.

  • Page 37: Specifications

    SPECIFICATIONS Model FT-6860 FT-7045 FT-6033 FT-6520 FT-5323 1980 1905 1720 1710 1710 Height 77,95 6.25 5,64 5,61 5,61 6800 7000 6000 6500 5300 Maximum height 22,31 23,21 16,69 21,33 17,39 Width 22,3 20,5 20,5 17,3 17,3 Length 35,3 27,6 27,6...

  • Page 38: Declaracion De Conformidad / Declaration Of Conformity

    Dirección / Address: Pol. Ind. El Bony. C/Del Port nº3. 46470 – Catarroja – Valencia (Spain) Descripción / Description: Frontal load lifter MODELO / MODEL FT-6860 MAX. LOAD: 855 kg MODELO / MODEL FT-7045 MAX. LOAD: 514 kg MODELO / MODEL FT-6033 MAX.

  • Page 39: Dguv Mark

    DGUV MARK NUMERO DE SERIE: SERIAL NUMBER: LAUFENDE NUMMER: Primer test en fábrica First test in factory. Erstprüfung im Werk. Fecha/Date/Datum Testado por/Tested by/Prüfer Four years test UVV Prüfung (alle 4Jahre) Examen a los cuatro años. Fecha/Date/Datum Testado por/Tested by/Prüfer USER MANUAL FOR FT TOWERS...
  • Page 40 Annual test after the fourth UVV Jährlicher Test nach Examen anual a partir year. dem vierten Jahr. del cuarto año. Fecha/Date/Datum Testado por/Tested by/Prüfer Fecha/Date/Datum Testado por/Tested by/Prüfer Fecha/Date/Datum Testado por/Tested by/Prüfer Fecha/Date/Datum Testado por/Tested by/Prüfer USER MANUAL FOR FT TOWERS...
  • Page 41 USER MANUAL FOR FT TOWERS...
