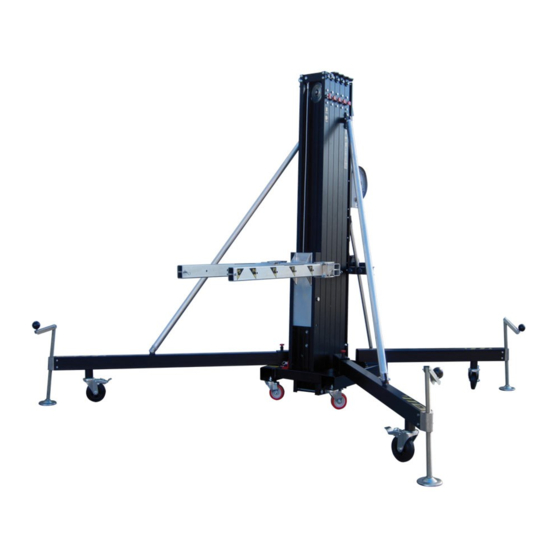

Fantek FT-6860 Operating Instructions Manual

Hide thumbs Also See for FT-6860:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
Rev. 11/4/2017
1
MANUAL DE USUARIO PARA TORRES P.A. / USER MANUAL FOR P.A. TOWERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-6860 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fantek FT-6860

Summary of Contents for Fantek FT-6860

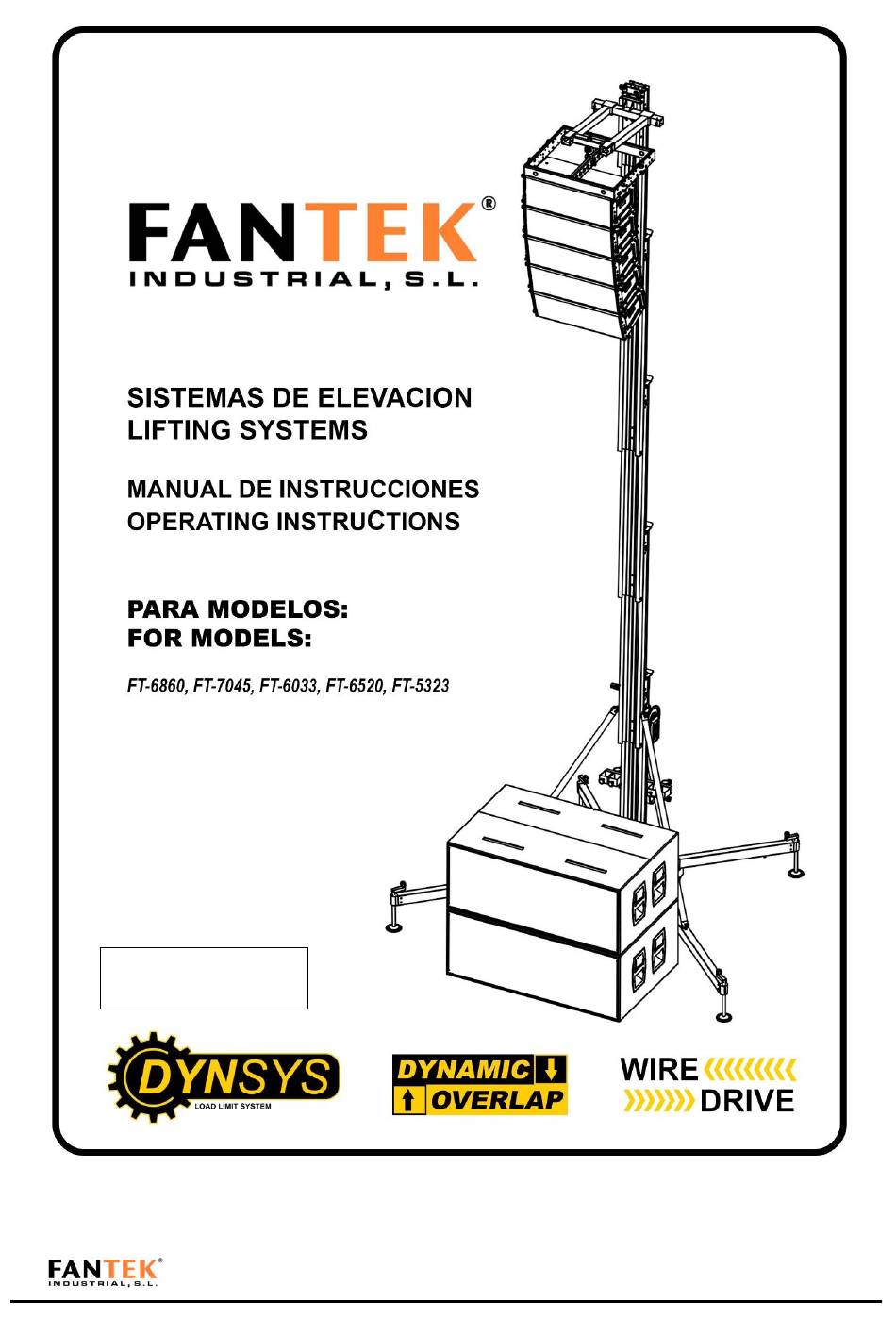

  • Page 1 Rev. 11/4/2017 MANUAL DE USUARIO PARA TORRES P.A. / USER MANUAL FOR P.A. TOWERS...

  • Page 2: Table Of Contents

    Figure 6 ..............3 Figure 7 ..............3 If in doubt, consult the technical department of Figure 8 ..............3 Fantek Industrial S.L. Figure 9 ..............3 Figure 10 ..............3 Figure 11 ..............3 CONTENT Figure 12 ..............4 Figure 13 ..............

  • Page 3: Read And Understand Precisely All Points And Aspects Of This Manual. Irresponsibly Lifting Loads Can Cause Figure 1

    RULES AND SAFETY USE Do not lift the tower without proper leveling. To lift a load, the tower must always be stabilized. The wheels must not touch the ground. Figure 49 Keep hands and fingers away from moving parts of the tower.

  • Page 4: If In Doubt, Consult The Technical Department Of Figure 7

    Before placing a load, make sure that the load never exceeds the maximum allowed. Consult the section of load data Figure 54 Mount the longest legs stabilizers in the part of the horns. Safety pins must lock the stabilizers. Figure 57 Never move a load without level.
  • Page 5 Not grease and lubricate the mechanism of the winch and the pulleys of the masts. Figure 62 Verify that the tower is beyond the reach of power Figure 60 lines. Not allowed to lift people or animals. The tower is not electrically insulated and can transmit currents of power lines.
  • Page 6 Do not use the tower as a support of banner or another type of decoration with strong wind. That can destabilize the tower and make it fall down. Figure 64 Not lift a load if there is danger of collision. Take at least 1.5 meters on any direction to lift safety the load.
  • Page 7 Figure 69 The structure must be levelled correctly. If not, the structure can fall. Always h1 = h2 USER MANUAL FOR P.A. TOWERS...

  • Page 8: Parts Identification

    PARTS IDENTIFICATION Figure 70. (Imagen representativa de torre tipo P.A.) Support leg stabilizers 11 Lower vertical wheel 21 Leveler asparagus carrier transport Steel cable 12 Pin reinforcement strut 22 Leveler support Top boost reinforcement 13 Red knob base security 23 Stabilizer support system handle Red knob mast security...

  • Page 9: How To Use. Step By Step

    HOW TO USE. STEP BY STEP Place the reinforcement bars and fix it with its pins. Figure 71 Fix and secure the legs stabilizers to the base. Figure 74 Place the tower in its working position and level until the bubble level is centered. Figure 72 Turn the horns and adjust to the desired width.
  • Page 10 Figure 76 Figure 78 Unblock the security system of the mast. All security systems must be in locked position. Slacken the cable of the winch for the system can Operate the winch handle to lift the carrier. stabilize correctly. Figure 77 Figure 79 When the section reaches its limit, lock with the security system and unlock the following security...

  • Page 11: Accessories

    ACCESSORIES The P.A. towers has the following accessories. Figure 80 ATF2DS ATF08PAM ATF17PA ATF1DS ATFT200 ATF08PA ATF17PAM ATFT600 USER MANUAL FOR P.A. TOWERS...
  • Page 12 Accessories are compatible with the following models of towers. ACCESORIO T600PA T108PA T200PA T118PA T117PA ATF1DS ATF2DS ATF17PA ATF08PA ATFT200 ATFT600 ATF17PAM ATF08PAM Figure 81 Figure 82 Example of tower FT6033 with accessory ATF17PA. USER MANUAL FOR P.A. TOWERS...
  • Page 13 Figure 83 Example of tower FT6033 with accessory ATF1DS. Figure 84 Example of tower FT6033 with accessory ATF17PAM. USER MANUAL FOR P.A. TOWERS...

  • Page 14: Normativa Tenida En Cuenta

    NORMATIVA TENIDA EN CUENTA Figure 85 USER MANUAL FOR P.A. TOWERS...

  • Page 15: Load Data

    LOAD DATA Before placing a load, make sure that it can be raised to the maximum height of the tower. Otherwise it could cause an accident or damage the tower. Figure 86 Place and position detal of the load. Place of the load. 4.

  • Page 16: Load Table

    Load table. P.A. lifting systems are designed so that the maximum load is placed in the central area of the horns allowing a better use of the system. Following can be found the maximum loads to be borne by each tower model for maximum working height.
  • Page 17 USE AS MECHANISM. The tower lifter works like a mechanism when the load is lifted using the winch. USE AS STRUCTURE. The tower lifter Works like an structure when all mast are blocked and the Steel wire doen’t have strenght. In that case, all parts of the tower Works like a big column to support load.

  • Page 18: Degree Of Compaction Load

    Degree of compaction load. Hard surfaces such as dirt or gravel may vary depending on the resistance relative humidity. This relative humidity varies over the day, so that the resistance of the soil to absorb tower effort loaded, too. Place a tower under these conditions may result in the ground yield below the supports of the tower.

  • Page 19: Dynsys System

    DYNSYS SYSTEM The Dynsys system is an optional solution to control the maximum load in our tower lifters. The Dynsys limits the máximum load avoiding to lift a load bigger than the máximum load. The limitation is do it for use as a machine system. For more information about the máximum load, check the load table. In case of lift a load bigger than the máximum of the tower, the Dynsys detects the incriase of load and stops the elevation.

  • Page 20: Maintenance

    If any doubt, contact with Fantek Industrial S.L. In case of replacement of pieces. Replace only original parts Fantek Industrial S.L. Otherwise, the warranty is voided. Is recommended a review of the tower by specialized staff of Fantek Industrial S.L. once a year.

  • Page 21: Transport

    TRANSPORT To the transport of the towers: Verify that the legs stabilizers are securely fixed to the tower in the transport and they cannot be released. Check that the horns are well fixed with pins and cannot get out. Check that the carrier is properly secured to the carrier brake system. Check that all sections are locked.

  • Page 22: With Truck Or Container

    With truck or container. For the transport by truck or container, always tie the tower by two points. Use ratchets not less than 1000 kg of force for the T-117PA, T-118PA and T-200PA models. Use ratchets no less than 2000 kg of force for the T-600Pa and T-108PA models.

  • Page 23: In Horizontal

    In horizontal For horizontal transport must actuate the horizontal wheel so that it protrudes from the tower. Once prepared and with the certainty that all moving parts are subject (legs stabilizers, carrier, etc ...), dump the tower between the people needed until the horizontal wheel contact with the ground.

  • Page 24: Especifications

    ESPECIFICATIONS Modelo / Model FT-6860 FT-7045 FT-6033 FT-6520 FT-5323 1980 1700 1700 1710 1710 Altura 77,95 5,58 5,58 5,61 5,61 Height 6800 7000 6000 6500 5300 Máxima altura 22,31 23,21 16,69 21,33 17,39 Maximum height Anchura 22,3 20,5 20,5 17,3...

  • Page 25: Declaracion De Conformidad

    Parliament and of the Council of 17 May 2006 on the Machinery Directive. The tower lifters described meet all the specific requirements in DIN56950: 1/3. The tower lifters described meet all the specific requirements in DGUV V17/18 Manufacturer: FANTEK INDUSTRIAL S.L. Person responsible of the Jose Vila Ortiz technical data: Address: Pol.

  • Page 26: Dguv V17/18 Norm Regulation

    On the one hand, lifting towers adopt designs and materials in order to achieve a high degree of safety in quantities such as supported load, equilibrium, resistance to friction, etc. Thus lifter towers FANTEK DGUV V17/18 certified, they assure the user that have passed strict controls during design, choice of materials or load checks and effort.
  • Page 27 NUMERO DE SERIE: SERIAL NUMBER: LAUFENDE NUMMER: Primer test en fábrica First test in factory. Erstprüfung im Werk. Fecha/Date/Datum Testado por/Tested by/Prüfer Four years test UVV Prüfung (alle 4Jahre) Examen a los cuatro años. Fecha/Date/Datum Testado por/Tested by/Prüfer Annual test after the fourth UVV Jährlicher Test nach Examen anual a partir year.
  • Page 28 Fecha/Date/Datum Testado por/Tested by/Prüfer Fecha/Date/Datum Testado por/Tested by/Prüfer Fecha/Date/Datum Testado por/Tested by/Prüfer Fecha/Date/Datum Testado por/Tested by/Prüfer USER MANUAL FOR P.A. TOWERS...
  • Page 29 Fecha/Date/Datum Testado por/Tested by/Prüfer Todos los test mencionados solo son obligatorios en aquellos países con regulación específica en la materia, aplicada mediante regulaciones o leyes. Como fabricantes, sumamente recomendamos pasar todos los tests con el objetivo de prevenir cualquier daño y mantener perfectamente nuestras torres elevadoras. All the tests mentioned are only mandatory in those countries with specific regulations in this respect, applicable by domestic rules or laws.
