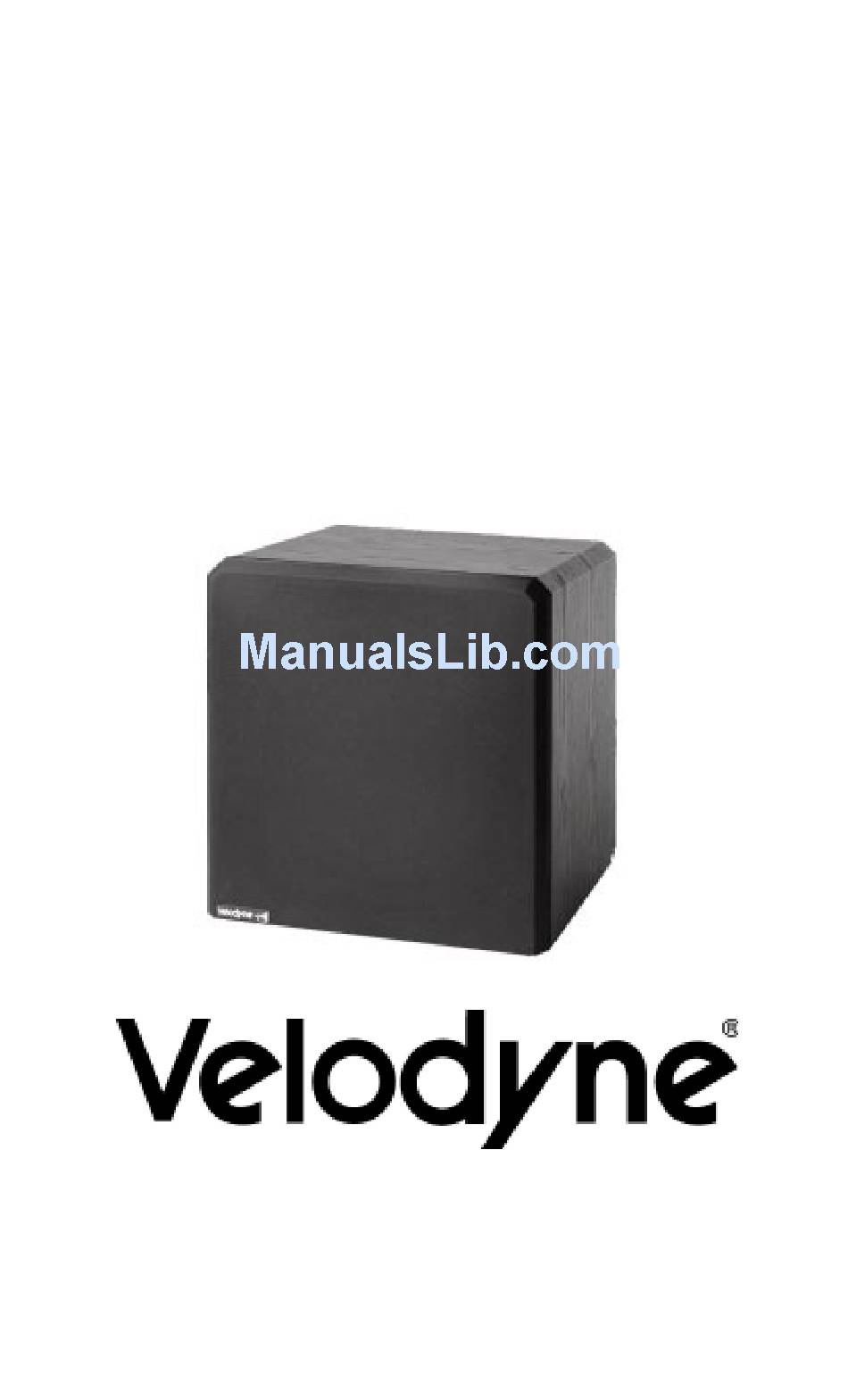

- Page 1 HGS-12X Owner's Manual High Gain Servo-Controlled Audio/Video Subwoofer System...
-
Page 2: Important Safety Instructions
Follow Instructions -- All operating and use instructions should be followed. Water and Moisture -- The subwoofer should not be used near water -- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or the like. -
Page 3: Importantes Consignes De Securite
IMPORTANTES CONSIGNES DE SECURITE Risque d’électrocution Attention: Afin d’éviter tout risque d’électrocution, ne pas enlever le boitier (ou partie arrière de l’enceinte). Aucune pièce ne doit être manipulée par l’utilisateur. Pour tout entretien, vous référer à un personnel de service qualifié. Le symbol de l’éclair avec la flèche sert à... -
Page 4: Wichtige Sicherheitshinweise
Warnungen beachten - Alle Warnungen am Subwoofer und in der Bedienungsanleitung unbedingt beachten. Anleitungen befolgen - Alle Bedienungs- und Gebrauchsanleitungen genau befolgen. Wasser und Feuchtigkeit - Subwoofer nicht in der Nähe von Wasser aufstellen, d.h. neben einer Badewanne, Spüle, Waschmaschine, in einem feuchten Keller, in der Nähe des Swimmingpools o.ä.. - Page 5 Congratulations! Congratulations on your purchase of a Velodyne subwoofer system. This system represents the absolute state of the art in accurate low frequency reproduction. We believe this to be one of the finest subwoofers available anywhere! In this new subwoofer, we have combined our radical new driver &...
-
Page 6: Product Features And Controls
• Optional remote control with power, volume and mute functions Installation Your new Velodyne servo subwoofer provides for a number of installation options. Read all the installation information below in order to determine which installation option is best for your system. Remember to perform... -
Page 7: Volume Control
Volume control This control allows you to balance the output from the subwoofer to the main speakers/amplifier in your system. This control should be set to achieve similar output level from both the main speakers and subwoofer when listening to music. A good starting point for the volume control is 4 or 5 dots from minimum. -
Page 8: Line-Level Connection
Auto turn on function With this function in the "auto" position, your subwoofer can be safely left with the main power switch on continuously. The subwoofer will turn itself on automatically when an audio signal is present. If no signal is present for approximately 15 minutes, the unit will switch to standby mode. - Page 9 Subwoofer outputs The Velodyne subwoofer is designed to operate using the full range audio signal for input when using the built-in crossover. Some processors/ Figure 1: Installation Using Line-Level Inputs...
-
Page 10: Interconnect Cables
X- over, OUT - IN on the rear panel of the subwoofer and set to the OUT position. This will eliminate the internal crossover from the signal path. -
Page 11: Protection Circuitry
The worst location for a subwoofer it typically far away from any walls, and close to the center of your room. Avoid these locations when possible. When using a pair of Velodyne subwoofers in stereo, it is preferable to place each subwoofer by the satellite of the same channel. -
Page 12: Distortion In Loudspeakers
The unit is protected against: 1) Overdriving the speaker or amplifier. 2) Overheating the amplifier. 3) Excessive drop in power line voltage. The first type of protection circuitry which prevents overdriving of the speaker or amplifier operates constantly without being audible under most situations. - Page 13 Velodyne have developed another way. . . The Velodyne Servo-Control Solution –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– The Velodyne HGS subwoofers produce sound in the same manner as conventional loudspeakers: a cone-shaped piston is forced to move by means of a linear motor. However, this is about the only conventional part of the subwoofer.
-
Page 14: Care Of Your Subwoofer
If you plan to leave the subwoofer unused for an extended period of time, we recommend that you unplug the unit. -
Page 15: Troubleshooting And Service
Troubleshooting and Service If you should experience a problem with the operation of your subwoofer, please check all of the following before seeking service. Following is a simple troubleshooting guide to assist you. 1. Verify unit is plugged in and power outlet used is active. -
Page 16: Specifications
Magnet Structure Voice Coil Inputs Outputs Warranty (parts/labor) Weight (approx.) Specifications are subject to change without notice. HGS-12X 14-3/4" x 14" x 15-7/8" (37 x 35 x 40 cm) 20Hz - 120Hz +/-3 dB <1% (typical) 20Hz or 35Hz 80Hz (6dB/octave) - Page 17 DATE PURCHASED _______________________________________ DEALER _________________________________________________ SERIAL # ________________________________________________ * NOTE: Please complete and return your warranty card within ten (10) days. Or Register...ONLINE www.velodyne.com Installation Worksheet Model/Serial # _____________ Sub Sonic: 20 Hz _________ Right Front: _________ dB Right Rear: _________ dB It's faster...and easier...
-
Page 18: Other Velodyne Subwoofer Products
Other Velodyne Subwoofer Products: VX-10 DLS Series DLS-3500 DLS-3750 DLS-4000 CHT Series CHT-8 CHT-10 CHT-12 CHT-15 CHT Front Row System CHT-14 Satellites CHT-24 Center Channel Deco System Deco Satellites SPL Series II SPL-800 II SPL-1000 II SPL-1200 II SPL-523 SPL-23... - Page 19 “Not only was the little Velodyne the best small sub I’ve ever used, it was one of the very best subs I’ve used.” -John Potis SoundStage!, April 2002 “The SPL-1200 was able to hit an impressively deep 16 Hz”. -Tom Noussaine Sound &...
