SH-EH600

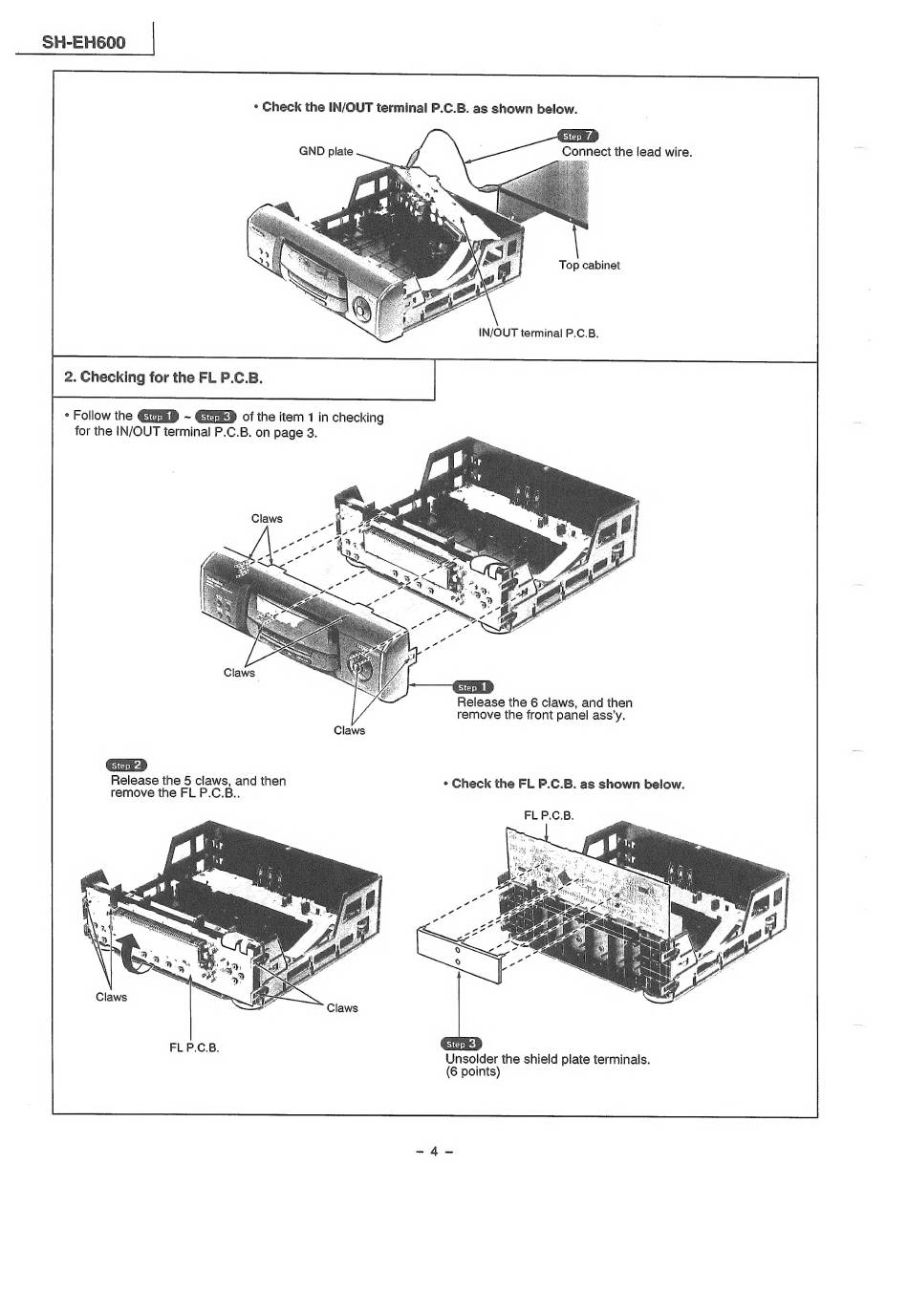

° Check the IN/OUT terminal P.C.B. as shown below.
GND plate
|
|
Connect the lead wire.
Top cabinet
IN/OUT terminal P.C.B.
2. Checking for the FL P.C.B.
° Follow the
@aai) ~ @SIEP of the item 1 in checking
for the IN/OUT terminal P.C.B. on page 3.
Release the 6 claws, and then
remove the front panel ass'y.
Claws
Release the 5 claws, and then
e Check the FL P.C.B. as shown below.
remove the FL P.C.B..
FLP.C.B.
FL P.C.B.
Unsolder the shield plate terminals.
(6 points)
