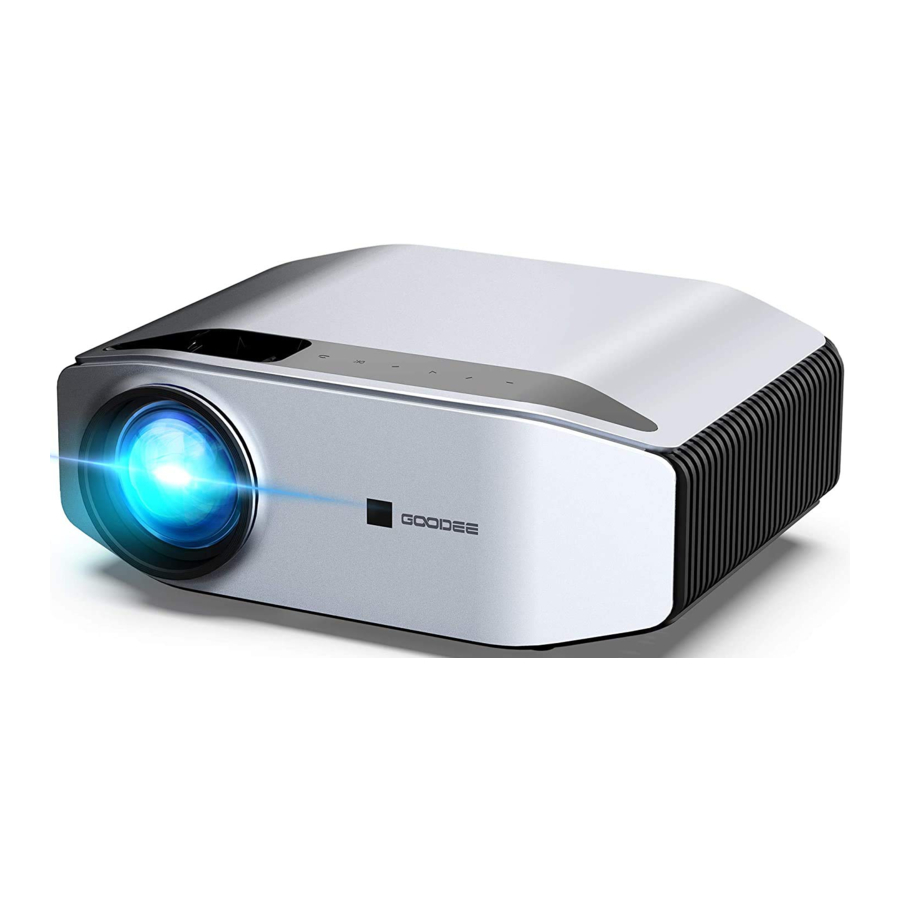

GooDee YG620 - Projector Manual

GooDee YG620 - Projector Manual

Advertisement

GooDee YG620 - Projector Manual

Interface introduction

Interface introduction

Remote control introduction

Remote control introduction

*NOTE:

  1. To avoid power shortage, please do not mixed use the old and new battery.
  2. To avoid battery leakage corrosion, if do not use remote control for a long time, please take the battery out.

Media connection

Multimedia connection

Connect the USB/Micro SD drive with the content to the projector USB/Micro SD port, select "MultiMedia" you can select movies, music, photo, text on the list.
Multimedia connection - Step 1 - Connect usb drive
Multimedia connection - Step 2

Multimedia Audio support MP3/WMA/OGG/AAC/FLAC/APE/WAV
Photo support JPEG/8MP/PNG
Video support 3GP,AVI,MKV,FLV(FLV)/MOV/MP4/MPG/VOB/MPG/RMVB/RM
Text support TXT

VGA connection

VGA slot could connect to computer and all the device with VGA slot. As connected, choose the "Input Source-VGA".
Media connection - VGA connection

HDMI connection

HDMI slot couId connect to computer and all the device with HDMI slot As connected, choose the "Input Source-HDMI".
Media connection - HDMI connection

Support files:
576P, 480P, 720P, 1080P, 640*480, 800*600 1024*768, 1280*1024, 1280*720, 1440*900, 1920*1080, 1366*768, 1280*800, 1440*960, 1600*1200, 1680*1050

AV video equipment connection

Use 3 in 1 video convert cable, connect projector AV slot, as the picture below show, as connected, choose the "Input Source-AV"
Media connection - AV video equipment connection

3.5mm audio device connection

CouId connect 3.5mm earphone and speaker equipment.
Media connection - audio device connection

Device connection introduction

Device connection introduction

*Could connect multi-device and applications.

Focus adjustment

Focus adjustment
Put the projector vertical to the projector screen or white wall, adjust the focus roller according to your picture or video, until the them clearly enough.

Keystone correction

In sometimes, the images which projector on the wall is a little twisted as a ladder, we could take a keystone to adjust it. The keystone technology is the method to get the image normalization by digital or optical technology.
Keystone correction

Picture/System setting

Open the home page-"Setting", you can set up the projection mode, image scaling, aspect ratio, picture mode of the projector from Picture Setting. You can set up the OSD language, software update, factory restore, auto sleep of the projector from the System setting.
Picture/System setting

Other instruction

Lifting way

Other instruction - Lifting way

Adjustable foot pad

Other instruction - Adjusting the foot pad
Gently lift the projector body, press the "PUSH" button at the bottom of the body to adjust the height of the foot mat.

Dust removal from anti-dust Mesh

In order to keep the air circulating, please remove the air inlet regularly to clean the dust. Note, for your safety, pls shut the power off before operation.
Dust removal from anti-dust Mesh

EchnoIogy features

Basic parameters

Imaging Technology TFT LCD
Resolution 1920*1080
Light LED
Operation Mode Manual operation
Projection Distance 1.5 - 5.6M
Screen Size 50"-300' inches
Aspect Ratio 16:9
Projection ratio 1.56:1
Keystone Manual corrections±15°
Power Input 100V-240V-50/60Hz
Integrated watt 140W
Input HD*2/USB2.0/VGA/MicroSD/AV
Output Earphone/5V OUT
Speaker 5W*1
Unit Size 310*251*108mm
Net Weight 2.61kg

Projector distance & size

Projector distance & size

Safety notice

  1. Please read manual carefully before you use the projector.
  2. To ensure stable power supply, please use national standard power cable and power cord with grounding
  3. Please use the same power voltage as the projector marked.
  4. Please do not open the projector, otherwise the supplier will not afford warranty service.
  5. Do not look directly at the projector lens while the machine is working to avoid damage to your eyes.
  6. To avoid dog of the projector ventr please do not cover it with cloth, carpet and other materials.
  7. This projector is not waterproof, to prevent power breakdown, please keep it from water including other liquid and humid environment.
  8. Turn off and cut off the power supply if do not use this project for a long time.
  9. Use the originally foam or other unit-shock material to protect projector if you need transport this projector.
  10. If you find the projector has problems, please contact with the supplier, do not repair by yourself.

Contact Us:
If you have any suggestions or if you run into any problems, please feel free to contact our support at
promo@goodee.hk
