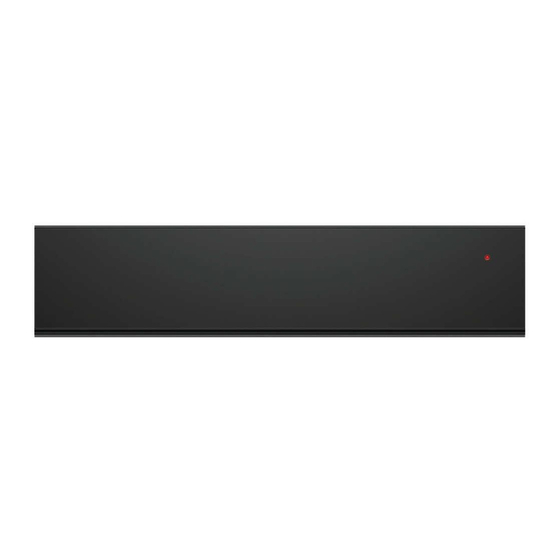

- Page 1 WARMING DRAWER MINIMAL WB24SMB1-SET CONTEMPORARY WB24SDB1-SET, WB30SDB1-SET & WB30SDX1-SET INSTALLATION GUIDE US CA...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Warming drawer models Unpack your product Parts supplied Tools required Product dimensions – 24" models Product dimensions – 30" models Cabinetry dimensions – 24" models Cabinetry dimensions – 30" models Installation options Installing the drawer install front panel (sold separately) Adjusting the depth Adjusting the height Installer checklist... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Tip Hazard Failure to follow this advice may result in This product may tip. Keep children away and electrical shock or death. take care. Failure to follow this advice may result in injury. •... -
Page 5: Warming Drawer Models
A built-in shelf at the base of the cabinetry must be able to support the weight of both products. WB24SMB1-SET & WB24SDB1-SET WB30SDB1-SET & WB30SDX1-SET Ensure the cabinetry is square and level and with correct dimensions. -
Page 6: Unpack Your Product
All electrical work must be done by a qualified electrician, or a Fisher & Paykel trained and that can be reused. Dispose packaging materials in accordance with local regulations on supported service technician. waste disposal. WB24SMB1-SET WB30SDB1-SET Inspect the warming drawer for any signs of damage. Do not install the warming drawer if it WB24SDB1-SET WB30SDX1-SET has been damaged. -
Page 7: Parts Supplied
PARTS SUPPLIED TOOLS REQUIRED WARMING DRAWER WARMING DRAWER MINIMAL WB24SMB1-SET MINIMAL CONTEMPORARY WB24SMB1-SET SERVICE & WARRANTY WB24SDB1-SET, WB30SDB1-SET & WB30SDX1-SET SERVICE ET GARANTIE CONTEMPORARY ΣΈΡΒΙΣ ΚΑΙ ΕΓΓΎΗΣΗ WB24SDB1-SET, WB30SDB1-SET & WB30SDX1-SET SERVIZIO E GARANZIA SERVICE & GARANTIE HUOLTO JA TAKUU... -
Page 8: Product Dimensions - 24" Models
PRODUCT DIMENSIONS – 24" MODELS WB24SMB1-SET WB24SDB1-SET PRODUCT DIMENSIONS A Overall height 5 1/2 B Overall width 23 7/16 C Overall depth*† 22 5/16 D Height of chassis 5 1/2 E Width of chassis 21 3/8 F Depth of chassis**... -
Page 9: Product Dimensions - 30" Models
PRODUCT DIMENSIONS – 30" MODELS WB30SDB1-SET WB30SDX1-SET PRODUCT DIMENSIONS A Overall height 10 11/16 B Overall width 29 15/16 C Overall depth*† 22 5/16 D Height of chassis 10 11/16 E Width of chassis 27 13/16 F Depth of chassis** 21 9/16 G Height of drawer front panel 10 1/2... -
Page 10: Cabinetry Dimensions - 24" Models
CABINETRY DIMENSIONS – 24" MODELS FLUSH INSTALL 13/16 (20mm)* PROFILE PLAN WB24SMB1-SET & WB24SDB1-SET PROUD INSTALL CABINETRY DIMENSIONS INCHES A Minimum inside height of cavity 5 9/16 B Minimum inside width of cavity 22 1/16 C Minimum inside depth of cavity... -
Page 11: Cabinetry Dimensions - 30" Models
CABINETRY DIMENSIONS – 30" MODELS FLUSH INSTALL 13/16 (20mm)* PROFILE PLAN WB30SDB1-SET & WB30SDX1-SET CABINETRY DIMENSIONS PROUD INSTALL INCHES A Minimum inside height of cavity 10 3/4 B Minimum inside width of cavity 28 1/2 C Minimum inside depth of cavity 22 1/16 D Overall width of cabinetry E Minimum clearance between top of front panel... -
Page 12: Installation Options
INSTALLATION OPTIONS STANDALONE INSTALLATION COMBINED WITH SINGLE OVEN This installation is suitable for Minimal, Contemporary & Professional Warming drawers. A fixed This installation combines 30" Warming Drawer with 30" Fisher & Paykel wall oven. The shelf must be installed above the warming drawer. warming drawer can support the weight of the oven sitting directly on top. - Page 13 INSTALLATION OPTIONS COMBINED WITH COMPANION PRODUCT COMBINED WITH DOUBLE OVEN This installation combines 24' or 30" Warming Drawer with 24" or 30" Fisher & Paykel This installation combines 30" Warming Drawer with a 30" Fisher & Paykel double oven. The companion product.
-
Page 14: Installing The Drawer
INSTALLATION OPTIONS INSTALLING THE DRAWER TRIPLE STACK COMBINATION This combination is suitable for 30" Warming Drawers. A shelf is required above the oven to support the 30" companion product. Ensure the bottom shelf can fully support the weight of all appliances. Connect the power plug into the power outlet. -
Page 15: Install Front Panel (Sold Separately)
INSTALL FRONT PANEL (SOLD SEPARATELY) ADJUSTING THE DEPTH The depth of the front panel of the warming drawer can be adjusted to align with the surrounding cabinetry. Adjust the clips at the front of both locating tabs. These clips determine the position of the front panel and can be adjusted as required. -
Page 16: Adjusting The Height
ADJUSTING THE HEIGHT The front panel of the warming drawer can be adjusted vertically to align with the surrounding cabinetry. Open the drawer fully, and slightly loosen the T20 star head machine screws. max 1/16" (2mm) Adjust to the required height and then re-tighten the screws. -
Page 17: Installer Checklist
INSTALLER CHECKLIST PRODUCT OFF USER PRESSES ON/OFF BUTTON FP WARMER DRAWER INTERFACE LOGIC_V1 IMPORTANT! Read all installation instructions in this manual to see if the unit has been correctly installed. ALL OT Ensure that installation has been completed correctly before use. TEMPER MEDIUM Ensure that:... - Page 18 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
