Atlas Copco

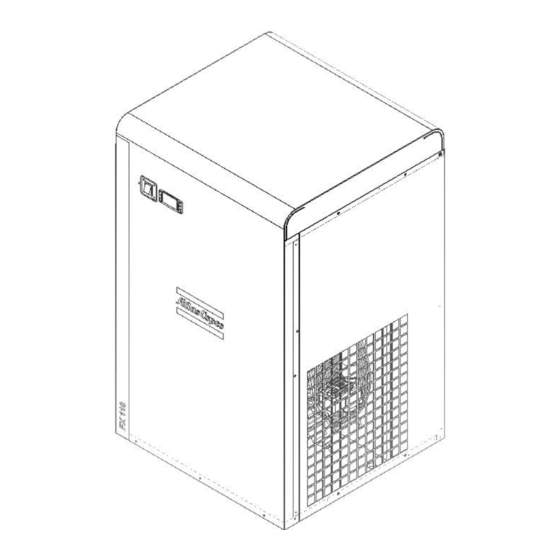

FX 41N, FX 48N, FX 61N, FX 69N, FX 86N, FX 108N
Instruction book
Original instructions
COPYRIGHT NOTICE
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and drawings.
This instruction book is valid for CE as well as non-CE labelled machines. It meets the
requirements for instructions specified by the applicable European directives as identified in
the Declaration of Conformity.
2020 - 10
No. 9828 0933 98
www.atlascopco.com
Cod. 9828093398 00 - Edition 10/2020 - 1
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX 41N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlas Copco FX 41N

Summary of Contents for Atlas Copco FX 41N

  • Page 1 ENGLISH Atlas Copco FX 41N, FX 48N, FX 61N, FX 69N, FX 86N, FX 108N Instruction book Original instructions COPYRIGHT NOTICE Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers and drawings.
  • Page 2 Code 9828093398 Edit. 10/2020 INSTRUCTION AND MAINTENANCE MANUAL DRYERS FX 41N, FX48N, FX 61N, FX 69N, FX 86N, FX 108N READ THIS MANUAL CAREFULLY BEFORE CARRYING OUT ANY OPERATIONS ON THE DRYER. 2 - Edition 10/2020 Cod. 9828093398 00 -...

  • Page 3: Table Of Contents

    ENGLISH CONTENTS PART A: INFORMATION FOR THE USER GENERAL CHARACTERISTICS INTENDED USE OPERATION GENERAL SAFETY STANDARDS DESCRIPTION OF DANGER SIGNALS DANGER ZONES SAFETY DEVICES POSITION OF PLATES DRYERS ROOM 10.0 TRANSPORT AND HANDLING 11.0 UNPACKING 12.0 INSTALLATION 13.0 DIMENSIONS AND TECHNICAL DATA 14.0 MACHINE ILLUSTRATION 15.0...

  • Page 4: General Characteristics

    ENGLISH 1.0 GENERAL CHARACTERISTICS The dryer is a chilling machine with direct expansion and dry evaporator. The air to be dried is sent to the heat exchanger in which the water vapour present is condensed: the condensate gathers in the separator and is discharged outside through a steam trap. 2.0 INTENDED USE The dryer has been built to dry the compressed air for industrial use.

  • Page 5: Description Of Danger Signals

    ENGLISH 5.0 DESCRIPTION OF DANGER SIGNALS 1) Dangerous 2) Air not fit for 3) High pressure 4) Fan rotating 5) Hot parts Electric voltage breathing 6.0 DANGER ZONES 6.1 DANGER ZONES Risks present on the whole machine FIG. 2 7.0 SAFETY DEVICES 7.1 SAFETY DEVICES 1) Cooling fan shield 2) Earth...

  • Page 6: Position Of Plates

    ⚫ Please remember that we do not recommend the application of duct to extract air in presence of axial fans 10.0 TRANSPORT AND HANDLING The machine must be transported as shown in the following figures. FIG. 5 NET WEIGHT TYPE 62 (137) FX 41N FX 48N 62 (137) 60 (132) FX 61N FX 69N 62 (137)

  • Page 7: Installation

    ENGLISH 12.0 INSTALLATION 12.1 POSITIONING After unpacking the equipment and preparing the dryers room, put the machine into position, checking the following items: ⚫ ensure that there is sufficient space around the machine to allow maintenance (see Fig. 6). ENSURE THAT THE OPERATOR CAN SEE THE WHOLE MACHINE FROM THE CONTROL PANEL AND CHECK THE PRESENCE OF ANY UNAUTHORIZED PERSONS IN THE VICINITY OF THE MACHINE.

  • Page 8: Dimensions And Technical Data

    AIR INLET AIR OUTLET CONDENSATE DRAINING TYPE TYPE Refrigerant gas 100 (2) 460 (18,11) 557 (21,93) 789 (31,06) FX 41N 1”1/2 GAS F. 1”1/2 GAS F. FX 41N 460 (18,11) 557 (21,93) 789 (31,06) FX 48N R-410A 2088 1”1/2 GAS F.
  • Page 9 ENGLISH 14.2 COMMAND AND CONTROL PANEL BEFORE CARRYING OUT THE OPERATION TEST, READ CAREFULLY AND ACQUIRE A GOOD KNOWLEDGE OF THE COMMAND FUNCTIONS. FIG. 9 Front panel of the controller Reference Name Alarm icon Refrigerant compressor icon Fan icon PDP (dewpoint) temperature Unit (°C or °F) Alarm LED Button to snooze or to reset the alarm...
  • Page 10 ENGLISH REMOTE ALARM FUNCTION The controller allows to remotely control a number of alarms. This is managed by means of a free NC (Normally Closed) contact. The contact opens in case of an alarm or when the dryer is switched off. Refer to the table below to identify the availability of the function and refer to the related picture Fig.

  • Page 11: Partial Routine Maintenance

    ENGLISH 15.0 PARTIAL ROUTINE MAINTENANCE BEFORE CARRYING OUT ANY MAINTENANCE JOBS IT IS OBLIGATORY TO STOP THE MACHINE AND DISCONNECT IT FROM THE POWER MAINS AND FROM THE COMPRESSED AIR DISTRIBUTION NETWORK. 15.1 MAINTENANCE SCHEDULE These maintenance intervals are recommended for work environments that are not dusty and are will ventilated. For particularly dusty environments, double the frequency of controls.

  • Page 12: Trouble-Shooting And Emergency Remedies

    ENGLISH 16.0 SCRAPPING THE UNIT If the machine is to be scrapped, it must be dismantled into parts of the same material, to be disposed of according to the local regulations in force. ALWAYS RESPECT THE REGULATIONS IN FORCE FOR DISPOSING OF OLD OIL AND OTHER POLLUTING MATERIALS SUCH AS INSULATING FOAM, ETC.
  • Page 13 ENGLISH 17.1 TROUBLE-SHOOTING AND EMERGENCY REMEDIES N.B. OPERATIONS MARKED ◼ ◼ MUST BE CARRIED OUT BY PROFESSIONALLY SKILLED PERSONNEL APPROVED THE MANUFACTURER Cod. 9828093398 00 - Edition 10/2020 - 13...
  • Page 14 ENGLISH EE ALARM EE alarm is shown when internal EPROM errors happens, if this warning will appear, the dryer will stop running. The error can be reset by pressing one of the four buttons of the controller, anyway please replace the controller itself. NOTE: In case of EE alarm please contact your tech support.
  • Page 15 ENGLISH How to reset the maintenance warning: follow steps 1 to 12 DOWN Push and hold buttons “SET” and PDP is flashing between standard view Message “SE” appears on display. “DOWN” to enter in the menu. and “SE” alarm Message “rS” appears on display. Push and release button “SET”.
  • Page 16 ENGLISH PROCEDURE TO SET THE SERVICE INTERVAL ON PDP DEVICE DOWN Push and hold buttons “SET” and PDP is showing standard view. Message “SE” appears on display. “DOWN” to enter in the menu. Current service interal is displayed. Select desired service interval using Push and release “SET”...

  • Page 17: Starting Up

    ENGLISH PART “B” THIS PART “B” OF THE INSTRUCTIONS MANUAL IS RESERVED FOR PROFESSIONALLY SKILLED PERSONNEL APPROVED THE MANUFACTURER. 18.0 STARTING UP BEFORE CARRYING OUT ANYOPERATION ON THE MACHINE, ENSURE THAT THE ELECTRIC POWER SUPPLY HAS BEEN DISCONNECTED 18.1 PRELIMINARY CONTROLS Before starting the dryer, check: - The correct connection to the compressed air piping: remember to remove eventual caps on the drier inlet and outlet.
  • Page 18 ENGLISH CALIBRATIONS BYPASS VALVE FOR HOT GAS N.B.These valves have already been calibrated and they do not require any adjistment. A dew point different from the rated one generally depends on causes which are not attributable to their operation. Ref. 1) Closing cap Ref.
