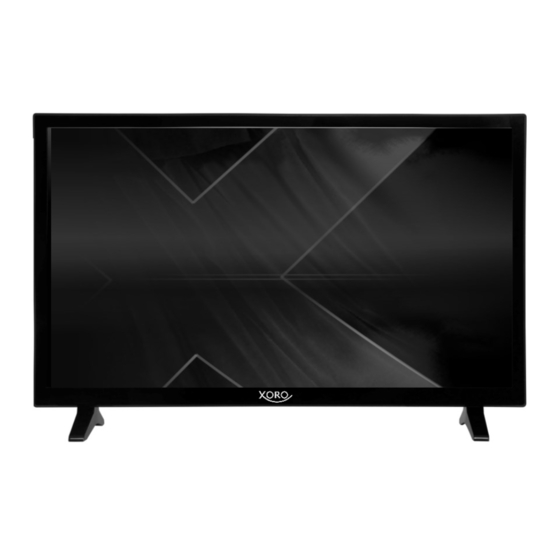

Summary of Contents for Xoro HTC Series

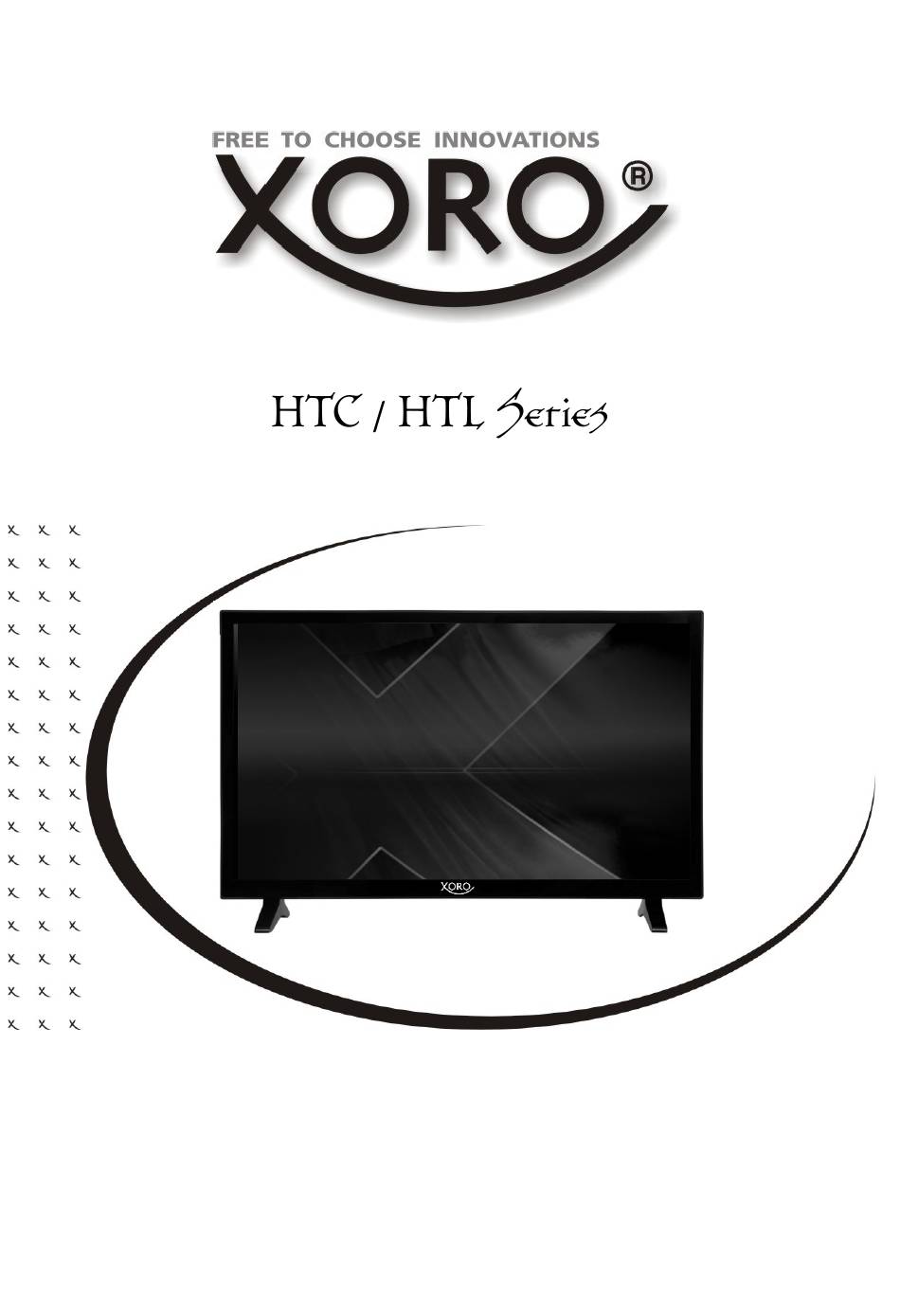

- Page 1 USER MANUAL (ENG)
-
Page 3: Table Of Contents
Contents Safety instructions User manual, laser, power supply .................. 4 Antenna, Pixel errors, service ..................5 Operation and Installation, Usage .................. 6 USB, packaging content, batteries ................. 7 Warranty & Recycling Information................8 EG-Declaration ......................8 Device ........................... 9 Remote control ......................10 First Steps Installation, Power supply, Connecting to antenna/dish/cable ........ -
Page 4: Safety Instructions
Safety instructions The lightning symbol in a triangle alerts the user to dangerous voltages in some exposed components inside the device. The exclamation point in a triangle alerts the user to important operating and main- tenance instructions (Service) in this manual, which should be strictly adhered to. The equipment has been tested and found to comply lt. -
Page 5: Antenna, Pixel Errors, Service
Safety instructions The cable is jacketed and isolated power. Please make any objects on the cable, as this pro- tective function could be lost. Avoid large loads of the cable, particularly at plugs and sockets. If you want to pull out the plug from the socket, always pull the plug, not the cord. The cable could otherwise tear. -
Page 6: Operation And Installation, Usage
Safety instructions If the device has been dropped and if the product has power fluctuations. Use only original spare parts. Unauthorized substitutions may adversely affect the perfor- mance and reliability of the device. Please note the troubleshooting section (page 30) our service addresses and phone numbers. Operation and installation ... -
Page 7: Usb, Packaging Content, Batteries
Always backup all data from the USB memory before you connect it to the TV. For the recording of HD broadcasts or use the Timeshift function sufficiently fast USB storage device is needed. packaging content The following components are supplied with the Xoro HTC / HTL Television: HD Television Remote ... -
Page 8: Warranty & Recycling Information
The “Grüne Punkt” denotes that the MAS Elektronik AG pays a duty to the “Society for Waste Prevention and Secondary Resource Generation”. EC Declaration With the CE mark explains Xoro, a registered trademark of the MAS Elektronik AG that this product meets the essential requirements and guidelines of the European regulations... -
Page 9: Device
Device Status LED Displays the operating status of the device Red: Standby, Green: In operation, Green / red alternately: PVR recording is in progress Stands De / assembly see page 12 Breakpoints Breakpoints for VESA mounting system (page 12) I DVD Player Starts playback EJECT... -
Page 10: Remote Control
Remote Control STANDBY Switches the device on / off or in standby SOURCE switching the signal source (page 18) numeric keys for the channels direct dial Displays the favorite list Switches to the previous channel watched P.MODE Predefined picture settings S.MODE Predefined Sound settings SLEEP... -
Page 11: First Steps
Read the instruction manual of the TV and follow the safety instructions there. Pay attention to a careful connection of the connectors. Power Supply Use only the supplied AC adapter to power the Xoro HTC / HTL 2446. Please read the information on the nameplate of the power pack. Note: The power supply provides a stabilized DC voltage of 12V. -
Page 12: Stands, Wall Mounting, Headphone
First Steps stands The TV unit is supplied without its assembled base feet. For mounting the feet, you need a suitable screwdriver. Mount the feet with the accompanying mounting screws to the holes provided on the bottom side. Notes: Insert for mounting the feet on the TV on a large, solid surface such as a table. -
Page 13: First Time Installation
First Time Installation Once you have the connection to the antenna or cable, press the power button on the remote control or on the TV. The television takes some time for the starting operation. The color of the LED on the front will chan- ge from red to green. - Page 14 First Time Installation Channel Type If you want to search for all (also encrypted) channels, or only free to air (FTA) channels are included in the search. Servicetyp Do you want to search for radio and TV channels (All), or only for radio (Radio) or TV channels (DTV).
-
Page 15: Channel Search, Remote Control Functions
Channel search / remote functions In the window that opens the channel scan. channels found are listed as follows: Analog TV channels Digital TV channels Radio Digital radio stations Data channels with data information eg. OTA updates In the lower part you will see the progress of the station se- arch. -
Page 16: Epg
Program information Information about the current program is available by pressing the INFO button on the remote. In addition to information such as TV program title, date and time, current time, duration of the current program, the broadcast resolution (eg 576i) and whether teletext is available, also EPG information about the current program are displayed. -
Page 17: Recording (Htc Models)
Recording Instant Record (HTC Models) Connect a USB storage to the USB port Make sure, that the USB storage is prepared for recording. The system records a transport stream with the suffix TS. Select the desired program then press the REC button on the remote control to start recording and a progress bar and further operational possibilities will be displayed. -
Page 18: Signal Sources
Signal sources Press the SOURCE button on the remote control you can switch between different input sources. Use the ▲ / ▼ the signal source and confirm your choice with OK. Satellite Opens the built-in DVB-S2 satellite tuner. Opens the built-in Combi DVB-C / T / T2 tuner. Opens the built-in analog tuner SCART Audio–... - Page 19 Signal sources You can use the TV set as a PC monitor by using the VGA interface. Please connect a VGA cable with the VGA input of the TV set and with the PC. With this kind of connection only video signals are transmitted. For listening sound on the TV you should establish also a sound connection.
-
Page 20: Multimedia Player
Multimedia Player The unit offers a video player. Connect a USB mass storage device for viewing your digital media into the USB input of the device. Press the SOURCE button on the remote and select the USB source. Now use the buttons to select the media type and press the OK button. -
Page 21: Dvd Player (Htc Models)
DVD Player (HTC Models) The device has an integrated DVD player. To watch a DVD, press the SOURCE button on the remote and select the DVD player as the input source. Slide the DVD with the printed side facing out (Figure 1) in the DVD slot on the back of the device. - Page 22 DVD Player By pressing the button D.MENU in DVD operation you can reach the settings menu. In this menu, you can make detailed settings for the device. To select using the navigation buttons. Press the OK button to confirm a selection. General Setup Page TV Display Picture format switching between 16: 9 and 4: 3 format...
-
Page 23: Main Menu
Main menu Pressing the MENU key to access the main menu of the device. Select using the directional buttons, the function icons. Press the OK button to confirm a selection. The following settings are available in this menu: CHANNEL Opens the channel search when a tuner (satellite, DTV, ATV) has been selected as the source. Depending on the reception of this menu the menu options are different. -
Page 24: Signal Information. Dish Setup
Main menu Modus Do you want the programmed Timer repeat (daily, weekly) You can confi gure the replay here Starttime Configure the start / end time of the programmed Timer Signal Informationen This menu displays information about the signal strength and quality of the selected satellite. - Page 25 Main menu Procedure for the manual station search: Use the ▲ / ▼ buttons from the first satellite, you want to set. Press the OK button. An arrow appears before the selected satellite. The arrow causes the satellite will be considered at the next station search. ...
- Page 26 Main menu For the column of the tuning following configuration options are available: LNB Typ define the oscillator frequency for your LNB . Please take the correct value from the manual of your LNB (standard:09750/10600) LNB Voltage This parameter defines the storm voltage of the antenna, and signal from horizontal or vertical polarized transponder will be received.
-
Page 27: Screen Settings
Main menu When all settings for the manual station search configured press the blue button to search for chan- nels automatically according to your settings to start. The following search options are available: Scan Mode Standard Searches for stations on transponders which stored in the device Blind Search Performs a scan transponder in front of the station search, in this case the machine will scan from any frequency by TV broadcasters. -
Page 28: Sound Settings, Time Settings, Setup
Main menu Noise Reduction Choose between preconfigured modes Noise Reduction (Low, Medium, High or Off) SOUND Sound Mode Choose between preconfigured Audio profiles (Standard, Sport, Movie, Mu sic) or configure according to your wishes own settings (Personal) for treb le, bass and balance Auto Volume De / Activates the automatic volume leveling SPDIF Mode... -
Page 29: Lock Settings, Ci/Ci+ Module
Main menu LOCK System Lock Global setting for the system lock function Set password in this menu can be changed the default password "0000" with another 4-digit password. First, enter the existing password, followed by two time entering the desired password If the password function is enabled, the following settings are also available: Channel Lock In this menu you can select individual channels to be blocked by a... -
Page 30: Troubleshooting
Subtitles appear only with disc which contain them Wrong MPEG-4 subtitle format Please rename the MPEG-4 subtitle to the same movie file name (for example movie.avi and movi.srt) Contact the Xoro customer service: Telephone: +49 4161 800 24 24 (Mo-Fr: 09-17:30 Uhr) eMail: support@ersservice.de...
