Universal Remote MSC-400 Quick Reference Manual

M S C - 4 0 0 S y s t e m Q u i c k R e f e r e n c e G u i d e
M S C - 4 0 0 S y s t e m Q u i c k R e f e r e n c e G u i d e

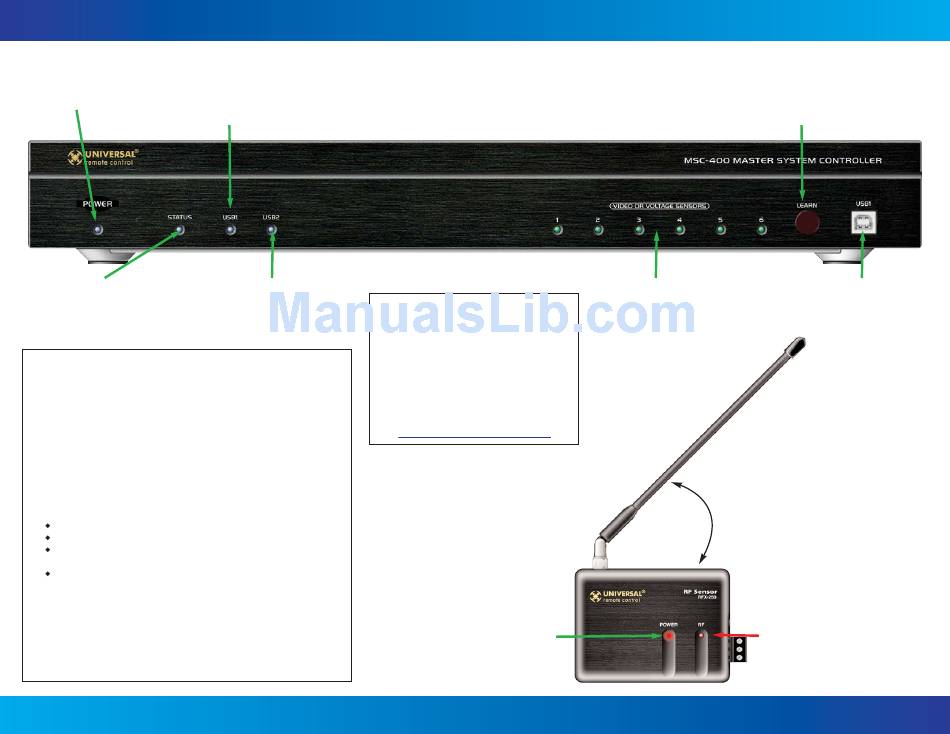

Power LED indicates USB 1 LED indicates that
that the MSC-400 is the USB Programming Port
powered on. (Front Panel USB) is
connected to a PC.
Status LED lights
whenever an RF sig-
nal is received and
UNDERSTOOD.
Notice to User
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
USB 2 LED indicates that
the USB PC Keyboard Port
NOTE: MSC Editor Software is not
(Rear Panel USB) is
included with the MSC-400. It can
connected to a PC.
only be downloaded from the URC
Dealer Only website. If you have
not registered yet, call your distrib-
Narrow Band RF Receiver
Once the RFX-250 is correctly con-
nected, the POWER LED lights.
F r o n t V i e w s - F l i p f o r R e a r V i e w s
F r o n t V i e w s - F l i p f o r R e a r V i e w s
MSC-400
Master System Controller

Front Panel

utor or sales representative for a
registration code and use the
Dealer Login at:
www.universalremote.com
RFX-250
Front Panel
Learning Sensor for learn-
ing IR commands.
Normally, learning is more
convenient via a remote.
Sensor LEDs light when a
Sensor is sensing that a
component is ON (Video is
present or Voltage is high).
Start with the antenna angle set to 45
degrees and positioned so that the
long side of the antenna is facing the
45°
customer's favorite seating position.
If the RF LED lights, the RFX-
250 must be moved to a new
mounting location. It is receiv-
ing in-band RF INTERFERENCE.
Front Panel USB port is
used ONLY for
PROGRAMMING
