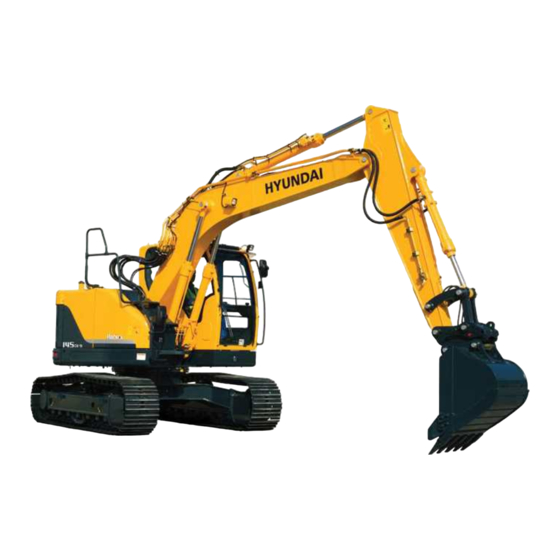

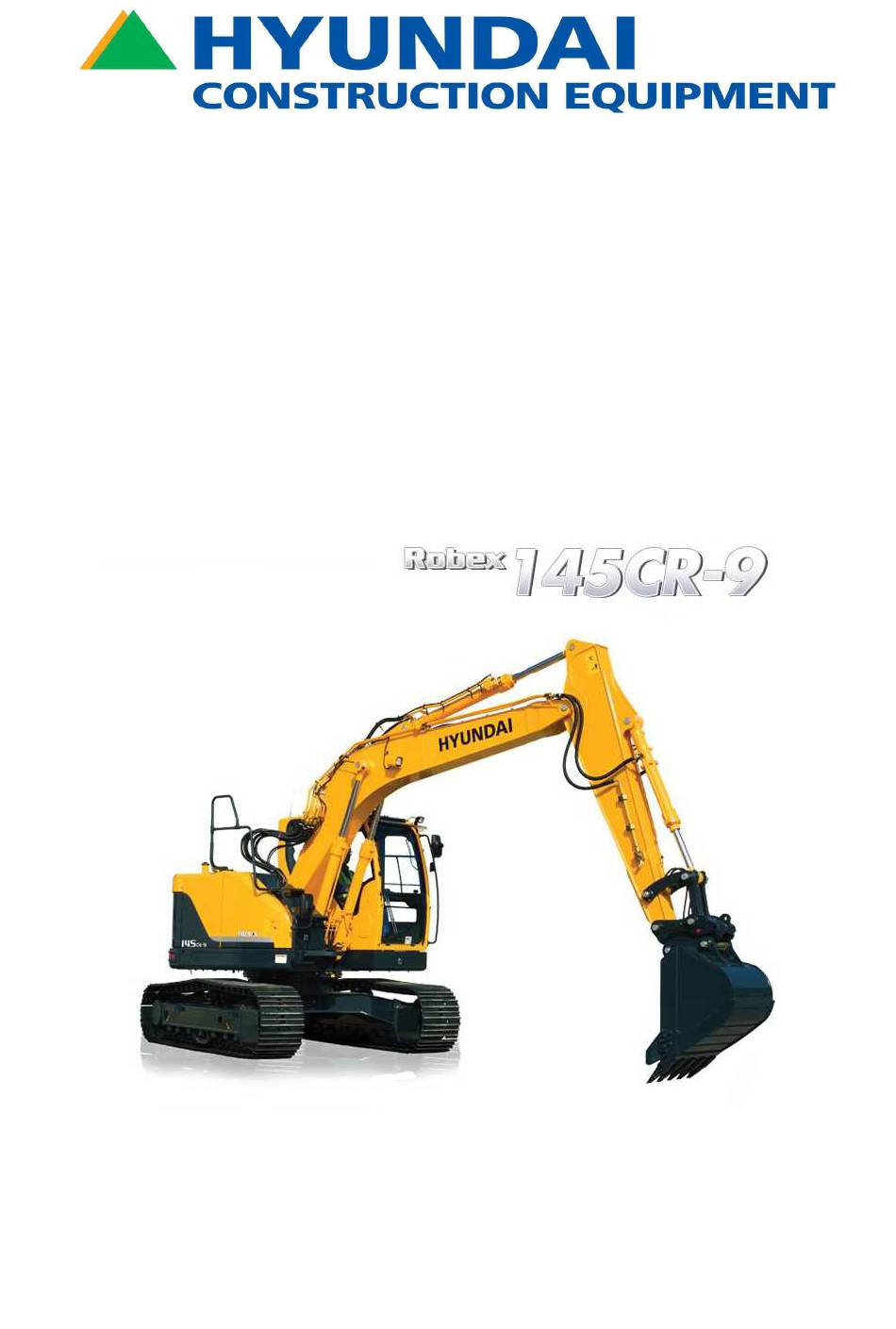

- Page 1 Robex 145CR-9 CRAWLER EXCAVATOR OPERATOR'S MANUAL...
- Page 2 TABLE OF CONTENT CONTENTS FOREWORD BEFORE SERVICING THIS MACHINE EC REGULATION APPROVED TABLE TO ENTER SERIAL NO. AND DISTRIBUTOR SAFETY LABELS MACHINE DATA PLATE GUIDE SAFETY HINTS 1. BEFORE OPERATING THE MACHINE 2. DURING OPERATING THE MACHINE 3. DURING MAINTENANCE 4.
- Page 3 10. ATTACHMENT LOWERING (when engine is stopped) 11. STORAGE 12. RCV LEVER OPERATING PATTERN 13. SWITCHING HYDRAULIC ATTACHMENT CIRCUIT TRANSPORTATION 1. PREPARATION FOR TRANSPORTATION 2. DIMENSION AND WEIGHT 3. LOADING THE MACHINE 4. FIXING THE MACHINE 5. LOADING AND UNLOADING BY CRANE MAINTENANCE 1.
- Page 4 CONTENTS Foreword ----------------------------------------------------------- 0-1 6. Traveling of the machine ---------------------------- 4-12 Before servicing this machine --------------------------- 0-2 7. Efficient working method --------------------------- 4-15 EC regulation approved ------------------------------------ 0-3 8. Operation in the special work sites ------------- 4-19 Table to enter S/No and distribution --------------------- 0-4 9.
- Page 5 3. Use genuine Hyundai spare parts genuine Hyundai spare parts for the replacement of parts. We expressly point out that Hyundai will not accept any responsibility for defects resulting from non- genuine parts or non workmanlike repair. In such cases Hyundai cannot assume liability for any damage.
- Page 6 The procedures in this manual do not supersede any requirements imposed by federal, state, provin- cial or local laws. Hyundai can not anticipate every possible circumstance or environment in which this machine may be used and serviced. All personnel must remain alert to potential hazards.
- Page 7 EC REGULATION APPROVED EC REGULATION APPROVED · Noise level (EN474-1 : 2006 and 2000/14/EC) are as followings. : 101 dB (EU only) 76 dB · The value of vibrations transmitted by the operator's seat are lower than standard value of (EN474-1 : 2006 and 2002/44/EC) Find manuals at https://best-manuals.com...
- Page 8 EC Declaration of Conformity 1. HYUNDAI CONSTRUCTION EQUIPMENT EUROPE N.V VOSSENDAAL 11, 2440 GEEL (Belgium), as authorized representative in the European Community of HYUNDAI CONSTRUCTION EQUIPMENT Co. Ltd.(Korea) certifi es that the construction equipment machinery. Machine Type : ******* Brand : HYUNDAI...
- Page 9 TABLE TO ENTER SERIAL NO. AND DISTRIBUTOR Machine Serial No. Engine Serial No. Manufacturing year Manufacturer Hyundai Construction Equipment co., Ltd. 12th, Fl., Hyundai Bldg. 75, Yulgok-ro, Jongno-Gu, Address Seoul, 03058, Korea Distributor for U.S.A Hyundai Construction Equipment U.S.A, Inc 6100 Atlantic Boulevard Norcross...
- Page 10 SAFETY LABELS SAFETY LABELS 1. LOCATION 1. LOCATION Always keep these labels clean. If they are lost or damage, attach them again or replace them with a new label. 8 39 4 18 13 14 10 45 CAB INSIDE-RH CAB INSIDE-LH LH CONSOLE BOX BATTERY COVER LOWER FRAME...
- Page 11 2. DESCRIPTION 2. DESCRIPTION There are several specific warning labels on this machine please become familiarized with all warn- ing labels. Replace any safety label that is damaged, or missing. AIR CLEANER FILTER AIR CLEANER FILTER (item 1) This warning label is positioned on the air cleaner cover.
- Page 12 BATTERY ACCIDENT BATTERY ACCIDENT (item 5) This warning label is positioned on the bat- tery cover. Electrolyte containing sulfuric acid cause Electrolyte containing sulfuric acid cause severe burns. Avoid being in contact with severe burns. Avoid being in contact with skin, eyes or clothes.
- Page 13 7) 7) HYDRAULIC OIL LEVEL HYDRAULIC OIL LEVEL (item 7) This warning label is positioned on the inside of the MCV box. Place the bucket on the ground whenever Place the bucket on the ground whenever servicing the hydraulic system. servicing the hydraulic system.
- Page 14 SIDE KEEP CLEAR SIDE KEEP CLEAR (item 13) This warning labels are positioned on the both side of counterweight. To prevent serious personal injury or To prevent serious personal injury or death keep clear of machine swing radi- death keep clear of machine swing radi- Do not deface or remove this label from Do not deface or remove this label from the machine.
- Page 15 NO STEP NO STEP (item 16) These warning label is positioned on the counterweight. Don't step on the engine hood and coun- Don't step on the engine hood and coun- terweight. terweight. 21070FW16 TRANSPORTING TRANSPORTING (item 17) This warning label is positioned right side of upper frame.
- Page 16 MAX HEIGHT MAX HEIGHT (item 20) This warning label is positioned on the right side window of the cab. Serious injury or death can result from Serious injury or death can result from contact with electric lines. contact with electric lines. An electric shock being received by An electric shock being received by merely coming into the vicinity of an...
- Page 17 AIR CONDITIONER FILTER AIR CONDITIONER FILTER (item 24) This warning label is positioned on the air conditioner cover. Periodic and proper inspection, cleaning Periodic and proper inspection, cleaning and change of filter prolong air condition- and change of filter prolong air condition- er life time and maintain good perfor- er life time and maintain good perfor- mance.
- Page 18 KEEP CLEAR-BOOM/ARM KEEP CLEAR-BOOM/ARM (item 37) This warning label is positioned on both side of the arm. Serious injury or death can result from Serious injury or death can result from falling of the attachment. falling of the attachment. To prevent serious injury or death, keep To prevent serious injury or death, keep clear the underneath of attachment.
- Page 19 A special air bleed valve is accumulator. A special air bleed valve is necessary for this operation, so please necessary for this operation, so please contact your Hyundai distributor. contact your Hyundai distributor. 0-14...
- Page 20 MACHINE CONTROL PATTERN (item 44) WARNING This warning label is positioned on the right THE MACHINE CONTROL PATTERN CAN EASILY BE CHANGED CABIN TO THE "ISO TYPE" OR TO THE "A TYPE" BY CHANGING THE POSITION OF THE LEVER-PATTERN. side window of the cab. BEFORE STARTING THIS MACHINE, M.C.V CHECK THE LEVER PATTERN VALVE.
- Page 21 RCV LEVER PATTERN (item 46) This warning label is positioned right side of MCV box. See page 4-25 for details. 14W90FW47 SWING BEARING (item 47) This warning label is positioned in the front of swing ring gear. See page 6-32 for details. 38090FW02 BATTERY POSITION (item 48) This warning label is positioned left side of...
- Page 22 BEACON LAMP BEACON LAMP (item 49) This warning label is positioned on the cen- ter outside of the cabin. ※ Make sure the beacon lamp maintains a Make sure the beacon lamp maintains a vertical position. vertical position. A horizontal position can result in a A horizontal position can result in a decrease in life time of the lamp due to decrease in life time of the lamp due to...
- Page 23 5 Manufacturing year The machine serial number assigned to this particular machine and should be used when request- ing information or ordering service parts for this machine from your authorized HYUNDAI dealer. The machine serial number is also stamped on the frame.
- Page 24 GUIDE GUIDE 1. DIRECTION 1. DIRECTION Forward The direction of this manual indicate forward, back- ward, right and left on the standard of operator when the travel motor is in the rear and machine is on the traveling direction. Left Right Travel motor...
- Page 25 SAFETY HINTS 1. BEFORE OPERATING THE MACHINE Think-safety first. In special situation, wear protective clothing including a safety helmet, safety shoes, gloves, safety glasses and ear protection as required by the job condition. Almost every accident is caused by disre- garding the simple and fundamental safety hints.
- Page 26 Check daily according to the operation man- ual. Repair the damaged parts and tighten the loos- ened bolts. 13031SH05 Check for leakage of engine oil, hydraulic oil, fuel and coolant. Keep machine clean, clean machine regularly. 13031SH06 Do not operate the machine if it requires repairs. Operate after complete repair.
- Page 27 UNAUTHORIZED MODIFICATION Any modification made without authorization from Hyundai can create hazards. Before making a modification, consult your Hyundai distributor. Hyundai will not be respon- sible for any injury or damage caused by any unauthorized modification. PREPARE FOR EMERGENCY Only in case of emergency, use the installed hammer for breaking the windshield of the cab, and then exit carefully.
- Page 28 Do not use attachments that are not authorized by Hyundai or your Hyundai distributor. Use of unauthorized attachments could create a safety problem and adversely affect the proper opera- tion and useful life of the machine.
- Page 29 SAFETY FEATURES Be sure all guards and covers are in their prop- er position. Have guards and covers repaired if damaged. Use safety features such as safety lock and seat belts properly. Never remove any safety features. Always keep them in good operating condition. Improper use of safety features could result in serious bodily injury or death.
- Page 30 FIRE PREVENTION AND EXPLOSION PREVENTION Regeneration The exhaust gas temperatures during regeneration will be elevated. Follow proper fire prevention instructions and use the disable regeneration function when appropriate. General All fuels, most lubricants, and some coolant mixtures are flammable. To minimize the risk of fire or explosion, the following actions are recommended.
