INSTALLATION & OWNER'S

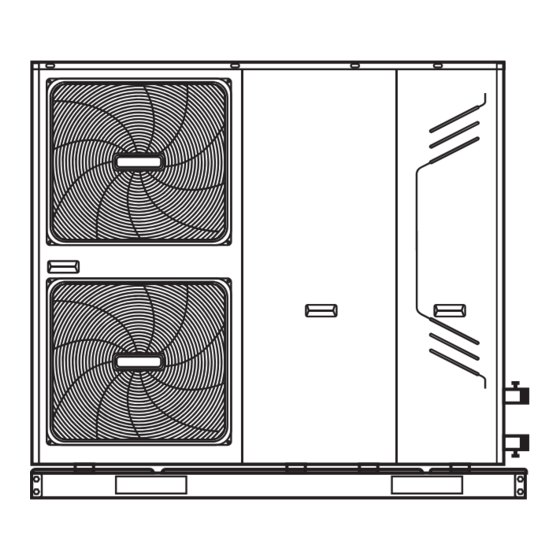

Aquantia Air/Water Heat Pumps
KHPS-MO 5 DVR
(KHP-MO 5 DVR)
KHPS-MO 7 DVR
(KHP-MO 7 DVR)
KHPS-MO 9 DVR
(KHP-MO 9 DVR)
IMPORTANT NOTE:
Thank you very much for purchasing our product,
Before using your unit, please read this manual carefully and keep it for future reference.
MANUAL
KHPS-MO Set - Monobloc
KHPS-MO 12 DVR
(KHP-MO 12 DVR)
KHPS-MO 14 DVR
(KHP-MO 14 DVR)
KHPS-MO 16 DVR
(KHP-MO 16 DVR)
KHPS-MO 12 DTR
(KHP-MO 12 DTR)
KHPS-MO 14 DTR
(KHP-MO 14 DTR)
KHPS-MO 16 DTR
(KHP-MO 16 DTR)
Advertisement
Table of Contents
Related Manuals for Kaysun Aquantia KHPS-MO Series
Summary of Contents for Kaysun Aquantia KHPS-MO Series
- Page 1 INSTALLATION & OWNER’S MANUAL Aquantia Air/Water Heat Pumps KHPS-MO Set - Monobloc KHPS-MO 5 DVR KHPS-MO 12 DVR KHPS-MO 12 DTR (KHP-MO 5 DVR) (KHP-MO 12 DVR) (KHP-MO 12 DTR) KHPS-MO 7 DVR KHPS-MO 14 DVR KHPS-MO 14 DTR (KHP-MO 7 DVR) (KHP-MO 14 DVR) (KHP-MO 14 DTR) KHPS-MO 9 DVR...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS .................... 02 GENERAL INTRODUCTION ..................04 ACCESSORIES ....................... 06 • 3.1 Accessories supplied with the unit ................06 • 3.2 Accessories avaliable from supplier ................06 BEFORE INSTALLATION ..................06 IMPORTANT INFORMATION FOR THE REFRIGERANT ......07 INSTALLATION SITE •... - Page 3 10 START-UP AND CONFIGURATION • 10.1 Climate related curves ....................50 • 10.2 DIP switch settings overview ..................52 • 10.3 Initial start-up at low outdoor ambient temperature ............. 52 • 10.4 Pre-operation checks ....................52 • 10.5 Powering up the unit ....................53 •...
- Page 5 5/7/9 kW 12/14/16 kW Wiring diagram:12~16kW(3-phase) for example Electric Control System Terminal Block Hydraulic System 5/7/9 kW Refrigerant System 12/14/16 kW Please remove the hollow plate after installation. Installation fitting NOTE The picture and function described in this manual contain the backup heater components. 1-phase 3-phase Unit...
-
Page 6: Safety Precautions
1 SAFETY PRECAUTIONS The precautions listed here are divided into the following types. They are quite important, so be sure to follow them carefully. Meanings of DANGER, WARNING, CAUTION and NOTE symbols. INFORMATION ● Read these instructions carefully before installation. Keep this manual in a handy for future reference. ●... - Page 7 DANGER ● Before touching electric terminal parts, turn off power switch. ● When service panels are removed, live parts can be easily touched by accident. ● Never leave the unit unattended during installation or servicing when the service panel is removed. ●...
-
Page 8: General Introduction
● Do not install the unit in the following places: - Where there is mist of mineral oil, oil spray or vapors. Plastic parts may deteriorate, and cause them to come loose or water to leak. - Where corrosive gases (such as sulphurous acid gas) are produced. Where corrosion of copper pipes or soldered parts may cause refrigerant to leak. - Page 9 ● Room thermostat(field supply) Capacity/Load ● Room thermostat can be connected to the unit(room thermostat should be kept away from heating source when selecting the installation place). ③ ① ② ● Solar kit for domestic hot water tank(field supply) An optional solar kit can be connected to the unit. ● Remote alarm kit(field supply) A remote alarm kit can be connected to the unit.
-
Page 10: Accessories
3 ACCESSORIES The unit have a freeze prevention function that uses the heat pump and backup heater (Customized model) to keep the water system safe from freezing in all conditions. Since 3.1 Accessories supplied with the unit a power failure may happen when the unit is unattended, It's suggested to use anti-freezing flow switch in the water system. -
Page 11: Important Information For The Refrigerant
CAUTION ● To avoid injury, do not touch the air inlet or aluminium fins of the unit. ● Do not use the grips in the fan grills to avoid damage. ● The unit is top heavy! Prevent the unit from falling due to improper inclination during handling. ≥1000mm The hook and barycenter of the unit should be on a line in vertical direction to prevent improper inclination Make the rope go through... -
Page 12: Installation Site
CAUTION ● Frequency of Refrigerant Leakage Checks - F or unit that contains fluorinated greenhouse gases in quantities of 5 tonnes of CO equivalent or more,but of less than 50 tonnes of CO equivalent,at least every 12 months, or where a leakage detection system is installed, at least every 24 months. - F or unit that contains fluorinated greenhouse gases in quantities of 50 tonnes of CO equivalent or more, but of less than 500 tonnes of CO equivalentat least every six months, or where a leakage detection system is installed,... -
Page 13: Selecting A Location In Cold Climates
● If you install the unit on a building frame, please install a waterproof plate (field supply) (about 100mm, on the underside of the unit) in order to avoid drain water dripping. (See the picture in the right). NOTE ● Unit is top heavy! ●... -
Page 14: Installation Precautions
7 INSTALLATION PRECAUTIONS 7.1 Dimensions 5/7/9 kW (unit: mm) 12/14/16 kW (unit: mm) Model 5/7/9kW 1210 12/14/16kW 1404 1414 7.2 Installation requirements ● Check the strength and level of the installation ground so that the unit may not cause any vibrations or noise during its operation. -
Page 15: Drain Hole Position
7.3 Drain hole position Drain hole Drain hole This drain hole is covered by rubber This drain hole is covered by rubber plug. If the small plug. If the small drain hole can not drain hole can not meet the drainage requirements, the meet the drainage big drain hole can be used at the same requirements, the big... -
Page 16: Typical Applications
＜1/2 H Unit A(mm) B1(mm) B2(mm) C(mm) 5~9kW ≥1500 ≥500 ≥150 ≥300 12~16kW ≥2000 ≥1000 ≥150 ≥300 2) In case of installing multiple units in lateral connection per row. ≥500mm ≥500mm ＜1/2 H Unit A(mm) B1(mm) B2(mm) C(mm) 5~9kW ≥2500 ≥1000 ≥300 ≥600... -
Page 17: Application 2
1.4 1.2 ---- FHL1 FHL2 ---- FHLn Coding Assembly unit Coding Assembly unit Outdoor unit Wired controller Manometer Room thermostat (field supply) Pressure relief valve Drain valve (field supply) Expansion vessel Fill valve (field supply) Plate heat exchanger Balance tank (field supply) Backup heater（Customized model） Air purge valve Air purge valve Drain valve Flow switch Expansion vessel (field supply) P_i: Circulation pump inside the unit... - Page 18 12.1 12.3 12.2 1.4 1.2 ---- FHL1 FHL2 ---- FHLn Coding Assembly unit Coding Assembly unit Outdoor unit Drain valve Manometer Expansion vessel (field supply) Pressure relief valve P_o: Outside circulation pump (field supply) Expansion vessel Collector (field supply) Plate heat exchanger Domestic hot water tank (field supply) Backup heater（Customized model） 12.1 Air purge valve Air purge valve 12.2 Heat exchanger coil...
-
Page 19: Application 3
CAUTION Make sure to fit the 3-way valve correctly. For more details, refer to 9.7.6 Connection for other components/For 3-way valve SV1. NOTE The unit can be configured so that at low outdoor temperatures, water is exclusively heated by the booster heater. This assures that the full capacity of the heat pump is available for space heating. Details on domestic hot water tank configuration for low outdoor temperatures (T4DHWMIN) can be found in 10.7 Field settings/How to set the DHW MODE. 8.3 Application 3 Space cooling and heating application with a room thermostat suitable for heating/cooling changeover when connected to the unit. Heating is provided through floor heating loops and fan coil units. Cooling is provided through the fan coil units only. -
Page 20: Application 4
NOTE The volume of balance tank(8) should be greater than 40L (for 5~9kW unit, greater than 20L) The drain valve (6) should be installed at the lowest position of the system. An independent backup heater can be selected and installed in the door. -
Page 21: Application 5
Coding Assembly unit Coding Assembly unit Outdoor unit Drain valve (field supply) Manometer Fill valve (field supply) Pressure relief valve Balance tank (field supply) Expansion vessel Air purge valve Plate heat exchanger Drain valve Backup heater（Customized model） Expansion vessel (field supply) Air purge valve P_o: Outside circulation pump (field supply) Flow switch Collector (field supply) P_i: Circulation pump in the unit Bypass valve (field supply) Y-shape filter SV2: 2-way valve (field supply) - Page 22 CAUTION Be sure that the boiler and the integration of the boiler in the system is in accordance with relevant local laws and regulations. 8.5.1 Application a Boiler provide heat for space heating only 12.1 12.3 12.2 23.1 1.4 1.2 ---- ---- FHL1...
- Page 23 8.5.3 Application c Boiler provide heat for space heating and domestic water heating. The ON/OFF of boiler controlled by unit. 12.1 12.3 12.2 1.4 1.2 ---- ---- FHL1 FHL2 FHLn Coding Assembly unit Coding Assembly unit Outdoor unit Expansion vessel (field supply) Manometer P_o: Outside circulation pump (field supply) Pressure relief valve Collector (field supply)
-
Page 24: Application 6
● As the outdoor temperature is measured via the outdoor unit air thermistor, make sure to install the outdoor unit in the shade, so that it is not influenced by the sun's heat. ● Frequent switching can cause corrosion of the boiler at an early stage. Contact the boiler manufacturer. ●... - Page 25 FCU1 FCU2 FCUn 23.1 1.4 1.2 FHL1 FHL2 FHLn Coding Assembly unit Coding Assembly unit Outdoor unit Fill valve (field supply) Manometer Balance tank (field supply) Pressure relief valve Air purge valve Expansion vessel Drain valve Plate heat exchanger Expansion vessel (field supply) Backup heater（Customized model） P_o: Outside circulation pump (field supply) Air purge valve Collector (field supply) Flow switch Bypass valve (field supply)
-
Page 26: Application 7
NOTE ● Make sure to correctly configure the room thermostat installation on the user interface. Refer to "10.7 Field settings/ROOM THERMOSTAT". ● It is the installers' responsibility to ensure that no unwanted situations can occur (e.g. extremely high temperature water going towards floor heating loops, etc.) ● The supplier does not offer any type of mixing station. Dual set point control only provides the possibility to use two set points. -
Page 27: Application 8
Coding Assembly unit Coding Assembly unit Outdoor unit Fill valve (field supply) Manometer Balance tank (field supply) Pressure relief valve Air purge valve Expansion vessel Drain valve Plate heat exchanger Expansion vessel (field supply) Backup heater（Customized model） P_o: Outside circulation pump (field supply) Air purge valve Collector (field supply) Flow switch Bypass valve (field supply) P_i: Circulate pump in the unit SV2:2-way valve (field supply) Y-shape filter Mixing station (field supply) -
Page 28: Overview Of The Unit
Coding Assembly unit Coding Assembly unit Outdoor unit Expansion vessel (field supply) Manometer P_o: Outside circulation pump (field supply) Pressure relief valve Collector (field supply) Expansion vessel Domestic hot water tank (field supply) Plate heat exchanger 12.1 Air purge valve Backup heater（Customized model） 12.2 Heat exchanger coil Air purge valve 12.3 Booster heater Flow switch T5: Temperature sensor P_i: Circulate pump in the unit Hot water tap (field supply) -
Page 29: Main Components
WARNING ● Switch off all power — i.e. unit power supply and backup heater and domestic hot water tank power supply (if applicable) — before removing doors 1 and 2. ● Parts inside the unit may be hot. Push the grill to the left until it stops, then pull its right edge, so you can removed the grill. You can also reverse the procedure. Be careful to avoid hand injury. - Page 30 Coding Assembly unit Explanation Remaining air in the water circuit will be automatically removes air Air purge valve from the water circuit. Provides additional heating capacity when the heating capacity of Backup heater(optional) the heat pump is insufficient due to very low outdoor temperature. Also protects the external water piping from freezing. Balances water system pressure.
-
Page 31: Electronic Control Box
NOTE ● The standard unit is without backup heater. Backup heater kit is an optional part for 5,7,9kw models. Backup heater can be integrated in the unit for customized models(12,14,16kW). ● If the backup heater is installed, the port (CN6) for T1 in the main control board of hydraulic compartment should connect to the corresponding port in the backup heater kit. - Page 32 9.3.1 Main control board of hydraulic module 1-phase 5/7/9kW 1-phase 12/14/16kW 3-phase 12/14/16kW Coding Assembly unit Input port for solar kits(CN5) Port for IC programming(CN26) Output port for transformer(CN4) Power supply port for the wired controller(CN36) Port for remote switch(CN12) Port for flow switch(CN8) Control port for room thermostat (heating mode)(HT)/Control port for room thermostat (cooling mode)(CL)/ Power port for room thermostat(COM)(CN31)
- Page 33 9.3.2 1-phase for 5/7/9kW units 1) PCB A, Inverter module Coding Assembly unit Coding Assembly unit Compressor connection port U Reserved(CN302) Compressor connection port V Port for communication with PCB B(CN32) Compressor connection port W Input port L for rectifier bridge(CN501) Output port for +12V/5V(CN20) Input port N for rectifier bridge(CN502) Port for fan(CN19) 2) PCB B, Main control board...
- Page 34 Coding Assembly unit Coding Assembly unit Output port N to PCB A(CN27) Port for pressure sensor(CN4) Output port N to hydro-box control board(CN3) Reserved(CN2) Port for communication with hydro-box control board Port for ground wire(CN31) (CN29) Port for IC programming(CN32) Reserved(CN30) Port for ground wire(CN37) Port for communication with PCB A(CN17)
- Page 35 2) PCB B, Main control board Coding Assembly unit Coding Assembly unit Port for low pressure switch and quick Power supply port for hydro-box control check(CN12) board(CN16) Port for suction temp. sensor(CN24) Port for SV6 value(CN7) Port for pressure sensor(CN28) Port for 4-way value(CN13) Port for discharge temp.
- Page 36 Coding Assembly unit Output port for +15V(CN4) Port for communication with PCB B (CN1) Compressor connection port W Compressor connection port V Compressor connection port U Input port P for IPM module(P) Input port N for IPM module(N) Input port for high pressure switch (CN9) Power for switching power supply(CN2) 3-phase PCB A 2) PCB B, Main control board...
- Page 37 3) PCB C, filter board CN32 CN38 CN31 CN37 CN30 CN36 CN39 PCB C 3-phase 12/14/16kW Coding Assembly unit Coding Assembly unit Power supply L3(L3) Power supply port for main control board(CN19) Power supply L2(L2) Power filtering L1(L1') Power supply L1(L1) Power filtering L2(L2') Power supply N(N) Power filtering L3(L3') Ground wire(GND_1) Ground wire(GND_2) Power supply port for load(CN18)
-
Page 38: Water Piping
9.4 Water piping All piping lengths and distances have been taken into consideration. Requirements Valve The maximum allowed thermistor cable length is 20m. This is the maximum allowable distance between the domestic hot water tank and the unit (only for installations with a domestic hot water tank).The thermistor cable supplied with Thermistor cable length minus 2m the domestic hot water tank is 10m in length. In order to optimize efficiency... - Page 39 Before continuing installation of the unit, check the following: ● The maximum water pressure ≤ 3 bar. ● The maximum water temperature ≤ 70°C according to safety device setting. ● Always use materials that are compatible with the water used in the system and with the materials used in the unit. ● Ensure that components installed in the field piping can withstand the water pressure and temperature. ● Drain taps must be provided at all low points of the system to permit complete drainage of the circuit during maintenance. ●...
- Page 40 ● Determine the calculated pre-pressure (Pg) for the ● calculate the pre-pressure of the expansion vessel: Pg(bar)=(H(m)/10+0.3) bar the expansion vessel corresponding maximum water volume using the graph equipped in the unit should adjust the pre- pressure below. also. ● Check that the total water volume in the entire water ●...
- Page 41 9.4.4 Water circuit anti-freeze protection Ice formation can cause damage to the hydraulic system. As the outdoor unit may be exposed to sub-zero temperatures, care must be taken to prevent freezing of the system. All internal hydronic parts are insulated to reduce heat loss. Insulation must also be added to the field piping. ● The software contains special functions using the heat pump to protect the entire system against freezing. When the temperature of the water flow in the system drops to a certain value, the unit will heat the water, either using the heat pump, the electric heating tap, or the backup heater.
-
Page 42: Adding Water
Keep dry NOTE NOTE Counter clock Wise rotation, remove the flow ● Be aware of the hygroscopic property switch. of glycol. It absorbs moisture from the environment. Drying the flow switch completely. ● Leaving the cap off the glycol container causes the concentration of water to increase. CAUTION The glycol concentration is then lower and the water could freeze. -
Page 43: Water Piping Insulation
NOTE During filling, it might not be possible to remove all air in the system. Remaining air will be removed through the automatic air purge valves during the first operating hours of the system. Topping up the water afterwards might be required. ● The water pressure indicated on the manometer will vary depending on the water temperature (higher pressure at higher water temperature). However, at all times water pressure should remain above 0.3 bar to avoid air entering the circuit. ●... - Page 44 5/7/9kW 12/14/16kW...
- Page 45 Coding Assembly unit Coding Assembly unit Outdoor unit SV2: 2-way valve (field supply) SV1: 3-way valve for domestic hot water tank Solar energy kit (field supply) (field supply) User interface Domestic hot water tank Room thermostat (field supply) Booster heater Boiler (field supply) Contactor P_s: Solar pump (field supply) Power supply P_c: Mixing pump (field supply) Backup heater P_o: Outside circulation pump (field supply) Zone2 SV3(3-way valve) P_d: DHW pump (field supply) Item Description...
- Page 46 Coding Assembly unit High voltage wire hole Low voltage wire hole Drainage pipe hole Water outlet Water inlet 1-phase 5/7/9 kW Field wiring guidelines ● Most field wiring on the unit is to be made on the terminal block inside the switch box. To gain access to the terminal block, remove the switch box service panel (door 2). WARNING Switch off all power including the unit power supply and backup heater and domestic hot water tank power supply (if applicable) before removing the switch box service panel.
- Page 47 L2 L3 1-phase 3-phase Unit(kW) 5/7/9 12~16 12~16 Maximum overcurrent protector(MOP) Wiring size(mm OUTDOOR UNIT OUTDOOR UNIT POWER SUPPLY POWER SUPPLY 1-phase 3-phase ● Stated values are maximum values (see electrical data for exact values). NOTE The ground fault circuit interrupter must be a high-speed type breaker of 30 mA (<0.1 s). 9.7.5 Connection of the backup heater power supply(This section is intended only for models that contain backup heater.) Power circuit and cable requirements...
- Page 48 9.7.6 Connection for other components Unit 5~9kW CN13 CN10 CN12 CN11 CN13 CN14 CN10 CN15 CN19 CN16 1OFF AHS1 AHS2 CN18 IBH1 3OFF DFT1 DFT2 HBK1 HBK2 CN17 CN20 Unit 12~16kW CN13 CN10 CN12 1OFF A SH1 A SH1 IBH1 3OFF DTF1 DTF2...
- Page 49 Voltage 220-240VAC Maximum running current(A) Wiring size(mm 0.75 Control port signal type Type 2 SOLAR PUMP Control signal output Voltage 220-240VAC NOTE Maximum running current(A) Wiring of the 3-way valve is different for NC (normal close) and NO (normal open). Before Wiring size(mm 0.75 wiring, read the Installation &...
- Page 50 7) For room thermostat: Main control board of hydraulic module Room thermostat type 1(RT1) (High voltage) CN31 HEAT COOL POWER POWER POWER Method B Method A Method B Main control board of hydraulic module CN31 POWER POWER POWER IN POWER IN Method C Method C Room thermostat type2 (RT2) (Low voltage):...
- Page 51 • Method A RT can control heating and cooling individually, like the controller for 4-pipe FCU. When the hydraulic module is connected with the external temperature controller, user interface FOR SERVICEMAN set THERMOSTAT and ROOM MODE SETTING to YES: A.1 When unit detect voltage is 230VAC between C and N ,the unit operates in the cooling mode. A.2 When unit detect voltage is 230VAC between H and N, the unit operates in the heating mode.
- Page 52 9) For additional heat source control: AHS1 AHS2 IBH1 IBH2 CONTROL SIGNAL CONTROL SIGNAL OUTPUT OUTPUT ADDITIONAL HEAT SOURCE CONTROL SIGNAL OUTPUT 13) For defrosting signal output: For 5/7/9 kW unit, the terminal number is 25 and 26. Voltage 220-240VAC DFT1 DFT2 Maximum running current(A) Wiring size(mm...
-
Page 53: Start-Up And Configuration
As described above, during wiring, port A in the unit terminal XT6 corresponds to port A in the user interface. Port B corresponds to port B. Port X corresponds to port X. Port Y corresponds to port Y, and port E corresponds to port E. a) Procedure ●... -
Page 54: Climate Related Curves
10.1 Climate related curves The Climate related curves can be selected in the user interface. Once the curve is selected, the target outlet temperature. In each mode, user can select one curve from curves in the user interface(curve can't be selected if dual room thermostat function is enabled. - Page 55 Low temperature curves for heating mode T1s(°C) T4(℃) High temperature curves for heating mode T1s(°C) T4(℃) Low temperature curves for cooling mode T1s(°C) T4(℃)
-
Page 56: Dip Switch Settings Overview
High temperature curves for cooling mode T1s(°C) T4(℃) 10.2 DIP switch settings overview 10.2.1 Function setting DIP switch 13 is located on the hydraulic module main control board (see "9.3.1 main control board of hydraulic module") and allows configuration of additional heating source thermistor installation, the second inner backup heater installation, etc. WARNING Switch off the power supply before opening the switch box service panel and making any changes to the DIP switch settings. -
Page 57: Powering Up The Unit
DANGER Switch off the power supply before making any connections. After the installation of the unit, check the following before switching on the circuit breaker: ● Field wiring: Make sure that the field wiring between the local supply panel and unit and valves (when applicable), unit and room thermostat (when applicable), unit and domestic hot water tank, and unit and backup heater kit have been connected according to the instructions described in the chapter 9.6 Field wiring, according to the wiring diagrams and to local laws and regulations. -
Page 58: Field Settings
DANGER Operating the system with closed valves will damage the circulation pump! Available external static pressure VS flowrate (12~16kW) Ⅲ Ⅱ Ⅰ Flowrate(m DANGER If it's necessary to check the running status of the pump when unit power on. please do not touch the internal electronic control box components to avoid electric shock. - Page 59 Powering on the unit When power on the unit, "1%~99%" is displayed on the user interface during initialization. During this process the user inter- face cannot be operated. Procedure To change one or more field settings, proceed as follows. NOTE Temperature values displayed on the wired controller (user interface) are in °C. Keys Function MENU...
- Page 60 10.7.3 HEAT MODE SETTING 1 DHW MODE SETTING Go to MENU>FOR SERVICEMAN> 3.HEAT MODE SET- 1.6 dT5_ON °C TING. Press OK. The following pages will be displayed: 1.7 dT1S5 10°C 1.8 T4DHWMAX 43°C 1.9 T4DHWMIN -10°C 3 HEAT MODE SETTING 1.10 t_INTERVAL_DHW 5 MIN 3.1 HEAT MODE...
- Page 61 If you only set WATER FLOW TEMP. to YES, or only set ROOM TEMP. to YES, The following pages will be displayed. only WATER FLOW TEMP. YES only ROOM TEMP. YES If you set WATER FLOW TEMP. and ROOM TEMP. to YES, meanwhile set DOUBLE ZONE to NON or YES, the following pages will be displayed.
- Page 62 10.7.6 ROOM THERMOSTAT 10.7.8 HOLIDAY AWAY SETTING About ROOM THERMOSTAT The HOLIDAY AWAY SETTING is used to set the outlet water temperature to prevent freezing when away for holiday. The ROOM THERMOSTAT is used to set whether the Go to MENU> FOR SERVICEMAN> 8.HOLIDAY room thermostat is available.
- Page 63 10.7.10 RESTORE FACTORY SETTINGS If YES is selected, the following pages will be displayed: 11 TEST RUN The RESTORE FACTORY SETTING is used to restore all the parameters set in the user interface to the factory 11.1 POINT CHECK setting. 11.2 AIR PURGE 11.3 CIRCULATION PUMP RUNNING Go to MENU>...
- Page 64 When in air purge mode, the 3-way valve will open, the During HEAT MODE test running, the default target outlet 2-way valve will close. 60s later the pump in the unit water temperature is 35°C. The IBH (internal backup heater) (PUMPI) will operate for 10min during which the flow will turn on after the compressor runs for 10 min.
- Page 65 Go to MENU> FOR SERVICEMAN> 12.SPECIAL FUNC- During preheating for floor, all the buttons except OK TION. are invalid. If you want to turn off the preheating for floor, please press OK. Before floor heating, if a large amount of water remains on the floor, the floor may be warped or even rupture during The following page will be displayed: floor heating operation, in order to protect the floor, floor drying is necessary, during which the temperature of the 12.1 PREHEATING FOR FLOOR floor should be increased gradually. Do you want to turn off the preheating for floor function? 12 SPECIAL FUNCTION Active the settings and active the...
- Page 66 When the cursor is on OPERATE FLOOR DRYING,use ◄ MENU> FOR SERVICEMAN>13.AUTO RESTART ► to scroll to YES and press OK. The following page will be displayed: 13 AUTO RESTART 12.2 FLOOR DRYING UP 13.1 COOL/HEAT MODE DO YOU WANT TO TURN OFF THE 13.2 DHW MODE FLOOR DRYING UP FUNCTION? ADJUST CONFIRM The AUTO RESTART function reapplies the user During floor drying, all the buttons except OK are invalid.
- Page 67 10.7.16 Setting parameters The parameters related to this chapter are shown in the table below. Order Setting Code State Default Minumum Maximum Unit number interval DHW MODE Enable or disable the DHW mode:0=NON,1=YES DISINFECT Enable or disable the disinfect mode:0=NON,1=YES DHW PRIORITY Enable or disable the DHW priority mode:0=NON,1=YES DHW PUMP...
- Page 68 HEAT MODE Enable or disable the heating mode The refresh time of climate related curves for heating t_T4_FRESH_H hours mode The maximum ambient operating temperature for T4HMAX °C heating mode The minimum ambient operating temperature for T4HMIN °C heating mode dT1SH The temperature difference for starting the unit (T1) °C...
- Page 69 The target peak temperature of water flow during 12.7 T_DRYPEAK °C floor drying up Hour: the present time (not on the 12.8 START TIME The start time of floor drying up 0:00 23:30 1/30 h/min hour +1,on the hour +2) Minute:00 The present 12.9 START DATE The start date of floor drying up 1/1/2000 31/12/2099 2001-1-1 d/m/y date AUTO RESTART Enable or disable the auto restart cooling/heating 13.1 mode.0=NON, 1=YES COOL/HEAT MODE...
-
Page 70: Test Run And Final Checks
10.7.17 Description of terms ● When the complete installation and all necessary settings have been carried out, close all front panels The terms related to this unit are shown in the table below. of the unit and refit the unit cover. ● The service panel of the switch box may only be opened by a licensed electrician for Parameter illustration... -
Page 71: Trouble Shooting
Before starting the troubleshooting procedure, carry The following checks must be performed at least once a out a thorough visual inspection of the unit and look for year by qualified person. obvious defects such as loose connections or defective ● Water pressure wiring. Check the water pressure, if it is below 1 bar,fill water to the system. -
Page 72: General Symptoms
13.2 General symptoms Symptom 1: The unit is turned on but the unit is not heating or cooling as expected POSSIBLE CAUSES CORRECTIVE ACTION Check the controller set point.T4HMAX,T4HMIN in heat mode. The temperature setting is not correct. T4CMAX,T4CMIN in cool mode.T4DHWMAX,T4DHWMIN in DHW mode. •... - Page 73 Symptom 4: The water pressure relief valve opens POSSIBLE CAUSES CORRECTIVE ACTION The expansion vessel is broken. Replace the expansion vessel. Make sure that the filling water pressure in the installation is about The filling water pressure in the 0.15~0.20MPa (refer to "9.3 water piping/Checking the water volume and installation is higher than 0.3MPa. expansion vessel pre-pressure"). Symptom 5: The water pressure relief valve leaks POSSIBLE CAUSES CORRECTIVE ACTION...
-
Page 74: Operation Parameter
Symptom 8: DHW mode can't change to Heat mode immediately POSSIBLE CAUSES CORRECTIVE ACTION • Set "t_DHWHP_MAX" to minimum value, the suggested value is 60min. Heat exchanger for space heating not • If circulating pump out of unit is not controlled by unit, try to connect it to the unit. -
Page 75: Error Codes
13.4 Error codes When a safety device is activated, an error code will be displayed on the user interface. A list of all errors and corrective actions can be found in the table below. Reset the safety by turning the unit OFF and back ON. In case this procedure for resetting the safety is not successful, contact your local dealer. - Page 76 FAILURE CAUSE MALFUNCTION OR ERROR CODE PROTECTION AND CORRECTIVE ACTION Check that all shut off valves of the water circuit are completely open. 1. Check if the water filter needs cleaning. 2. Refer to "9.4 Charging water" 3. Make sure there is no air in the system(purge air). 4.
- Page 77 FAILURE CAUSE MALFUNCTION OR ERROR CODE PROTECTION AND CORRECTIVE ACTION 1. Whether there is power connected to the PCB and driven board. Check the PCB indicator light is on or off. If Light is off, reconnect the power supply wire. Communication error between inverter module PCB A and 2.
- Page 78 FAILURE CAUSE MALFUNCTION OR ERROR CODE PROTECTION AND CORRECTIVE ACTION The condenser refrigerant The outside ambient temperature is too high(higher than 30°C, the outlet temperature is too high in unit still operate heat mode. close the heat mode when the ambient heating mode for more than 10 temperature is higher than 30°C.
- Page 79 FAILURE CAUSE MALFUNCTION OR ERROR CODE PROTECTION AND CORRECTIVE ACTION 1. The same reason to P1. 2. System is lack of refrigerant volume. Charge the refrigerant in right volume. High discharge temperature protection. 3. TW_out temp sensor is loosen Reconnect it. 4.
- Page 80 FAILURE CAUSE MALFUNCTION OR ERROR CODE PROTECTION AND CORRECTIVE ACTION 1. Heat exchanger cover is not removed. Remove it. 2. Heat exchanger is dirty or something is block on the surface. High temperature protection Clean the heat exchanger or remove the obstruction. of refrigerant outlet temp of condenser.
-
Page 81: Technical Specifications
TECHNICAL SPECIFICATIONS 14.1 General 1-phase 3-phase 1-phase 12/14/16 kW 12/14/16 kW 5/7/9 kW Nominal capacity Refer to the Technical Data Dimensions HxWxD 1414×1404×405mm 1414×1404×405mm 945×1210×402mm Weight (without backup heater) Net weight 158kg 172kg 92kg Gross weight 178kg 193kg 111kg Weight (backup heater have be intergrated in the unit) Net weight 163kg 177kg... -
Page 82: Replacement Of Safety Valve (Only For 12~16Kw Units)
REPLACEMENT OF SAFETY VALVE (Only for 12~16kW units) Visual inspection is needed after that period, maintenance people should check the appearance of the valve body and the operating environment. If the valve body is not obvious corrosion, cracks, dirt, damage, then the valve can be used continually. Otherwise, please contact your supplier for spare part. - Page 83 7) Ventilated area Ensure that the area is in the open or it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
- Page 84 14) Leak detection methods The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (-Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.
- Page 85 18) Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 19) Recovery When removing refrigerant from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.
- Page 86 ANNEX A: Refrigerant cycle Outlet Inlet Cooling Heating Item Description Item Description Compressor Refrigerant inlet (liquid pipe) temp. sensor 4-Way Valve Refrigerant outlet (gas pipe) temp. sensor Gas-liquid separator Water outlet temp. sensor Air side heat exchanger Water Inlet temp. sensor Electronic expansion Valve Air purge valve Single-way electromagnetic valve...
- Page 87 ANNEX B: Electrically controlled wiring diagram 1-phase 5/7/9kW TRANS...
- Page 88 Annex B: Electrically controlled wiring diagram 1-phase 12/14/16kW TRANS...
- Page 89 Annex B: Electrically controlled wiring diagram 3-phase 12/14/16kW...
