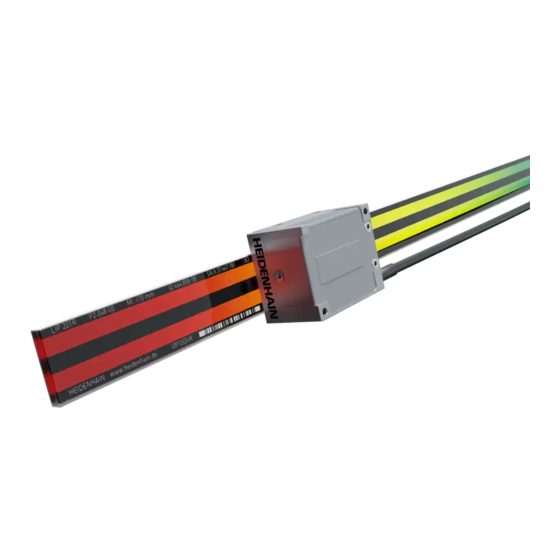

Summary of Contents for HEIDENHAIN LIP 2x1

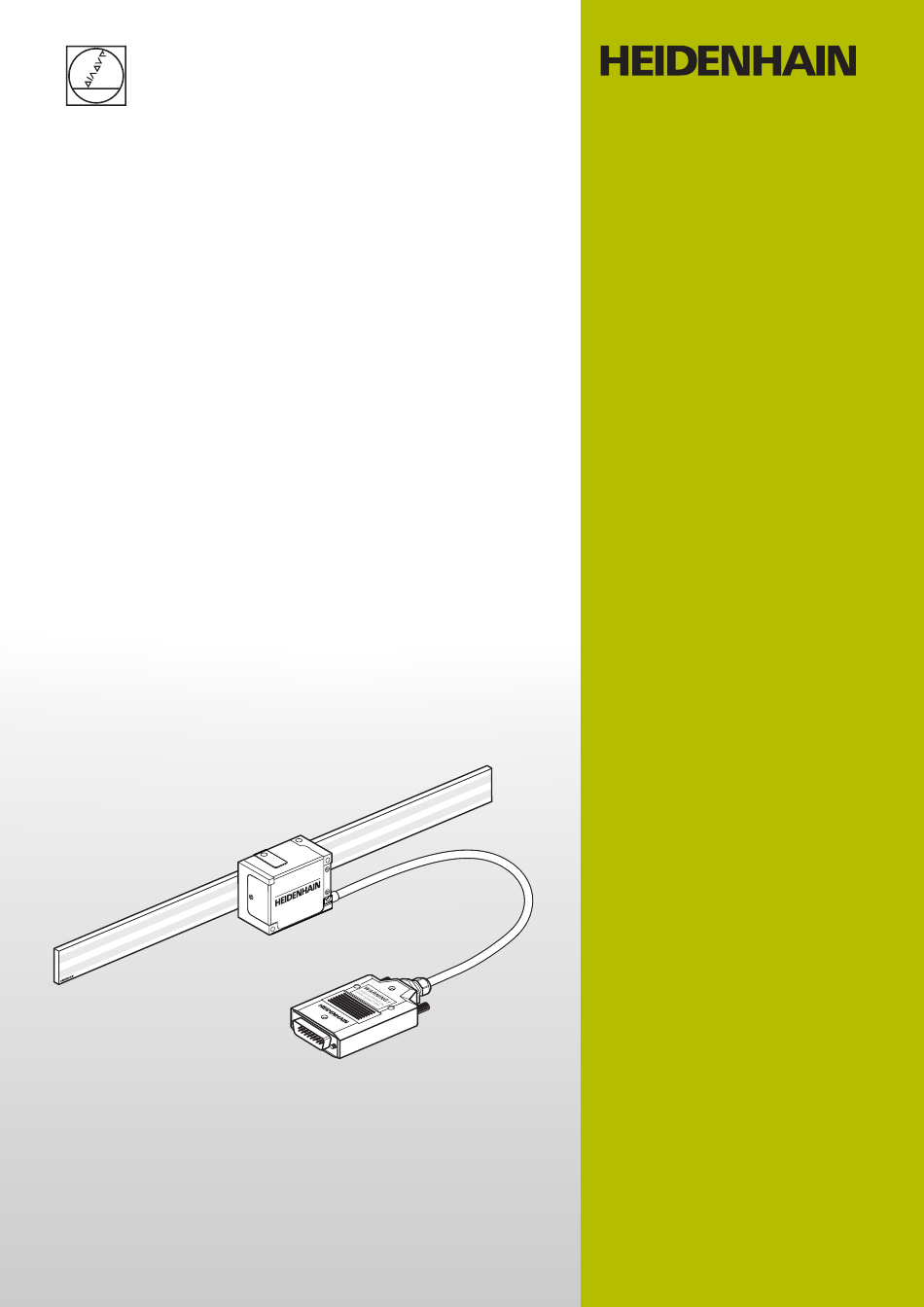

- Page 1 Mounting Instructions LIP 2x1 2 0 0 L I P a i n . e n h e i d w . h x x x x x x x x -x x x x x ID x x x x...
-
Page 2: Table Of Contents
Contents Contents Basic information........................Safety............................. Items supplied and accessories..................... Mounting..........................Final steps..........................Adjustment and diagnosis..................... Removal..........................HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 3 4.2.2 Variant: Mounting with adhesive film....................4.2.3 Variant: Mounting with fixing clamps....................Mounting the scanning head...................... 4.3.1 Mounting variants............................4.3.2 Variant: Mounting with the holder on the side..................4.3.3 Variant: Mounting with the holder at top..................... HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 4 Starting the LIP21/LIP29 mounting wizard................. Checking the mounting of the LIP21/LIP29................Starting the LIP28 mounting wizard................... Checking the mounting of the LIP28..................Removal..........................Safety precautions regarding removal..................Removing the scanning head..................... Removing the scale........................HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 5: Basic Information
This chapter contains information about the product and the Mounting Instructions. Validity of the documentation These Mounting Instructions apply to encoders of the LIP 2x1 series. Prior to using the documentation, check whether the documentation and encoder model match The encoder designation is printed on the ID label. -
Page 6: Notes On Reading The Documentation
Have you found any errors or would you like to suggest changes? We are continuously striving to improve our documentation for you. Please help us by sending your suggestions to the following e-mail address: userdoc@heidenhain.de HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 7: Symbols And Fonts Used For Marking Text
Solid contaminants: class 3 Max. pressure dew point: class 4 Bold Identifies elements in figures and illustrations, such as positions, dimensions and worksteps Example: S marks the beginning of the measuring length (ML). HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 8: Notes In This Documentation
The information symbol indicates a tip. A tip provides important additional or supplementary information. The book symbol indicates a cross reference. A cross reference leads to external documentation, for example: further documentation from HEIDENHAIN or another supplier. Units and tolerances Unless otherwise specified, the dimensions stated in these Mounting Instructions are given in millimeters. -
Page 9: Safety
Do not use any damaged or worn components In case of replacement, repair the thread In case of replacement, use new screws, spring pins and nuts Secure screws and nuts with suitable material-bonding anti-rotation lock HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 10: Laser Radiation
A class 3B laser is installed in the encoder. See the sticker on the encoder for more detailed information about the emitted laser radiation. 2014 2014 1 Underlying technical standard 2 Maximum emitted power or energy 3 Wavelength 4 Laser class HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 11: Items Supplied And Accessories
SN xxxxxxxx x 3.1.2 Items supplied with the scanning head Component Figure Scanning head 2 0 0 L IP a in .d e n h e id w .h Spacer shim HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 12: Mounting Accessories
For more information on the listed products, please refer to the applicable Mounting Instructions and the Exposed Linear Encoders brochure. www.heidenhain.com/documentation Enter the document ID 208960 3.2.1 Accessories for mounting the linear scale Accessories for mounting with adhesive film Designation Figure Roller 276885-01 Fixed-point elements 1176475-xx HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 13: Accessories For Fixed-Point Bonding
Spacer shim 1176441-xx Fixing clamps 1176458-xx Fixed-point elements 1176475-xx 3.2.2 Accessories for fixed-point bonding Designation Figure Dispensing nozzles and mixing tubes 1176444-01 Adhesive 3M DP 460 EG 1180444-01 Double-cartridge gun 1180450-01 HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 14: Mounting
SN xx xxx xxx xx www.heidenhain.de OPTODUR www.heidenhain.de [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] www.heidenhain.de OPTODUR HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 15: Mounting The Linear Scale
You can mount the scale by means of 0.05 0.05 stop pins or an aligning rail. Ra3.2 0.1 F Ra3.2 0.1 F The mounting tolerances refer to the machine guideway (F). 0.05 0.05 0.2 F 0.2 F HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 16 For this task, the following materials and tools are needed: Included in delivery To be provided separately Roller Stop pins Fixed-point elements Adhesives 4 screws (DIN 7984 – M3×6) Torque wrench (hexagon socket for 2.5 mm) HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 17 Do not perform further work on the scale until the maximum adhesive force has been reached The maximum adhesive force of the mounting film is reached at room temperature after approx. 70 hours. HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 18 To ensure high fixed-point rigidity, pay attention to the specifications for curing temperature and curing time. Operating temperature Curing temperature Curing time –10 °C to +30 °C 22 °C 24 hours –10 °C to +70 °C 80 °C 3 hours HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 19: Variant: Mounting With Fixing Clamps
Recommended diameter of the stop pins: 3 mm. ML For a measuring length of ML ≤ 2040, (ML+10) use three stop pins to stabilize the scale 0.72 x (ML+10) sufficiently. HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 20 Torque wrench (hexagon socket for 2.5 mm) Mounting the scale Mounting the fixing clamps Insert the stop pins Remove the protective film of the scale Carefully place the scale onto the stop pins HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 21 Align the fixed-point element in parallel Lightly press the upper fixed-point element against the scale and fasten it with screws using the prescribed torque DIN 7984 – M3x6 HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 22 Tighten the screws in the sequence shown *) Do not remove the spacer shims from the first tightened fixing clamps until all fixing clamps have been tightened. HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 23 To ensure high fixed-point rigidity, pay attention to the specifications for curing temperature and curing time. Operating temperature Curing temperature Curing time –10 °C to +30 °C 22 °C 24 hours –10 °C to +70 °C 80 °C 3 hours HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 24: Mounting The Scanning Head
Use only isopropyl alcohol to clean the encoder Clean the encoder with a lint-free cloth Pay attention to the mounting dimensions. Deviations from the mounting dimensions lead to imprecise 22.9 measurement results during operation. HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... -
Page 25: Variant: Mounting With The Holder At Top
NOTICE Property damage due to unsuitable cleaning agents Use only isopropyl alcohol to clean the encoder Clean the encoder with a lint-free cloth HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 26 Insert the screws and tighten them using the specified torque Remove the spacer shims individually ISO 4762 M3x(a+3.5) – A2 Md = 1.15 Nm 2 x 1mm 2 x 1mm HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 27: Final Steps
Property damage resulting from incorrect routing of the connecting cable Connecting cables may become damaged as a result of incorrect routing. Observe the maximum permissible bend radii Do not cross connecting cables in drag chains Route connection cables professionally HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 28 For more information on the pin layouts, refer to the Cables and Connectors brochure. www.heidenhain.com/documentation Enter the document ID 1206103 For more information on sources of interference, refer to the Interfaces of HEIDENHAIN Encoders brochure. www.heidenhain.com/documentation Enter the document ID 1078628...
-
Page 29: Adjustment And Diagnosis
PWM 21 ATS software, version 3.6, with integrated local encoder database for automatic encoder identification. The ATS software is available for download free of charge from the www.heidenhain.com/service/downloads/ software/ area on the HEIDENHAIN website. For more information, see the Exposed Linear Encoders brochure. - Page 30 The connection to the encoder is established. The Function menu is displayed. Encoder selection dialog If you cannot connect the encoder using its ID, proceed as described in the "Connecting the encoder manually" chapter. HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 31: Connecting The Encoder Manually
The Adjusting and Testing Software displays the Encoder selection dialog. Encoder selection dialog Follow the safety instructions Click Next The Adjusting and Testing Software displays the Encoder selection dialog. Encoder selection dialog HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 32 "Click Connect". Click Mounting code The Entry of ATS code note appears. Encoder selection dialog Click OK The Encoder selection dialog with the mounting code appears The Entry of ATS code note HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 33 Click Next The Encoder selection dialog with the encoder data appears Encoder selection dialog with the mounting code Click Connect The Function menu appears. The Encoder selection dialog with the encoder data HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 34: Starting The Lip21/Lip29 Mounting Wizard
Function menu Click Next The Step 1: Mounting the encoder dialog appears. The Laser class 3B warning Optionally, click Settings The Settings dialog appears. The Step 1: Mounting the encoder dialog HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 35 Click Next The Restore factory settings message appears. The Step 1: Mounting the encoder dialog Click OK The dialog Step 2: Adjust the scanning gap appears. The Restore factory settings message HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 36 The adjustment was performed successfully. The adjustment values were saved permanently in the encoder Click Next The Step 4: Verify mounting: Measurement in progress... dialog appears. The Adjustment was performed successfully message HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 37: Checking The Mounting Of The Lip21/Lip29
The Step 4: Verify mounting: Measurement in progress... dialog Checking the mounting of the LIP21/LIP29 Double-click Mounting check The Mounting inspection dialog with the Laser class 3B warning appears. Function menu HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 38 The Verify mounting: Measurement in progress... dialog appears. The Mounting inspection dialog with the Laser class 3B caution Click End Mounting inspection is completed. The Mounting inspection: Measurement in progress... dialog HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 39: Starting The Lip28 Mounting Wizard
The Step 1: Mounting the encoder dialog appears. The Laser class 3B warning Click Settings to change the Settings that are currently set The Settings dialog appears. The Step 1: Mounting the encoder dialog HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 40 The Step 1: Mounting the encoder dialog Click OK The Step 2: Mechanical mounting: Measurement in progress... dialog appears. The Encoder will be reset to its factory settings message HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
- Page 41 The Step 3: Adjusting the incremental signals and the reference pulse ... dialog The adjustment was performed successfully. The adjustment values were saved permanently in the encoder. Click Next The Step 4: Verify mounting: dialog appears. The Adjustment was performed successfully message HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 42: Checking The Mounting Of The Lip28
Click Exit The mounting wizard closes. The Step 4: Verify mounting dialog Checking the mounting of the LIP28 Double-click Mounting check The Mounting inspection dialog with a message appears. Function menu HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 43 The Mounting inspection dialog with the Traversing speed... message appears. The Mounting inspection dialog with a message Click Exit Mounting inspection closes. The Mounting inspection dialog with the Traversing speed... message HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023...
-
Page 44: Removal
Remove the scanning head in the reversed sequence of mounting. Further information: "Mounting the scanning head", Page 24 Removing the scale Further information can be found in the Disassembly Instructions. www.heidenhain.com/documentation Enter the document ID 1185755 HEIDENHAIN | Mounting Instructions | LIP 2x1 | 05/2023... - Page 45 DR. JOHANNES HEIDENHAIN GmbH Dr.-Johannes-Heidenhain-Straße 5 83301 Traunreut, Germany +49 8669 31-0 +49 8669 32-5061 info@heidenhain.de Technical support +49 8669 32-1000 Measuring systems +49 8669 31-3104 service.ms-support@heidenhain.de NC support +49 8669 31-3101 service.nc-support@heidenhain.de NC programming ...
