Clarion NX700 Service Manual

Clarion NX700 Service Manual

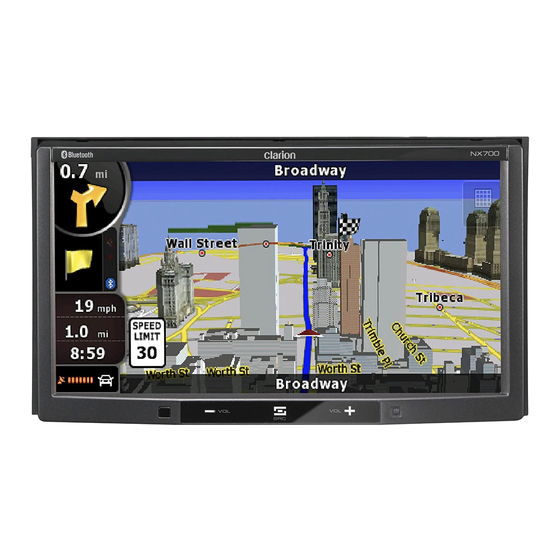

2-din memory navigation & dvd multimedia station with 7-inch touch panel control
Hide thumbs Also See for NX700:

Advertisement

Quick Links

( NX700)
This product is a lead free model.
Lead free solder is used in PWB stamped LF mark.
Please keep the following conditions when you repair.
1. Use lead free solder.
* Koki's lead free solder S3X-55M 0.6mm
(CLARION Parts No.642-0231-01)
* Koki's lead free solder S3X-55M 1.0mm
(CLARION Parts No.642-0231-02)
2. Use a nitrogen solder system.
3. Do not use "General solder" and "Lead free solder"
together.
NOTES
*
The internal parts of NAVI PWB ASSY cannot be repaired.
*
When EEP-ROM IC(IC507:Main PWB) or TUNER
IC(IC101:Main PWB) is exchanged, it is necessary to
record the PRN file of A-Tomic tuner. Please refer to "AD-
JUSTMENTS".
*
When LCD controller IC(IC103:Panel PWB) or Flash ROM
IC(IC104:Panel PWB) is exchanged, it is necessary to
setup the display. Please refer to "ADJUSTMENTS".
*
It is necessary to record the program to microcomputer
(IC503:Main PWB) of a spare parts.
*
When you exchange the parts in DVD mechanism(929-
2170-80), it is necessary to do inspection and adjustment
by special equipment.
Do not exchange the parts in DVD mechanism if there is
no special device.
*
Specifications and design are subject to change without
notice for further improvement.
About the Registered Marks, etc.
*
This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual prop-
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan
Quality & Service Promotion Dept.: 7-2, Shintoshin, Chuo-ku, Saitama-shi 330-0081 Japan
Tel: +81-48-601-3705 FAX: +81-48-601-3804
- 1 -
Service Manual
2-DIN Memory Navigation & DVD
Multimedia Station With 7-inch
Touch Panel Control
NX700
Model
(QY-5014B-A)
(For North America : Region-1)
NX700E
Model
(QY-5015E-A)
(For Europe : Region-2)
erty rights. Use of this copyright protection technology must
be authorized by Macrovision, and is intended for home
and other limited viewing uses only unless otherwise au-
thorized by Macrovision. Reverse engineering or disas-
sembly is prohibited.
*
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.
TM
*
Windows Media , and the Windows logo are trademarks,
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
*
This product includes technology owned by Microsoft Cor-
poration and cannot be used or distributed without a li-
cense from MSLGP.
*
"DivX", "DivX Certified", and associated logos are trade-
marks of DivX, Inc., and are used under license.
*
"Made for iPod" means that an electronic accessory has
been designed to connect specifically to iPod and has been
certified by the developer to meet Apple performance stan-
dards.
"Works with iPhone" means that an electronic accessory
has been designed to connect specifically to iPhone and
has been certified by the developer to meet Apple perfor-
mance standards.
Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. iPod
is a trademark of Apple Inc., registered in the U.S. and
other countries.iPhone is a trademark of Apple Inc.
*
BBE MP (Minimized Polynomial Non-Linear Saturation)
Process improves digitally compressed sound, such as
MP3, by restoring and enhancing the harmonics lost
through compression. BBE MP works by regenerating har-
monics from the source material, effectively recovering
warmth, details and nuance.
*
Manufactured under license from BBE Sound, Inc.
*
Licensed by BBE Sound, Inc. under one or more of the
following US patents: 5510752, 5736897. BBE and BBE
symbol are registered trademarks of BBE Sound, Inc.
Published by Service Dept.
298-6753-00
Jan.2010
Printed in Japan
R
NX700/NX700E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarion NX700

  • Page 1 Clarion Co., Ltd. Published by Service Dept. 7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan 298-6753-00 Jan.2010 Quality & Service Promotion Dept.: 7-2, Shintoshin, Chuo-ku, Saitama-shi 330-0081 Japan Tel: +81-48-601-3705 FAX: +81-48-601-3804 Printed in Japan Service Manual 2-DIN Memory Navigation & DVD...
  • Page 2: Specifications

    SPECIFICATIONS USB/AUX/2-ZONE section Distortion: Less than 0.07%(1kHz,20kHz LPF) Tuner section : NX700(QY-5014B-A) S/N: More than 70dB Frequency range: AM 530kHz to 1710kHz (1kHz,20kHz LPF JIS-A) FM 87.9MHz to 107.9MHz Stereo separation: More than 55dB(1kHz,20kHz LPF) Quieting sensitivity: AM Less than 37dBuV(S/N=20dB)
  • Page 3 CAUTION If extended damage is caused due to negligence during repair, NX700(QY-5014B-A) : for North America the legal responsibility shall be with the repairing company. Change or modifications to this product not approved by the 3.
  • Page 4 714-5008-4B 8-5. Hexagonal screw(M5x8) 716-0496-51 15A FUSE Main unit GPS antenna RCA pin cord Microphone RCA pin cord Remote control unit Finisher Bag for accessories (Battery) GPS antenna Microphone Power supply cord 15A / 3A FUSE NX700/NX700E - 4 -...
  • Page 5: Wire Connections

    GPS antenna jack iPod with video/iPhone Steering wheel remote control terminal Connector cable (CCA-723/CCA-748) < NX700 > CeNET terminal Power supply cord (NX700 : 854-6488-50) Connect to the AUX audio RCA pin cord (NX700E : 854-6495-50) input terminal and the iPod video (855-5576-50) input terminal.
  • Page 6: Power Supply Cord

    < NX700 (QY-5014B-A) > Power supply cord (854-6488-50) Yellow +12V main power(BACK UP) Black Ground(GND) Yellow CeNET bus backup Purple Rear right (+) Purple/Black Rear right (-) +12V accessory(ACC) Gray Front right (+) Gray/Black Front right (-) White Front left (+)
  • Page 7 USB D (+) N.C. FRONT R-CH (+) BACK UP FRONT R-CH (-) GRY/BLK (BATTERY) SHIELD GND AUTO ANTENNA FRONT L-CH (+) ILLUMINATION FRONT L-CH (-) ORG/WHT WHT/BLK REAR L-CH (+) (ACCESSORY REAR L-CH (-) (GROUND) GRN/BLK NX700/NX700E - 7 -...
  • Page 8: Troubleshooting

    AUDIO OUTPUT TROUBLE (LINE OUT) CHECK ITEM CHECK POINT 1 AMP-REM CONNECTION OF AMP-REM 2 GUARD OF REM AMP-REM,A-ANT LINE CURRENT CONSUMPTION 3 RCA CONNECTION OF RCA 4 AUDIO-GND GND OF EXTERNAL AMP 5 EXTERNAL AMP NX700/NX700E - 8 -...
  • Page 9 5V SUPPLY TO MOSES(130PIN OF IC103) 5 AROUND LCD CONTROLLER(IC103) MOSES(126, 127PIN OF IC103) 6 TCON OUTPUT OF RESISTOR OF TCON LINE DISPLAY PORT OF MOSES(IC103) 7 AROUND CIRCUIT LINE OF MOSES(IC103) PORT OF F-ROM(IC104) AND MICOM(IC503) NX700/NX700E - 9 -...
  • Page 10 TO 7PIN - 10PIN OF MOSES(IC103) AND GND COLOR OF AUX DISPLAY SETTING OF AUX INPUT 5 CIRCUIT LINE OF INVERTER CIRCUIT LINE OF AUX(MAIN SIDE) ONLY USER ADJ: SOFTWARE 4 DVD MECH, AROUND CIRCUIT, MOSES(IC103) NX700/NX700E - 10 -...
  • Page 11 (ONE PLACE) TO THE LCD BRACKET. 2 LED NOISE FOR DC DC CONVERTER DIAGONAL DETAILED LINE TO MAIN SIDE (CAPACITOR AT OUTPUT OF DD_CON 5V, MAINLY) MOSES(IC103) INTERNAL RESISTOR ONLY STEP ON TEN STEP SCREEN THAT IS FLICKERS. NX700/NX700E - 11 -...
  • Page 12: Error Display

    This player can play CD-R/RW discs previously recorded in Audio CD format or format with MP3/WMA/AAC/DivX files. This player can play DVD-R/RW and DVD+R/RW discs previously recorded in DVD video format or format with MP3/WMA/AAC/DivX files. NX700/NX700E - 12 -...
  • Page 13 When writing EEP-ROM in the unit is the initial setting, " CS ERROR " is displayed, please continue it. Confirm the unit or the setting when " CS ERROR " is displayed excluding initialization. NX700/NX700E - 13 -...
  • Page 14: Display Section

    Confirm the black-black level of TP170(R),TP169(G) * Input signal : NTSC (black-black level) and TP168(B) will become 3.8V +/-0.2V. COMP : 10-steps wave * Same as the condition of item 1 White Black * Tool : Oscilloscope 3.8V +/-0.2V Black White NX700/NX700E - 14 -...
  • Page 15 Adjust the display flicker to the minimum by using a 11. VcomDC * Input signal : OSD test flicker meter. pattern(Described in the left) Color matrix: * Same as the condition of item 1 BK32_04Lh(3208h) Initial setting:50 Adjustment range:0~FF NX700/NX700E - 15 -...
  • Page 16 4. Touch the center of pink frame upper the right with a thin rod. The color changes into light blue. 5. Push [VOL-] button. The data is recorded in E2PROM. 6. Turn off ACC. The test mode ends. NX700/NX700E - 16 -...
  • Page 17 21: CATS_DET : IN : CATS detection signal input. L = ON pin 76: MOS_RST_DET : IN : Moses reset detection input. pin 22: Tuner DA :I/O: Tuner serial data. NX700/NX700E - 17 -...
  • Page 18 : - : Not in use. pin 33: P ON 2 : O : Power ON signal output. pin130: FAN_TEMP : IN : Input of the internal ADC to detect the pin 34: NU : - : Not in use. temperature. NX700/NX700E - 18 -...
  • Page 19 :I/O: I2C serial data input/output. pin 91: I2C CK : IN : I2C serial clock input. pin 92: AUDIO CK : O : Audio data bit clock output. pin 93: AUDIO DO : O : Audio data output. NX700/NX700E - 19 -...
  • Page 20 2. Fit the gate side of the badge 378-0559-03 1 * No floating, to the hole of Escutcheon. (NX700) bending and warping. 378-0559-04 (NX700E) 3. Attach the Reset button on Escutcheon. 382-9177-00 4. Attach the IR filter on Escutcheon.
  • Page 21 335-7074-00 3. Turn the right of rear cover to up, apply grease on the shaft. 4. Insert the spring and the roller 750-6746-10 in shaft(right side) of rear cover. 335-7074-00 NX700/NX700E - 21 -...
  • Page 22 (Fig.1) basic line 10. Attach front plate, 309-1911-00 1 * Fit at 2 dowels. and fix it with machine screw(K). 714-2604-8B 3 * Follow screw sequence. (6 to 8) 11. Unlock Flex-socket of DVD mechanism. NX700/NX700E - 22 -...
  • Page 23 714-2604-8B 2 * Fit at 2 dowels on front plate side, ANT-lead on upper chassis. < Only NX700E(QY-5015E-A) > * Attach the side chassis R, confirm ANT-lead doesn't crowd. NX700/NX700E - 23 -...
  • Page 24 4 * Follow screw sequence. (1 to 4) < Only NX700E(QY-5015E-A) > 4. Insert ANT-lead of Main PWB in the socket of NAVI-PWB-ASSY. 5. After inserting it, rotate the terminal of ANT-lead lightly as follows. ANT-lead Main unit NX700/NX700E - 24 -...
  • Page 25 Main PWB, Socket (J382) and lock by the hands. (Fig.1) 7. Process the part of the rest of FFC(8P) as follows. 8P-FFC 8. Insert BT-ANT lead in ANT receptacle of NAVI-PWB-ASSY. (Fig.1) NX700/NX700E - 25 -...
  • Page 26 6. Turn it so that the left side of Main unit may become upper side. 7. Align the slide rail with the screw hole of PANEL, attach the bush(F) 335-7903-00 and fix with special screw(G). 716-3577-00 NX700/NX700E - 26 -...
  • Page 27: Exploded View Parts List

    SPECIAL SCREW(M2x3 LOCK) 331-4805-00 SHIELD CASE 778-2004-01 PAD SCREW(M1.7x5) 370-6443-00 ESCUTCHEON 347-8743-00 FILM 335-8654-00 IR-FILTER 347-8740-00 SPACER(U/D) 378-0559-03 BADGE : NX700 347-8741-00 SPACER(L/R) 378-0559-04 BADGE : NX700E 780-2604-50 IT SCREW(M2.6x4) 382-9175-00 SHEET KEY 345-6395-00 HEAT RUBBER 382-9176-00 BUTTON(VOL/SRC) 039-3502-00 PWB(COVER)
  • Page 28: Main Section

    Slide PWB No.28 --- When you exchange the parts in DVD mechanism(929-2170-80), it is necessary to do inspection and adjustment by special equipment. Do not exchange the parts in DVD mechanism if there is no special device. NX700/NX700E - 28 -...
  • Page 29 FLAT WIRE(MAIN-NAVI) 076-0353-20 PLUG(D/D PWB 20P) 020-3053-00 DC-MOTOR(FAN) 076-0714-24 PLUG(RCA 24P) 932-0121-80 SLIDE MECH 331-4179-00 IC HOLDER(POWER) 276-0720-00 SETPLATE : NX700 276-0721-00 SETPLATE : NX700E 331-4792-00 CONNECT HOLD(L) 370-6444-02 ESCUTCHEON : NX700 331-4864-00 CONNECT HOLD(R) 370-6444-03 ESCUTCHEON : NX700E 331-4791-00...
  • Page 30: Electrical Parts List

    010-3105-62 1k ohm/100MHz C186 168-1042-78 16V 0.1uF K D105 001-0367-91 1SS226 L135 010-3105-62 1k ohm/100MHz C187 168-1032-55 0.01uF K D106 001-0367-91 1SS226 L136 010-3105-62 1k ohm/100MHz C188 043-0540-00 6.3V 10uF D107 001-4305-25 UDZSTE-17 9.1B L137 010-3105-62 1k ohm/100MHz NX700/NX700E - 30 -...
  • Page 31 061-3569-90 NX3225GA R131 119-3311-15 1/10W 330 ohm R208 119-0000-05 1/10W 0 ohm JW 039-3500-00 PWB(WITHOUT R132 119-1021-15 1/10W 1k ohm R213 119-0000-05 1/10W 0 ohm JW COMPONENTS) R133 119-4791-15 1/10W 4.7 ohm R215 119-4721-15 1/10W 4.7k ohm NX700/NX700E - 31 -...
  • Page 32 165-1063-35 16V 10uF C523 166-1011-50 100pF CH C213 168-1052-78 16V 1uF K C292 168-1042-78 16V 0.1uF K C527 168-1022-55 1000pF K (NX700) (NX700E) C528 042-1764-90 16V 100uF M C214 168-1052-78 16V 1uF K C293 168-1042-78 16V 0.1uF K C530 168-1042-78 16V 0.1uF K...
  • Page 33 075-0339-00 MINI JACK L708 010-3104-53 220 ohm/100MHz D356 001-0529-14 MA8030-L J601 074-4030-00 OUTLET SOCKET P203 076-0714-24 PLUG D361 001-0516-90 MA111 J602 074-1194-00 13P Ce-NET(NX700) P504 076-0478-57 7P D362 001-0516-90 MA111 L101 010-3406-50 1uH J P601 076-0349-02 2P D363 001-0529-44 MA8082-M L102 010-3406-53 1.8uH J...
  • Page 34 REF No. PART No. DESCRIPTION P702 076-0478-55 6P R116 119-0000-05 1/10W 0 ohm JW R293 119-1031-15 1/10W 10k ohm Q201 125-2041-93 RT1N241M (NX700) R294 119-1031-15 1/10W 10k ohm Q202 125-2041-93 RT1N241M R200 119-1021-15 1/10W 1k ohm R295 119-3311-15 1/10W 330 ohm Q203...
  • Page 35 R390 119-2231-15 1/10W 22k ohm R546 119-1031-15 1/10W 10k ohm R636 119-6811-15 1/10W 680 ohm R391 119-2231-15 1/10W 22k ohm (NX700) R637 116-1521-15 1/4W 1.5k ohm R394 119-4731-15 1/10W 47k ohm R547 119-1041-15 1/10W 100k ohm R638 119-3321-15 1/10W 3.3k ohm R395 119-4721-15 1/10W 4.7k ohm...
  • Page 36 DESCRIPTION C5603 168-1042-78 16V 0.1uF K P5603 076-0478-52 2P 039-3501-00 PWB(WITHOUT IC5604 051-5806-01 GP1S93 R5603 119-3311-15 1/10W 330 ohm COMPONENTS) IC5606 051-5806-01 GP1S93 R5621 116-5611-15 1/4W 560 ohm J5001 074-2225-58 8P R5625 116-5611-15 1/4W 560 ohm NX700/NX700E - 36 -...
  • Page 37 BLOCK DIAGRAM P203 J602 FUSE & CHOKE <ONLY NX700> J601 OUTLET 20pin CeNET connector Connector IC503 Temp PD70F3356 V850 I2C,SI,SCK,Reset,Reset-det,WP,BUF-det CVBS P702 RGB+UART Connector connector To NAVI PWB Assy P203 - 37 - NX700/NX700E...
  • Page 38: Circuit Diagram

    R155 R154 Q113 3.3K RT1P241M LCD-VGL-ON D100 C124 TM100 1SS226 0.22 R131 TERMINAL TERMINAL D116 VGL:-12V R153 HSU83 TM101 : To page 42 : To page 39 FLASH MEMORY 16M TM103 TERMINAL : To page 39 - 38 - NX700/NX700E...
  • Page 39 To J105 of Panel PWB 1/3 J901 S901 RESET F-GND SOURCE S902 S903 VOL UP VOL UP VOL DOWN S904 BLK-LED RESET SOURCE KEY-ILL ILL8V B/U14V REM5V IR901 RS-471 VOL DOWN F-GND R901 R902 : To page 38 - 39 - NX700/NX700E...
  • Page 40 TEST mmZ1608S102CT D-GND AF-OUT 10 11 12 13 14 15 16 8.5V C107 C105 0.22 R-OUT 1000p L-OUT C123 TP07 S-METER A-GND FM-ANT AM-ANT TM101 L108 R102 mmZ1608S102CT 470K R101 470K TM102 : To page 41 - 40 - NX700/NX700E...
  • Page 41 VIDEO INPUT-2 12 14 L200 L209 RDS DECORDER 82NH 220uH ANT201 SUB-WOOFER R-CH VIDEO INPUT-1 CCD CAMERA INPUT REM5V C248 L221 mmZ1608S102CT AMP-RL AMP-FL NX700 R267 R230 RDS-DATA S-GND L203 ANT200 0.082uH NX700 L204 AMP-RR L210 C294 R295 NX700 NX700E mmZ1608Y152BT...
  • Page 42 R379 SD-DET2 SD-DET2 : To page 38 TP354 R380 LED+ : To page 41 TP353 R381 R382 : To page 44 SD-DET1 SD-DET1 TP352 R383 : To page 45 TP351 NO USE FAN5V 1 FAN5V R345 - 42 - NX700/NX700E...
  • Page 43 TP718 VBUS USB cable R760 TP719 5.6K (033) TP720 R757 NORMAL WRITE IN 1/2W R743 F-GND TP711 R747 R745 R746 : To page 41 C756 R777 : To page 44 1000p R778 : To page 45 - 43 - NX700/NX700E...
  • Page 44 K:Exclude BRZ REMOTE CONT NTSC/ N_TEST SHIELD GND TP556 TP557 TP558 TP559 TP997 TP998 TP999 QY-5014Y-A : To page 46 : To page 41 : To page 42 : To page 43 QY-5015Y-A : To page 45 - 44 - NX700/NX700E...
  • Page 45 TP601 BATT FAN- TP602 FAN+ AUTO N.C. ILL+ REMO AMP-STB USB5V AMP-STB AMP-MUT TP609 AMP-MUTE FAN-ON_HI 3.3V LCD-ON NX700 NO USE REM5V LCD-ON FAN-ON_LO PHONE DET REV/PKB DET OFFSET NO USE FAN+B REM5V OFFSET-DET C609 Q601 L601 Q602 Q604 REM5V...
  • Page 46 L753 10 11 12 14.0V L758 C792 C793 1000p 1000p C791 C794 0.033 0.033 R808 10k R809 10k R791 R793 NO USE NO USE 0.039 0.039 5.1V L759 : To page 45 : To page 44 - 46 - NX700/NX700E...
  • Page 47: Printed Wiring Board

    (REM5V) TP710 TP770 TP704 TP708 Panel PWB-B(B1) Panel PWB-B(B1) TP713 TP703 TP706 (HIGH) (LOW) TP809 Panel PWB-A(B1) Panel PWB-A(B1) To LCD back light COMPONENT SIDE To J452 of Main PWB SOLDER SIDE : To page 49 - 47 - NX700/NX700E...
  • Page 48 Steering wheel CeNET terminal Power supply connector RCA connector USB terminal Radio ANT Jack Main PWB(B2) section 1/2 remote control NX700 NX700E terminal 2 13 * Dotted line parts are not used J602 in this model. 10 9 Power supply connector(J601)
  • Page 49 TP374 TP497 TP486 TP463 TP539 J382 TP465 TP467 R997 TP997 TP555 TP490 J501 J452 TP998 R998 TP488 TP999 R999 : To page 47 To J103 of Panel PWB Main PWB(B2) To Navi PWB Assy SOLDER SIDE - 49 - NX700/NX700E...
  • Page 50 Slide PWB(B4) C768 L754 C751 C752 C760 C769 C753 Q752 Q752 TP751 R753 (REM3.3V) R754 R802 C758 COMPONENT SIDE SOLDER SIDE D/D PWB(B3) To P602 of Main PWB : To page 48 : To page 48 - 50 - NX700/NX700E...
