Summary of Contents for Adam Pumps BENZ FLOW

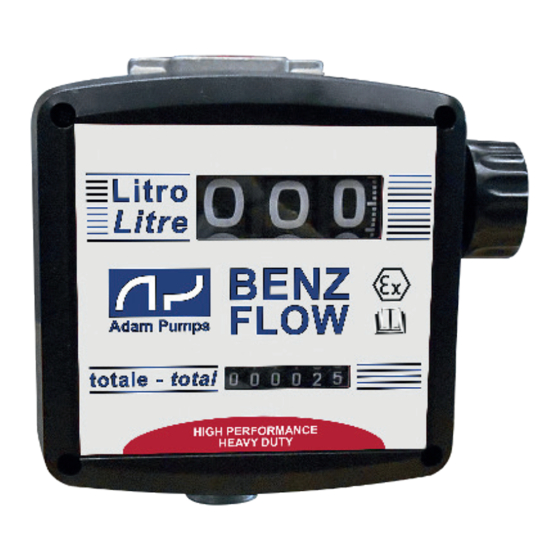

- Page 1 BENZ FLOW Installaltion, use and maintenance (translation of original instructions) Adam Pumps S.p.A. UM047 Soc. con Socio Unico via della resistenza 46/48 - 41011 Campogalliano (MO) ITALIA 12/2019 - rev. 2 Tel +39 059 528128 - Fax +39 059 528437...
-
Page 2: Table Of Contents
PROBLEMS, CAUSES AND SOLUTIONS DEMOLITION AND DISPOSAL EXPLODED VIEW CONFORMITY 1.1 DECLARATION OF CONFORMITY (2014/34/UE, ALL. X) The manufacturer: Adam Pumps S.p.A. Via Resistenza 46/48 41011 Campogalliano (MO) Italy Declares under its own and sole responsibility that the machine: Meter Type:... -
Page 3: Definition Of Classified Zones
WARNING To ensure a proper and safe use of the meter it is necessary to read and follow the instructions and warnings contained in this manual. An improper installation or use of the meter may cause damage to objects and people. DEFINITION OF CLASSIFIED ZONES FOREWORD Definition of zones as shown in directive 99/92/CE... -
Page 4: Handling And Transport
THIS MANUAL IS THE PROPERTY OF Adam Pumps S.p.A. ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN. This manual belongs to Adam Pumps S.p.A., which is the sole proprietor of all rights indicated by applicable laws, including, by way of example, laws on copyrights. All the rights deriving from such laws are reserved to Adam Pumps S.p.A.: the reproduction, including partial, of this manual, its publi-... -
Page 5: First Aid Rules
FIRST AID RULES Contact with In the event of problems developing following EYE/SKIN CONTACT, INHALATION or IN- the product GESTION of the treated product, please refer to the SAFETY DATA SHEET of the fluid handled. NOTE Please refer to the safety data sheet for the product SMOKING DO NOT SMOKE NEAR THE METER AND DO NOT USE THE INSTRUMENT NEAR FLAMES. -
Page 6: Operating Conditions
Connections (inlet/outlet) 1” BSP Weight (approximate) 1.8 Kg 1.9 Kg Package dimensions 185x185x170 mm Optional features Registration in US gallons female threaded inlet/outlet 1”NPT OPERATING CONDITIONS 7.1 ENVIRONMENTAL CONDITIONS AMBIENT min. +14 °F / max +140 °F TEMPERATURE min. -10 °C / max +60°C FLUID min. -
Page 7: Calibration
CALIBRATION FOREWORD BenzFlow are pre-calibrated in factory to be used with Diesel oil. As specific operating con- ditions (suchas real flow rate, nature andtemperature of the measured fluid) may affect the meter accuracy, a re-calibration should be carried out afterthe installation has been com- pleted. -
Page 8: Disassembling Reassembling
Necessary cleaning can be carried out by means of a soft brush or small tool (i.e. a screwdriver). During cleaning be careful not to damage the chamber or the disk. Carefully check the meter and replace the parts which have suffered any possible damage. Only use the original spare part kits shown in diagram 1 “Exploded view and spare part list”. -
Page 9: Problems, Causes And Solutions
PROBLEMS, CAUSES AND SOLUTIONS For any problems contact the authorised dealer nearest to you. Problem Possible cause Corrective action Leak from theshaft •Damaged gasket Remove (see section “Gear unit”) andreplace the O ring and the bush gasket Insufficient accuracy •Wrong calibration Repeat calibration following the instructions in section “Measuring chamber”... -
Page 10: Exploded View
VISTE ESPLOSE EXPLODED VIEWS...
