HITEC B1 Quick Start Manual

Recycle Timing
Controller
B1

On Time

LED remains illuminated during the programmed
ON TIME period.

Off Time

LED remains illuminated during the programmed
OFF TIME period.

Error LED

The Error LED will blink under overload conditions
and display the following code.
Please check if the outlet is overloaded or
has exceeded the controller's max amperage
rating (10A).

ON TIME Programming

Click the ON TIME knob once to display the cur-
rent setting. Turn the knob to adjust clock to the
desired hour then click to advance to minutes
programming. Click the knob again for seconds
and click once more to save the ON TIME settings.

Specifications

Max Amp: 10 amps @ 220~240VAC / 50Hz
Timer Modes: Day / Night / 24hours
Timer Programming Range:
0 seconds to 24 hours
Power Cord Length (ft/m): 6.5 / 2
Weight (lbs/kg) : ＜ 2.1 / 1
Dimensions (inch/mm):
5.07x4.68x1.95 / 130x120x50
Indoor Use Only
For Altitudes Up To 6500 ft / 2000 m
Operating Temperature Range ( F/℃):
40-104 / 4-40
Maximum Relative Humidity: 80%
IP Rating: IP20
Ｔｈｅ Ｒｅｃｙｃｌｅ ＴＩＭｉｎｇ Ｃｏｎｔｒｏｌｌｅｒ－Ｂ１ ｐｒｏｖｉｄｅｓ ｈｉｇｈｌｙ ａｃｃｕｒａｔｅ ｒｅｃｙｃｌｅ ｔｉｍｉｎｇ ｆｕｎｃｔｉｏｎａｌｉｔｙ ｗｉｔｈ ｔｈｅ
added advantages of integrated photocell control. Utilizing the photocell
feature limits cycle operation to exclusively light or dark hours, and when used
without photocell input the controller functions as a simple 24-hour repeating
timer. Also featuring a lithium backup battery, the programmed settings are
stored in the event of power interruption. ETL, CE, and FCC approved for safety
and dependability.

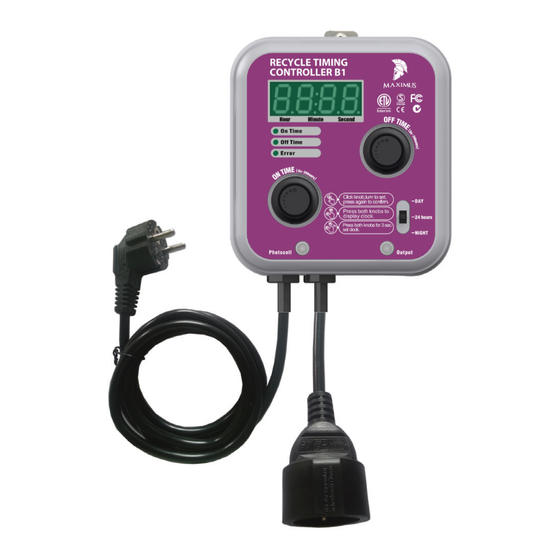

Digital Display
Integrated Photocell
Recycle Timing
Controller
B1
Timer Mode : Day
ON TIME (min): 1
OFF TIME (hr): 1
。
Ｍａｘｉｍｕｓ Ｖｅｒｓｉｏｎ ５．０
ｗｗｗ．ｈｉｔｅｃｇｒｏｗ．ｓｋ

OFF TIME Programming

Follow the same procedure as for ON TIME programming
using the OFF TIME knob.
3s

Current Time Programming:

Press the ON TIME and OFF TIME knobs simultaneously and
hold for three seconds to enter the current time setup. Use
the ON TIME knob to program the time - starting with the
hour. Click to save the hour setting and move onto the current
minute, click to save the minute. Do the same for seconds, if
desired, and click the ON TIME knob once more to save the
current time.
Display Current Time
Click both knobs simultaneously in order to display the cur-
rent time clock and click again to return to the normal display.

Recycle Timer Modes:

DAY Mode: Timer runs only when the photocell detects light.
24 hours Mode: Timer runs programmed settings
continuously - 24 hours a day.
NIGHT Mode: Timer runs only when no light is detected by the
photocell.
Output
LED remains illuminated when the output is activated.

Accessories:

Wall / Tent
Mounting Hardware

Test / Refresh Cycle Timer Function

This function can be used to quickly test the programmed
cycle times or, in other words, to refresh the programmed
cycle times. To test the programmed ON TIME cycle, press
and hold the ON TIME knob for 3 seconds. The display will
read 'tEst', click the knob to test/refresh. To test the OFF
TIME cycle follow the same process as for ON TIME.

24-Hour Mode

This option utilizes and repeats both the programmed DAY
and NIGHT mode cycle settings. The DAY settings run
during the light hours and the NIGHT settings run during the
dark hours.
In 24 hours mode the cycle settings are locked and cannot
be adjusted. The controller must be switched to DAY mode
to change the day cycle settings and NIGHT mode to change
the night cycle settings.
Note: If the power is lost or interrupted the controller will
store the current cycle time. When power is restored the
cycle will then continue from the time at power loss.
