1.
General characteristics .................................................................................... 1
2.
Safety summary ............................................................................................... 2
3.
Wiring guidelines ............................................................................................. 2
4.
Maintenance .................................................................................................... 3
5.
Using procedure .............................................................................................. 3
6.
Mechanical specifications ................................................................................ 4
7.
Relay outputs................................................................................................... 4
8.
Wiring connections........................................................................................... 5
9.
Programming ................................................................................................... 6
10.
Informations ..................................................................................................... 9
1. General characteristics
1.1.
Display
4 digits (7 segments) LED RED. Height : 14mm
Messages displayed:
4 red LEDs for alarm
1.2.
Power supply
24 VDC (minimum 20VDC), 5VA
1.3.
Setting - Connection
Using the three buttons in front, connection by screw terminals.
1.4.
Mémory
Backup all the settings in EEPROM (non-volatile memory).
HITEC - 61, rue Jean Jaurès - 91160 CHAMPLAN - Tel. : 01 69 74 10 90 - Fax : 01 69 74 10 99

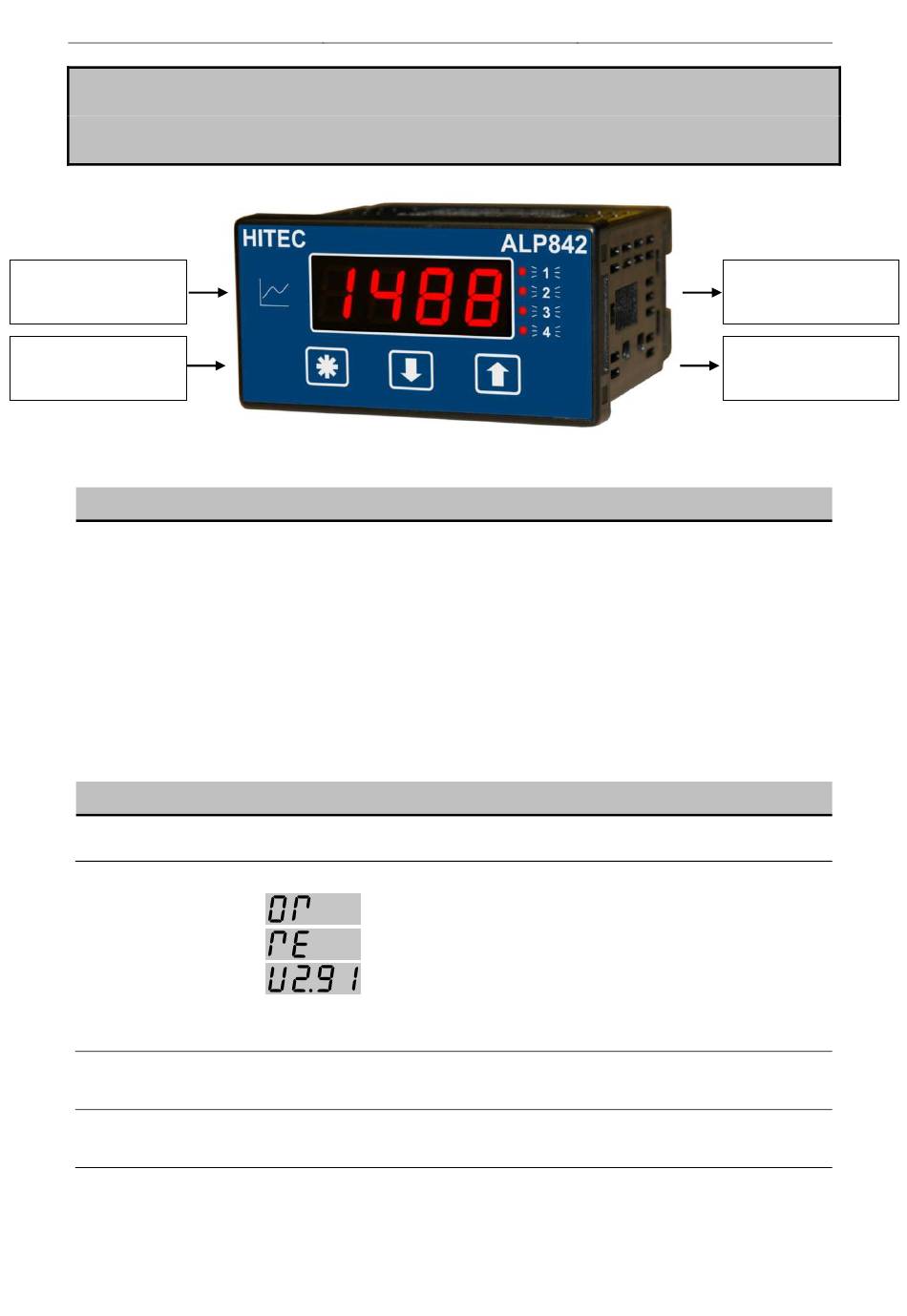

ALP842
Operating Instructions
∆ ALP842-24V General view
When the display exceeds 9999
When the display is less than -1999
During initializing the module (3 secondes)
1 / 11
ALP842-Datasheet-R1
Pump,...
Alarm...
Advertisement
Table of Contents
Related Manuals for HITEC ALP842
Summary of Contents for HITEC ALP842
-
Page 1: Table Of Contents
Using the three buttons in front, connection by screw terminals. 1.4. Mémory Backup all the settings in EEPROM (non-volatile memory). 1 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... -
Page 2: Safety Summary
Section power cables must be greater or equal to 1 mm2 and isolation greater than 1.5 kV 2 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... -
Page 3: Maintenance
Electromagnetic precautions: Power cables connected to terminals must be kept away from any electromagnetic source possible. 3 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... -
Page 4: Mechanical Specifications
Below, here's an example of wiring of 4 loads to the mains. 4 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... -
Page 5: Wiring Connections
Ground 24VDC power supply for the sensor (GND) + 24VDC power supply for the sensor (+24V) 5 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... -
Page 6: Programming
To change from one level to another, press on when LUL is displayed. 6 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... - Page 7 Alarm high limit (mode HA or BAND). Alarm low limit (en mode LA or BAND). Alarm hysteresis 7 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99...
- Page 8 Percentage of 0.00 to 100.0% of the desired value of the analog output 8 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99...
-
Page 9: Informations
: Input signal failure (Fail Output) : Alarm system failure (Fail Diagnosis) 9 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99... - Page 10 Point 1 : ISC1 = 20.00 ; DSC1 = (PE x V) / H 10 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99...
- Page 11 (Calculation of the volume from a chart height / volume, or a cylindrical tank). 11 / 11 HITEC – 61, rue Jean Jaurès – 91160 CHAMPLAN – Tel. : 01 69 74 10 90 – Fax : 01 69 74 10 99...
