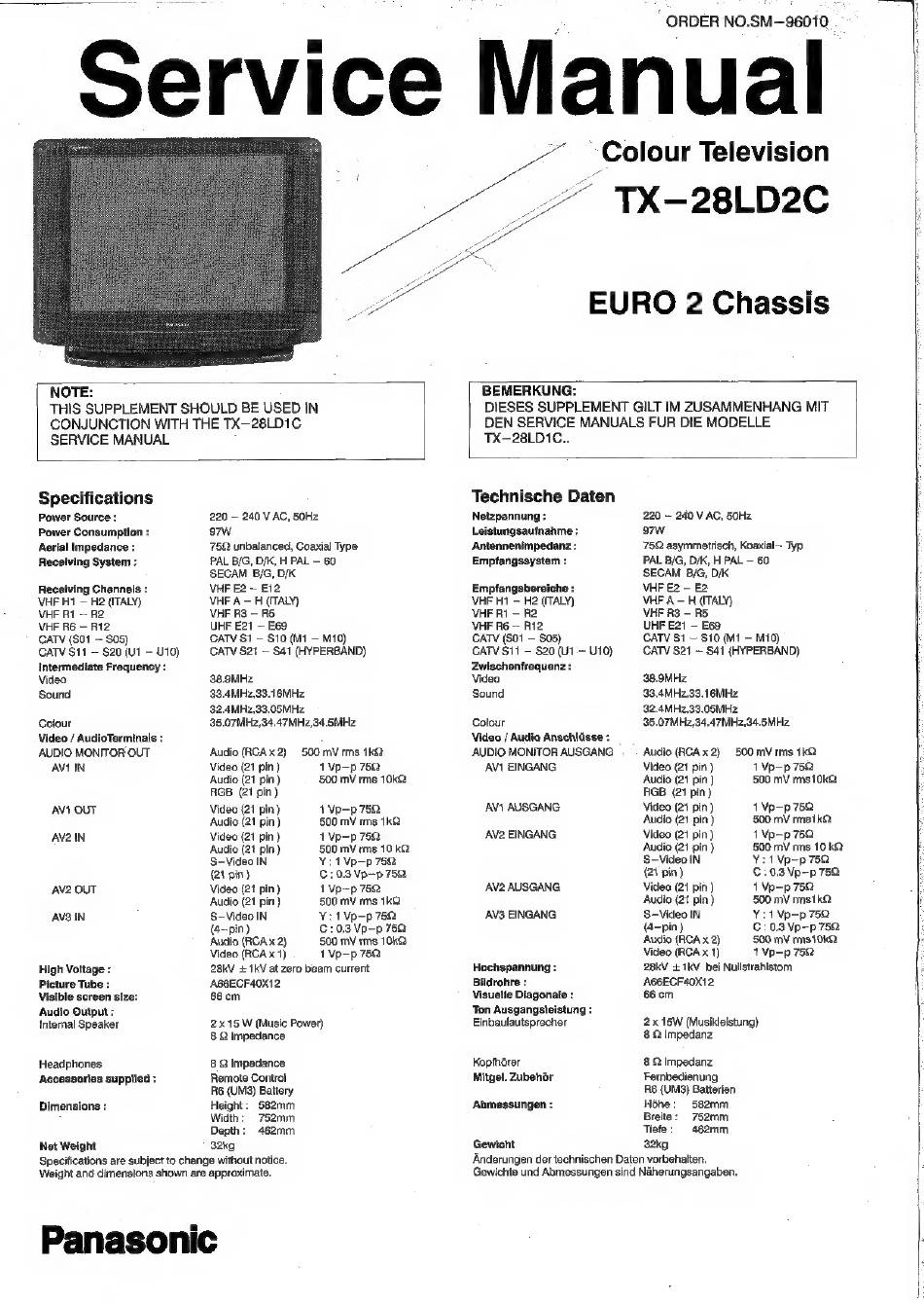

" ORDER NO.SM-96010
'Colour Television
TX-—28LD2C
EURO 2 Chassis
NOTE:
THIS SUPPLEMENT SHOULD BE. USED IN
CONJUNCTION WITH THE TX—28LD1C
SERVICE MANUAL
BEMERKUNG:
DIESES SUPPLEMENT GILT IM ZUSAMMENHANG MIT
DEN SERVICE MANUALS FUR DIE MODELLE
TX-28LD1C..
Specifications
Power Source :
220 — 240 V AC, 50Hz
Power Consumption :
97w
Aerial Impedance :
75 unbalanced, Coaxial Type
Receiving System :
PAL B/G, D/K, H PAL ~ 60
SECAM B/G, D/K
Receiving Channels :
VHF E2 ~ E12
VHF H1 — H2 (ITALY)
VHF A — H (ITALY)
VHF Rt ~ R2
VHF R8 — RS
VHF RG - R12
UHF E21 - E69
CATV (S01 ~ S05)
CATV S1 ~ S10 (Mi — M10)
CATV S11 — $20 (U1 - U10)
CATV S21 ~ S41 (HYPERBAND)
Intermediate Frequency :
Video
98.9MHz
Sound
33.4MHz,33.16MHz
32.4MHz,33.05MHz
Colour
35.07MHz,34.47MHz,34.5MHz
Video / AudioTerminals :
AUDIO MONITOR OUT
'Audio (RCA x2)
500 mV rms 1kQ.
AVI IN
Video (21 pin )
1 Vp-p 75Q
Audio (21 pin )
500 mV rms 10K2
RGB (21 pin)
AV OUT
Video (21 pin)
1Vp~p 752
Audio (21 pin )
500 mV rms 1kQ
AV2IN
Video (21 pin )
1 Vp-p 75
'Audio (21 pin )
500 mV rms 10 ko
'S-Video IN
Y: 1 Vp-p 752
(21 pin)
©:0.3 Vp-p 752
AV2 OUT
Video (21 pin )
1 Vp-p 752
Audio (21 pin}
500 mV rms 1kQ
AVS IN
:
S-Video IN
Y:1 Vp-p 752
(4-pin)
C:0.3 Vp-p 750
Audio (RCAx2)
500 mV rms 10k2
Video (RCA x 1)
1 Vp-p 752
High Voltage =
28kV £1kV at zero beam current
Picture Tube :
'AGGECF40X12
Visible screen size:
66cm
Audio Output :
Internal Speaker
2x 15 W (Music Power)
8 Q Impedance
Headphones
8 Q Impedance
Accessories supplied :
Remote Control
R6 (UM3) Battery
Dimensions :
Height: 582mm.
Width : 752mm.
Depth: 462mm.
Net Weight
32kg
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
Panasonic
Technische Daten
Netzpannung:
220 — 240 VAC, 50Hz
Leistungsaufnahme :
97w
Antennenimpedanz :
75Q asymmetrisch, Koaxial— Typ
Empfangssystem :
PAL B/G, D/K, H PAL ~ 60
SECAM B/G, D/K
Empfangsbereiche :
VHF E2 - 2
VHF Hi ~ H2 (ITALY)
VHF A — H (ITALY)
VHE Ri — R2
VHF R3 — RS
VHF R6 — R12
UHF E21 - E69
CATV (S01 — S05)
CATV S1 — S10 (Mi - M10)
CATV $11 - $20 (U1 — U10)
CATV S21 — S41 (HYPERBAND)
'Zwischenfrequenz:
Video
38.9MHz
Sound
33.4MHz,33.16MHz
32.4MHz,33.05MHz
Colour
85.07MHz,34.47MH2,34.5MHz_
Video / Audio Anschilisse +
AUDIO MONITOR AUSGANG =— Audio (RCAx 2) 500 mV rms 1kQ
AV1 EINGANG
Video (21 pin)
1 Vp-p 752
Audio (21 pin)
500 mV rms10kQ
RGB (21 pin)
AV1 AUSGANG
Video (21 pin)
1 Vp-p 752
Audio (21 pin)
500 mV rmstkQ
AV2 EINGANG
Video (21 pin)
1 Vp-p 75Q
'Audio (21 pin)
500 mV rms 10 kK
'S-Video IN
Y: 1 Vp-p 752
(21 pin)
€:0.3 Vp-p 752
AV2 AUSGANG
Video (21 pin )
1 Vp-p 752
Audio (21 pin)
500 mV rmstk2
AV3 EINGANG
S-Video IN
Y:1Vp-p 752
(4-pin)
C:0.3 Vp—p 75Q
Audio (RCA x 2)
500 mV rms10kQ
Video (RCA x 1)
1Vp-p 752
Hochspannung :
28kV + 1kV bei Nullstrahistom
Bildrohre :
'AGGECF40X12
Visuelle Diagonale
66 cm
'Ton Ausgangsleistung :
Einbaulautsprecher
2x 15W (Musikleistung)
8 Q Impedanz
Kopthérer
8 QImpedanz
Mitgel. Zubehdr
Fernbedienung
R6 (UMS) Batterien
Abmessungen :
Hohe:
582mm
Breite:
752mm
Tiefe:
462mm
Gewicht
32kg
Anderungen der technischen Daten vorbehalten,
Gewichte und Abmessungen sind Naherungsangaben.
