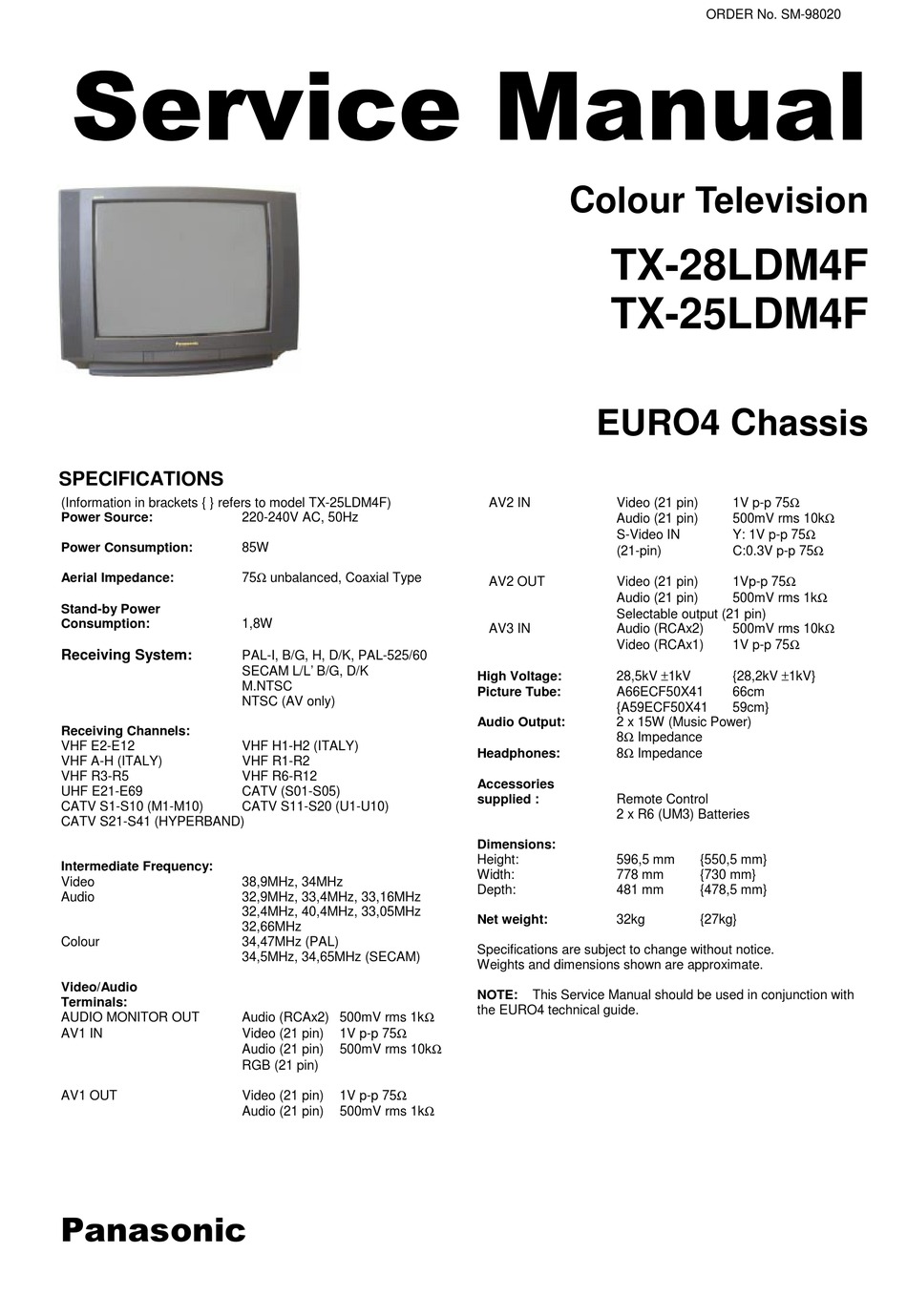

Panasonic TX-28LDM4F Service Manual

SPECIFICATIONS

(Information in brackets { } refers to model TX-25LDM4F)
Power Source:
Power Consumption:
Aerial Impedance:
Stand-by Power
Consumption:
Receiving System:
Receiving Channels:
VHF E2-E12
VHF A-H (ITALY)
VHF R3-R5
UHF E21-E69
CATV S1-S10 (M1-M10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video
Audio
Colour
Video/Audio
Terminals:
AUDIO MONITOR OUT
AV1 IN
AV1 OUT
3DQDVRQLF
220-240V AC, 50Hz
85W
75Ω unbalanced, Coaxial Type
1,8W
PAL-I, B/G, H, D/K, PAL-525/60
SECAM L/L' B/G, D/K
M.NTSC
NTSC (AV only)
VHF H1-H2 (ITALY)
VHF R1-R2
VHF R6-R12
CATV (S01-S05)
CATV S11-S20 (U1-U10)
38,9MHz, 34MHz
32,9MHz, 33,4MHz, 33,16MHz
32,4MHz, 40,4MHz, 33,05MHz
32,66MHz
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Audio (RCAx2) 500mV rms 1kΩ
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ

Colour Television

TX-28LDM4F
TX-25LDM4F
EURO4 Chassis
AV2 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
AV2 OUT Video (21 pin)
Audio (21 pin)
Selectable output (21 pin)
AV3 IN Audio (RCAx2)
Video (RCAx1)
28,5kV ±1kV
High Voltage:
Picture Tube: A66ECF50X41
{A59ECF50X41
Audio Output: 2 x 15W (Music Power)
8Ω Impedance
Headphones: 8Ω Impedance
Accessories
supplied : Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 596,5 mm
Width: 778 mm
Depth: 481 mm
Net weight: 32kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO4 technical guide.
ORDER No. SM-98020
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C:0.3V p-p 75Ω
1Vp-p 75Ω
500mV rms 1kΩ
500mV rms 10kΩ
1V p-p 75Ω
{28,2kV ±1kV}
66cm
59cm}
{550,5 mm}
{730 mm}
{478,5 mm}
{27kg}
