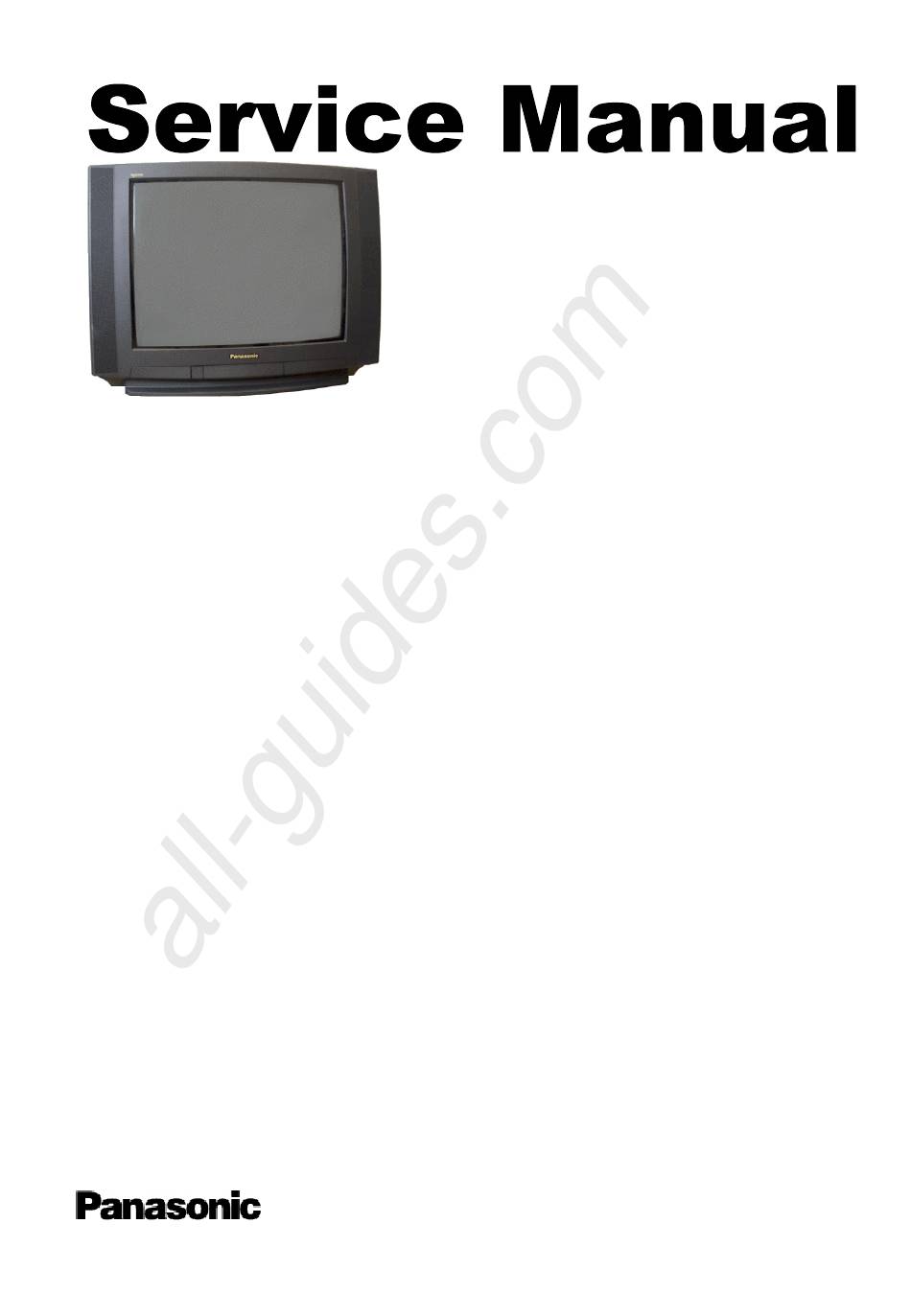

Panasonic TX-28LD4DPL Service Manual

SPECIFICATIONS

Power Source:
Power Consumption:
Aerial Impedance:
Stand-by Power
Consumption:
Receiving System:
Receiving Channels:
Intermediate Frequency:
Video
Audio
Colour
Video/Audio
Terminals:
AV1 IN
AV1 OUT
AV2 IN
AV2 OUT
AV3 IN
All manuals and user guides at all-guides.com
220-240V AC, 50Hz
116W
75Ω unbalanced, Coaxial Type
1,8W
PAL I (UHF/VHF), PAL 525/60
M.NTSC
NTSC (AV only)
UHF E21 - E69
VHF A1 - S20
39,5MHz
33,5MHz, 32,95MHz
35,07MHz (PAL)
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
S-Video IN Y: 1V p-p 75Ω
(21-pin) C:0.3V p-p 75Ω
Video (21 pin) 1Vp-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
Selectable output (21 pin)
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω

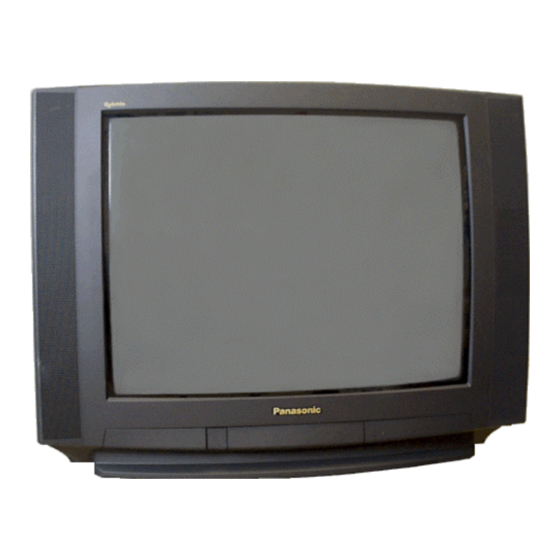

Colour Television
TX-28LD4DPL
EURO4 Chassis
Dolby Surround Out 5 x Dolby Surround Out RCA
(Rear) External Speaker connections
2 x Rear
1 x Centre
1 x External Bass(3D Subwoofer)
28,5kV ±1kV
High Voltage:
Picture Tube: A66ECF50X41
Audio Output: Front Left/Right
(Music Power) External Centre
External Bass
Surround
8Ω Impedance
Headphones: 8Ω Impedance
3,5 mm
Accessories
supplied : Remote Control
2 x R6 (UM3) Batteries
TS-600DP Video cabinet / Speaker pack
Dimensions:
Height: 596,5 mm
Width: 778 mm
Depth: 481 mm
Net weight: 33kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO4 Technical Guide.
ORDER No. SM-98030
66cm
2 x 20W
20W
26W
2 x 15W
